User Manual for Jobu Design Replacement Lens Foot for Sigma 150-600mm f 5-6.3 DG OS HSM Sports Lens Click to enlarge the picture
Contents of the user manual for the Jobu Design Replacement Lens Foot for
- Product category: Tripods & Support Jobu Design
- Brand: Jobu Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jobu Design Tripods & Support
|
User manual for the Jobu Design Replacement Lens Foot for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jobu Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jobu Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jobu Design product will considerably shorten its lifespan!
|

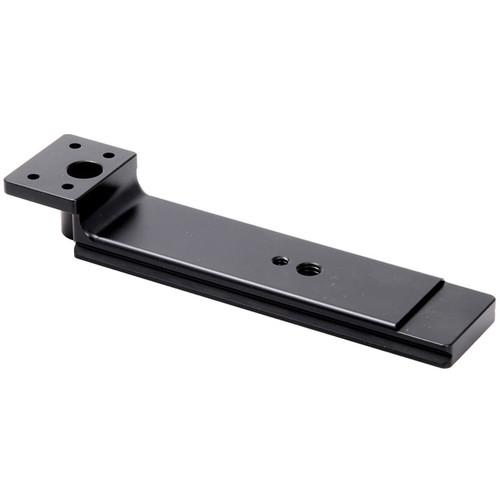

Product description The Replacement Lens Foot from Jobu Design provides the ability to adapt a Sigma 150-600mm f/5-6.3 DG OS HSM Sports Lens to an Arca-type compatible quick release clamp.
An included hex wrench allows the original lens foot to be unscrewed and replaced with the LF-S156S Replacement Lens Foot. Dual retaining screws are included for use along the underside of the replacement lens foot. These screws prevent the replacement lens foot from accidentally sliding off when the clamp it is placed on is opened. For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 or 3/18"-16 mounts, the surface of the replacement lens foot is tapped with one 3/18"-16 female accessory thread and one 1/4"-20 female accessory thread. While in use, the tip of the Replacement Lens Foot can also accommodate a separately-available Jobu Design FB-TM2 Topmount Flash Bracket.
Constructed from anodized aluminum-alloy, the Replacement Lens Foot is durable while remaining lightweight. -
- Provides the ability to adapt a Sigma 150-600mm f/5-6.3 DG OS HSM Sports Lens to an Arca-type compatible quick release clamp
- Dual retaining screws for the underside of the replacement lens foot help prevent it from accidentally sliding off a clamp
- One 3/18"-16 female accessory thread and one 1/4"-20 female accessory thread for direct connection to a 1/4"-20 or 3/18"-16 mount
- While in use, replacement lens foot can also accommodate a separately-available Jobu Design FB-TM2 Topmount Flash Bracket
- Hex wrench to unscrew original lens foot and attach replacement lens foot
- Hex key to remove or fasten retaining screws
UPC: 728795730185 In the Box Jobu Design Replacement Lens Foot for Sigma 150-600mm f/5-6.3 DG OS HSM Sports Lens 2 x Retaining Screws M3 Hex Key 3/32" Hex Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jobu Design Replacement Lens Foot for Sigma 150-600mm f 5-6.3 DG OS HSM Sports Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJobu Design LF-S156S Specs | Material of Construction | Aluminum | | Length | 7.0" / 17.8 cm | | Width | 1.5" / 3.8 cm | | Height | 1.0" / 2.5 cm | | Weight | 4.6 oz / 130.4 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.7 x 4.5 x 2.3" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
