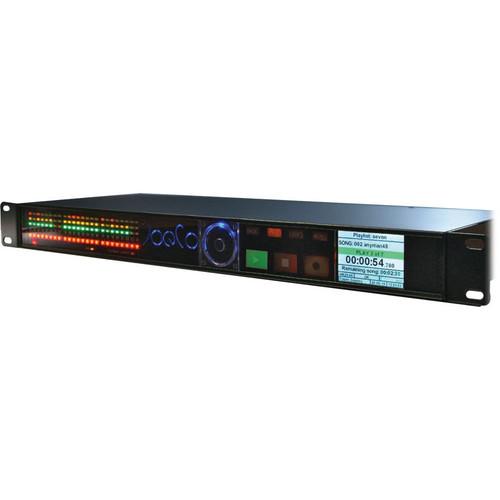

User Manual for JoeCo BBP1D Blackbox Player Click to enlarge the picture
Contents of the user manual for the JoeCo BBP1D Blackbox Player
- Product category: Digital Recorders & Players JoeCo
- Brand: JoeCo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JoeCo Digital Recorders & Players
|
User manual for the JoeCo BBP1D Blackbox Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JoeCo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JoeCo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JoeCo product will considerably shorten its lifespan!
|
Product description The JoeCo BBP1D Blackbox Player is a straightforward multi-track digital player that supports playback of up to 24 digital audio stems at up to 24-bit, 96kHz resolution. Mono broadcast standard WAV files are read from portable USB2 and SDHC media devices, and some of the many applications for the BBP1D Blackbox Player includes backing tracks in live performances, multi-lingual translation applications, audio installations in halls, theaters, theme parks and more. There are discrete output connections via unbalanced 3x 25way D-sub analog format connectors. The BBP1D Blackbox Player features a full set of transport controls on the 19inch rackmountable chassis. Also featured is a color LCD display, and the unit is easily controlled via MIDI or a QWERTY keyboard. - Simultaneous playback of 24 tracks in up to 24bit/96kHz quality. No computer required at the performance.
- Files for playback can be loaded from any digital audio workstation capable of creating Broadcast WAV files or recorded directly.
- Audio can be stored on USB2 hard drive or flash drive.
- Simple naming convention ensures that the correct file is replayed through each output.
- Unbalanced analog connections via Tascam format D-sub connectors, and AES/EBU digital outputs
- Intuitive front panel, keyboard or footswitch operation for total control during the performance.
- Can be controlled via MIDI.
- Set lists can be configured as simple XML format playlist files.
- Synchronous playback to SMPTE timecode (LTC and MTC).
- Multiple playlists can be stored for quick changes or alternative show formats.
- Separate foldback mixes can be configured using normal facilities on the console. An additional mix can be sent via the headphone output for the musical director.
- Can be configured to accept an incoming source of digital clock, or optionally word clock.
- Unique feature is the ability to automatically switch to a synchronous secondary system in the event of a failure. (Normally requires a costly external switching matrix.)
In the Box JoeCo BBP1D Blackbox Player (Unbalanced & AES/EBU) Power Supply User Manual Quck Start Guide 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JoeCo BBP1D Blackbox Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJoeCo BBP1-D Specs | Analog I/O | Switchable -10dBu /+4dBu: Unbalanced | | Sample Rate | 44.1, 48, 88.2 and 96kHz | | Output | 24 mono channels plus internally "mixed" headphone output | | Audio Connections | Unbalanced Analog: 3 x 25way D-sub TASCAM analogue format (Hot in, cold out for connection into insert points on console)
AES/EBU: 3x 25way D-sub YAMAHA digital format | | Storage | External USB2 storage device:
• USB2 drive • Flash RAM drive (thumb drive) | | Audio Format | Standard mono Broadcast WAV files
Audio file naming convention: sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song] -tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters] -trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory] | | Playlist | Simple XML file structure for easy playlist editing | | Average Load Time | Typically < 3 seconds | | Control | Instant replay controlled by:
• Timecode (LTC or MTC) • Footswitch
• QWERTY keyboard • MIDI control
• Real-time clock Automatic pre-load of next song in playlist | | MIDI | MIDI open loop connection
MIDI Start, Stop commands MIDI Song Select: for preloading specific Songs
MIDI Program Change MIDI Show Control | | Digital | Audio clocks:
Selectable between: • Internal
• AES/EBU or SPDIF clock • Word clock (available on BBP1A and BBP1D only)
Timecode All standard frame rates supported
Auto fail-over Analogue fail-over automatically switches to synchronous secondary system in case of a replay problem | | Power | DC input: 9-12V dc (PSU supplied)
Power: < 25W | | Dimensions | 17.12 x 1.73 x 6.69" (435 x 44 x 170mm) 19" Rack mountable | | Weight | < 5.5 lb (2.5kg) | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 22.7 x 15.6 x 2.8" |
