Product description

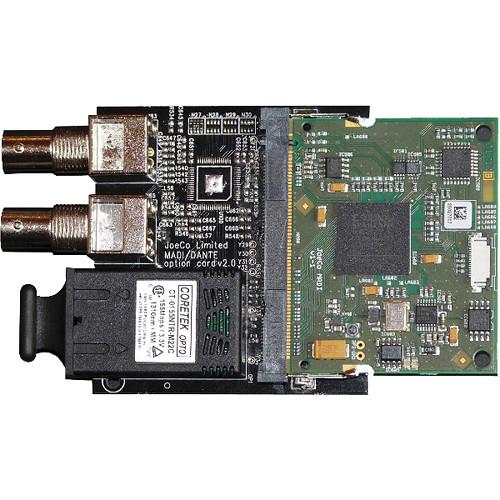

• MADI Card Option for the BBR1MP Recorder The BBR1MP-MAD MADI Card Option for the BBR1MP Recorder from JoeCo is a user installable card adding 24 channels of MADI I/O to the BBR1MP recorder. It can provide a digital output to a console, or another recording device, for real-time monitoring or backup of the mic preamp signals. It can also be utilized for replaying of pre-recorded tracks. Furthermore, the card can function as a 24-channel MADI input when mic preamp usage is not required.The card additionally provides the facility to combine the outputs of two BBR1MP units into a single MADI output stream containing all 48 channels of audio data.

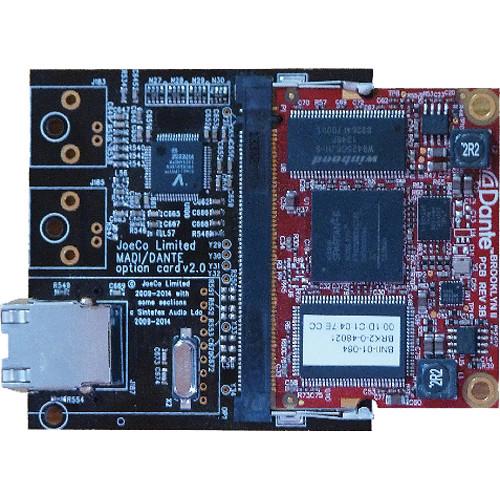

• Dante Card Option for the BBR1MP Recorder The BBR1MP-DAN Dante Card Option for the BBR1MP Recorder from JoeCo is a user installable card adding 24 channels of Dante I/O to the BBR1MP recorder. It can provide a digital output to a console, or another recording device, for real-time monitoring or backup of the mic preamp signals. It can also be utilized for replaying of pre-recorded tracks. Furthermore, the card can function as a 24-channel Dante input when mic preamp usage is not required.

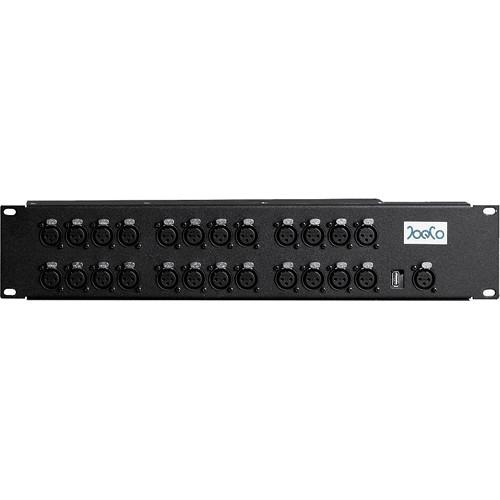

• Breakout Box Option for BBR1MP Recorder The Breakout Box Option for the BBR1MP Recorder from JoeCo is 2U rack-mountable breakout panel with 24 XLR Female input connectors, and includes a USB connection. The breakout package includes 3 eight channel 25-way, D-sub terminated multicore connection looms for linking the Breakout Box to the BBR1MP BlackBox Mic Pre Recorder. The USB and timecode connectors are for remoting their respective connectors from the rear panel on the BBR1MP.

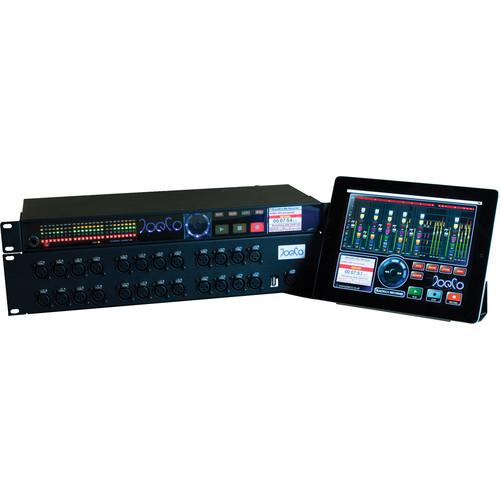

• JoeCoRemote for iPad The JoeCoRemote from JoeCo allows you to remotely control your BlackBox recorder or player from your iPad (sold separately). Developed for use with a range of iPad models, the JoeCoRemote, in combination with a specially designed hardware interface (sold separately), can be used with any 24-channel or 64-channel BlackBox Recorder/player.The iPad interface enables all transport functions (play, stop, and record) to be remotely controlled, as well as providing access to the BlackBox menu structure for changing settings. In addition to providing a remote control surface and highly accurate metering application for the BlackBox recorder, it can also be used for remotely controlling and editing BlackBox player playlists. Playlists stored on the player can be viewed and edited on the iPad interface as required, before being stored back on the player's disk, offering an intuitive alternative for remote editing of show content. The iPad interface also provides a further option for triggering playlists during shows, theater performances, and themed entertainment.The JoeCoRemote has been primarily developed to work wirelessly, via the hardware interface. However, it can also be connected to the interface by using a cable to provide wired connectivity for locations where multiple competing WiFi signals can create a congested environment.
  • Designed for use with all 24-channel and 64-channel analog and digital BlackBox recorders and players
  • Allows you to remotely control multi-channel recording and playback functions
  • Displays highly accurate metering
  • Allows you to remotely access and change set-up and menu options
  • You can remotely trigger playlists (live shows, theater, themed entertainment, and houses of worship)
  • Allows for remote viewing, editing, and creating playlists
  • Enables you to operate wirelessly from on stage or front of a house
  • Supports IEEE 802.11n in 2.4 GHz and 5 GHz bands ¹

    Please Note:

    iPad only supports 5 GHz as part of an infrastructure network. close
  • Operates via an alternative wired connection
  • Can be retrofitted to any BlackBox recorder or player ²

    Please Note:

    BlackBox units with serial numbers containing KBx require additional interface cable. close

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 3 x 8-Channel 25-Way D-Sub Connecting Looms, ~ 3' (914 mm)

• Limited 1-Year Warranty

• Limited 1-Year Warranty on Parts & Labor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Breakout Box Option for BBR1MP Recorder

  Connections	24 XLR/3 Female USB
  Rack Height (EIA) Units	19", 2 Rack-Unit height
  Dimensions	19.0 x 3.5 x 1.4" (475 x 88 x 35 mm)
  Weight	2.2 lb (1.0 kg) (not including Looms)

• JoeCoRemote for iPad

  Requirements

  iPad capable of running iOS 6.0 or higher 4.3MB free space on iPad JoeCoRemote app (free download via iTunes) JoeCoRemote Hardware Interface (cables supplied) BlackBox Recorder/Player with software version 2.3.x or later USB2 hard drive or Fast Flash drive (FAT32 formatted) WiFi or wired connection

  Box Dimensions (LxWxH)	8.6 x 7.4 x 3.2"

• MADI Card Option for the BBR1MP Recorder
• Dante Card Option for the BBR1MP Recorder
