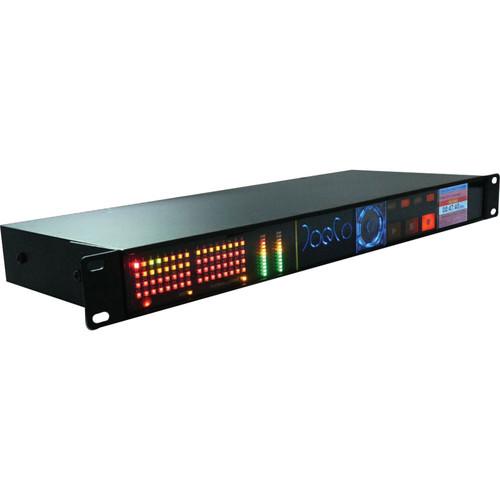

User Manual for JoeCo BlackBox Player - 64 Channel MADI I O Plus 8 Channel Balanced Input Click to enlarge the picture
Contents of the user manual for the JoeCo BlackBox Player - 64 Channel
- Product category: Digital Recorders & Players JoeCo
- Brand: JoeCo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JoeCo Digital Recorders & Players
|
User manual for the JoeCo BlackBox Player - 64 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JoeCo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JoeCo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JoeCo product will considerably shorten its lifespan!
|
Product description Featuring eight analog channels, video-synchronization options via timecode, and a host of digital I/Os, the BlackBox Player from JoeCo is designed to complement the BlackBox recorder by providing 64 channels of playback via MADI. Thus, audio stems for an entire slate of material-be it concert, broadcast, or exhibition-can be arranged into playlists and played directly from the BlackBox in stereo or surround. The playlists themselves are editable; should the setlist change, these XML files can be adjusted simply and quickly. They can also be looped.
The BlackBox player can be controlled in a variety of ways, including via MIDI commands, timecode, a QWERTY keyboard, a footswitch, or the JoeCoRemote for iPad. Furthermore, each channel can be separately equalized and level-balanced to better suit the strictures imposed by venue acoustics, audience generated noise during performances, or live-audio tracks played alongside prerecorded material. It also features a separate headphone output to provide an additional mix straight to the ears of someone like the music director of a performance, for instance.
The BlackBox player features these and a whole other host of features-and all of it in 1U of rackspace. Furthermore, its power supply is included. - Notable Features
-
- Synchronous multi-channel playback in up to 24-bit/96 kHz quality; no computer required
- Files for playback can be loaded from any DAW capable of creating valid WAV/BWAV files, or recorded directly
- Audio can be stored on USB2 hard drive or fast Flash drive
- Simple naming convention ensures that the correct file is replayed through each output
- Setlists configured as XML playlist files
- Remote control via QWERTY keyboard, footswitch, MIDI, SONY 9-pin, and JoeCoRemote for iPad
- Synchronous playback to SMPTE timecode (LTC and MTC)
- Multiple playlists can be stored for quick changes or alternative show formats
- Can be configured to accept an incoming source of digital clock
- Built-in safety features including automated fail-over for Balanced Player pairs
In the Box JoeCo BlackBox Player - 64 Channel MADI I/O Plus 8 Channel Balanced Input Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JoeCo BlackBox Player - 64 Channel MADI I O Plus 8 Channel Balanced Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJoeCo BBP64-MADI Specs | Headphones | Mono or stereo solo or mixed output from internal mixer | | Analog Input | 8x, switchable -10 dBu / +4 dBu | | Digital Input | 64 channels, MADI | | Digital Output | 64 channels, MADI | | Sample Rates | 44.1 to 96 kHz | | Storage | External USB2 storage device:- USB2 drive
- Flash RAM drive, 32 GB minimum
- SDHC card via USB2 converter (class 10 minimum)
| | Audio Format | WAV: mono, stereo, and polywav files | | Supported Playlist Formats | XML | | Pre-Load Time | < 3 seconds, typical | | Control | Instant replay controlled by time code (LTC or MTC), footswitch (GPI), QWERTY keyboard, MIDI control, real-time clock, and JoeCoRemote for iPad
Automatic pre-load of next song in playlist | | MIDI | MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control | | Word Clock | Selectable between internal, MADI in, SPDIF, AES/EBU | | Timecode | 1/4" TRS jack: tip = unbal TC, Ring = GPI, sleeve = GND
All standard frame rates supported | | Backup | Analogue fail-over automatically switches to synchronous secondary system in case of replay problem (Balanced Player pairs). This uses 1x channel of playback | | Rack Space | 1U | | DC Input | 9 to 12 VDC | | PSU | Supplied | | Power | < 25 W | | Dimensions | 17.1 x 1.7 x 6.7" / 43.5 x 4.4 x 17.0 cm | | Weight | < 5.5 lb / 2.5 kg |
