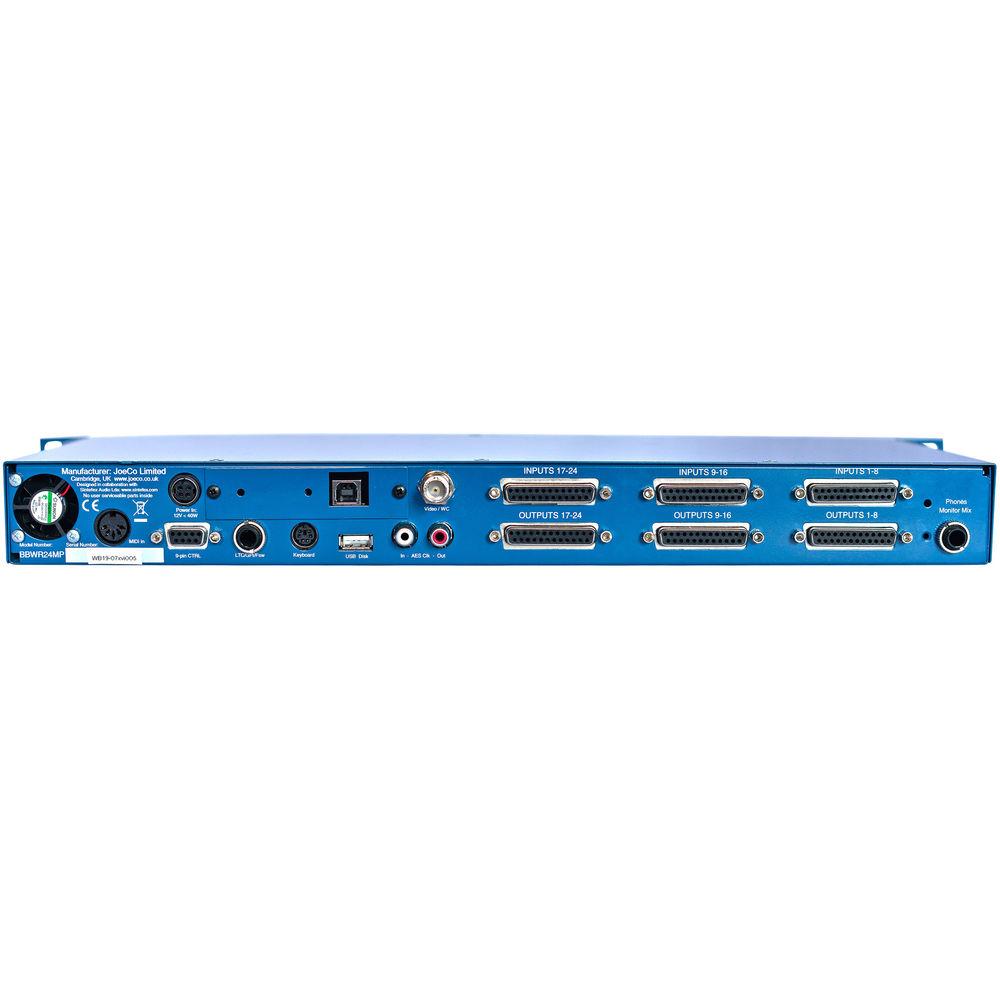

User Manual for JoeCo Bluebox Workstation Interface Recorder with 40 Inputs and 24 Outputs Click to enlarge the picture
Contents of the user manual for the JoeCo Bluebox Workstation Interface Recorder with
- Product category: Digital Recorders & Players JoeCo
- Brand: JoeCo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JoeCo Digital Recorders & Players
|
User manual for the JoeCo Bluebox Workstation Interface Recorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JoeCo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JoeCo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JoeCo product will considerably shorten its lifespan!
|
Product description The BlueBox Workstation Interface Recorder from JoeCo provides 16 channels of ADAT Lightpipe inputs with SMUXII support for higher sample rates, 24 channels of dedicated balanced line inputs, and 24 balanced outputs. In a studio environment, the BlueBox can be used as a low latency audio interface device carrying up to 24 channels of 24-bit/96 kHz audio in both directions simultaneously over USB 2.0. And if your DAW freezes or fails, the recorder keeps running, utilizing its onboard recording function to ensure that none of your source recordings are lost, even if the power fails.Local audio is recorded direct to an external USB2.0/3.0 drive in broadcast WAV format for instant ingest into a workstation. Alongside the BlueBox’s multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Optional support for iXML data can also be provided.The BlueBox will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoControl on your workstation itself or via JoeCoRemote for iPad. Levels are displayed on high resolution meters.The monitor mix can be adjusted in real time incorporating both local and workstation feeds giving the perfect mix for monitoring during recording. Expandable channel strips provide graphic faders, pan, solo, mute and other parameter controls. -
- Low-latency interface to workstation running at up to 24-channel / 24-bit / 96 kHz in both directions simultaneously
- Core Audio and Windows drivers available
- 24-channel local recording or playback at up to 24-bit / 96 kHz
- Remote control, monitoring and set-up via JoeCoControl window on workstation or JoeCoRemote for iPad
- Records standard broadcast WAV files to an external USB2/3 drive. Captured audio material can be imported into any digital workstation for instant data recovery
- Supports world clock sync and AES/EBU or SPDIF clock
- Supports storing iXML data in BWAV files
- Can run off 12V power source for location use
- Safe’n’Sound Record Recovery protects files in case of power or disk failure
In the Box JoeCo Bluebox Workstation Interface Recorder with 40 Inputs and 24 Outputs Universal PSU Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JoeCo Bluebox Workstation Interface Recorder with 40 Inputs and 24 Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJoeCo BBWR24B Specs Inputs | 40 | Line Inputs | 24 | ADAT | 16-channel ADAT Lightpipe inputs | Balanced Output | 24 | Headphone Outputs | 2 stereo, 2 assignable | Sample Rates | 44.1, 48, 88.2, 96 kHz | Bit Depth | 16 / 24-bit | Disk Interface | USB 2.0 (compatible with USB 3.0) | Disk Format | FAT32 - compatible with both Mac and PC | File Format | Broadcast WAV (BWAV) | External Drives | USB 2.0/3.0 hard drive or fast memory stick | File Type | Standard mono Broadcast WAV or multi-channel WAV | User Interface | Primarily designed for use with the JoeCoControl app or JoeCoRemote iPad app, the unit can also be configured directly from the front panel | Interface | Workstation Interface: USB 2.0 carrying up to 24 channels of 24-bit 96 kHz audio in both directions simultaneously | Driver | Core Audio and Windows drivers | Latency | Local foldback mix <10 us Workstation (depends on spec of computer and plug-ins) typically 6.5 mS round trip | Playback | Up to 24 channels @ up to 96 kHz / 24-bit | THD+N | THD+N E-E: better than -90 dBFS (unity gain, 20 to 22 kHz, unweighted) Frequency response: better than +/- 0.5 dB, 20 to 40 kHz @ 96 kHz sampling | Monitoring | Front-mounted 1/4" TRS jack socket for stereo headphone mix, PFL, solo etc (Engineer) Rear-mounted 1/4" jack socket for stereo headphone mix only (Artist) 24 line level outputs | Control | Audio Clock: Word clock, AES/EBU or SPDIF clock JoeCoControl interface on workstation JoecoRemote for iPad (requires JoeCoRemote hardware or JoeCo Bluetooth interface) Sony 9-pin and MIDI (MMC) for transport controls | Power | Supply: 12 VDC (Kycon 4-pole connector) Consumption: 35 W maximum | Rack Height | 19" (48 cm) | Dimensions | 17 x 1.7 x 6.6" (44 x 4.4 x 17 cm) | Weight | Approximately 6.6 lb (3.0 kg) | | Package Weight | 7.45 lb | Box Dimensions (LxWxH) | 23.7 x 9.9 x 5.0" |
