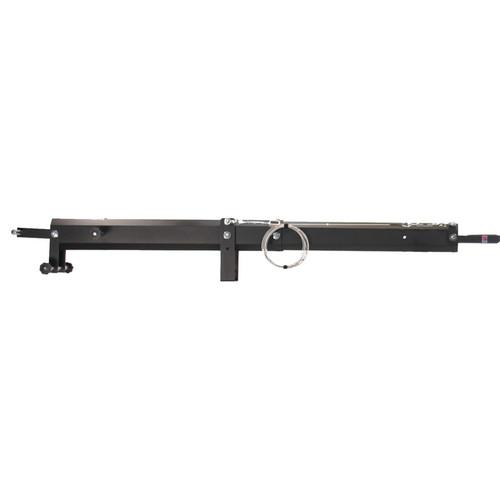

User Manual for Jony JonyJib Pro 9 with Control Center Mounting Hub Click to enlarge the picture
Contents of the user manual for the Jony JonyJib Pro 9 with Control
- Product category: Cranes & Jibs Jony
- Brand: Jony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jony Cranes & Jibs
|
User manual for the Jony JonyJib Pro 9 with Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jony product will considerably shorten its lifespan!
|
Product description The JonyJib Pro 9 is a modular jib arm built to be lightweight and portable without sacrificing functionality. The design revolves around a series of 4' sections that provide 3' of extension each (since there is a 1' overlap when the modules are connected). This model comes with 2 sections, for a total height of 9'. All the modules of the jib arm can be stored in a 48" tripod bag. Also included in this package are a camera platform, leveling cable, pivot bracket, Mitchell mounting hub, and a rear control and weight mounting center. - Mitchell Mounting Hub
- The JonyJib Pro mounts to a Mitchell mount style tripod via this 150mm Mitchell mounting hub. A 2.75" nut holds the hub in place on the Mitchell mount. The weight of the jib's pivot bracket attaches to an aluminum disc that glides on an oil impregnated bearing. This gives the JonyJib perfect drag for smooth arcing moves. The friction knob allows you to brake the jib or apply additional drag as needed.
- Rear Control Center & Weight Bar
- This unit provides a horizontal bar to mount your controls upon. It also provides a horizontal primary weight bar for your counterweights. We recommend a combination of 25, 10, 5, and 2.5 lb cast iron plate weights with at least a 1" mounting hole. This assembly swivels, further absorbing unwanted vibration or movement from the operator.
- Since each section slides out, pulled from the previous sections, you may store unused sections in the tail as ballast weight. This lightens your counterweight demand. Buy as few, or as many, sections as you need. Then purchase more sections when you need them.
- Pivot point is pre-drilled to mount an optional Anton Bauer Gold Mount plate kit that can feed an optional 12V power distribution box at the tail. The distribution box can feed 12V power to the motorized pan & tilt head, zoom & focus controls, the monitor and the camera. The pivot point is also pre-drilled to mount the included LCD monitor mounting bracket or an optional monitor platform for 5-9" CRT monitors.
- Camera platform is designed to over-sling or under-sling an optional motorized pan & tilt head without any changes. Just attach it either way and there's 360° pan & tilt clearance.
- Main arm and extension sections are fabricated aluminum extrusions while the pivot point, camera platform and rear control center are steel. All are powder coated with a durable cobalt black finish.
In the Box Jony JonyJib Pro 9 with Control Center/Mounting Hub Rear Control Unit Mitchell Mounting Hub 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jony JonyJib Pro 9 with Control Center Mounting Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJony JONYJIB PRO 09 Specs | Construction | Aluminum, Steel | | Payload Capacity | Platform
45 lbs (20.4kg)
Camera
30 lbs (13.6kg) | | Counterbalance System | Yes | | Height Range | 3-9' | | Tripod Attachment | 100mm | | Head Attachment | 1/4"-20 | | Head Arm Leveling | Via Control Cable | | Leveling Indicators | Not Specified By Manufacturer | | Fold Down | 48" (122cm) | | Weight | 20-60 lbs (9.1-27.2kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 53.0 x 11.0 x 11.0" |
