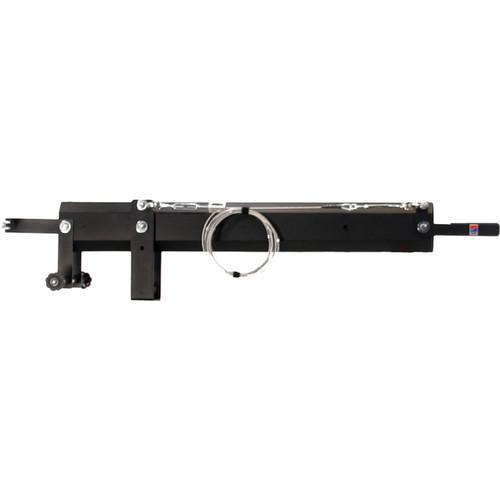

User Manual for Jony JonyJib Pro Jr Camera Crane Jib Arm Click to enlarge the picture
Contents of the user manual for the Jony JonyJib Pro Jr Camera Crane
- Product category: Cranes & Jibs Jony
- Brand: Jony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jony Cranes & Jibs
|
User manual for the Jony JonyJib Pro Jr Camera Crane contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jony product will considerably shorten its lifespan!
|
Product description The JonyJib Pro Jr Camera Crane Jib Arm from Jony is a 1 section jib giving 8' of camera height. It includes one mast section, camera platform, leveling cable, pivot bracket, 150mm Mitchell mounting hub, rear control/weight mounting center, auxiliary weight bar, accessory pack, LCD monitor mount and hardware. This jib has 2 selectable fulcrum points. The pivot point is pre-drilled to mount an optional Anton Bauer Gold Mount plate kit that can feed an optional 12V power distribution box at the tail. The distribution box can feed 12V power to the motorized pan & tilt head, zoom & focus controls, the monitor, and the camera. The pivot point is also pre-drilled to mount the included LCD monitor mounting bracket or an optional monitor platform for 5 to 9" CRT monitors (sold separately). The adjustable camera platform leveling cable is also anchored at the pivot point. The camera platform is designed to over-sling or under-sling an optional motorized pan & tilt head without any changes. Simply attach it to obtain 360° pan & tilt clearance.The main arm and extension sections are fabricated aluminum extrusions while the pivot point, camera platform, and rear control center are steel. All are powder coated with a durable cobalt black finish. The Pro Jr mounts to a Mitchell mount style tripod via the included 150mm Mitchell mounting hub. A 2.75" nut holds the hub in place on the Mitchell mount. The weight of the jib's pivot bracket attaches to an aluminum disc that glides on an oil impregnated bearing. This gives the JonyJib excellent drag for smooth arcing moves. The friction knob allows you to brake the jib or apply additional drag as needed. In the Box Jony JonyJib Pro Jr Camera Crane Jib Arm Mast Section Camera Platform Leveling Cable Pivot Bracket Auxiliary Weight Bar Accessory Pack LCD Monitor Mounting Bracket with Hardware 150mm Mitchell Mounting Hub Rear Control and Weight Mounting Center Limited 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Jony JonyJib Pro Jr Camera Crane Jib Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJony JONYJIB PRO JR Specs | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 18.0 x 12.0 x 12.0" |
