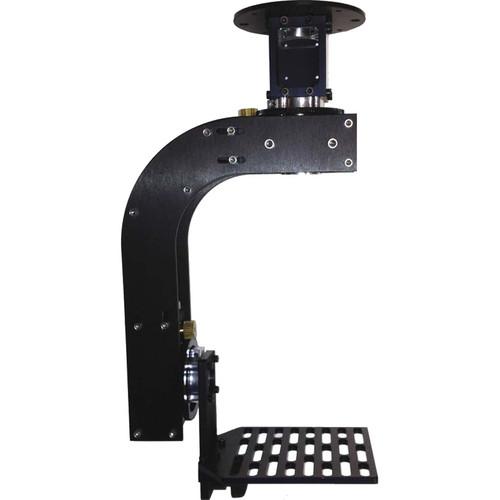

Product description The JonyJib MotorHead HD Mini is a motorized remote pan and tilt head for cameras weighing up to 5 pounds. It features 360 degrees of pan and tilt, with a hollow axle design allowing you to run your cables through the unit. The MotorHead HD Mini features a camera platform with multiple mounting slots allowing you to balance the camera.
The unit features DC powered motors, and is suitable for use at sporting events, commercials, music videos and narrative films. It includes a Joystick based controller unit with adjustment knobs for speed and sensitivity and switches for reversing direction on the tilt and pan axis. The unit features continuous pan and tilt provided you have camera clearance, and don't snag your cables.
The MotorHead HD Mini includes one 2" long mounting bolt and fastener knob that can be used to mount to available jibs and tripods with a 3/8"-16 mounting bolt. It also includes a 20' long cable run, allowing you plenty of length to mount it on a jib arm. The MotorHead HD Mini mounts in either underslung or overslung mode. In the Box Jony MotorHead HD Mini Motorized Pan & Tilt Head 1/4"-20 Camera Tie Down Knob 3/8"-16 Threaded Bolt Knob with Embedded 3/8"-16 Nut Controller 20' Cable Y Cable Power Supply Limited 2-Year Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Jony MotorHead HD Mini Motorized Pan & Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJony MOTORHEAD HD MINI Specs | | | Material of Construction | Black anodized brushed aluminum | | Overall Dimensions | Width
7" (17.8 cm) | | Camera Platform | Adjustable
Yes
Width
4.25" (10.80 cm)
Depth
4" (10.2 cm)
Slot Pattern
Random | | Lens Clearance Radius | For 360° tilt: 5.5" (139.7 mm) | | Maximum Camera Length | For 360° tilt: 11" (279.4 mm) | | Motor Voltage | 12VDC | | Motor Connection | 3.5 mm stereo mini plug | | | | Material of Construction | Cast aluminum
Textured black powder coat | | Controller Voltage | 12VDC | | Power Input Connector | 4-pin female XLR | | Motor Connection | 5-pin female XLR | | Joystick | Handle Diameter: 1.5" (3.8 cm)
Handle Material: Foam | | Dimensions (HxWxD) | Including Handle: 11 x 4 x 5" (27.9 x 10.2 x 12.7 cm) Handle Length: 5" (12.7 cm) | | | | Input Voltage | 120 to 220 VAC | | Output Voltage | 12 VDC, 1A | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 18.3 x 12.6 x 8.8" |
