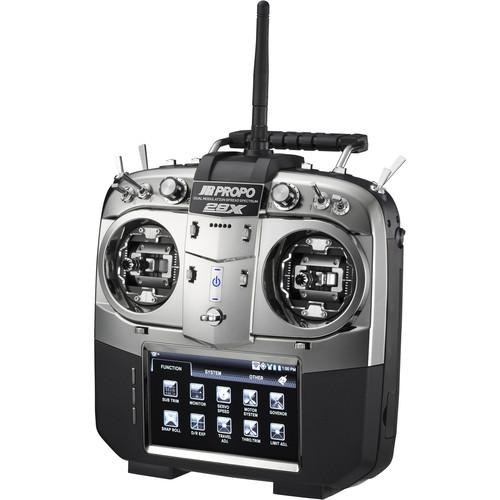

User Manual for JR AMERICAS 28X DMSS 2.4 GHz 28-Channel Transmitter with RG712BX XBus Receiver Click to enlarge the picture
Contents of the user manual for the JR AMERICAS 28X DMSS 2.4 GHz
- Product category: Remote Control Components JR AMERICAS
- Brand: JR AMERICAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JR AMERICAS Remote Control Components
User manual for the JR AMERICAS 28X DMSS 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JR AMERICAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JR AMERICAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JR AMERICAS product will considerably shorten its lifespan!
Product description The 28X DMSS 2.4 GHz 28-Channel Transmitter from JR AMERICAS comes with an aluminum commemorative carrying case and the RG712BX Receiver. It comes pre-loaded with Android OS and is equipped with a 4.3” WQVGA-TFT full-color touchscreen that offers a resolution of 480 x 273 and 16-bit color output. The transmitter features CNC-machined aluminum gimbals that are ball bearing-supported and fully adjustable to suit any flyer. In addition, it comes with 4GB internal memory and 512MB RAM.
- Dual processors for improved interfacing and RF reliability
- 65,536 step stick resolution
- Removable, customizable shoulder switch plates can be configured to any combination of switches
- Fully customizable user interface allows users to set wallpaper, color schemes, and notifications to personalize their radio
- Heavy-duty cast aluminum chassis
- Integrated USB host controller and USB device port for seamless data interfacing and PC connection
- External SD card slot for unlimited model, picture, sound, and telemetry data storage
- Customizable audio and vibration notifications
- Audio controller for voice, music, and telemetry notifications
- Push button power switch virtually eliminates accidental powering on and off
In the Box JR AMERICAS 28X DMSS 2.4 GHz 28-Channel Transmitter with RG712BX XBus Receiver RG712BX 7-Channel XBus Receiver Aluminum Carrying Case Limited 3-Year Warranty Table of Contents
- Removable antenna for safe storage when not in use
Upload User Manual
Have you got an user manual for the JR AMERICAS 28X DMSS 2.4 GHz 28-Channel Transmitter with RG712BX XBus Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JR AMERICAS 28X DMSS 2.4 GHz 28-Channel Transmitter with RG712BX XBus Receiver can be downloaded in PDF format at the link stated below.
JR AMERICAS JRP01050 Specs
| Display Size || 4.3" (10.92 cm) |
| Display Type || TFT full-color touchscreen |
| Channels || Total: 28 (Up to 16 non-shared and 28 fully proportional) |
| Resolution || 480 x 273 |
| Material || Gimbals: CNC-machined aluminum |
Chassis: Cast aluminum
| Device Ports || USB |
| Resolution || Step Stick Resolution: 65,536 |
| Wireless || 2.4 GHz |
| Card Slot || SD |
| Internal Memory || 4 GB |
| RAM || 512 MB |
| Dimensions || Not specified by the manufacturer |
| Weight || Not specified by the manufacturer |
