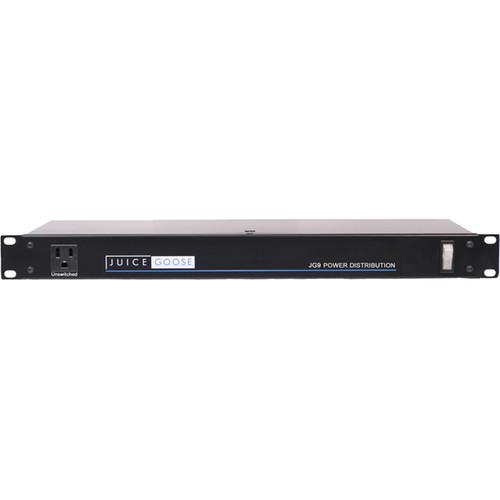

User Manual for Juice Goose JG 9 Power Distribution Center for 19" Rack Systems Click to enlarge the picture
Contents of the user manual for the Juice Goose JG 9 Power Distribution
- Product category: Power Distributors & Conditioners Juice Goose
- Brand: Juice Goose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Juice Goose Power Distributors & Conditioners
|
User manual for the Juice Goose JG 9 Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Juice Goose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Juice Goose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Juice Goose product will considerably shorten its lifespan!
|
Product description The JG 9 Power Distribution Center from Juice Goose is intended for use in 19-inch rackmount environments. It features 9 NEMA 5-15R outlets: 8 on the back, 1 on the front. The front outlet is unswitched. The back outlets are rotated 90 degrees to better accommodate wall wart power supplies. The outlets draw power via the unit's 6-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JG 9 features a back-mounted circuit breaker, line conditioning, and spike protection. - Connectivity
- The JG 9 provides 9 AC receptacles, including one unswitched outlet on the front of the unit. The eight receptacles on the back are rotated to better accommodate wall wart power supplies. Each of the AC outlets is NEMA 5-15R-rated for 15 amps.
- Capacity
- The JG 9 has a 15A circuit breaker and a 12A maximum current rating.
- Power Protection
- The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high-energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line-noise elimination.
- Power Cord
- The power cord is rated for 15A and features a NEMA 5-15P plug. It's 6' long.
- Circuit Breaker
- The JG 9 features a circuit breaker mounted on the back of the chassis and is rated for 15A.
UPC: 852560000316 In the Box Juice Goose JG 9 Power Distribution Center for 19" Rack Systems Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Juice Goose JG 9 Power Distribution Center for 19" Rack Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJuice Goose JG 9 Specs | Power Outputs | Back: 8x NEMA 5-15
Front: 1x NEMA 5-15 | | Input Voltage | 120 VAC, 60 Hz | | Maximum Current Capacity | 12 A | | Overload Protection | 15 A | | Spike Protection | Metal oxide varistor (line & neutral) | | Power Cord | 15 A, 16/3 SJT with NEMA 5-15P plug | | Power Cord Length | 6' (1.8 m) | | Dimensions | 1.75 x 19 x 7" (4.4 x 48.3 x 17.8 cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 21.2 x 9.2 x 2.4" |
