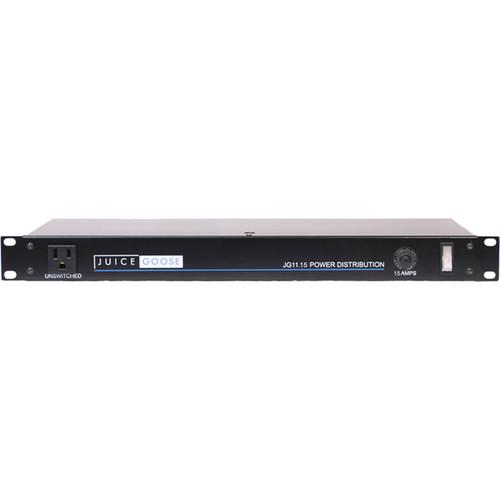

Product description The JG11-15A Power Distribution Center from Juice Goose is intended for use in 19-inch rackmount environments. It features 11 NEMA 5-15R outlets: 10 on the back, 1 on the front. The front outlet is unswitched, as is one of the outlets on the back. All other outlets are rotated to better accommodate "wall wart" power supplies. The outlets draw power via the unit's 15-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JG11-15A features a front-mounted circuit breaker and surge protection fail-safe. - Connectivity
- The JG11-15A provides 11 AC receptacles, including one unswitched outlet on the front and back of the unit. Excluding the unswitched outlets, the other receptacles are rotated to better accommodate "wall wart" power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15 amps.
- Capacity
- The JG11-15A has a 15A circuit breaker and a 12A maximum current rating.
- Power Protection
- The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high-energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line-noise elimination.
- Power Cord
- The power cord is rated for 15A and features a NEMA 5-15P plug. It's 15' long.
- Circuit Breaker
- The JG11-15A features a circuit breaker mounted on the front of the chassis and is rated for 15A.
In the Box Juice Goose JG11-15A Power Distribution Center for 19" Rack Systems Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Juice Goose JG11-15A Power Distribution Center for 19" Rack Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJuice Goose JG11.0-15A Specs | Power Outputs | Back: 10x NEMA 5-15
Front: 1x NEMA 5-15 | | Input Voltage | 120 VAC, 60 Hz | | Maximum Current Capacity | 12 A | | Overload Protection | 15 A | | Spike Protection | Metal oxide varistor (line & neutral) | | Power Cable | 15 A, 16/3 SJT with NEMA 5-15P plug | | Power Cable Length | 15' (4.6 m) | | Dimensions | 1.75 x 19 x 7" (4.4 x 48.3 x 17.8 cm) | | Weight | 6.0 lb (2.7 kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 21.5 x 11.5 x 2.3" |
