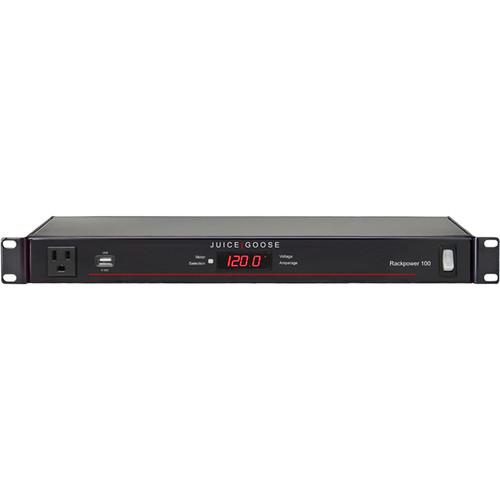

Product description The Rackpower 100 from Juice Goose is intended for use in 19-inch rackmount environments. It provides digital metering of power line voltage and amperage, as well as power line surge suppression. The Rackpower 100 features 10 AC outlets: 9 on the back, 1 on the front. The rear outlets are rotated to better accommodate "wall wart" power supplies and four of them feature extra-wide spacing. Additionally, the Rackpower 100 includes a front and back USB port, which can be used to power compatible accessories. Power is supplied via the unit's 7' NEMA 5-15P power cord. - Power Meter
-
- The dual-function meter reports the status and consumption of your power supply in easy-to-read LED numerals
- Toggle between volts and amps with a convenient push button on the front of the chassis
- Voltage and amperage are measured to the nearest 0.1 unit
- Amperage is measured in a range from 0.2 to 25A
- Power Conditioning
- The multi-stage power-conditioning components include a series of choke and fast-surge clamping across hot, neutral, and ground.
- USB Ports
- The unit features two USB ports—one on the front and one on the back—for LED lamps or to charge other compatible accessories.
- AC Power Receptacles
- One AC outlet is located on the front. Nine are located on the back. The rear outlets are rotated to accommodate wall warts and four include additional spacing to accommodate larger plugs.
- Tour Class Chassis
- The chassis is formed from a single piece of cold-rolled steel. Its depth allows easy access to the rear receptacles while mounted in a rack.
In the Box Juice Goose Rackpower 100 for 19" Rack Systems (15A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Juice Goose Rackpower 100 for 19" Rack Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJuice Goose RP100-15A Specs | Overload Protection | 15 A (with technical rating of 12 A) | | Power Input | 14/3 SJT with NEMA 5-15P
Power Cord Length: 7' / 2.1 m | | Power Output | Front: 1 x NEMA 5/15R (15 A)
Rear: 9 x NEMA 5/15R (15 A) | | Input Voltage | 120 VAC @ 60 Hz | | Peak Surge Power | 10,000 A | | Monitor Features | Voltage: Nominal 120 VAC scale, reports to nearest 0.10 V
Amperage: From 0.25 to 25.0 A, reports to nearest 0.10 A
Surge Protection: LED indicator on front panel | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | 1.75 x 19 x 7" / 4.4 x 48.3 x 25.4 cm | | Weight | 12 lb / 5.4 kg |
