User Manual for Juice Goose Rackpower 200 for 19" Rack Systems Click to enlarge the picture
Contents of the user manual for the Juice Goose Rackpower 200 for 19"
- Product category: Power Distributors & Conditioners Juice Goose
- Brand: Juice Goose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Juice Goose Power Distributors & Conditioners
 |
User manual for the Juice Goose Rackpower 200 for 19" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Juice Goose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Juice Goose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Juice Goose product will considerably shorten its lifespan!
|

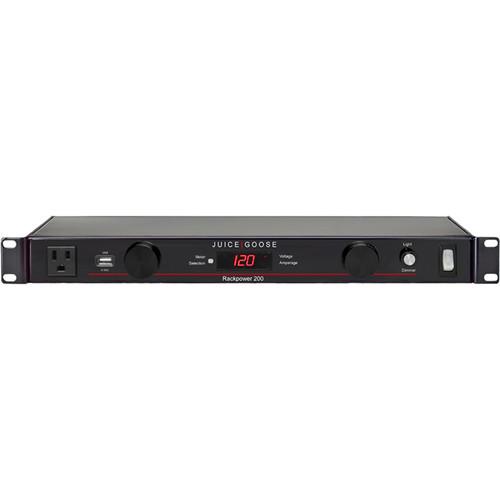

Product description The Rackpower 200 from Juice Goose is intended for use in 19-inch rackmount environments. It provides digital metering of power line voltage and amperage, as well as power line surge suppression. The Rackpower 200 features 10 AC outlets: 9 on the back, 1 on the front. The rear outlets are rotated to better accommodate wall wart power supplies. Additionally, the Rackpower 200 includes front and back USB ports, which can be used to power compatible accessories. To help with visibility and for added convenience, the Rackpower 200 features LED rack lighting that's dimmable and can slide away inside the chassis when not in use. - Power Meter
-
- The dual-function meter reports the status and consumption of your power supply in easy-to-read LED numerals
- Toggle between volts and amps with a convenient push button on the front of the chassis
- Voltage and amperage are measured to the nearest 0.1 unit
- Amperage is measured in a range from 0.2 to 25 A
- LED Rack Lights
- The Rackpower 200 features cool-to-the-touch LED light tubes that are designed to be brighter and more reliable than incandescent bulbs. The lights are dimmable and slide away inside the chassis for convenience when not in use.
- Power Conditioning
- The multi-stage power-conditioning components include a series of choke and fast-surge clamping across hot, neutral, and ground.
- USB Ports
- The unit features two USB ports—one on the front, one on the back—which can be used for LED lamps or to charge other compatible accessories.
- AC Power Receptacles

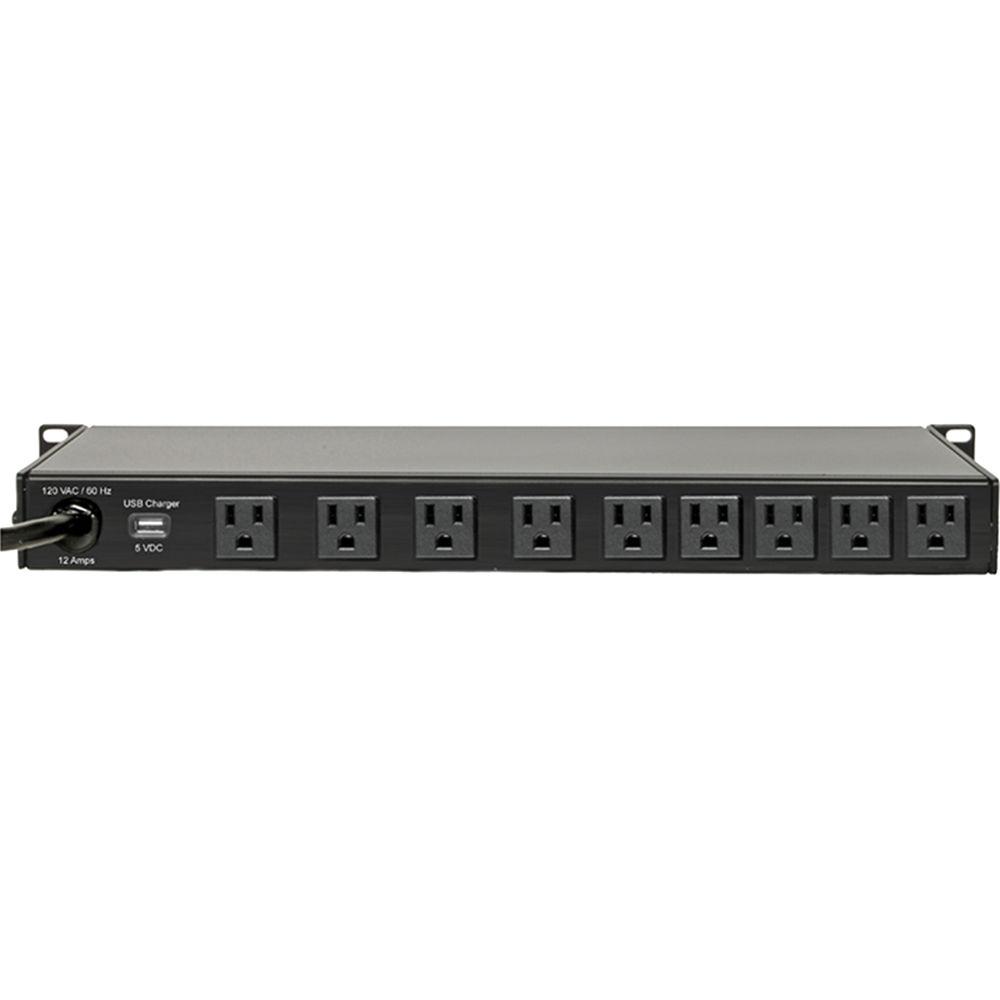

- One AC outlet is located on the front. Nine are located on the back. The rear outlets are rotated to accommodate wall warts and four include additional spacing to accommodate larger plugs.
- Tour Class Chassis
- The chassis is formed from a single piece of cold-rolled steel. Its depth allows easy access to the rear receptacles while mounted in a rack.
In the Box Juice Goose Rackpower 200 for 19" Rack Systems (15A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Juice Goose Rackpower 200 for 19" Rack Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJuice Goose RP200-15A Specs | Overload Protection | 15 A (with technical rating of 12 A)
Breaker/power switch on the front | | Power Input | 14/3 SJT with NEMA 5-15P
Power Cord Length: 7' / 2.1 m | | Power Output | Front: 1 x NEMA 5/15R (15 A)
Rear: 9 x NEMA 5/15R (15 A) | | Input Voltage | 120 VAC @ 60 Hz | | Peak Surge Power | 30,000 A (single pulse) | | Noise Rejection | Common Mode (N-G)
150 kHz: 13 dB
500 kHz: 20 dB
1 MHz: 25 dB
10 MHz: 45 dB
30 MHz: 45 dB
Normal Mode (L-N)
150 kHz: 15 dB
500 kHz: 24 dB
1 MHz: 28 dB
10 MHz: 45 dB
30 MHz: 45 dB | | Monitor Features | Voltage: Nominal 120 VAC scale, reports to nearest 0.10 V
Amperage: From 0.25 to 25.0 A, reports to nearest 0.10 A | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | 1.75 x 19 x 7" / 4.4 x 48.3 x 17.8 cm | | Weight | 11 lb / 5.4 kg |
