User Manual for Juice Goose Slim Line Flat Pack 200W Uninterruptible Power Supply Click to enlarge the picture
Contents of the user manual for the Juice Goose Slim Line Flat Pack
- Product category: UPS Backup Juice Goose
- Brand: Juice Goose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Juice Goose UPS Backup
 |
User manual for the Juice Goose Slim Line Flat Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Juice Goose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Juice Goose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Juice Goose product will considerably shorten its lifespan!
|

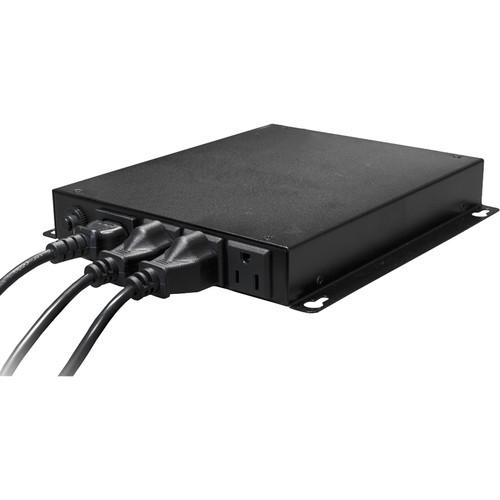

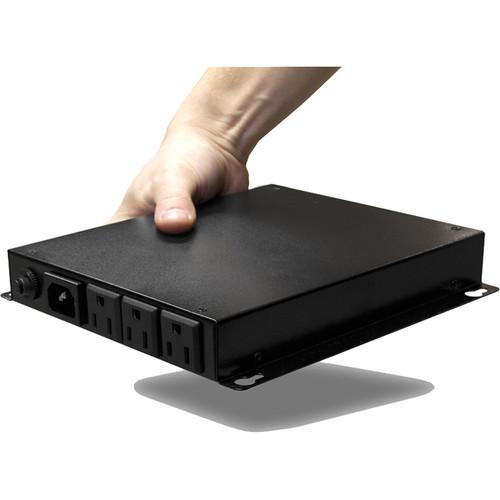

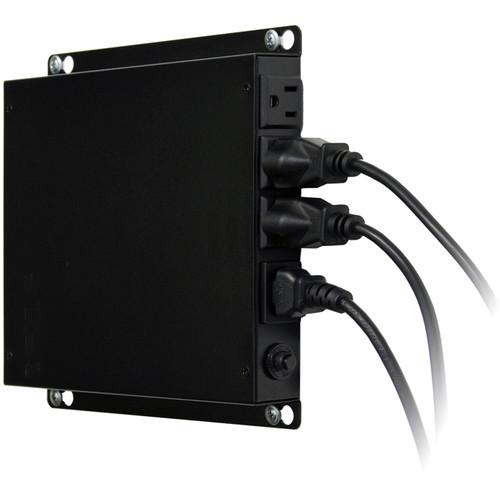

Product description Designed to provide continuity to support video projectors and digital signage components, the Slim Line Flat Pack 200W Uninterruptible Power Supply from Juice Goose is also well-suited for installation in kiosks, cabinets, and small enclosures. It as a convenient form factor for point-of-sale equipment. When operating with a full load, it can provide power for up to 6 minutes, and when running with a half load, up to 14 minutes. It features an output of 200W / 350 VA, an input of 120V at 50 or 60 Hz, three NEMA 5-15R battery backup outlets with surge protection, a surge energy rating of 312 joules, and a simulated sine waveform. The Slim Line can be recharged in 8 hours when it is plugged into an AC outlet and turned on. Included is a 3' C13 (IEC) to NEMA 5-15P power cord with a right angle plug and protection is provided by a limited 3-year warranty that is valid from the day of purchase. UPC: 852560000736 In the Box Juice Goose Slim Line Flat Pack 200W Uninterruptible Power Supply C13 (IEC) to NEMA 5-15P Power Cord with Right Angle Plug (1.0m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Juice Goose Slim Line Flat Pack 200W Uninterruptible Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJuice Goose SL-350 Specs | | | Total Outlets | 3 x NEMA 5-15R | | Protected Outlets | 3 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P Right-Angle | | USB Charging Ports | None | | SmartSlot Interface | None | | Coax Protection | None | | Data Line Protection | None | | Communications | None | | Emergency Power Off (EPO) Support | No | | | | Surge Energy Rating | 312 Joules | | Maximum Wattage | 200 W at 120 VAC | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz | | Load Capacity | 350 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lithium Iron Phosphate | | Full-Load Runtime | 6 Minutes | | Half-Load Runtime | 14 Minutes | | Charging Time | 8 Hours | | User Replaceable | No | | Hot-Swap Support | No | | External Battery Connection | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Operating Altitude | 11,500' / 3505 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 3' / 0.91 m | | Dimensions (W x H x D) | 6.9 x 1.3 x 8.5" / 17.5 x 3.3 x 21.6 cm | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 10.9 x 9.5 x 3.1" |
