User Manual for JVC 3G HD SD Distribution Amplifier Card Click to enlarge the picture
Contents of the user manual for the JVC 3G HD SD Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Distribution Amplifiers (DA's)
|
User manual for the JVC 3G HD SD Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

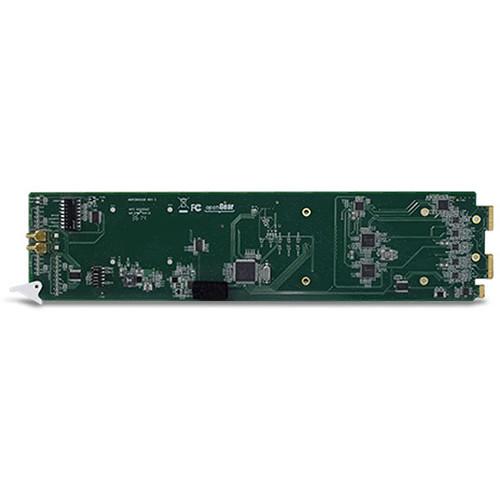

Product description Provided by third party: The VDA-2419 is a multi-rate SDI digital video distribution system for distributing signals from a common input, or two groups of signals from two inputs. It also can handle other data rates within the range and specifications of SDI signals. This is presented in a single slot openGear (OG) card, that can be tandem along with a second card to share a rear panel and achieve a DA with outputs.
But what makes the VDA-2419 truly unique is that it incorporates an integrated cross-point matrix, that allows not only the ability to assign a given input signal to one or more outputs, but also to enable and disable outputs should the need arise. JVC has also incorporated an automatic fail-over mode that, when selected, will switch to the second input should the signal in the first input somehow fail or become corrupted. All outputs are non-inverting and ASI capable. An auto-mute feature will silence any input, whose signals are under 20 Mbps. All of this is easily controlled either via dip switches on the front card edge. And there is a lock-out on the card, that prevents the card parameters from being changed remotely via DBM.
- Key Features
-
- Automatic rate detection/display for all popular data rates
- ASI distribution on all outputs
- Remote monitoring
- Configure locally or remotely
- Integrated cross-point
- Selectable auto-mute and reclocking
- Auto fail-over mode
- Enable/disable individual outputs
- Hot swappable
