User Manual for JVC 9" Full HD Broadcast LED LCD Monitor Click to enlarge the picture
Contents of the user manual for the JVC 9" Full HD Broadcast LED
- Product category: On Camera Monitors JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC On Camera Monitors
 |
User manual for the JVC 9" Full HD Broadcast LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

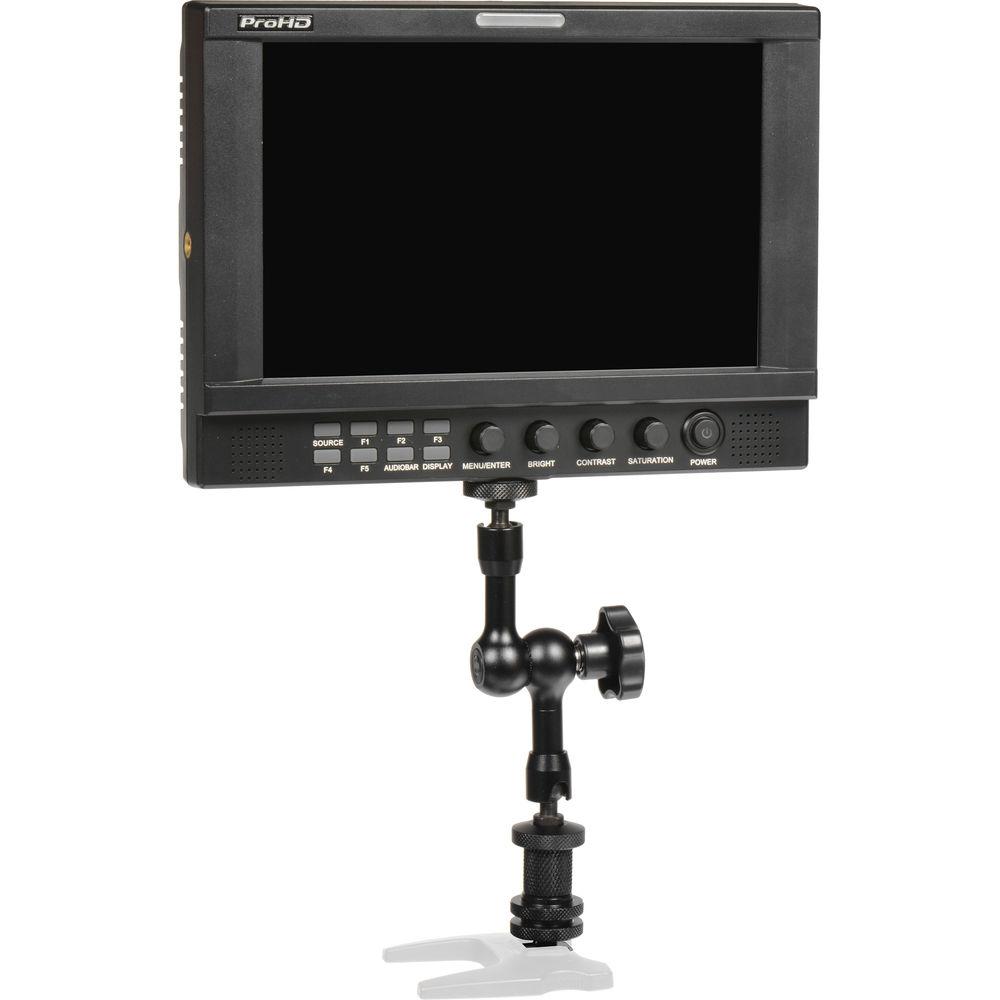

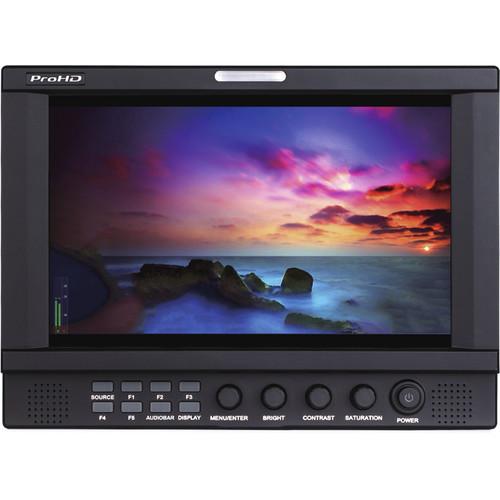

Product description The 9” Full HD Broadcast LCD Monitor from JVC features a 16:9 widescreen aspect ratio with a LCD protective glass. This IPS monitor produces a 1920 x 1200 resolution, 800:1 contrast ratio, and 450 cd/m2 brightness. It comes with a sunhood and is powered by an included power adapter. The monitor supports 2K/3G/HD/SD-SDI, HDMI, CVBS signal formats. -
- 9” IPS LCD, 1920 x 1200
- H/V 170° viewing angle
- LCD protective glass
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

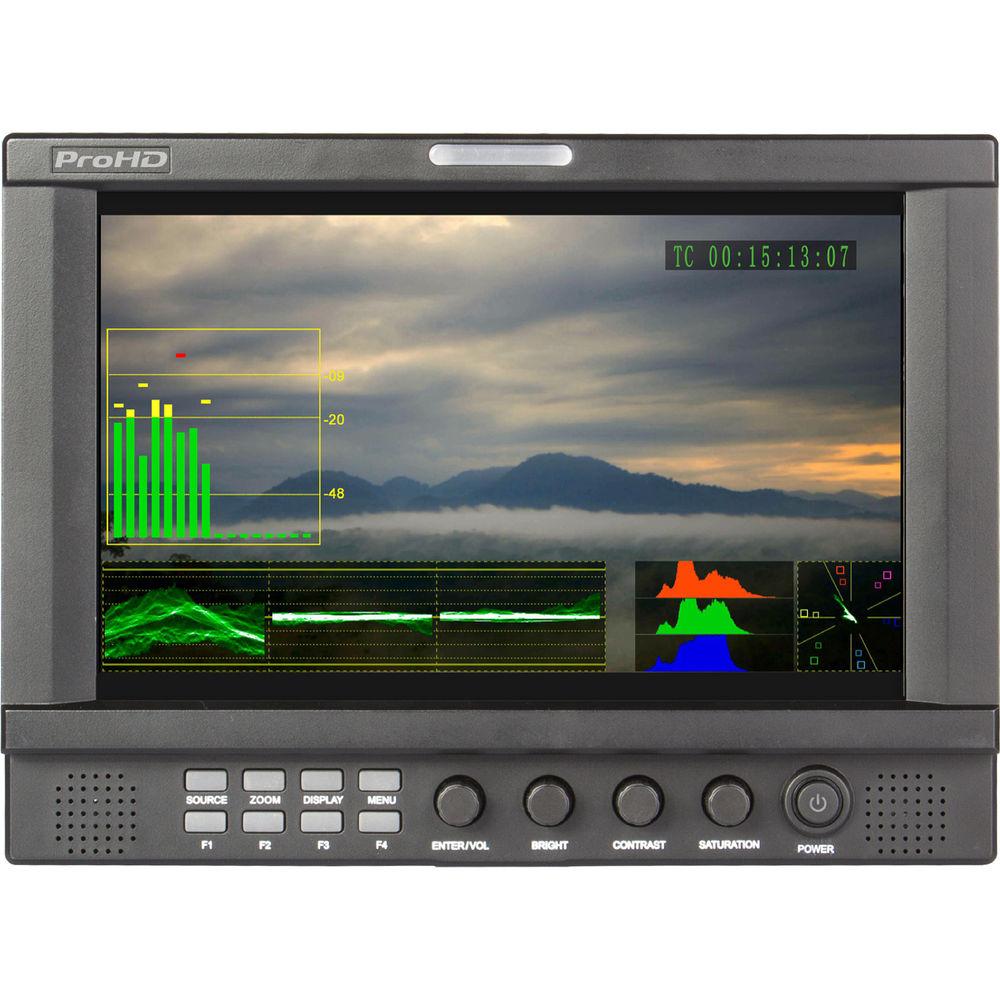

- 2-channel SDI/HDMI/Analog audio meters with alert
- Peaking focus assist
- Zebra stripes
- H/V delay, Freeze Frame, AFD, Timecode
- False color, R/G/B/Mono, 100% internal color bar
- Image flip and rotate
- TSL 3.1/4.0 UMD
- Front/Rear TALLY light and GPI control
- USB firmware upgrade

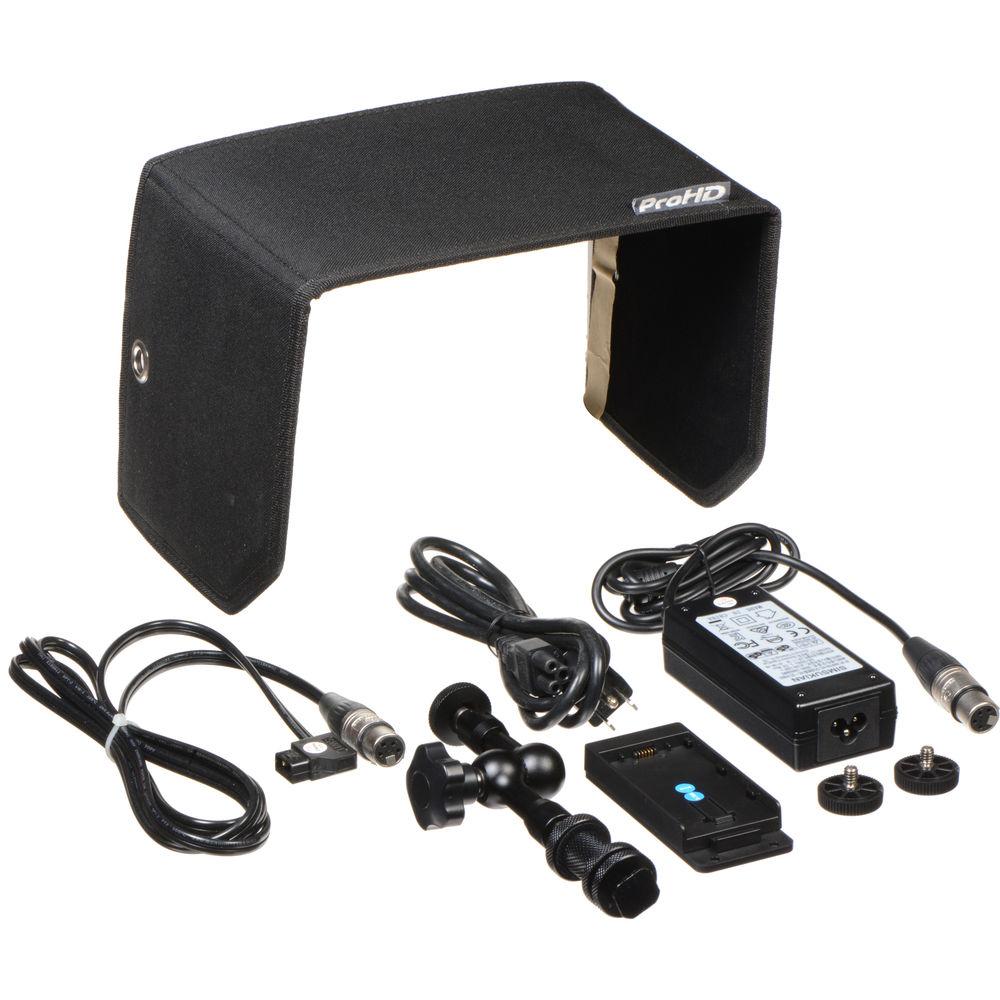

In the Box JVC 9" Full HD Broadcast LED LCD Monitor Battery Plate Articulating Arm Sun Hood 4-Pin XLR Power Adapter User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC 9" Full HD Broadcast LED LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

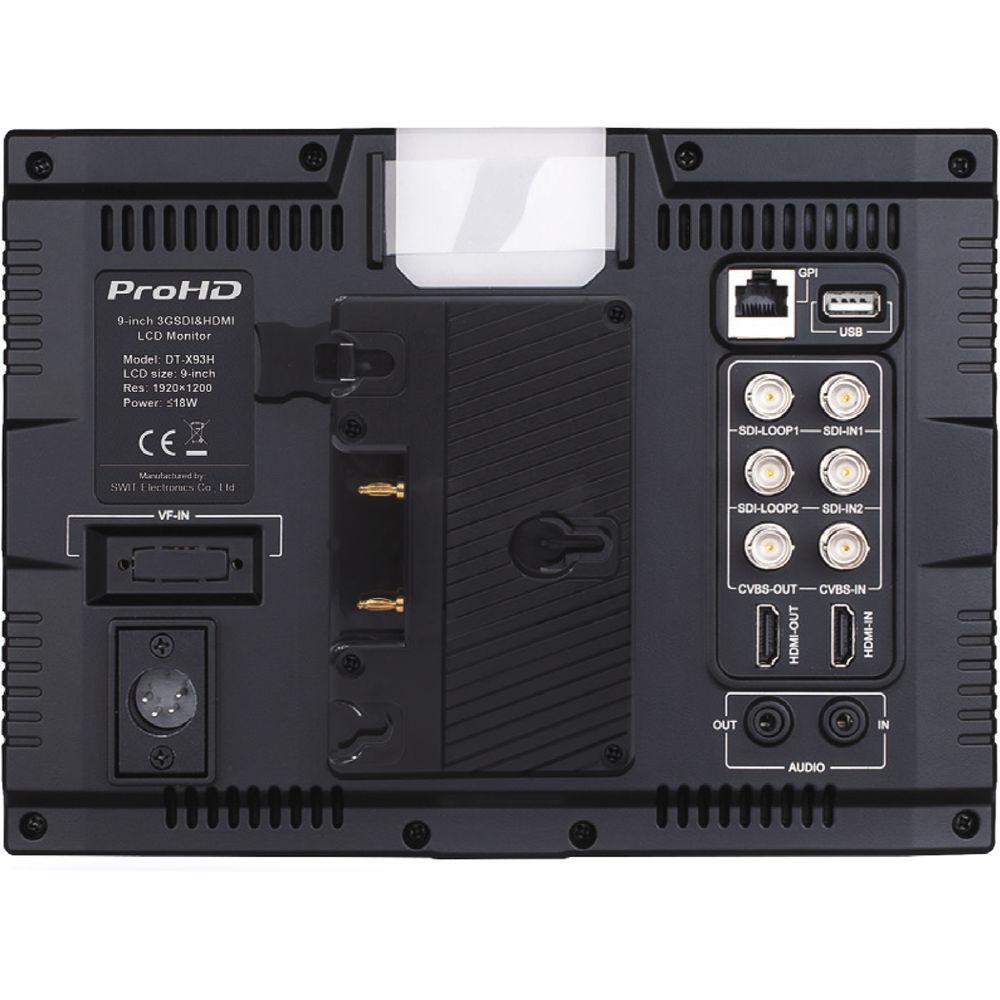

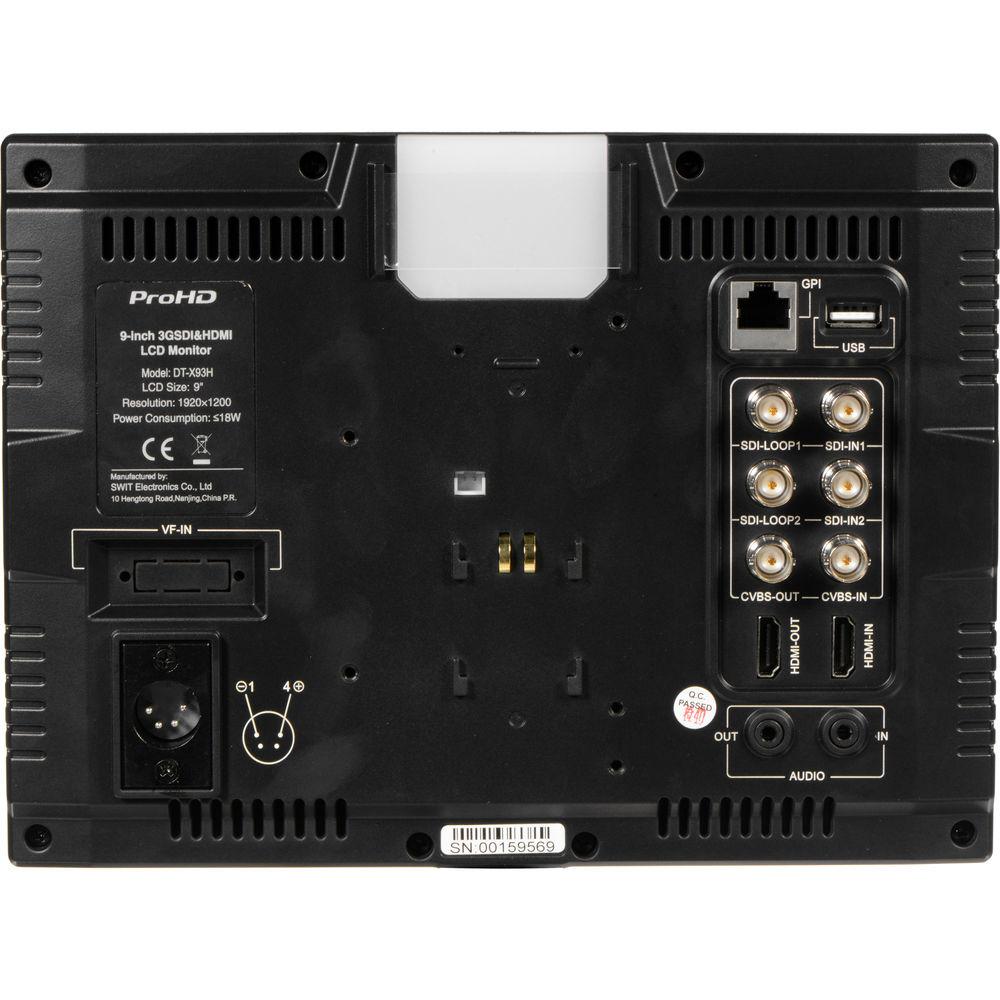

Technical parametersJVC DT-X93H Specs | Signal System | NTSC/PAL | | Monitor Type | IPS, LCD | | Screen Size | 9.0" (23 cm) | | Resolution | 1920 x 1200 | | Colors | 8-bit | | Viewing Angle (H/V) | 170°/170° | | Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Inputs | 2 x BNC: 2K/3G/HD/SD-SDI input
1 x BNC: CVBS input
1 x HDMI-A: HDMI input
1 x RJ45: UMD, GPI input
1 x 3.5 mm: Analog audio input | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: CVBS
1 x HDMI-A: HDMI loop output
1 x 3.5m: SDI/HDMI/analog audio output | | Video Format | SDI: SMPTE-ST 2048-1: 2011: 2048 x 1080p (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-425M-A/B: 1080p (60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50)
1080p (60/5 9.94/50/30/29.97/25/24/23.98)
1080psf (30/29.97/25/24/23.98) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 5 to 140°F (-15 to 60°C) | | Humidity | 10 to 90% | | Power Requirements | 6.5 to 24 VDC | | Power Consumption | 18 W | | Dimensions | 9.4 x 7.1 x 1.9" (24 x 18 x 5.0 cm) | | Weight | 33.8 oz (960 g) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 11.7 x 8.9 x 4.8" |
