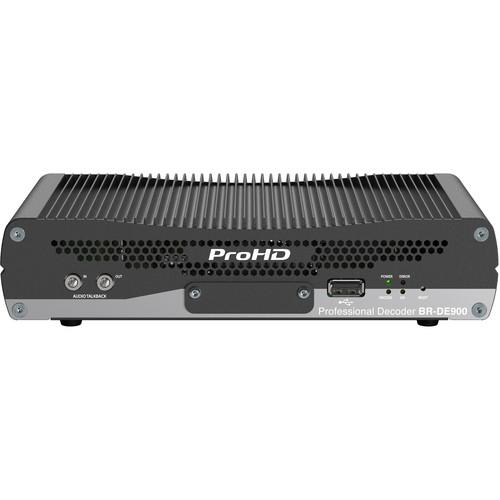

User Manual for JVC BR-DE900 ProHD IP Decoder Click to enlarge the picture
Contents of the user manual for the JVC BR-DE900 ProHD IP Decoder
- Product category: Signal Converters JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Signal Converters
|
User manual for the JVC BR-DE900 ProHD IP Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description The JVC BR-DE900 Pro IP Decoder is a professional H.264/H.265 decoder suitable for portable or permanent installations. This versatile decoder incorporates two Gigabit Ethernet inputs, and two 3G/HD/SD-SDI, one HDMI, and one composite outputs. The BR-DE900 supports both Zixi or SMPTE 2022 Pro-MPE distribution, and streams at rates up to 10-bit, 4:2:2 1080p60. This low-latency, hardware-based decoder offers scaling, frame sampling, de-interlacing, and real-time AES decryption for video, audio, and metadata. A stream-forwarding feature enables decoding of a Zixi-protected stream over composite (baseband) video while forwarding. Any input resolution/frame rate can be output at any resolution/frame rate. Pair the BR-DE900 with a JVC camera for a bandwidth-efficient streaming solution over any network, or with the separately available JVC BR-800 Broadcaster streaming server. The compact BR-DE900 is housed in an aluminum housing sturdy enough for field use. - Features
-
- Low-latency, hardware-based H.264 and H.265 decoding
- Scaling, frame sampling, and de-interlacing for any stream to any output
- Simultaneous dual 3G-SDI, HDMI2.0 and composite outputs
- Any feed resolution/frame rate to any output resolution/frame
- Stream-forwarding feature: decode Zixi protected stream (H.265 or H.264) over base-band video while forwarding
- Sturdy, aluminum housing
- Network Protocols
-
- UDP TS
- RTP TS
- RTP ES
- Zixi error-correction (HEVC and H.264) - Zixi P2P and Broadcaster modes
- RTP TS with ProMPEG forward error correction
- Security
-
- Real-time AES decryption for video, audio, and metadata
- Management
-
- Secure, web-based remote management interface (HTTPS)
- Dashboard with detected channel characteristics description, and active outputs
- Zixi streaming statistics for easier configuration
- LED status displays for power, network activity, error, and streaming indications
- Autostart mode recovers saved configuration after power cycling
- Remote firmware and software upgrades via browser, and command line
- Hardware push-button for restoring unit to factory settings
- Recovery or initialization of Ethernet settings over USB thumb drive
In the Box JVC BR-DE900 ProHD IP Decoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC BR-DE900 ProHD IP Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC BR-DE900 Specs | | | Input Support | H.265 & H.264 MPEG-H HEVC (ISO/IEC 23008-2):
Profile/Level: Up to Main 422 10 at L4.1 high tier
Color Sampling / Bit-Depth: Up to 4:2:2 / 10-bit
Bit Rate: Up to 50 Mb/s
Frame Rate: 1-60 fps
Input Resolutions: From CIF up to 1920 x 1080
MPEG-4 AVC/H.264 (ISOIEC 14496-10 MPEG-4 AVC Rec. ITU-T H.264):
Profile/Level: Up to Hi 10 at L4.2
Color Sampling / Bit-Depth: Up to 4:2:2 / 10-bit
Bit Rate: Up to 100 Mb/s
Frame Rate: 1-60 fps
Input Resolutions: from CIF up to 1920 x 1080 | | | | Audio Streaming | MPEG-4 AAC-LC (ISO/IEC 14496-3):
Stereo: Up to 2 x channels
Sample Rate: 48 kHz
Bit Rate: 16-192 kb/s | | | | Resolutions & Frame Rates | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25
576i: 50
480i: 59.94 | | | | Network | Ethernet: 2 x GbE | | Video Outputs | 3G/HD/SD-SDI: 2 x BNC
HDMI: 1 x HDMI 2.0
Composite: x 1 | | Audio Outputs | Rear Panel:
Embedded SDI: x 2
Embedded HDMI: x 1
AES3 Digital Audio: 1 x BNC (female)
Analog Unbalanced Stereo Audio: 1 x RCA (female)
Analog Balanced Stereo Audio: 1 x XLR (male) | | | | Output Resolution | 1080i 50/59.94
1080p 50/59.94
720p 50/59.94
576i (PAL)
480i (NTSC) | | SMPTE | SMPTE 424M/296M/274M/259 | | | | Power Requirements | Power Input: 20-50 VDC
Power Consumption (Typical): 22 W | | Operating Temperature & Humidity | -4 to 122°F / -20 to 50°C
5 to 95% (non-condensing) | | Enclosure Material | Aluminum | | Dimensions (WxDxH) | 7.95 x 4.63 x 1.67" / 202 x 117.5 x 42.4 mm | | Weight | 2.4 lb / 1.1 kg |
