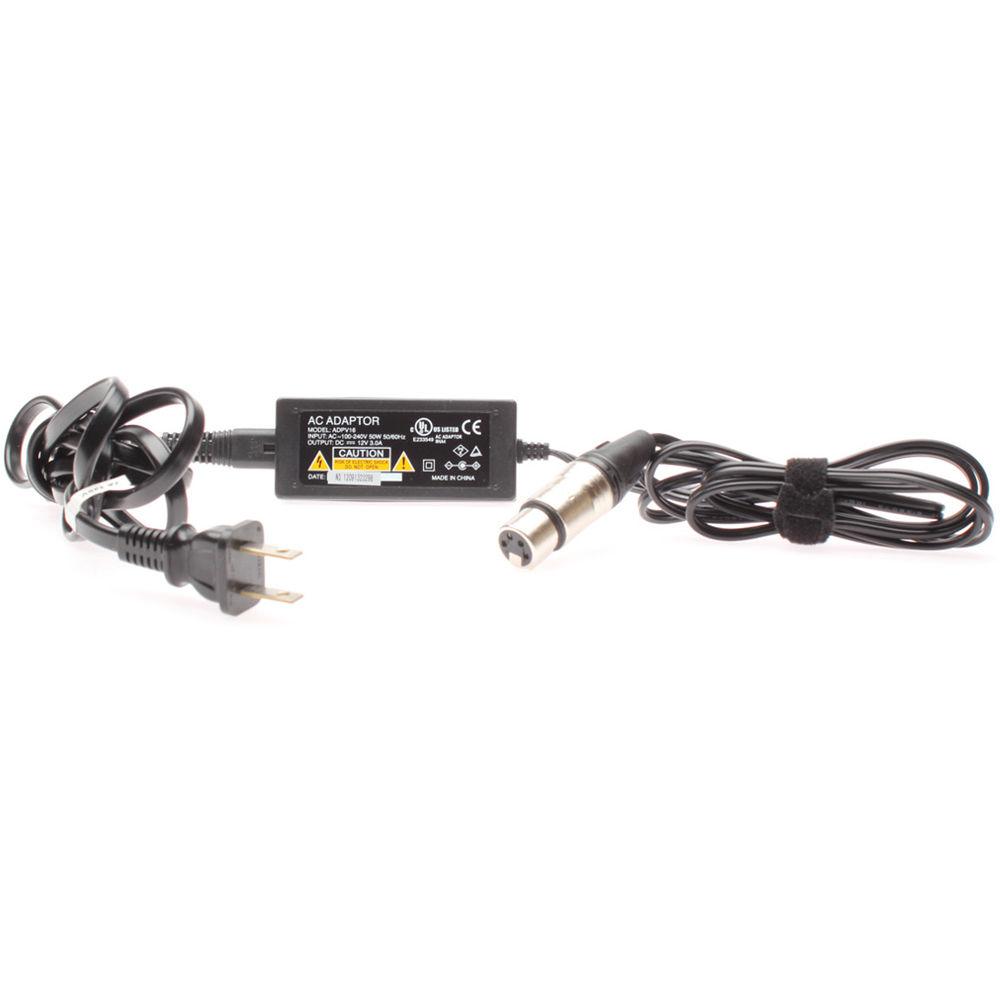

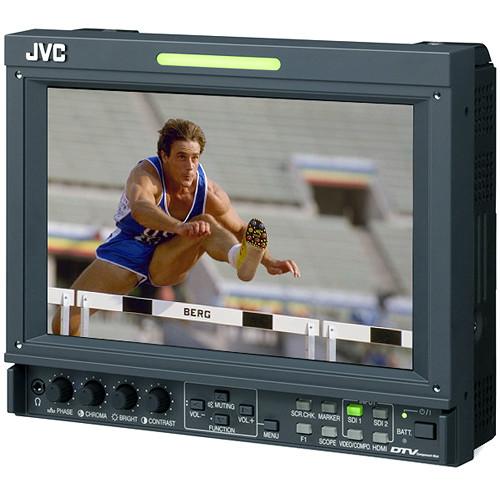

Product description The JVC DT-F9L5U 8.2" Broadcast Studio Monitor features a 16:10 widescreen active matrix TFT LCD with a gloss surface and an LED backlight. The resolution is 1280 x 800, contrast ratio 800:1, and brightness 450 nit. The viewing angle is 80 up, down, left, right. An Anton Bauer battery plate is included for portable power and you can optionally also get JVC's ADPV16 AC adapter.

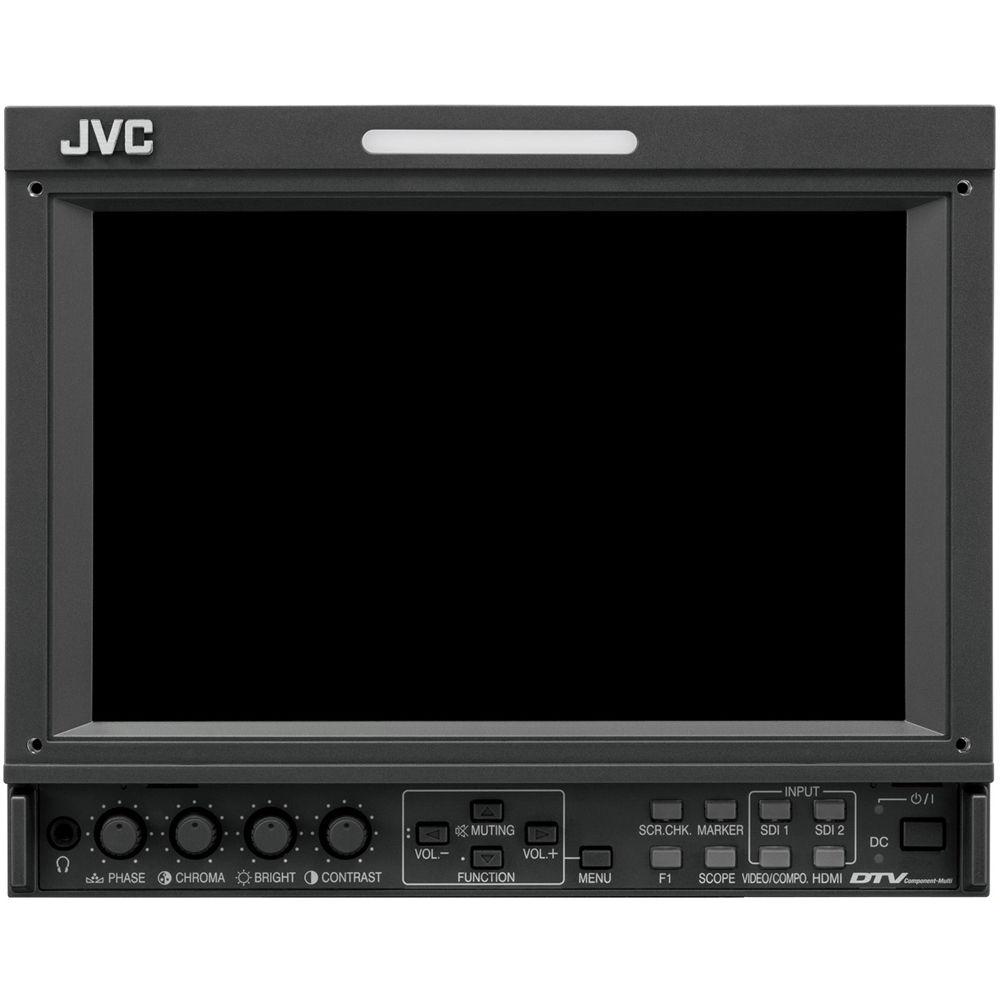

Front panel controls include phase, chroma, brightness, and contrast adjustment knobs, and input selection and marker buttons. The front panel also has a wide-sized tally light, and a second tally light is on the rear. - Key Features
-
- 8.2" IPS panel with 1280 x 800 resolution
- Mercury-free white LED backlight
- 800:1 contrast ratio
- 450 nit brightness
- 160 x 160° viewing angle
- 16 channel SDI audio level metering
- Area/Center/Aspect marker
- SDI timecode display
- Front and rear tally lamps
- Anton Bauer battery plate

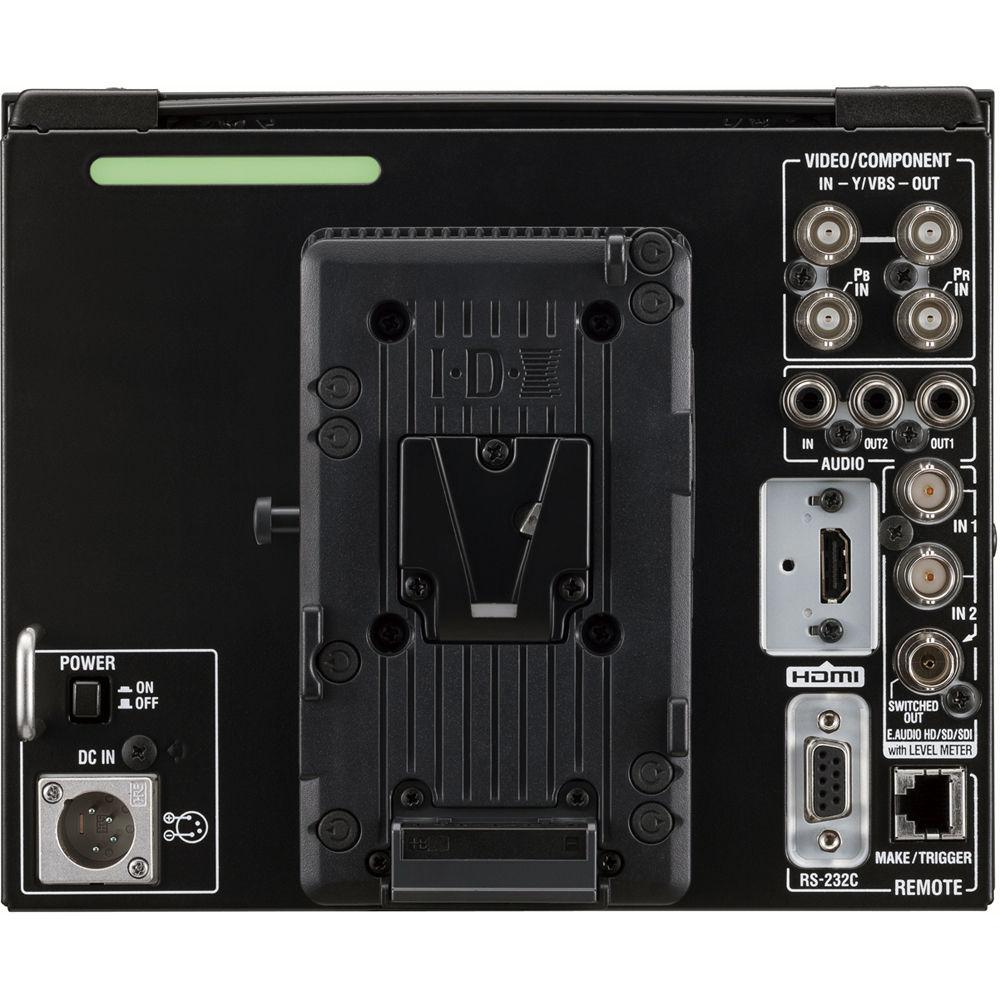

- Inputs / Outputs
-
- Two 3G/HD/SD-SDI inputs and one switched out output
- Bridge-connected Composite BNC input and output
- HDMI input
- Component input on 3x BNCs
- RCA audio input on one connector
- RCA L/R audio output
- Front panel headphone jack
- RJ-45 Make/Trigger
- D-Sub9 RS-232C
- Image Analysis Tools
-
- Waveform
- Vectorscope
- Underscan / Overscan
- Peaking Focus Assist
- False Color
- Blue Gun
- Zebra
UPC: 046838067266 In the Box JVC DT-F9L5U 8.2" Broadcast Studio Monitor Anton Bauer Battery Plate Tripod Mounting Kit Protective Screen Filter with Four Screws Power Cord Holder with Two Screws Limited 1-Year Warranty User Manual PDF 2.2mbwwdvwcsuf Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-F9L5U 8.2" Broadcast Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-F9L5U Specs | Screen | 8.2" wide, active matrix TFT LCD (21 cm)
LED backlight
ADS type panel, gloss surface | | Effective Screen Size | W x H x D: 7 x 4.3 x 4.2 (18 x 11 x 21 cm) | | Resolution | 1280 x 800 | | Colors | 16.7 million | | Viewing Angle | 160° / 160° | | Brightness | 450 nit | | Contrast Ratio | 800:1 | | Aspect Ratio | 16:10 | | Input & Output | 3G/HD/SD-SDI input (embedded audio supported)
2x auto detecting BNC connectors
HD-SDI output switched out (embedded audio supported)
1x auto detecting BNC connector
HDMI input:
1x HDMI, HDCP-compatible
Composite input/output:
1x line on 2x BNC connectors, 1 V (p-p), 75 Ω
The input and output terminals are bridge-connected (auto termination)
Component input:
1x line on 3x BNC connectors
Y: 1 V(p-p), 75 Ω(with sync)
PB/B-Y, PR/R-Y: 0.7 V (p-p), 75 Ω
RCA audio input:
1x RCA connector, 500 mV (rms), high impedance
RCA audio output:
2x RCA connectors, 500 mV (rms)
500 mV (rms)
1x headphone jack
Remote (Make/Trigger):
1x RJ-45, contact or momentary pulse to corresponding terminal
Remote (RS-232C):
D-Sub9, serial communication | | Format | HD-SDI: SMPTE292M
SD-SDI: ITU-R BT.656, SMPTE259M
Embedded Audio 16 Ch: SMPTE299M, SMPTE272M | | Timecode | SDI timecode | | Audio Metering | Digital (up to 16 ch) | | Power Requirements | AC 120 V / AC 220 - 240 V, 50/60 Hz or DC 12 - 17 V
Power input: 4-pin XLR
Optional power adapter: model # ADPV16 | | Rated Current | 0.5 A (AC 120 V)
0.25 A (AC 220 - 240 V)
1.3 A (DC 12 - 17 V) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 20 - 80% (non-condensing)
*Slightly variable depending on ambient conditions for installation | | Dimensions | 8.6 x 8.6 x 7.5" (22 x 22 x 19 cm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 13.4 x 12.7 x 12.5" |
