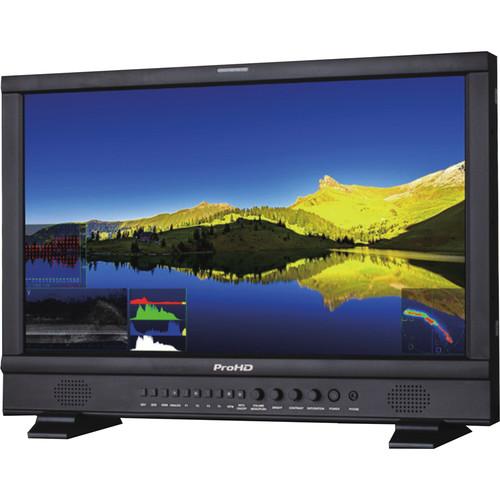

User Manual for JVC DT-N24F ProHD 23.8" Broadcast Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the JVC DT-N24F ProHD 23.8" Broadcast Studio
- Product category: Production Monitors JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Production Monitors
|
User manual for the JVC DT-N24F ProHD 23.8" Broadcast Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description Designed for studio and post-production, the JVC DT-N24F ProHD 23.8" Broadcast Studio LCD Monitor has a wide array of inputs, and essential professional features. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 1000:1, and an LED backlight with a brightness of 250 cdm².Video signals from analog or digital SD all the way up to 2K over SDI are supported. SDI, HDMI, VGA, component, and composite inputs are available for sources, while SDI, HDMI, and composite inputs all feature loop outputs to feed production equipments down the line. Professional image analysis features include waveform, vectorscope, tally, zebras, peaking, false color, and more. For portable power, secure a Gold mount battery on the integrated Gold mount plate. A power cord and stand feet are included. - Supports 3G/HD/SD-SDI
- Supports up to 3G-SDI (SMPTE 425M) including Level-A and Level-B, which are capable of transferring 1080p uncompressed digital video data at a max rate of 60 fps. 2K-SDI (2048 x 1080p) is also supported with down-sampling to fit the full-HD display.
- ITU-709 Color Space with Selectable Gamma Presets
- Compatible with ITU-709 standard color space for HDTV broadcasting. Gamma presets of 2.2, 2.4 and 2.6 are selectable.
- TSL UMD Control and Display
- This monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.
- USB Firmware Upgradable
- Offers a USB port on the rear side for monitor firmware upgrade. Users can download firmware from the official website to a USB stick, and the upgrade operation is directly on the monitor, without PC or other adapters.
- Built-In Waveform Monitor
- Waveform monitoring can be done for individual color channels (Y, Cb, Cr, R, G, B). The waveform itself can be positioned on one of four corners or in the center in a larger size. Waveform display color can be selected from white, green and false color, with the opacity also selectable.
- Built-In Vectorscope and Histogram Monitor
- Vectorscope and R/G/B/Y histogram display are available. The vectorscope colors can be selected from white, green and false color, and the position of the patterns can be selected from one of four corners and the opacity is also selectable.
- 16-Channel Audio Level Meters
- The monitor can de-embed audio from SDI and HDMI, and display 16-channel audio level meters, with audio alert info displayed on each audio bar. You can also select any 2 channels audio to output via 3.5mm headphone jack or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Scale markers, alert info, and opacity of the audio meter pattern are selectable.
- LUT Support
- Import a 17-point LUT using the USB port on the rear to color-calibrate the monitor with separately available equipment, or grade the incoming video signal. Log conversion from JVC's J-log1, ARRI's Log-C, Sony's S-log2 and S-log3, Canon's C-log, Panasonic's V-log, or RED's REDlogFilm curves to a standard REC 709 curve can be done as well.
- General
-
- SDI Timecode (LTC, VITC1&2) and AFD info display
- R/G/B/Mono, False color, Zebra stripes display
- Peaking focus assist display mode
- H/V delay, freeze frame display modes
- Native scan, overscan, and normal scan selection
- GPI control via RS485 port connection
- 3-user setting data storage
- TALLY light with adjustable brightness
- 4-user definable function keys
- Easy one-key menu operation
- Built-in speaker (2.5W)
- Gold mount plate for field operation
In the Box JVC DT-N24F ProHD 23.8" Broadcast Studio LCD Monitor AC Adapter with Power Cord Stand Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-N24F ProHD 23.8" Broadcast Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-N24F Specs | LCD Size | 23.8" / 60.4 cm | | Display Area | 20.7 x 11.6" / 527 x 296 mm | | Resolution | 1920 x 1080 | | Viewing Angle (H/V) | 178/178° | | Brightness | 250 cd/m² | | Contrast | 1000:1 | | Panel Type | IPS | | Inputs | 2 x BNC, SD/HD/3G-SDI
1 x HDMI type A
1 x 3BNC, component YPbPr video
1 x BNC, composite video
1 x VGA
1 x 2RCA, stereo analog audio | | Outputs | 2 x BNC, SDI loop output
1 x HDMI type A, loop output
1 x BNC, composite video loop output
1 x 3.5 mm, stereo headphone | | Resolution Support | 2048 x 1080p 23.98/24 (SDI only)
2048 x 1080PsF 23.98/24 (SDI only)
1920 x 1080p 23.98/24/25/29.978/30/50/59.94/60
1920 x 1080PsF 23.98/24/25/29.978/30
1920 x 1080i 50/59.94/60
1280 x 720p 50/59.94/60
576p (HDMI only)
480p (HDMI only)
NTSC
PAL | | SDI Standards | SMPTE-425M A/B
SMPTE-274M
SMPTE-RP211
SMPTE-296M
ITU-R BT.656
SMPTE-125M | | | | Operating Voltage | 11-17 VDC | | Power Consumption | 36 W max. | | Environmental Conditions | Operating temperature: 32 to 104°F / 0 to 40°C
Operating humidity: 10-90%, non-condensing | | Dimensions | 22.7 x 15.2 x 1.9" / 57.6 x 38.7 x 4.7 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 25.9 x 20.1 x 6.7" |
