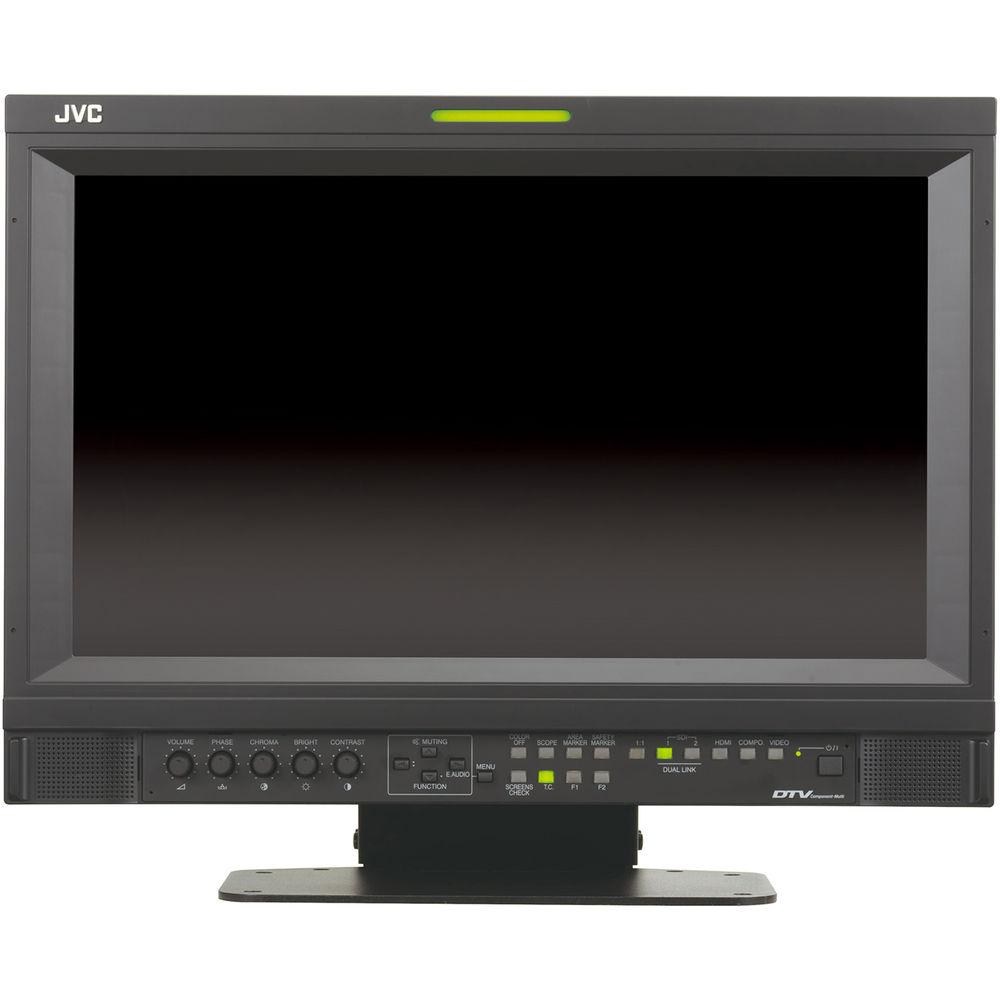

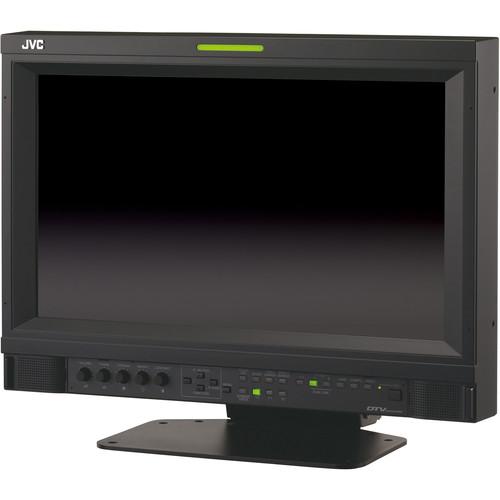

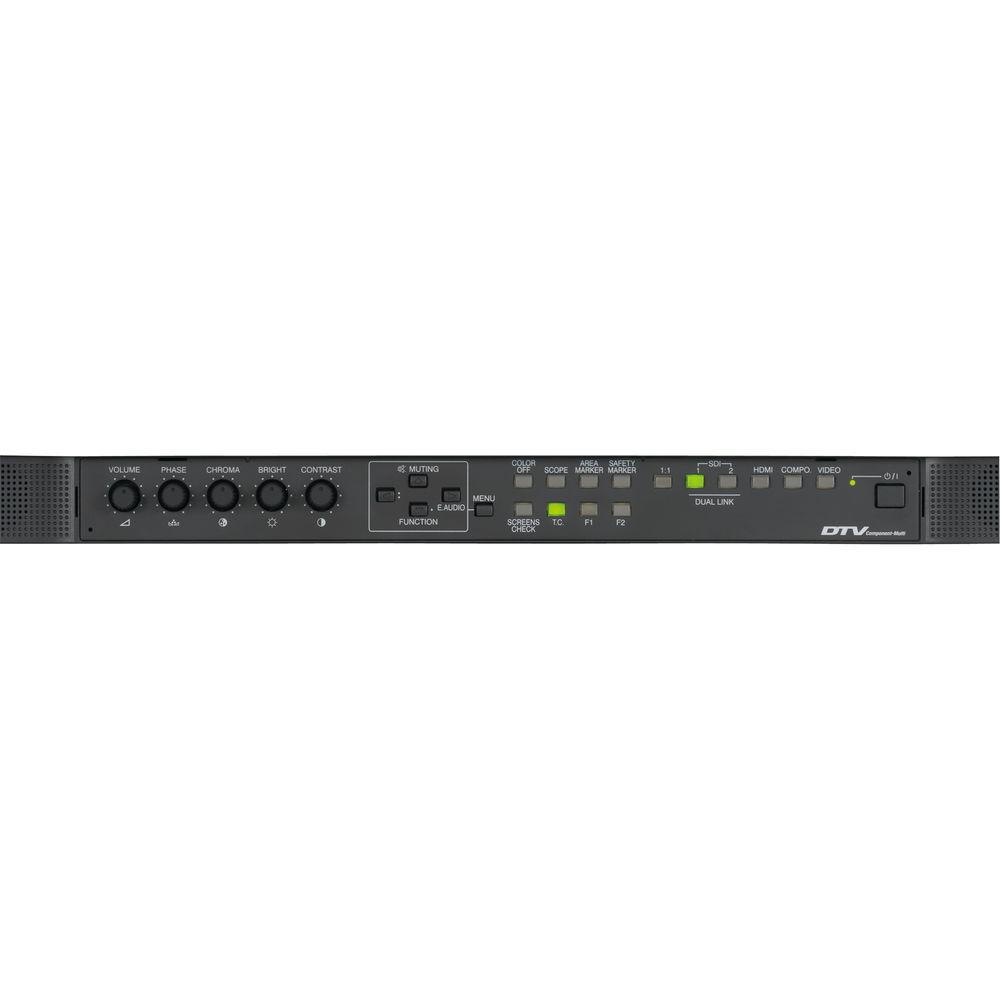

Product description The JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor is a near EBU Grade 1 LCD monitor with improved color gamut, gamma, and grayscale characteristics, making it suitable for field, studio, and broadcast image evaluation. Its 10-bit panel and wide gamma range make it ideal for critical image evaluation. The monitor is fully capable of displaying 2048 x 1080/24p (DCI 2K) signals, and reproduces accurate colors in native 1920 x 1080 resolution. In addition to wide color gamut, luminance ranges, and color temperatures that meet EBU specs, the gamma and grayscale gradation performances have been improved to satisfy the discerning requirements of production studios, broadcast networks, and other professional applications. The DT-V17G25Z is equipped with a 10-bit IPS LCD panel and is capable of reproducing 1.073 billion colors. It also offers a contrast ratio of 1500:1 and wide viewing angles of 178°/178°. The analog-based picture quality evaluation technology with contour enhancer helps eliminate aliasing, making pictures appear more natural. - 10-bit IPS panel with 1.073 billion color reproduction
- Full HD resolution (1920 x 1080 pixels)
- Fully capable of displaying 2048 x 1080/24p (DCI 2K) signals

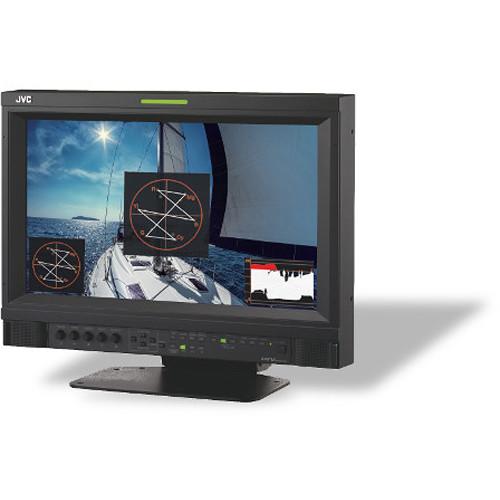

- Built-in histogram, waveform, vectorscope, and zebra
- Built-in audio level meter with up to 16 channels
- Wide array of markers and indicators
- Two 3G-SDI and dual-link inputs
- Supports the EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards
- Color temperature settings (9300K, 6500K, 5600K, or User mode)
- IP modes: Normal, Field, and Cinema (24p)
- Pixel-by-pixel (1:1) display
- Tiltable stand with two-way installation capability
UPC: 046838075254 In the Box JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor Tilting Desk Stand Carrying Handle AC Power Cord Power Cord Holder 2 x Screw Core Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-V17G25Z Specs | Monitor Type | Multi-format LCD monitor | | Screen Size | 16.5" (42 cm) | | Resolution | 1920 x 1080 | | Display Colors | 1.073 billion | | Viewing Angle | 178° / 178° (H / V) | | Brightness | 450 cd/m2 | | Contrast Ratio | 1500:1 | | Signal System | Not specified by the manufacturer | | Response Time | Not specified by the manufacturer | | Aspect Ratio | 16:9 | | LCD Panel | 17" (43.2 cm) diagonal, active matrix TFT | | Effective Screen Size | 14.4 x 8.1" (365.8 x 205.7 mm) | | Standards | 3G-SDI (Ready): SMPTE 424M/SMPTE 425M; dual-link
HD-SDI (Ready): SMPTE 372M
HD-SDI: BTA S-004C, SMPTE 292M
SD-SDI: ITU-R BT.656 (525/625), SMPTE 259M (525)
Embedded Audio: SMPTE 299M, SMPTE 272M | | Audio Output | Internal: 1 W + 1 W (L/R) | | Energy Efficiency Class | D | | Rated Current | North America: 0.55 A (120 VAC)
Europe: 0.33 A (220 to 240 VAC) | | Video I/O | 3G/HD/SD-SDI (In 1):
Digital Signal Input: Auto detection (compatible with embedded audio/dual-link signals)
3G/HD/SD-SDI (In 2):
2 x 2 lines, BNC connector
3G/HD/SD-SDI (Out 1):
Digital Signal Input: 1 line, 1 x BNC connector (compatible with embedded audio)
3G/HD/SD-SDI (Out 2, Switched):
Digital Signal Input: 1 line switched out, 1 x BNC connector (compatible with embedded audio)
HDMI In: 1 (compatible with HDCP)
Component In: 1 line
Y: 1 Vpp, 75 Ohms (with sync)
PB/B-Y, PR/R-Y: 0.7 Vpp, 75 Ohms
Composite Video Input/Output: 1 line
2 x BNC, 1 Vpp, 75 Ohms
((In and Out are connected with a bridge connection, auto termination) | | Audio I/O | In 1:
Analog Signal: 2 lines
2 x RCA connectors
1 x 3.5 mm stereo mini jack
In 2:
500 mV (rms), high impedance
Output:
Audio assign (monitor out)
Analog Signal: 1 line
2 x RCA, 500 mV (rms) | | External Control | Make/Trigger: RJ-45
RS-485: RJ-45
RS-232C: D-Sub (9-pin) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 80%, non-condensing | | Power Requirements | 120/220 to 240 VAC, 50/60 Hz | | Power Consumption | On: 29.7 W
Stand-By: 0.3 W
Annual Energy Consumption: 44 kWh/year | | Dimensions (W x H x D) | With Stand: 16.9 x 13.8 x 8.4" (43.0 x 35.0 x 21.3 cm)
Without Stand: 16.9 x 12.1 x 4.4" (43.0 x 30.9 x 10.2 cm) | | Weight | With Stand: 18.3 lb (8.3 kg)
Without Stand: 13.0 lb (5.9 kg) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 21.0 x 18.2 x 11.6" |
