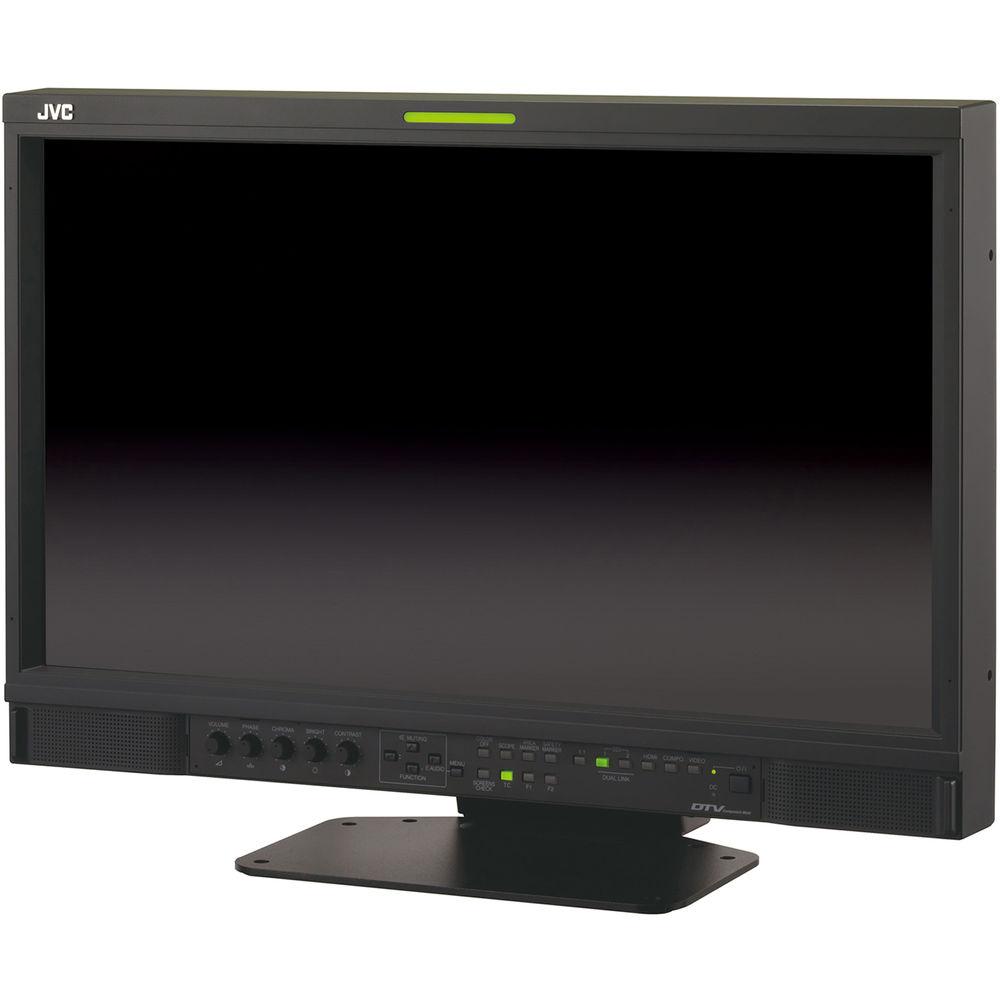

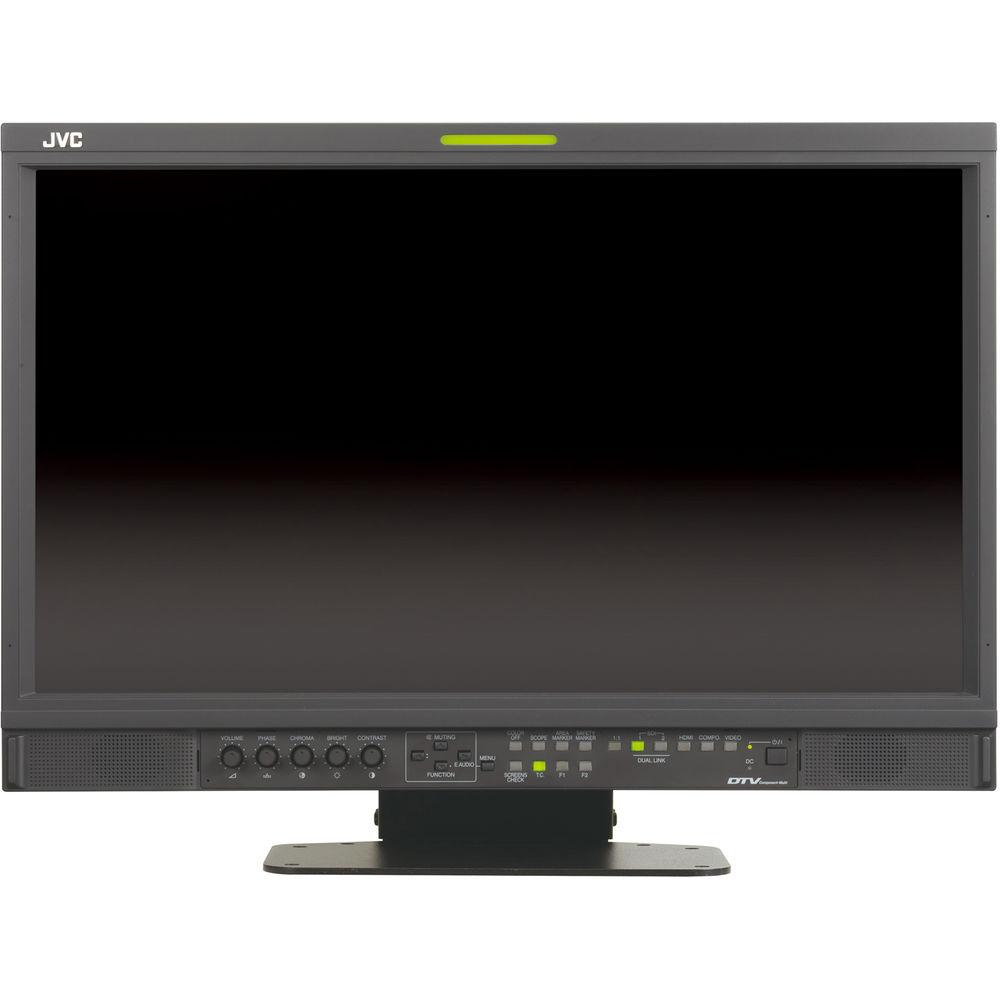

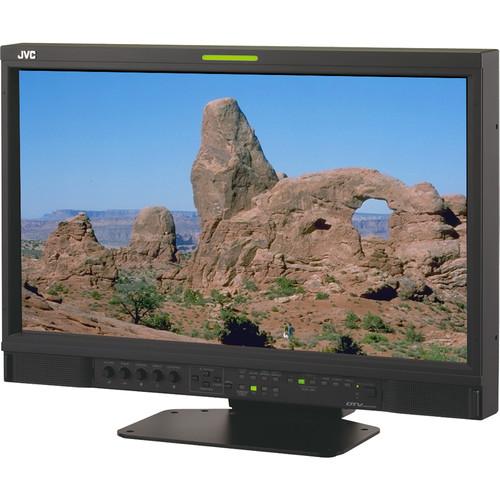

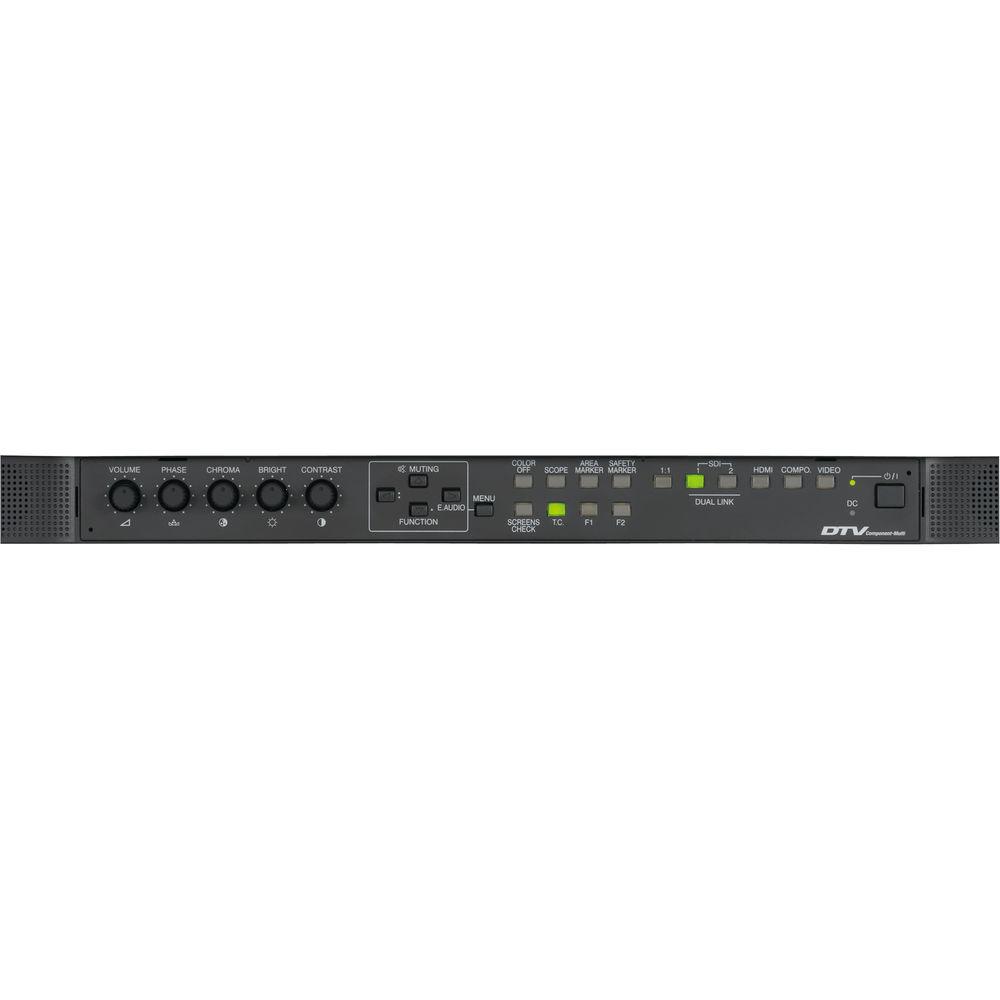

Product description The DT-V21G2Z 21" Broadcast Field / Studio Monitor from JVC is a high-performance LCD monitor with color gamut, gamma, and grayscale characteristics suitable for field, studio, and broadcast use. The monitor is capable of displaying a 2048 x 1080/24p (DCI 2K) signal with a 1500:1 contrast ratio. It features a built-in histogram, waveform, vector scope, and zebra, with a wide array of markers and indicators. The monitor has a built-in audio level meter up to 16 channels with a built-in stereo speaker. It includes a carrying handle for easy mobility. - 21" (21.5" viewable) IPS panel with 16.7 million color reproduction
- Full HD resolution 1920 x 1080p
- Capable of displaying 2048 x 1080/24p (DCI 2K) signal
- Built-in histogram, waveform, vector scope, zebra
- Built-in audio level meter up to 16 channels
- Wide array of markers and indicators
- Two 3G-SDI & dual link inputs
- Supports the EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards
- Color temperature settings (9300K, 6500K, 5600K, or user mode)
- IP modes normal, field, and cinema (24p)
- Pixel-by-pixel (1:1) display
- Tillable stand with two-way installation capability
UPC: 046838075230 In the Box JVC DT-V21G2Z 21" Broadcast Field / Studio Monitor Carrying Handle AC Power Cord Power Cord Holder Core Filter Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-V21G2Z 21" Broadcast Field Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-V21G2Z Specs | | | Type | 21" / 53 cm wide, active matrix TFT | | Effective Screen Size | 18.7 x 10.5 x 21.5" / 47.4 x 26.7 x 55 cm | | Number of Pixels | 1920 x 1080 | | Aspect Ratio | 16:9 | | Number of Colors | 16.77 million | | Viewing Angle | Horizontal/Vertical: 178°/178° | | Brightness | 300 cd/m2 | | Contrast Ratio | 1500:1 | | Frequency | H: 31.467 to 75.000 kHz
V: 49.990 to 75.062 Hz | | Format | 3G-SDI: SMPTE424AM/SMPTE425M
Dual/Link HD SDI: SMPTE372M
HD SDI: BTA S-004C, SMPTE292M
SD-SDI: IRU-R BT.656 - 525/625, SMPTE259M - 525
Embedded Audio: SMPTE299M, SMPTE272M | | Audio Output | Internal Speaker: 1 W + 1 W | | | | Video | Composite Signal: 1 Line, 2 x BNC connector, 1 V p-p, 75 Ohms
HDMI: 1 x HDMI connector, HDMI signal input (compatible with HDCP)
Composite (Y, PB/B-Y, PR/R-Y): 1 Line, Y: 1 V p-p, 75 Ohms (with sync), P/B-Y, PR/R-Y: 7 V p-p, 75 Ohms
3G/HD/SD SDI (Input 1/2): Digital signal input (compatible with embedded audio signals) - 2 x BNC connector, auto detection, 2 Line
3G/HD/SD SDI (Output 1): Digital signal input (compatible with embedded audio signals) - 1 Line, 1 x BNC connector
3G/HD/SD SDI (Output 2: Switched Out): Digital signal input (compatible with embedded audio signals) - 1 Line switched out, 1 x BNC connector Input & output terminals are bridge connected (auto-termination). | | Audio | Audio Assign (Input 1/2): Analog audio signal input - 2 Line, 2 x RCA connector, 1 x Stereo mini jack, 500 mV (RMS), high-impedance
Audio Assign (Monitor Out): Analog audio signal output - 1 Line, 2 x RCA connector, 500 mV (RMS) | | External Control | RS-485, RS-232C | | | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 20 to 80% (non-condensing) | | Power Requirements | 120/220 to 240 VAC, 50/60 Hz or 12 to 17 VDC | | Dimensions | With Stand: 20.3 x 15.3 x 8.4" / 51.5 x 38.8 x 21.3 cm
Without Stand: 20.3 x 13.8 x 3.9" / 51.5 x 35.1 x 9.9 cm | | Weight | With Stand: 19 lb / 8.6 kg
Without Stand: 13.7 lb / 6.2 kg | | | | Package Weight | 23.95 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 11.5" |
