User Manual for JVC DT-V9L5U 8.2" Broadcast Studio Monitor Click to enlarge the picture
Contents of the user manual for the JVC DT-V9L5U 8.2" Broadcast Studio Monitor
- Product category: On Camera Monitors JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC On Camera Monitors
 |
User manual for the JVC DT-V9L5U 8.2" Broadcast Studio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

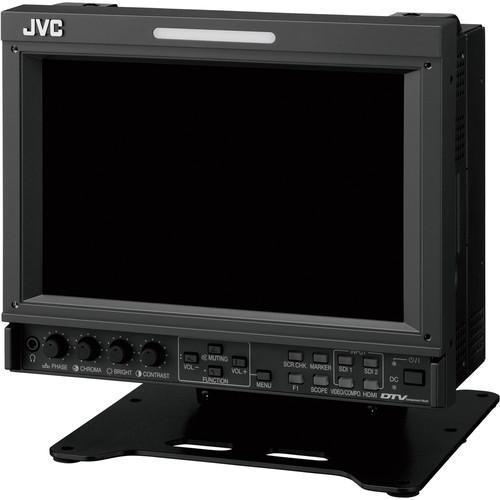

Product description The JVC DT-V9L5U 8.2" Broadcast Studio Monitor features a 16:10 widescreen, active matrix, TFT LCD with a gloss surface and an LED backlight. The resolution is 1280 x 800, contrast ratio 800:1, and brightness 360 nit. The viewing angle is 160°. The monitor powers by an included AC adapter.
Front panel controls include phase, chroma, brightness, and contrast adjustment knobs, and input selection and marker buttons. The front panel also has a wide-sized tally light, and a second tally light is on the rear. - Key Features
-
- 8.2" IPS panel with 1280 x 800 resolution
- Mercury-free white LED backlight
- 800:1 contrast ratio
- 360 nit brightness
- 160 x 160° viewing angle
- 16 channel SDI audio level metering
- Area/Center/Aspect marker
- SDI timecode display
- Front and rear tally lamps
- 1W internal mono speaker
- AC adapter included
- Tabletop stand included
- Supports Anton Bauer battery plates on the rear

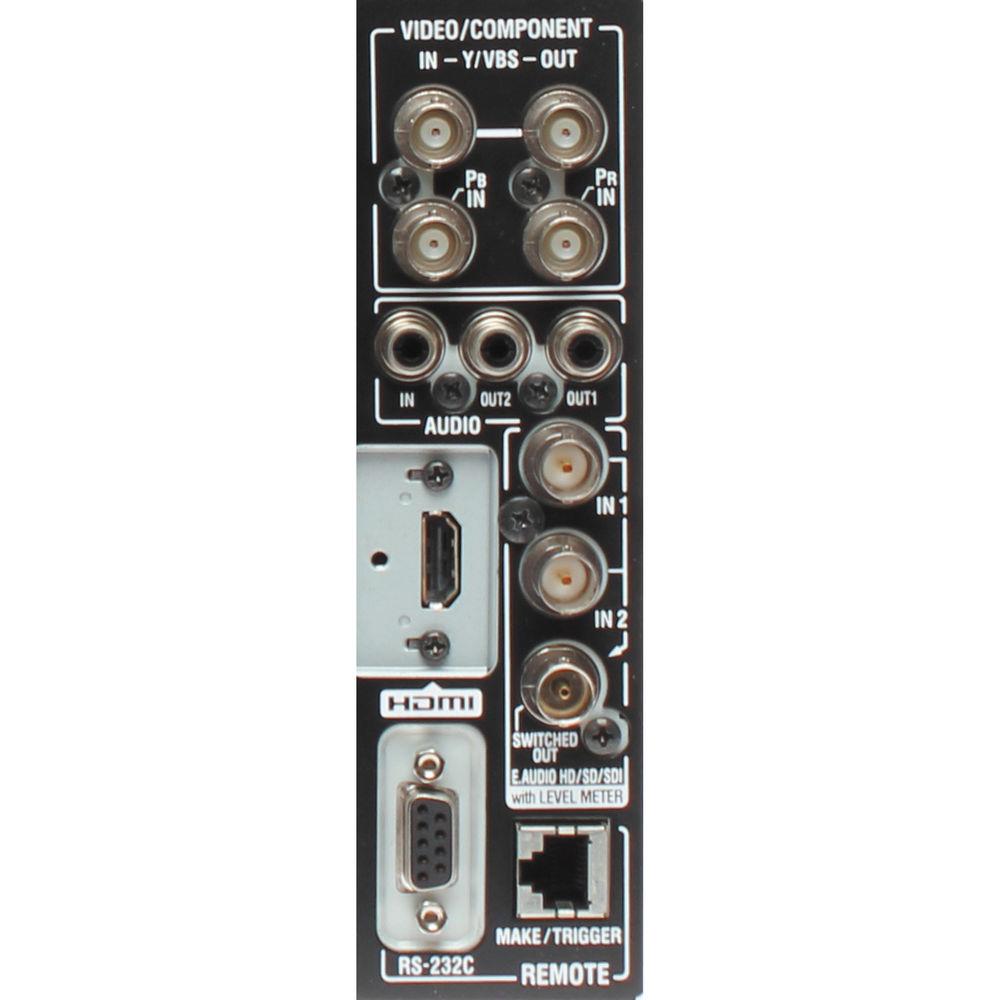

- Inputs / Outputs
-
- Two 3G/HD/SD-SDI inputs and one switched out output
- Bridge-connected Composite BNC input and output
- HDMI input
- Component input on 3x BNCs
- RCA audio input on one connector
- RCA L/R audio output
- Front panel headphone jack
- RJ-45 Make/Trigger
- D-Sub9 RS-232C
- Image Analysis Tools
-
- Waveform
- Vectorscope
- Underscan / Overscan
UPC: 046838067259 In the Box JVC DT-V9L5U 8.2" Broadcast Studio Monitor AC Power Cord Tabletop Stand Protective Screen Filter with Four Screws Power Cord Holder with Two Screws Limited 1-Year Warranty User Manual PDF 2.2mbrzuzewustrzqwqxtysccxcre Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-V9L5U 8.2" Broadcast Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-V9L5U Specs | Screen | 8.2" wide, active matrix TFT LCD (21 cm)
LED backlight | | Effective Screen Size | W x H x D: 7 x 4.3 x 4.2 (18 x 11 x 21 cm) | | Resolution | 1280 x 800 | | Colors | 16.7 million | | Viewing Angle | 80° H, 80° V | | Brightness | 360 nit | | Contrast Ratio | 800:1 | | Aspect Ratio | 16:10 | | Input & Output | 3G/HD/SD-SDI input (embedded audio supported)
2x auto detecting BNC connectors
HD-SDI output switched out (embedded audio supported)
1x auto detecting BNC connector
HDMI input:
1x HDMI, HDCP-compatible
Composite input/output:
1x line on 2x BNC connectors, 1 V (p-p), 75 Ω
The input and output terminals are bridge-connected (auto termination)
Component input:
1x line on 3x BNC connectors
Y: 1 V(p-p), 75 Ω(with sync)
PB/B-Y, PR/R-Y: 0.7 V (p-p), 75 Ω
RCA audio input:
1x RCA connector, 500 mV (rms), high impedance
RCA audio output:
2x RCA connectors, 500 mV (rms)
500 mV (rms)
1x headphone jack
Remote (Make/Trigger):
1x RJ-45, contact or momentary pulse to corresponding terminal
Remote (RS-232C):
D-Sub9, serial communication | | Format | HD-SDI: SMPTE292M
SD-SDI: ITU-R BT.656, SMPTE259M
Embedded Audio 16 Ch: SMPTE299M, SMPTE272M | | Timecode | SDI timecode | | Audio Output | Internal speaker: 1 W | | Audio Metering | Digital (up to 16 ch) | | Power Requirements | AC 120 V / AC 220 - 240 V, 50/60 Hz or DC 12 - 17 V
Power input: 4-pin XLR
AC adapter included | | Rated Current | 0.5 A (AC 120 V)
0.25 A (AC 220 - 240 V)
1.3 A (DC 12 - 17 V) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 20 - 80% (non-condensing)

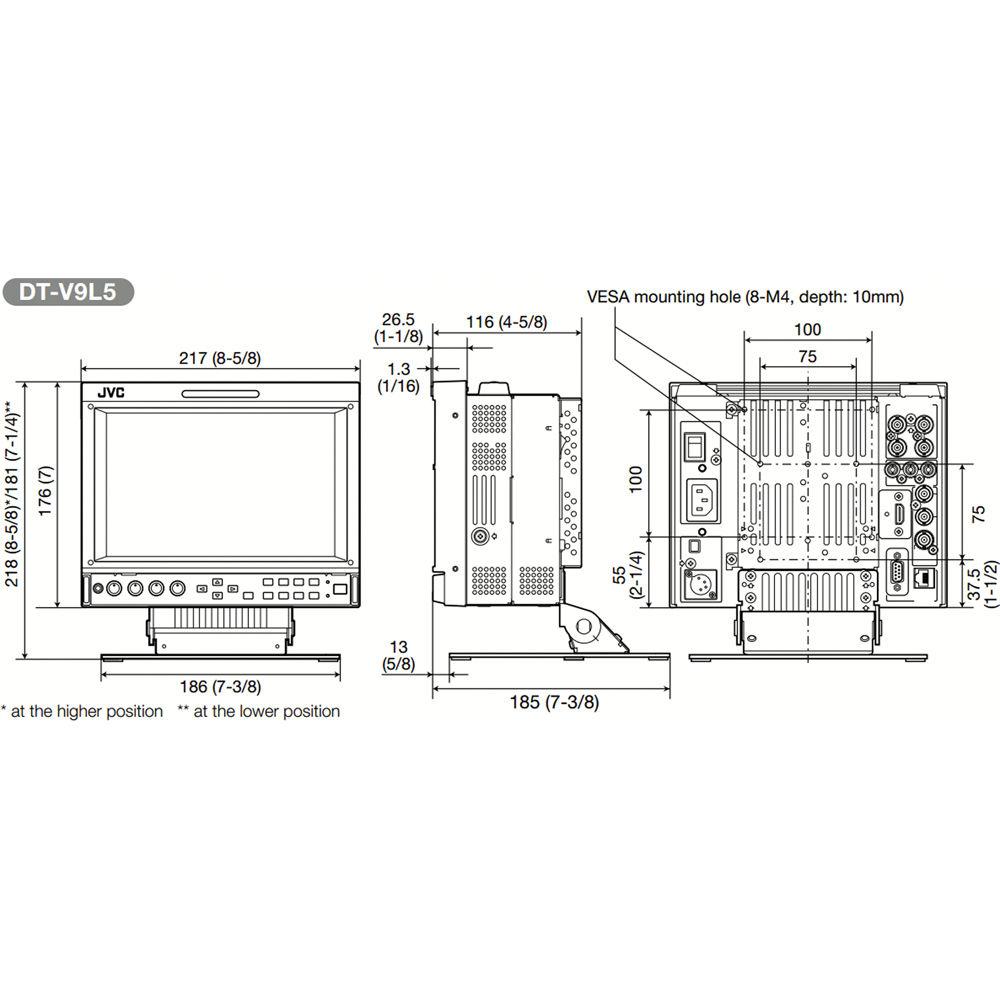

*Slightly variable depending on ambient conditions for installation | | Dimensions | With stand: 8.6 x 8.6 x 7.5" (22 x 22 x 19 cm)
Without stand: 8.6 x 7 x 4.7" (22 x 18 x 12 cm) | | Weight | With stand: 7 lb (3.2 kg)
Without stand: 5.1 lb (2.3 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 13.0 x 12.5 x 12.0" |
