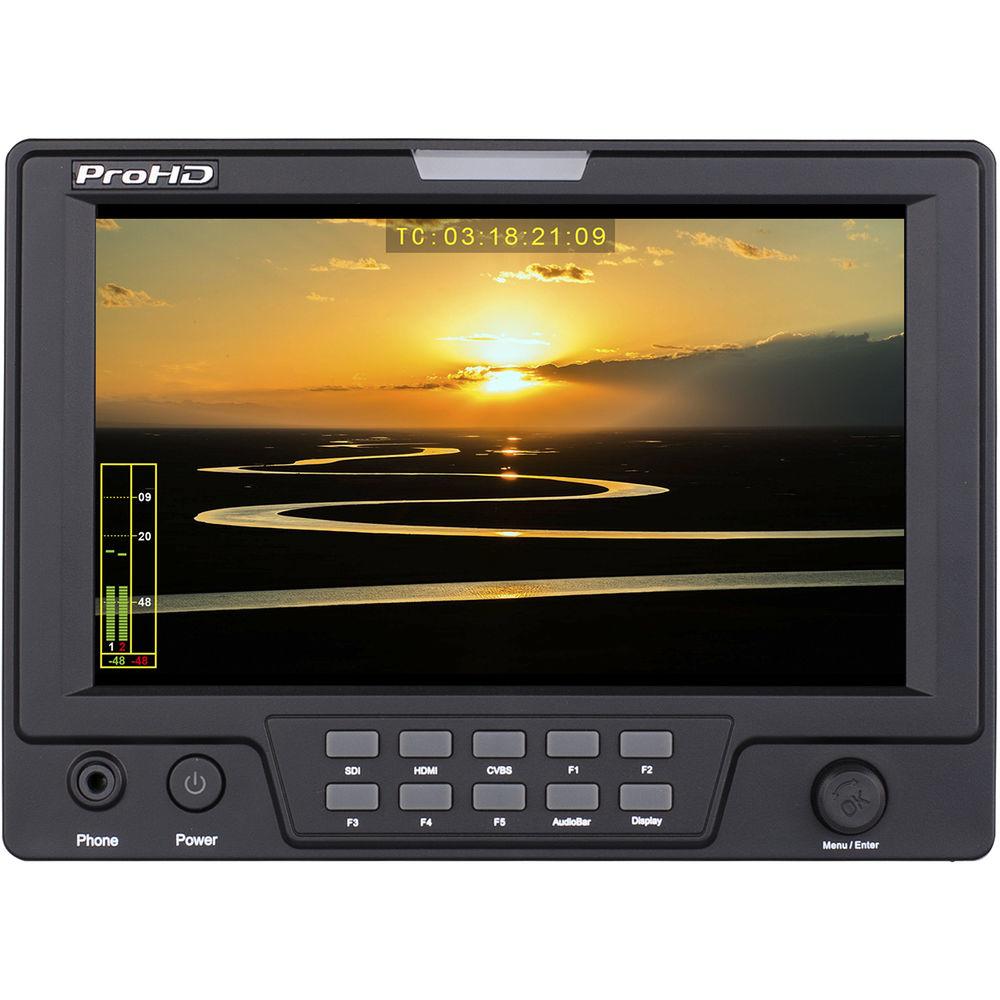

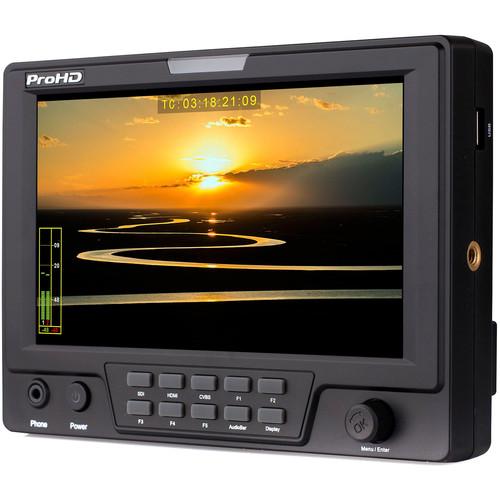

Product description The 7" DT-X71HP ProHD 3G-SDI/HDMI On-Camera LCD Monitor from JVC features front and rear dual tally lights and other functions like Canon DSLR scale zoom-in, video flip, customer editable video title, and safety mark display. Additionally, the monitor comes integrated with 2K (2048 x 2160) signal monitoring, timecode, and audio (via SDI). It accepts two HD/SD-SDI inputs, one HDMI, one composite video, and one stereo audio input. It also features an HD/SD-SDI loop-through output. Focus assist, zebra stripes, and a wide range of safety markers are also included. The DT-X71HP can be powered via a 4-pin XLR 12 VDC connector, or via a snap-on 7.4V IDX SSL-JVC50 battery (not included). - 7" FFS LCD panel with LED backlight
- Wide viewing angle of 160° x 160°

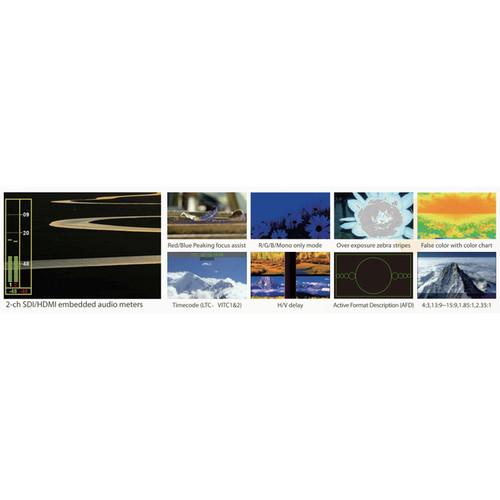

- Two-channel SDI/HDMI/analog audio meters
- Peaking focus assist and zebra stripes functions
- Supports H/V delay, freeze frame, AFD, timecode
- False color, RGB/Mono, 100% internal color bars
- Front/rear tally light with GPI input and control

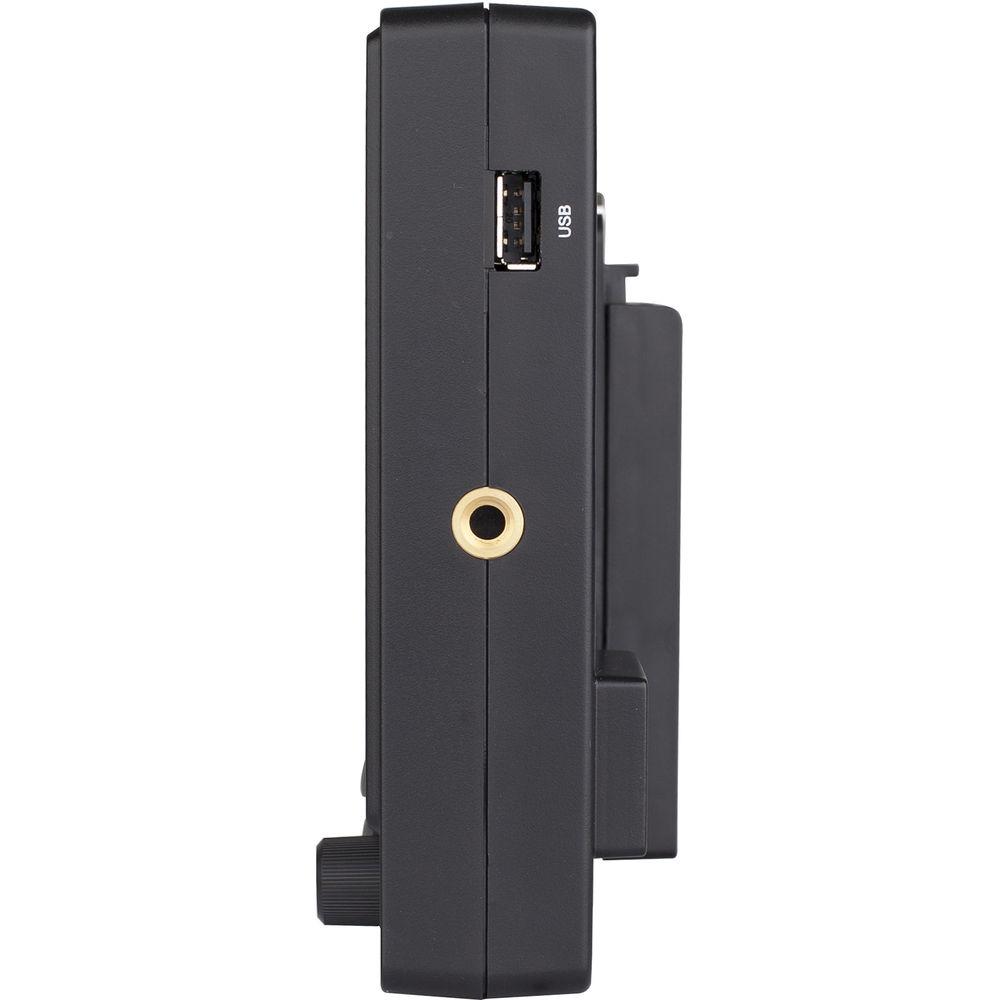

- Upgradable firmware (via USB)
In the Box JVC DT-X71HP ProHD 7" 3G-SDI/HDMI On-Camera LCD Monitor Sun Hood SSL Battery Plate AC Adapter 1/4"-20 Mounting Head LCD Protective Film Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC DT-X71HP ProHD 7" 3G-SDI HDMI On-Camera LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

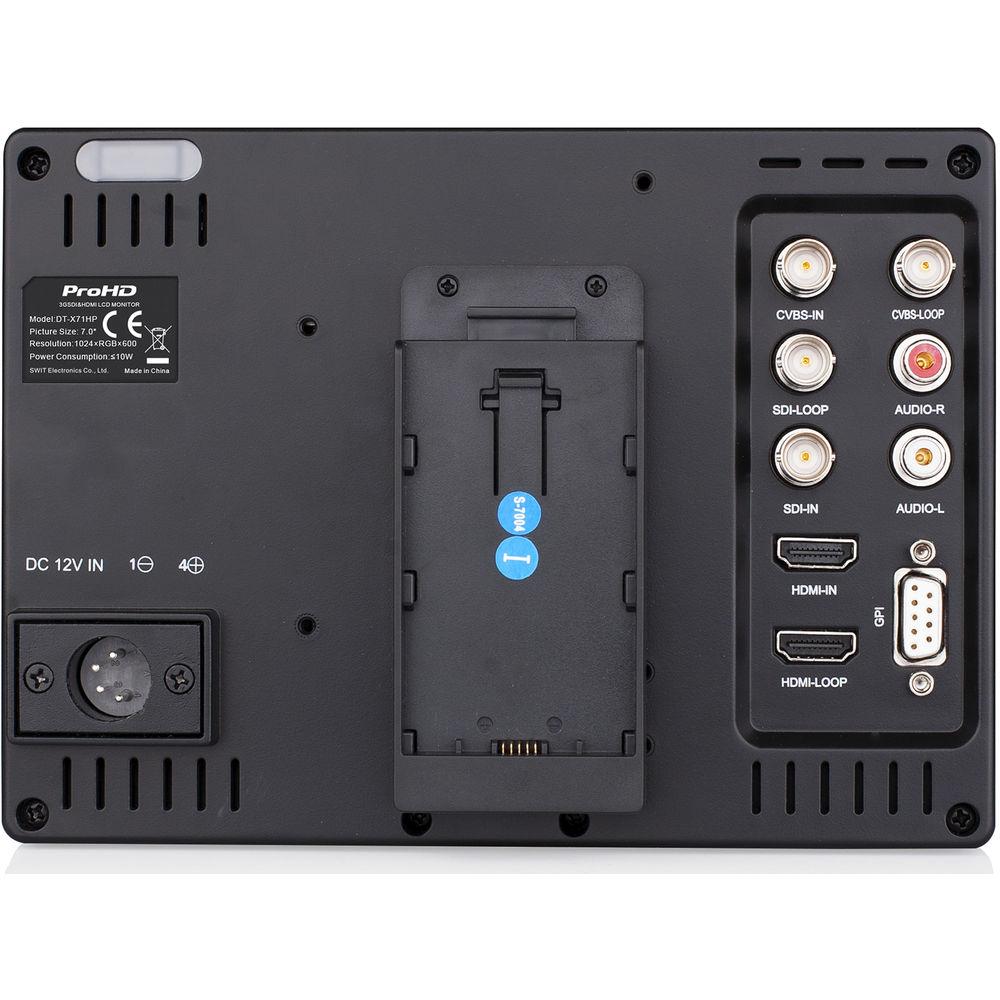

Technical parametersJVC DT-X71HP Specs | Size | 7" (17.78 cm) | | Display Area | 6.0 x 3.5" (153.6 x 90 mm) | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 400 cd/m2 | | Contrast | 900:1 | | Color | 16.77 million colors | | Viewing Angle | H/V: 160°/160° | | Input | 1 x BNC 2K 3G/HD/SD-SDI
1 x BNC composite
1 x HDMI 1.3
1 x RCA (analog audio L/R) | | Output | 1 x BNC 2K 3G/HD/SD-SDI (loop-through out)
1 x BNC composite (loop-through out)
1 x HDMI 1.3 (loop-through out)
1 x 3.5 mm (SDI, HDMI, analog audio) | | SDI | SMPTE-2048-2
2048 x 1080p 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080i 50/59.94/60
SMPTE-425M-A/B
1080p 60/59.94/50
SMPTE-274M
1080i 60/59.94/50
1080p 30/29.97/25/24/23.98
SMPTE-RP211
1080PsF 30/29.97/25/24/23.98
SMPTE-296M
720p 60/59.94/50
SMPTE-125M
480i 59.94
ITU-R BT.656
576i 50 | | HDMI | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
576p / 576i
480p / 480i | | CVBS | NTSC/PAL | | Working Voltage | DC/Battery: 6.5 to 17 V | | Power Consumption | ≤10 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90% | | Storage Temperature | 5 to 140°F (-15 to 60°C) | | Storage Humidity | 10 to 90% | | Dimensions | 7.6 x 5.5 x 1.9" (19.3 x 13.9 x 4.8 cm) | | Weight | 19.4 oz (550 g) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 11.732 x 7.559 x 3.622" |
