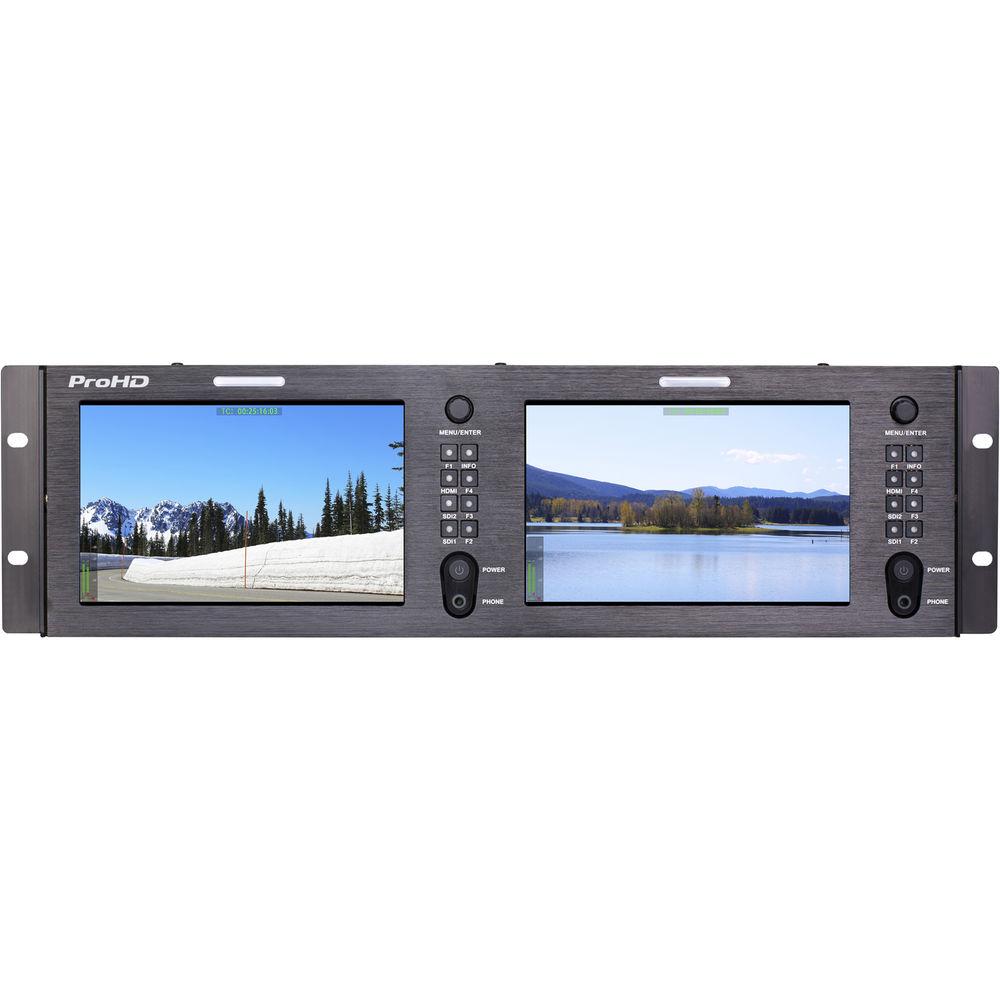

Product description Suitable for studio and field production, the 3 RU rackmount Dual 7" Full HD 4K-HDMI LCD Rack Monitor from JVC offers dual 7" LCD panels with 1920 x 1200 resolution, 4K input support, 400 cd/m² brightness, 1000:1 contrast, and a wide 160° viewing angle.
The panels support a long list of features such as peaking focus assist, Red/Green/Blue/Mono display, zebra stripes, false color, timecode display, H/V delay, AFD, GPI control, front tally lights, and other functions used in broadcast applications. Each display has two 3G/HD/SD-SDI loop-through inputs, one 3G/HD/SD-SDI output, and an HDMI input and output. Audio features include a 3.5mm headphone output, monitoring of up to 16 audio channels, and your choice of any two audio channels for output. Each panel supports 4:3, 13:9, 14:9, 15:9, 1.85:1, and 2.35:1 markers and 9-step quick zoom-in and mapping.
A USB input allows you to load 3D LUT cube files as well as upgrade the firmware. A power adapter is included with the unit. - Dual 7" panels, 1920 x 1200 resolution, no-glare, 2K/3G/HD/SD-SDI, HDMI 2.0 (4K60p) monitoring
- Up to 16-channel embedded audio meters with alert
- 19" 3 RU rack mount installation,
|
Upload User Manual
Have you got an user manual for the JVC Dual 7" Full HD 4K-HDMI LCD Rack Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-X7HUX2 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 5.95 x 3.72" / 151.2 x 94.5 mm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | SDR | | | | Video | 2 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 1.4) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.4) Output Each LCD | | HDCP Support | No | | Embedded Audio | HDMI: 2-Channel
SDI: 2-Channel Monitor up to 16 Channels, Any 2-Channel Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x GPI (RJ45)
1 x USB 2.0 (USB Type-A) Each LCD | | Card Slot | None | | | | Video Format | HDMI (8-Bit)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
1080i: 60/59.94/50
576p
480p
NTSC
PAL
SDI (8-Bit)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
NTSC: 59.94
PAL: 50 | | | | AC Input Power | 120 VAC, 60 Hz | | DC Input Power | 6.5 to 36 VDC | | Battery Type | None | | Power Consumption | 26 W (Maximum) | | | | Operating Humidity | 10 to 90% | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Humidity | 10 to 90% | | Storage Temperature | 5 to 140°F / -15 to 60°C | | | | Dimensions (W x H x D) | 19.06 x 5.12 x 3.23" / 484 x 130 x 82 mm | | Weight | 5.29 lb / 2.4 kg |
