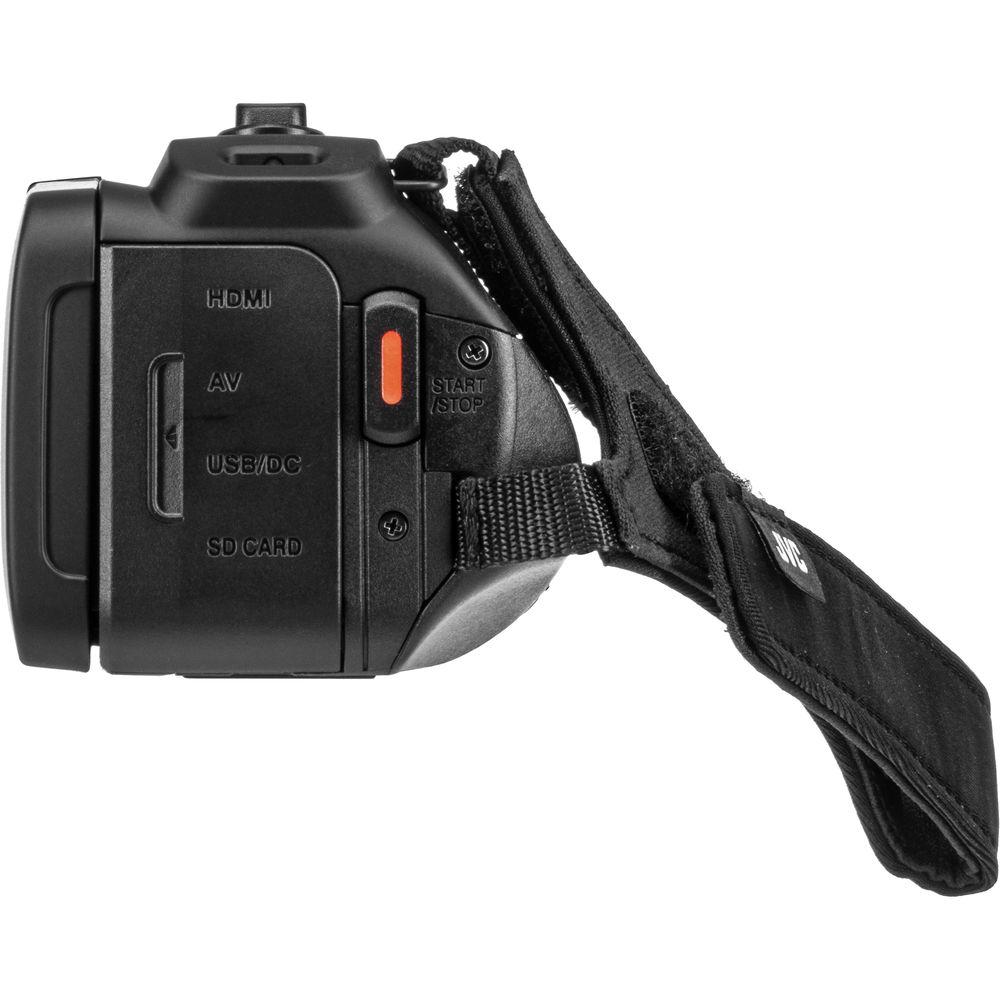

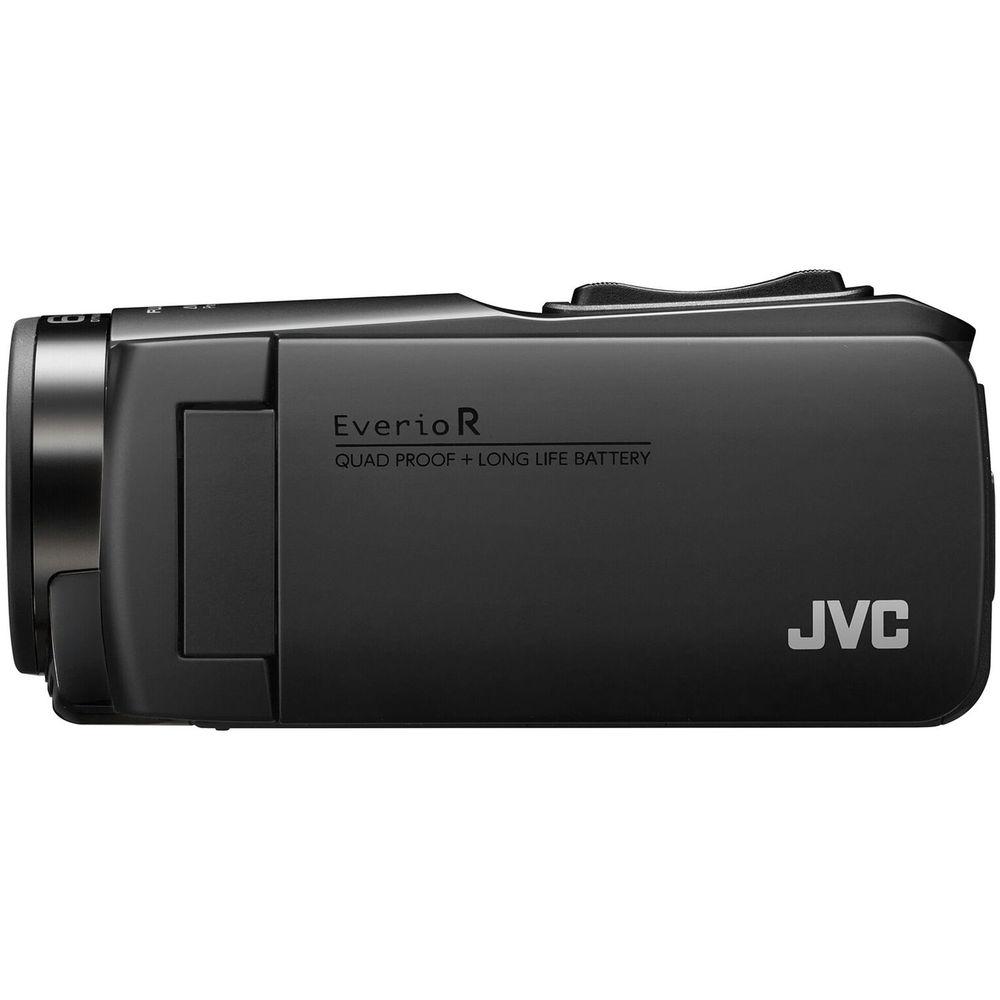

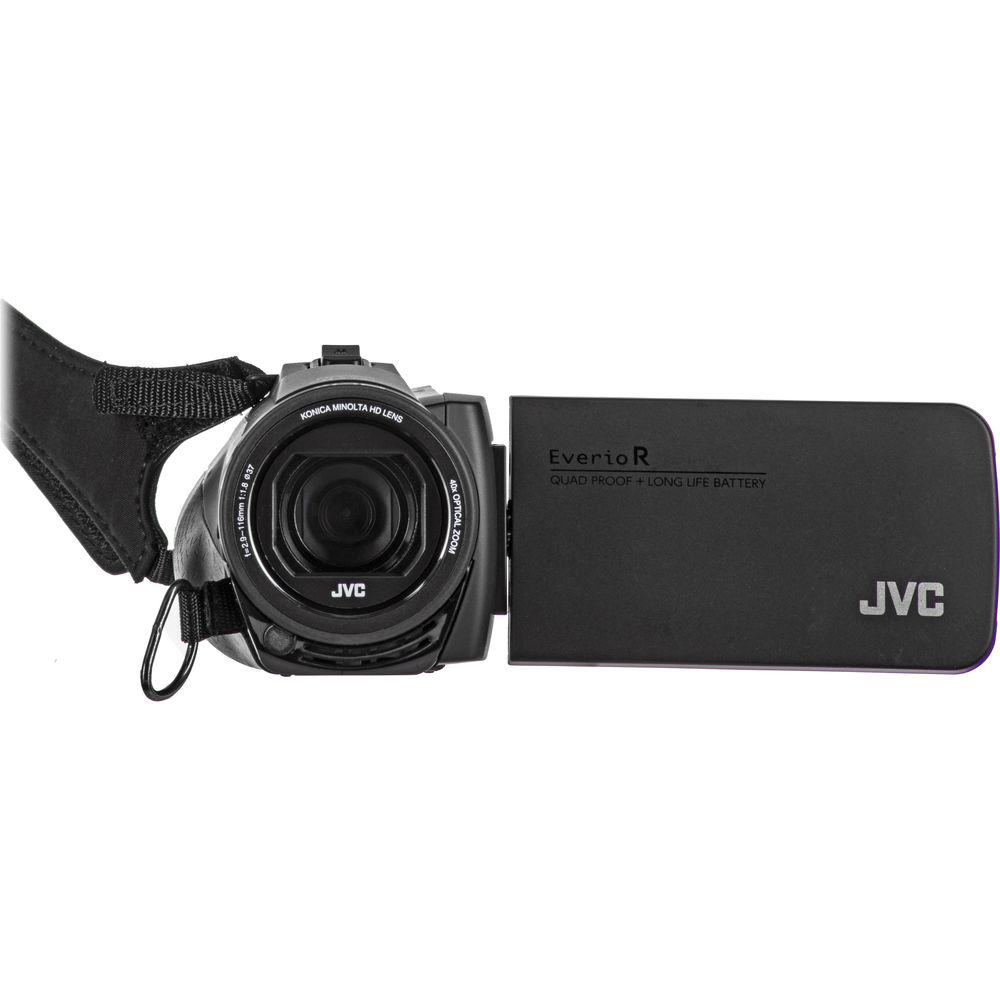

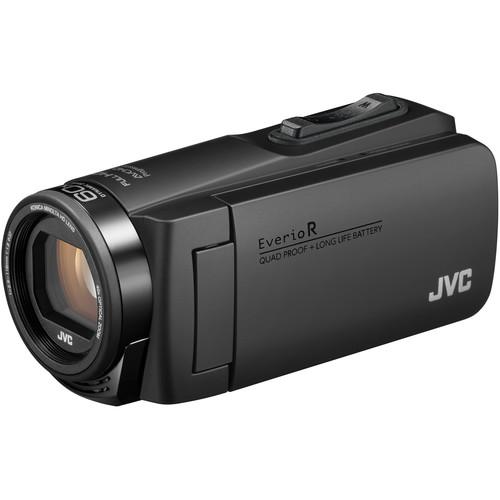

User Manual for JVC Everio GZ-R560BUS Quad Proof HD Camcorder with 40x Optical Zoom Click to enlarge the picture
Contents of the user manual for the JVC Everio GZ-R560BUS Quad Proof HD
- Product category: Consumer Camcorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Consumer Camcorders
 |
User manual for the JVC Everio GZ-R560BUS Quad Proof HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

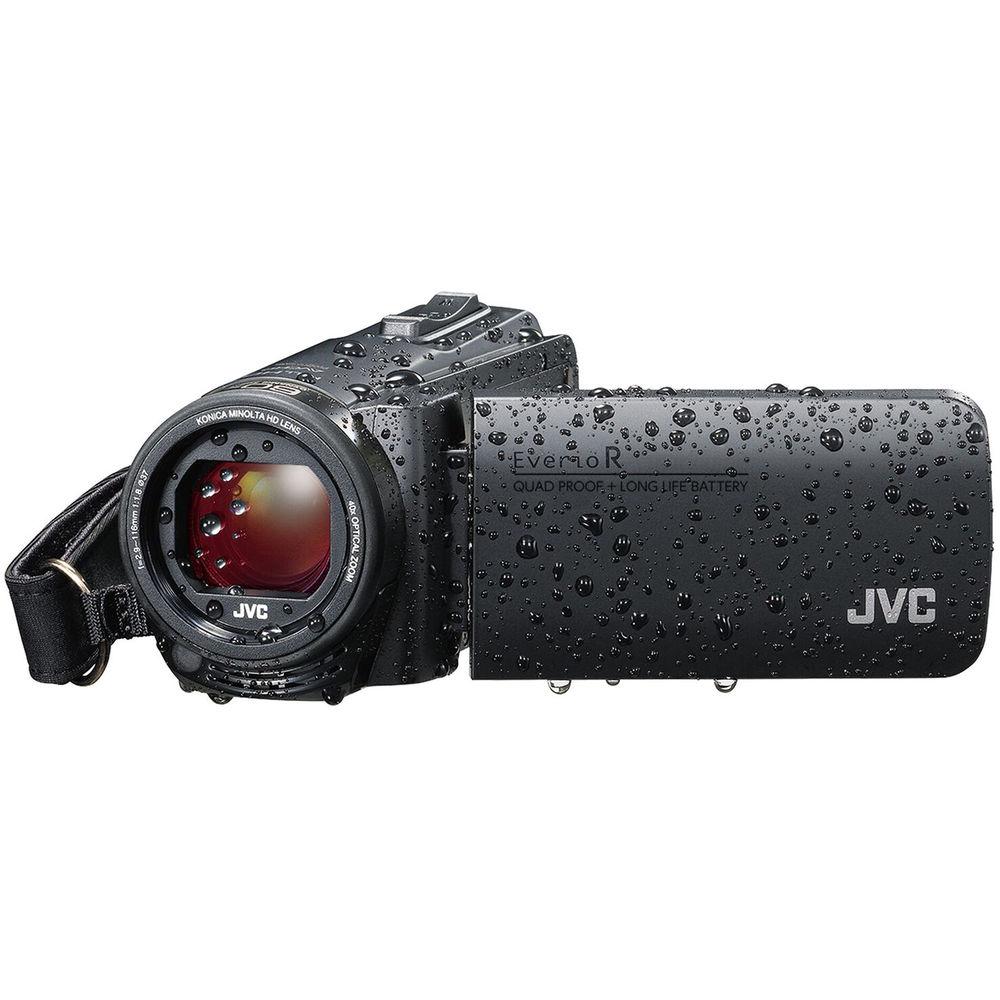

Product description The black JVC Everio GZ-R560BUS Quad Proof HD Camcorder with 40x Optical Zoom records up to 1080p60 HD AVCHD video at bit rates up to 28 Mb/s to SDHC/SDXC media cards, and 1920 x 1080 at up to 24 Mb/s to 32GB of internal memory. Designed with JVC's rugged Quad Proof camera body, the Everio GZ-R560BUS is built to capture your adventures, no matter the weather. This rugged camcorder is waterproof down to 16', shockproof from falls up to 5', dustproof, and freezeproof down to 14°F. The camera's back-illuminated 2.5MP CMOS sensor uses JVC's Falconbrid image processor to record 1920 x 1080 HD video to SD media cards, or to the 32GB of internal memory storage. Still photos can be captured at 10MP.

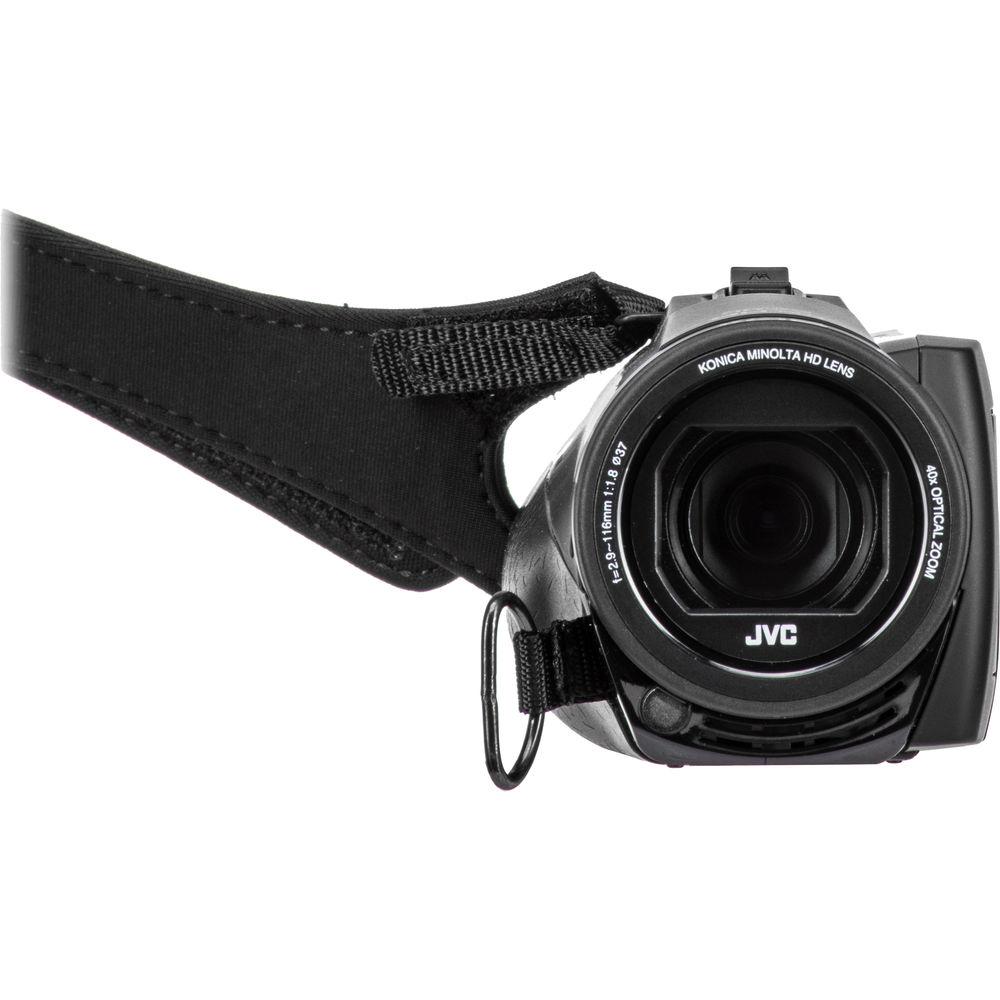

The Everio GZ-R560's Konica Minolta HD lens features a 40x optical zoom and 60x dynamic zoom. Advanced image stabilization (AIS) reduces camera shake when handholding the camera. View while recording and playing back footage on the 3" touchscreen LCD. Image capture features include time-lapse recording, face detection, and special effects like Grainy B&W, Food, and Baby modes. Additional camera features include a rechargeable internal battery lasting up to five hours, a built-in zoom microphone, and 37mm filter compatibility. Features - Quad proof design is waterproof down to 16', shockproof up to 5', dustproof, and freezeproof down to 14°F
- Record 1080p60 in AVCHD at up to 28 Mb/s, and 1080i60 AVCHD video at bit rates up to 24 Mb/s
- 40x optical zoom and 60x dynamic zoom
- 32GB of internal memory storage
- Rechargeable internal battery runs up to five hours. The camera also charges via USB and optional portable batteries (not included)
- Back-illuminated 2.5MP CMOS image sensor
- Card slot for recording to SDHC/SDXC media
- Captures up to 10MP still photos

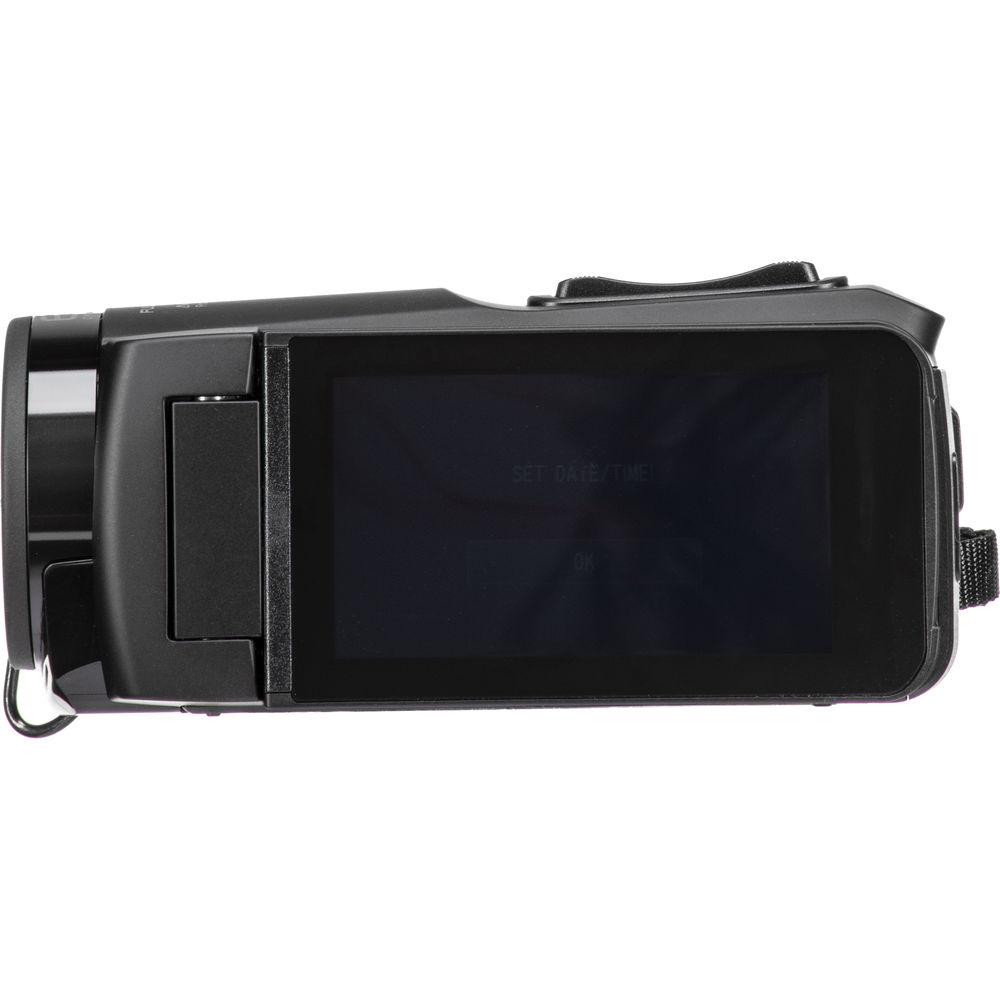

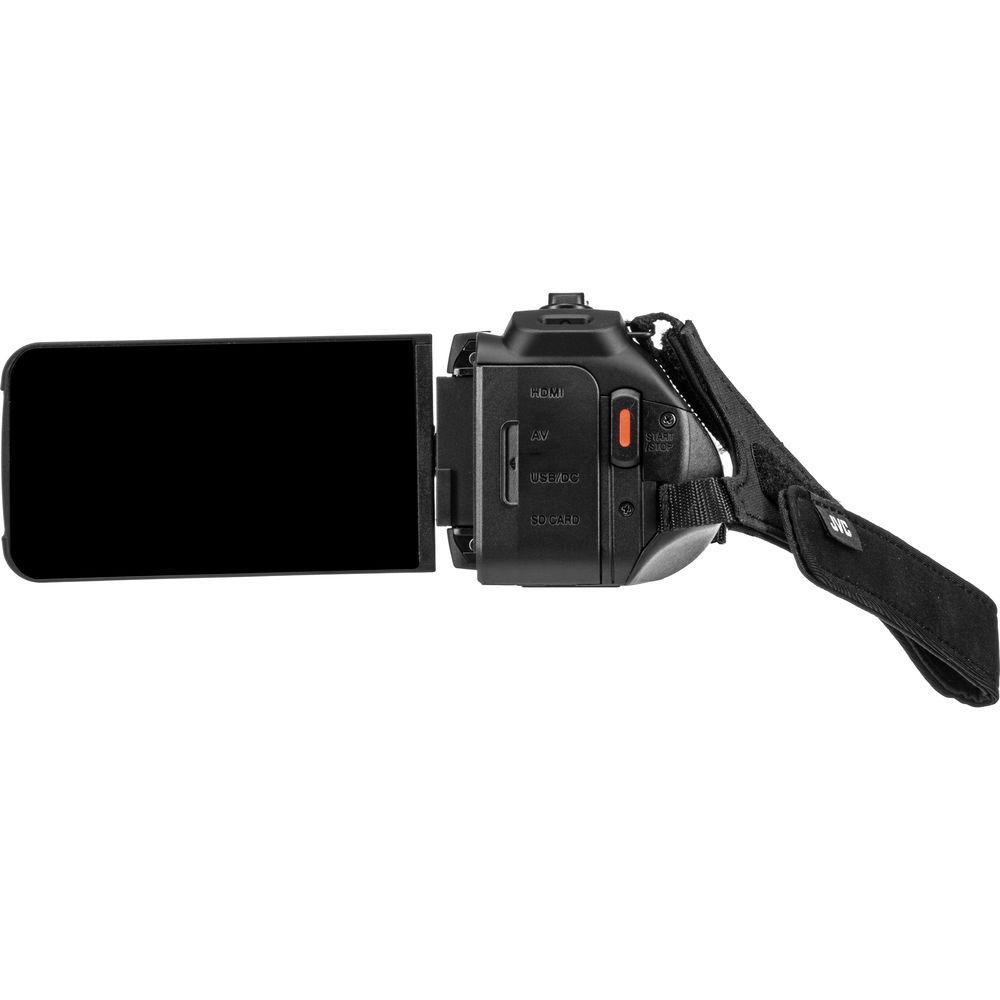

- 3" touchscreen LCD panel for viewing and playback
- Advanced image stabilization (AIS) compensates for camera shake

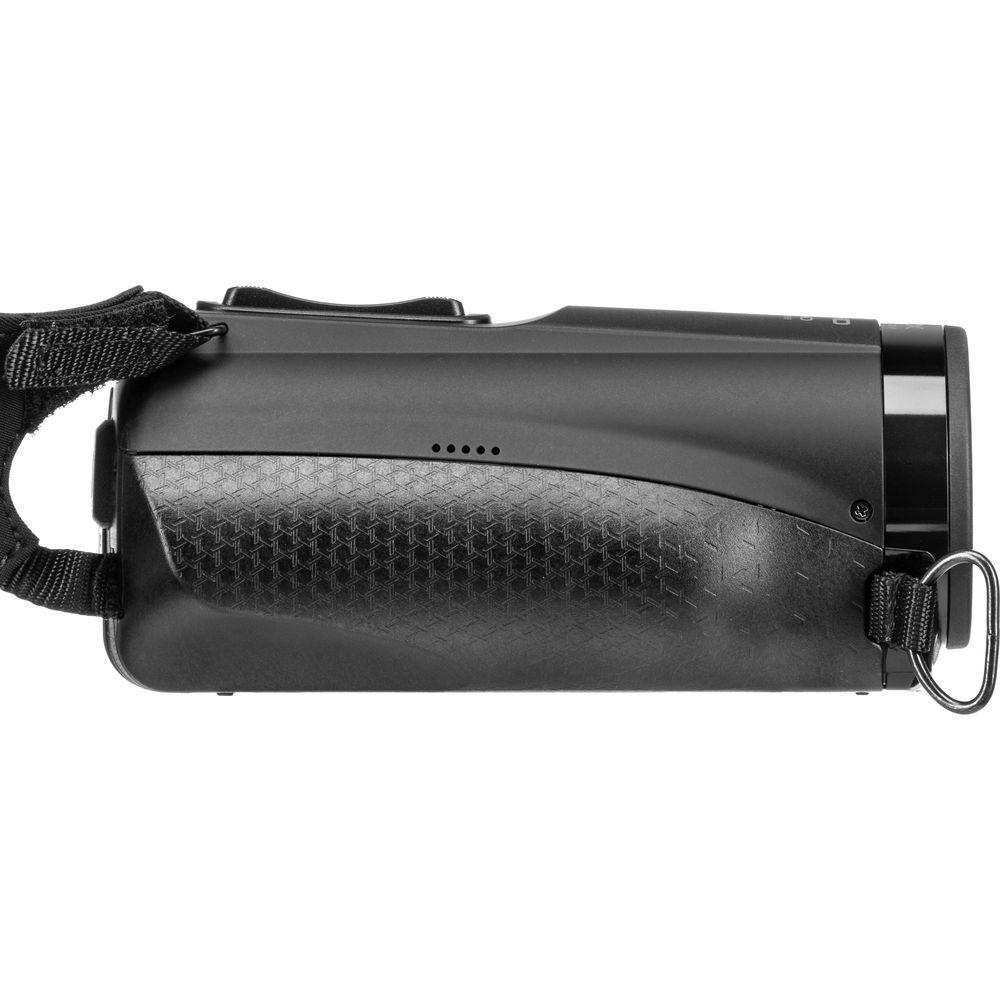

- Y-shaped grip belt for stable handholding
- Professional-style zoom lever
- Pressure-sensitive touch panel can be used even when wearing gloves
- The camera will continue to record even when the LCD panel is closed
- Built-in technology reduces wind noise picked up by the microphone
UPC: 046838078163 In the Box JVC Everio GZ-R560BUS Quad Proof HD Camcorder with 40x Optical Zoom (Black) AC Adapter DC to Micro-USB Cable AV Cable USB Cable Lens Cap Limited 1-Year Warranty User Manual PDF 7.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC Everio GZ-R560BUS Quad Proof HD Camcorder with 40x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GZ-R560BUS Specs | | | Sensor | 1-Chip 1/5.8" CMOS | | Backside Illumination | Yes | | Sensor Resolution | 2.5 MP | | | | Zoom | Optical: 40x
Dynamic: 60x
Digital: 200x | | Filter Size | 37 mm | | | | Recording Media | 1 x Internal Flash Memory (32 GB Maximum) | | Recording Time | Internal Flash Memory 32 GB
1920 x 1080 UXP (24 Mb/s), 160 min
1920 x 1080 XP (17 Mb/s), 220 min
1920 x 1080 EP (5 Mb/s), 840 min
SDHC/SDXC 128 GB
1920 x 1080 60p (28 Mb/s), 610 min
1920 x 1080 UXP (24 Mb/s), 690 min
1920 x 1080 XP (17 Mb/s), 980 min
1920 x 1080 EP (5 Mb/s), 57 hr 50 min | | Video Format | 1920 x 1080p at 60 fps (28 Mb/s AVCHD)
1920 x 1080 (24, 17, 5 Mb/s AVCHD) | | Aspect Ratio | 16:9 | | Still Image Resolution | JPEG: 3680 x 2760 | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Screen Resolution | 230,000 Dots | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | Image Stabilization | Digital | | Built-In Mic | Yes | | Built-In Light/Flash | Light - Yes

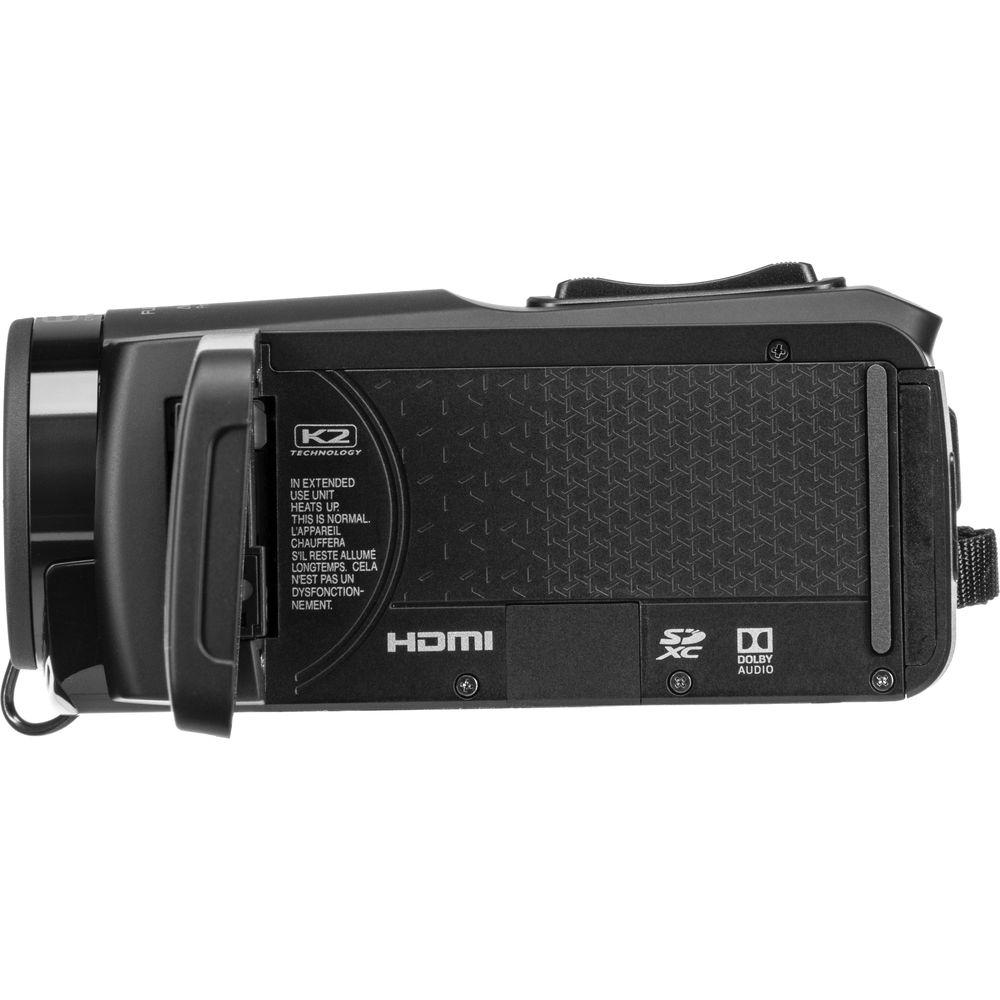

Flash - No | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Mini-HDMI (Type C)
1 x USB Micro-B
1 x A/V | | | | Battery | Rechargeable Battery Pack
Max Runtime: 5 Hours per Charge | | Charging Method | USB | | Dimensions (W x H x D) | 2.4 x 2.3 x 5.0" / 60.0 x 59.5 x 128.0 mm Excluding Grip Belt | | Weight | 0.66 lb / 301 g Including Grip Belt | | | | Package Weight | 1.42 lb | | Box Dimensions (LxWxH) | 6.05 x 5.6 x 3.1" |
