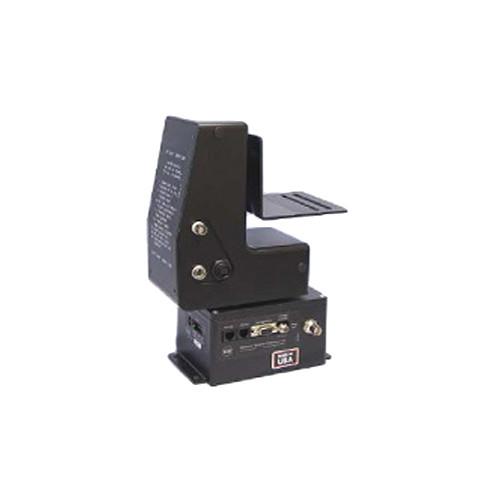

User Manual for JVC Extended Height Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the JVC Extended Height Pan Tilt Head
- Product category: Motorized Pan/Tilt Heads JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Motorized Pan/Tilt Heads
|
User manual for the JVC Extended Height Pan Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description The JVC Extended Height Pan/Tilt Head offers precise, smooth, and quiet remote control of large size surveillance cameras such as the JVC KY-F560U; it is 2.5" taller than the DPT 130. It is suitable for installations such as teleconferencing, meeting rooms, entertainment zones, and distance learning applications. The head also provides presets for applications needing camera and lens pre-programmed pan, tilt, zoom, and focus settings. With a preset resolution of 17 1/2 bits, the head offers an angular resolution of 0.002°. The preset data is stored in the head itself and recalled from the controller or computer, which provides ASCII serial commands to the pan-and-tilt head; standard communications protocol is 9600 baud, 8 data bits, one stop bit, and no parity, which tell the head and lens which direction and at what rate to move. A joystick can be used for up, down, left, and right direction movements. Zoom, focus, iris, and preset control can be adjusted through switch controls. The right pan limit is set to +90° and the left pan limit to -90°. The up tilt limit is set to +20° and the down tilt limit to -20°. Versatile enough to be used in varied applications, the unit is compatible with a range of teleconferencing and CCTV lenses. The head functions through serial data commands and accepts RS-422 signals that include transmit plus, transmit minus, receive plus, and receive minus signals. The interface uses a 26 AWG wire and has a distance limitation of 2000'. The unit supports both wall-mount and tripod installation. - Precise, smooth, and quiet remote control of mid-to-large size surveillance cameras
- Suitable for teleconferencing, meeting rooms, entertainment zones, and distance learning
- Provides presets for applications needing camera and lens pre-programmed pan, tilt, zoom, and focus settings
- Preset resolution of 17 1/2 bits; angular resolution of 0.002°
- Standard communications protocol 9600 baud, eight data bits, one stop bit, and no parity
- Joystick can be used for up, down, left, and right direction movements
- Switch controls for zoom/focus/iris
- Pan limit (90° left and 90° right)
- Tilt limit (20° left and 20° right)
- Teleconferencing/CCTV lens compatible
- RS-422 interface with 2000' range
- Supports both wall-mount and tripod installation
In the Box JVC Extended Height Pan/Tilt Head 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC Extended Height Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DPT-130E Specs | Pan & Tilt | Pan Rotation: +/- 115 degrees with adjustable limit switches
Tilt Angle: +/- 65 degrees with adjustable limit switches
Pan Speed: Continuously variable to 15 degrees/second
Tilt Speed: Continuously variable to 15 degrees/second
Load Mounting: Side loading with alignment of image plane and center of rotation
Capacity: 15 lbs (6.8kg) | | Control | Pan/Tilt Control:
Pan/Tilt: 0 to +24 VDC (DC coreless motor)
Presets: Yes, Max 2000
Max. distance between controller & p/t head: 2,000 feet (Contact ESI for longer distances)
Interface to Controller: RS-422 differential over 4 wire cable Computer Control (contact factory for RS232): Optional RS-232 Interface for computer control
Special Functions: Externally accessible DIP switches
Lens Control:
Focus: Teleconferencing and CCTV lenses
Zoom: Teleconferencing and CCTV lenses
Iris: Teleconferencing and CCTV lenses
Multi-Lens Control: Different lens configurations selected from
Internal Jumper settings
Lens Interface Cable: Remote lens interfaces directly to DPT 130
Presets: Zoom & focus | | Connectors | RS-422 Serial Interface: 4 conductor RJ-11 6P4C Style
RCU IN CCU Interface: 4 conductor RJ-11 6P4C Style
RS-232 Serial Interface: 9 pin D connector
Power: Switchcraft 722, DC Jack
Video Out: BNC
Video: BNC
Lens I/F: 12 Pin Hirose, Male
Camera Power: 2 Pin Conxall, Female | | Power Requirements | 24 VDC regulated | | Current | 0.8 Amperes | | Operating Temperature | (indoor)
32 - 158°F (0 - 70°C) | | Dimensions (WxHxD) | 6 x 13 x 4" (152 x 330 x 102mm) | | Mounting | 4 mounting holes (2 3/8" x 6 1/8") | | Weight | 9.3 lbs (4.2kg) |
