User Manual for JVC GC-XA2 ADIXXION Action Camera Click to enlarge the picture
Contents of the user manual for the JVC GC-XA2 ADIXXION Action Camera
- Product category: Sports & Action Cameras JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Sports & Action Cameras
 |
User manual for the JVC GC-XA2 ADIXXION Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description The JVC GC-XA2 ADIXXION Action Camera is a lightweight and rugged action camera that is compatible with a variety of optional mounts for use in a variety of conditions, environments, and activities. Highlighted by JVC's "Quad Proof" design, the GC-XA2 is waterproof down to a depth of 16.4', shockproof from falls up to 6.5', freezeproof to temperatures as low as 14°F, and completely sealed off from dust penetration thanks to an IP6X dustproof rating. It also features a fixed focus, 160° wide angle lens with a bright f/2.4 aperture. Plus, you can use the integrated 1.5" LCD monitor for shot preview and instant playback.To ensure high-resolution image capture, JVC outfitted the GC-XA2 with a back-illuminated 8MP CMOS image sensor that excels in low light conditions. It supports up to Full HD 1920 x 1080p video at 60 fps and records directly to an SDHC or SDXC memory card. The camera supports 8MP still images or 16MP Ultra Resolution photo capture as well. There's also a slow motion recording feature that records 1280 x 720p video at 120 fps for high-speed action and 4x slow motion playback. Other shooting features include up to a 15 fps burst mode, simultaneous recording of video and photos in five second intervals, and time-lapse video and photography.Besides capturing video to share with friends and family via HDMI on your HDTV screen, the GC-XA2 also supports live streaming. You can use the camera's built-in Wi-Fi to stream live broadcasts to USTREAM. You can use the Wi-Fi to instantly upload videos to YouTube as soon you record them. The GC-XA2 also works with the free, downloadable ADDIXION Sync App for iOS and Android mobile devices. This app supports a number of functions including Quad View, still image transfer to your smartphone, streaming to your smartphone, and more. You can also use the app to setup your pre-shooting camera configurations. Quad Proof Right Out of the Box - The GC-XA2 is waterproof to a depth of 16.4' (5m) without needing a protective housing
- The MIL-STD 810F rated GC-XA2 is shockproof from impacts and falls of up to 6.5' (2m)
- The GC-XA2's IP6X dustproof rating means that the camera is completely sealed off from dust
- The GC-XA2 is freezeproof to temperatures all the way down to 14°F (-10°C)
Full HD Recording & High-Resolution Still Images - The GC-XA2 supports up to Full HD 1920 x 1080p video recording at 60 or 30 fps
- Camera can also record HD 1280 x 720p at 120 fps for 4x slow motion playback
- Other supported recording modes include HD 960/30p, HD 720/60p, HD 720/30p, and WVGA 480/30p
- Supports still photo capture at 8MP or even up to 16MP when using Ultra Resolution enhancer
- With Burst Mode, you can shoot up to 15 fps with five different types of photo bursts
- Burst options include 5, 10, or 15 frames/1 sec; 15 frames/2 sec; and 15 frames/3 sec
- Simultaneous REC lets you shoot photos automatically at 5 sec intervals while recording video
Lens & Sensor Features - A high-resolution, back-illuminated 8MP CMOS sensor provides solid low-light performance
- The GC-XA2 fixed focus, 160° wide angle lens features a bright f/2.4 aperture
- Digital image stabilizer uses camera's gyro sensor to detects even the slightest camera shake
- Digital stabilizer corrects everything from minute vibrations to blurring from violent motion
Shot-Enhancing Features - Use the camera's four dramatic effects to create different moods for your videos
- Dramatic effects include sepia, black & white, vivid, and negative
- Shoot time-lapse videos at intervals of 0.2, 1, 5, 10, 30, or 60 sec
- Capture time-lapse still photos at automatic intervals every 2, 5, 10, 30, or 60 seconds
Wireless Connectivity & Live Streaming - The GC-XA2's built-in Wi-Fi enables you to share or stream live video without a PC
- Camera supports Wi-Fi streaming to USTREAM for live broadcasting straight from the camera
- You can also use the built-in Wi-Fi to upload videos to YouTube as soon you're done recording
- Streaming to USTREAM and uploading to YouTube requires setup with your smartphone
- The free, downloadable ADIXXION Sync App links the GC-XA2 camera to your smartphone
- The ADIXXION Sync App adds broad functionality to the GC-XA2 including Quad View and more
- Quad View lets you view the video feed from four cameras simultaneously on one smartphone
- You can stream directly to your mobile device and transfer photos to your smartphone
- The app also enables swift smartphone setup for your pre-shooting configurations
- ADIXXION Sync App is available for iOS and Android mobile devices
Design Features - The GC-XA2 weighs only 4.8 oz and features a rubber exterior for added grip and durability

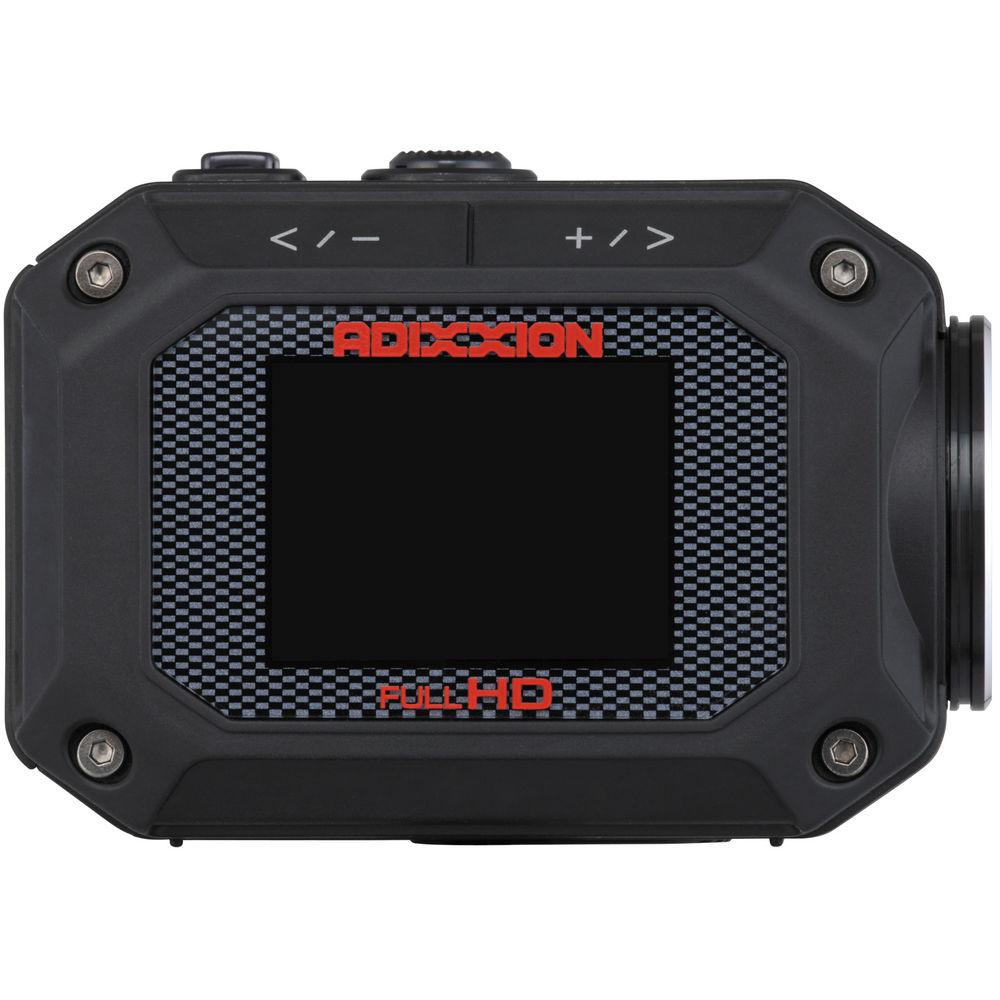

- The built-in 1.5" LCD monitor features a 115,000 pixel resolution
- LCD monitor also features a brightness sensor that adjusts automatically to the ambient light
- The GC-XA2's Auto LCD Off function saves power by turning the LCD monitor off when not in use
- For upside down mounting, the camera image orientation can be reversed in the on-screen menu

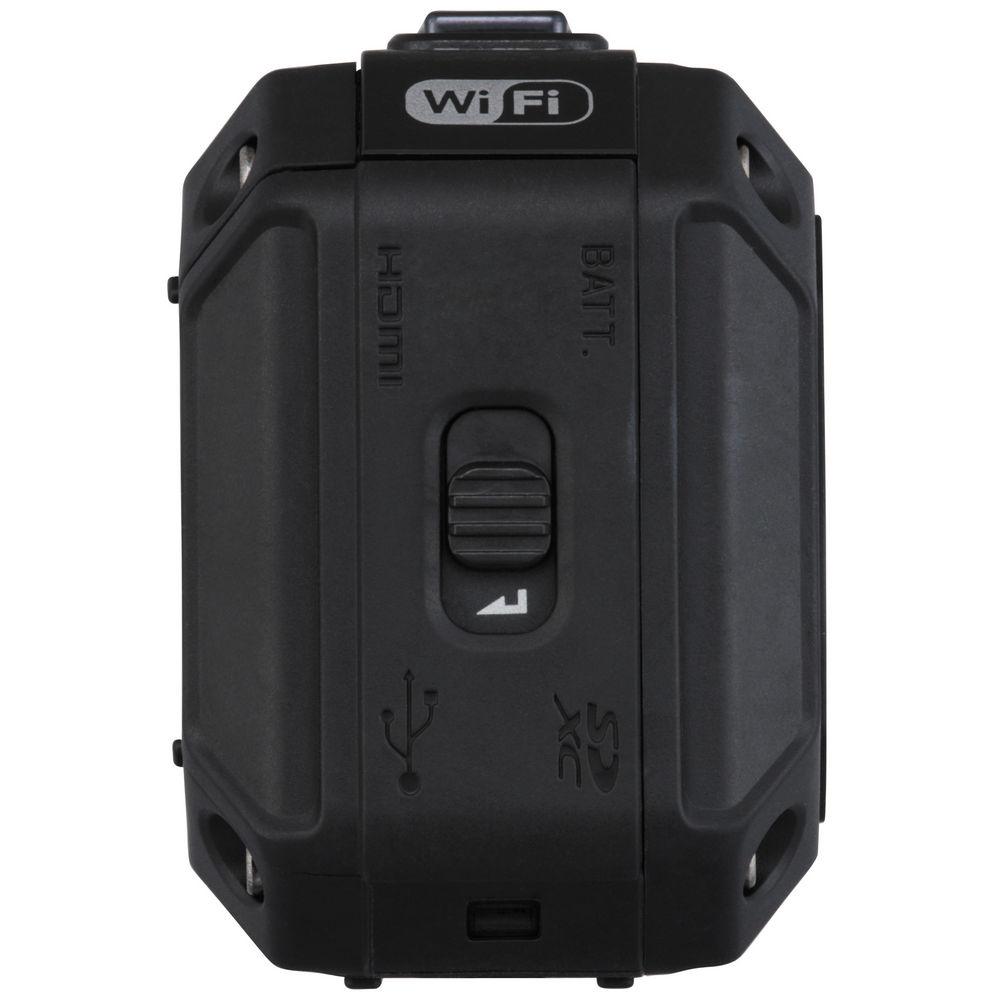

- The GC-XA2 interfaces include a mini-HDMI output, a USB port and an SDHC/SDXC card slot

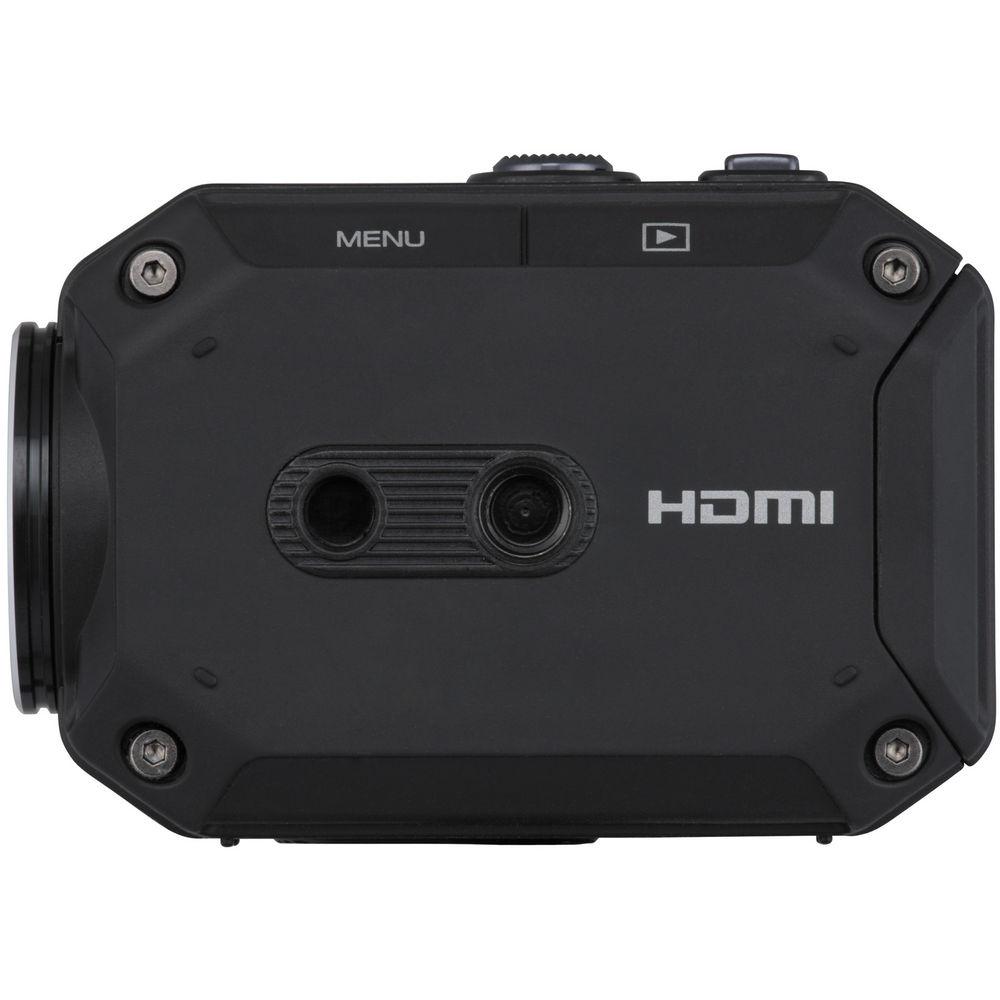

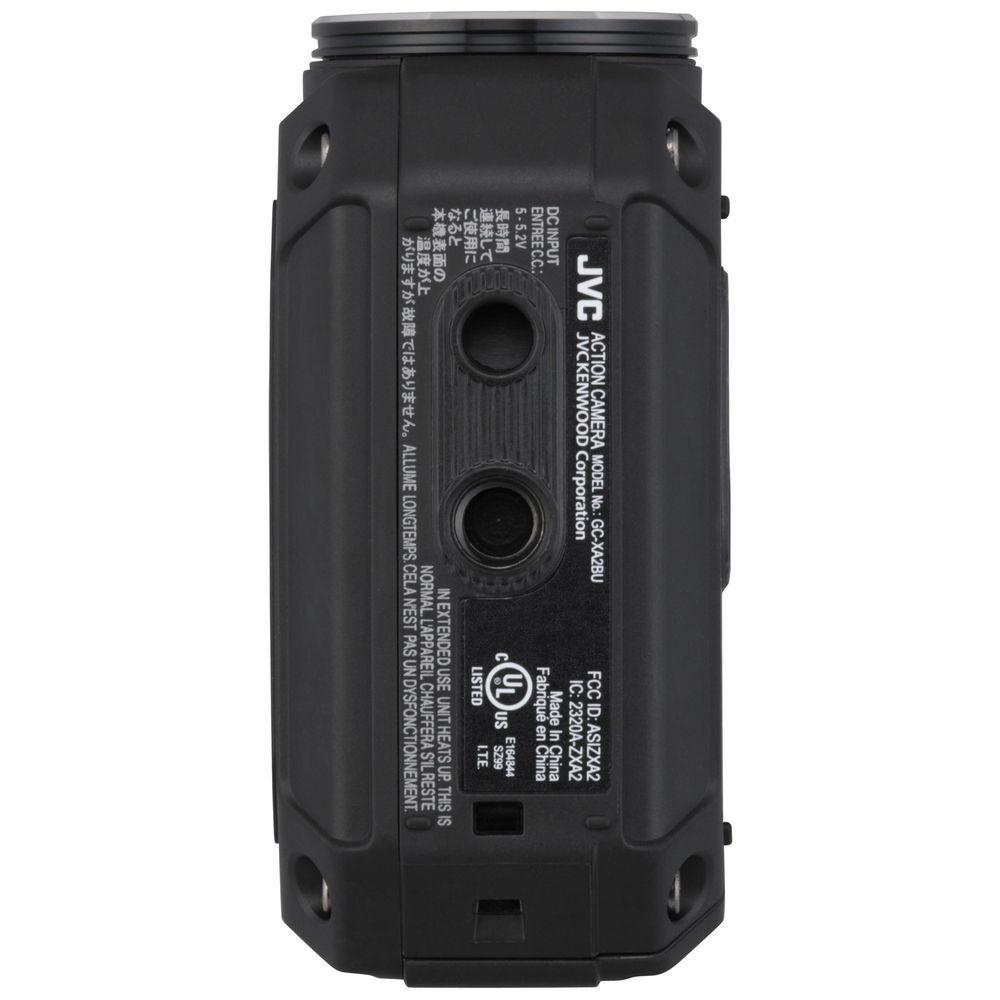

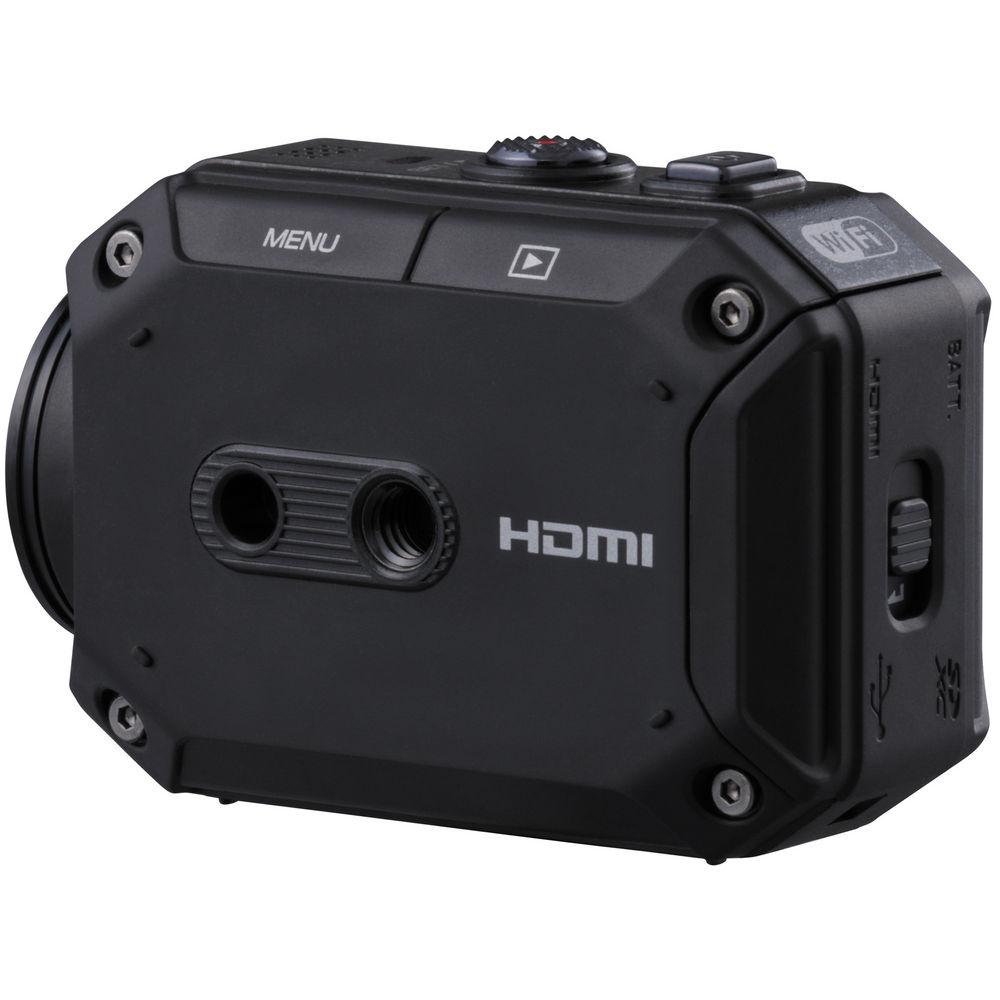

- Camera features dual 1/4"-20 standard tripod mounts, which affords more versatile mounting

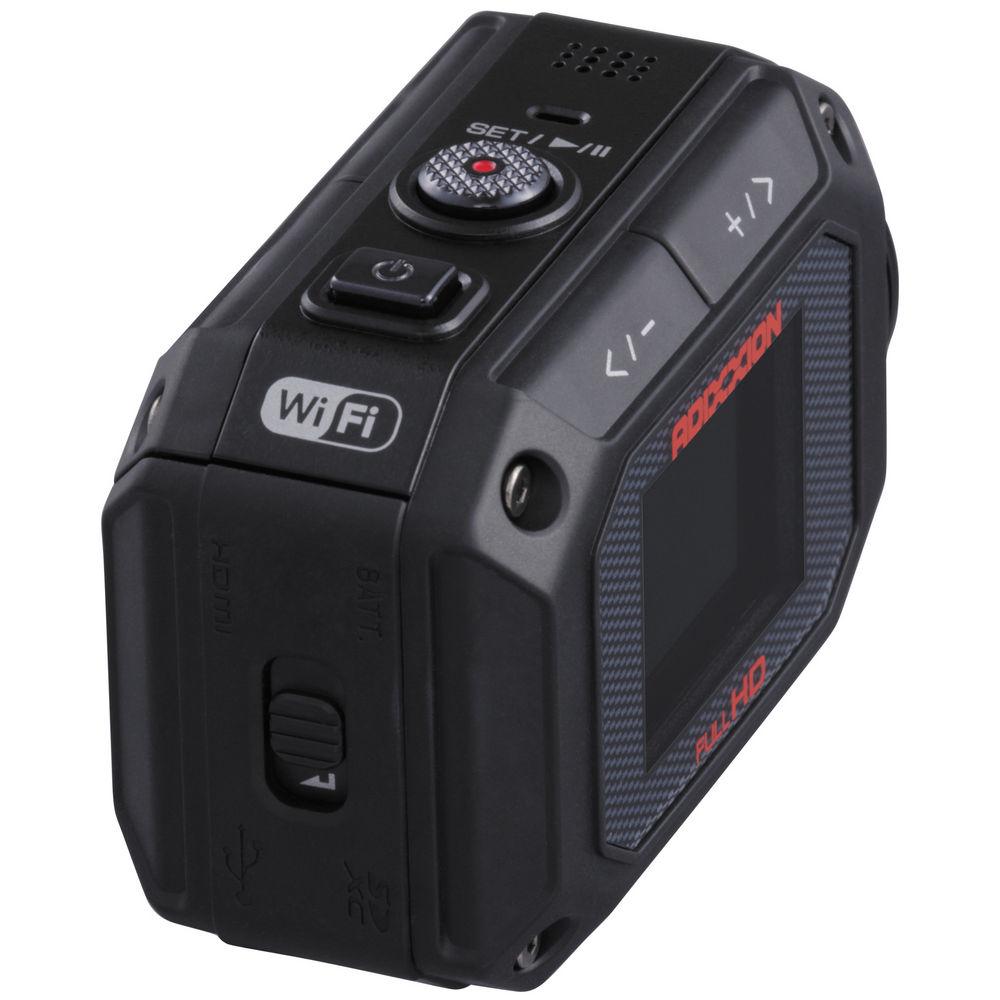

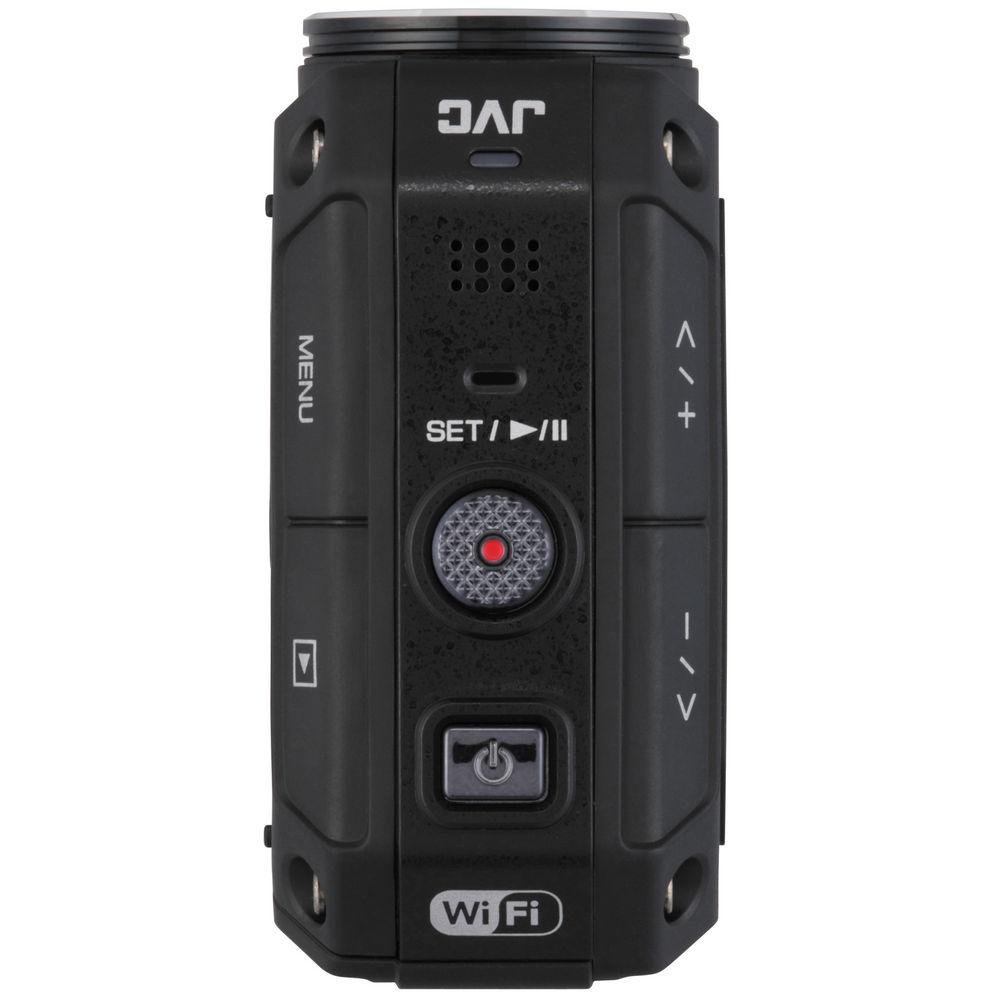

- Conveniently located 5x digital zoom controls, record button, and power button

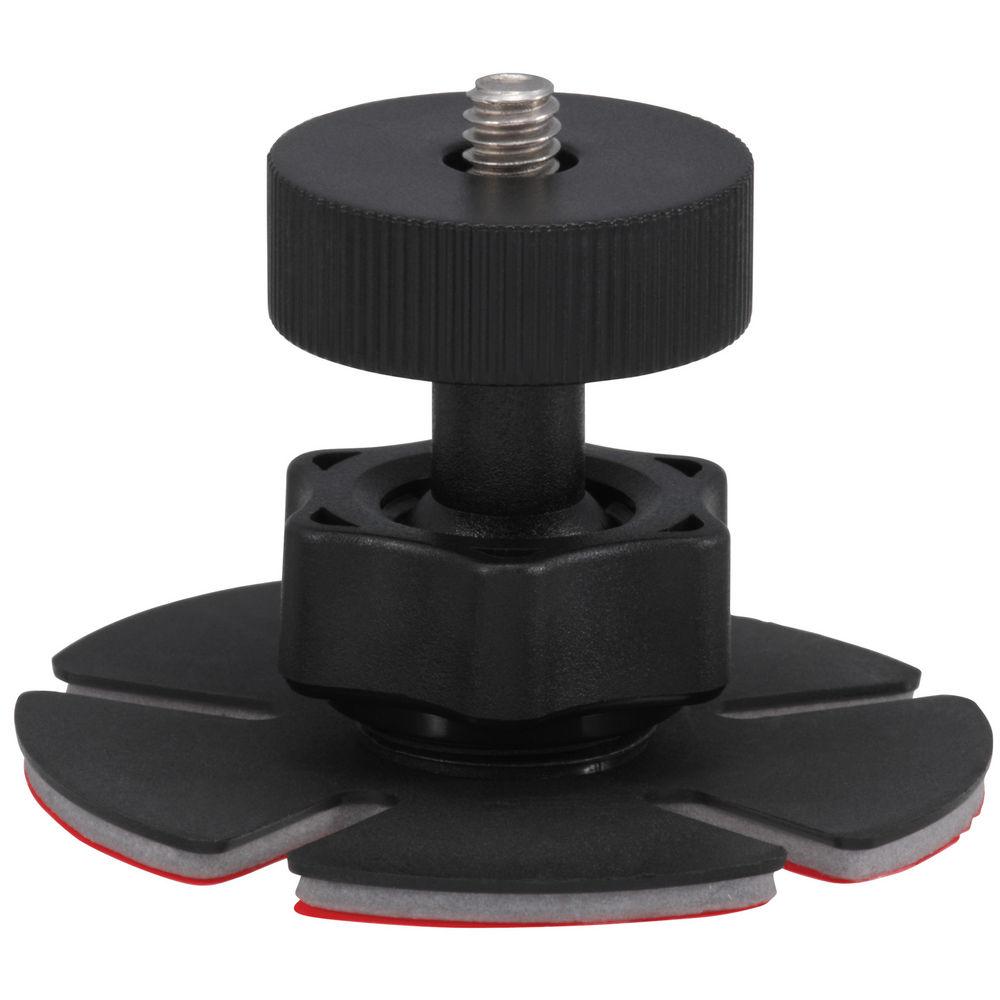

Mounting Accessories - The GC-XA2 includes the Wide Flexible Mount, which works on most flat and curved surfaces
- A variety of optional mounts are available for maximizing the camera's versatility

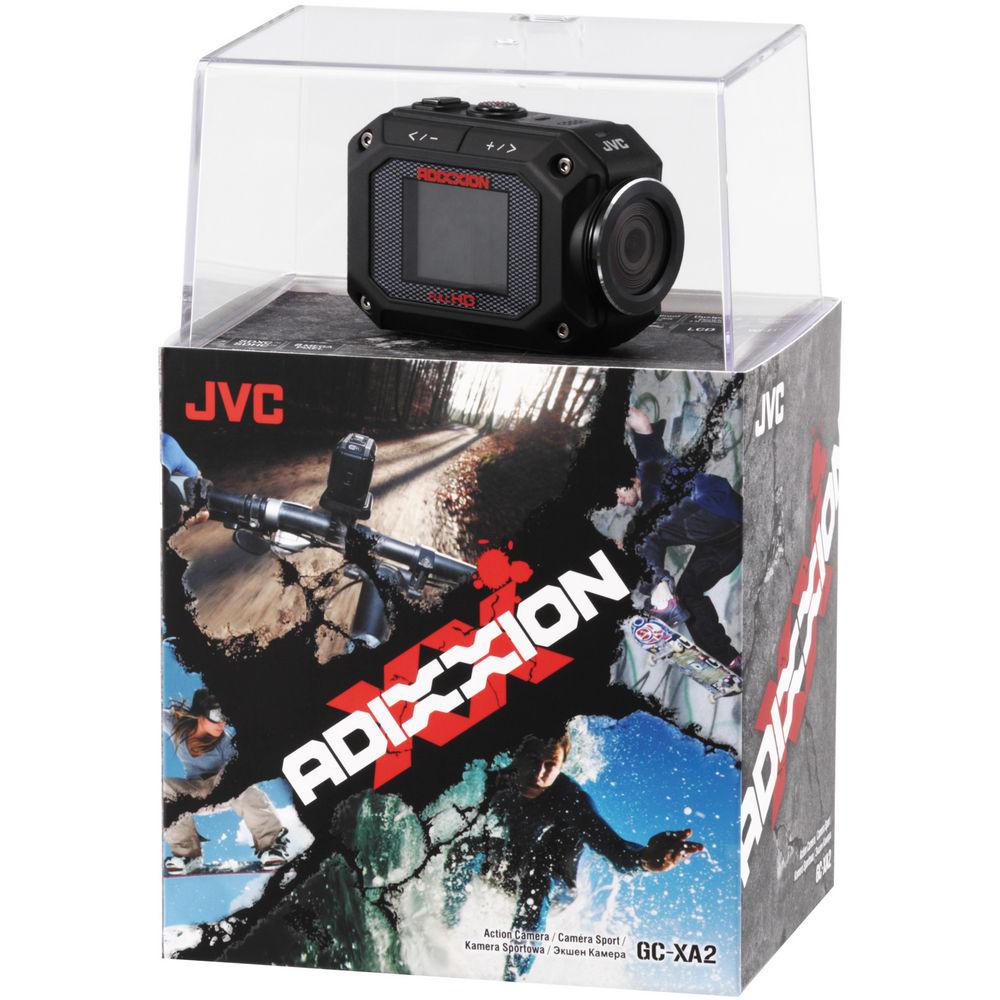

UPC: 046838069048 In the Box JVC GC-XA2 ADIXXION Action Camera Battery Pack for ADIXXION Action Camcorder xeaetfvybzyrxwrrbzvrzvauy MT-FM002 Wide Flexible Mount USB Cable 1-Year Limited Warranty User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GC-XA2 ADIXXION Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GC-XA2 Specs | | | Image Sensor | 8MP back-illuminated CMOS sensor | | Lens | Type: Fixed focus
Aperture: f/2.4
Viewing Angle: 160° | | Digital Zoom | 5x | | Image Stabilization | EIS + Gyro digital image stabilizer | | White Balance | Auto
Manual | | Exposure | Auto | | Self-Timer Delay | Yes | | | | Type | Color LCD | | Pixels | 115,000 | | Size | 1.5" (3.8 cm) | | | | Video System | NTSC | | Recording Media | SDHC/SDXC memory card slot | | Video Recording Format | MPEG-4 AVC/H.264 (MP4) | | Supported Video Resolutions | FHD60: 1920 x 1080p at 60 fps (28 Mbps VBR)
FHD30: 1920 x 1080p at 30 fps (12 Mbps VBR)
HD960: 1280 x 960p at 30 fps (12.5 Mbps VBR)
HD60: 1280 x 720p at 60 fps (12 Mbps VBR)
HD30: 1280 x 720p at 30 fps (8 Mbps VBR)
WVGA: 848 x 480p at 30 fps (5 Mbps VBR) | | Slow Motion | 1280 x 720p at 120 fps with 4x slow motion playback | | Photo Format | JPEG | | Photo Resolution | 8MP
16MP (Ultra Resolution) | | Burst Mode | Yes (up to 15 fps) | | Time Lapse | Video: 0.2, 1, 5, 10, 30, and 60 sec
Photo: 2, 5, 10, 30, and 60 sec | | Audio Format | AAC | | Recording Time | FHD60 (128GB SDXC): 10 hours
FHD30 (128GB SDXC): 23.66 hours
HD960 (128GB SDXC): 22.33 hours
HD60 (128GB SDXC): 23.66 hours
HD30 (128GB SDXC): 35.5 hours
WVGA (128GB SDXC): 56.5 hours | | | | HDMI | Mini-HDMI output (TV out) | | USB | Mini-USB port (chargeable) | | | | Wireless Connectivity | Built-in Wi-Fi | | Battery Life | Continuous Recording Time (Wi-Fi Off): 1.4 hours (FHD60)
Continuous Recording Time (Wi-Fi Off): 1.8 hours (FHD30)
Continuous Recording Time (Wi-Fi Off): 1.9 hours (HD960)
Continuous Recording Time (Wi-Fi Off): 1.75 hours (HD60)
Continuous Recording Time (Wi-Fi Off): 2.1 hours (HD30)
Continuous Recording Time (Wi-Fi Off): 2.1 hours (WVGA) | | Environmental Protection | IPX8 waterproof rating to 16.4' (5 m)
MIL-STD 810F shockproof rating to 6.5' (2 m)
IP6X dustproof rating
Freezeproof to 14°F (-10°C) | | Dimensions (WxHxD) | 2.9 x 2.1 x 1.4" (74 x 53 x 35 mm) | | Weight | 4.8 oz (135 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
