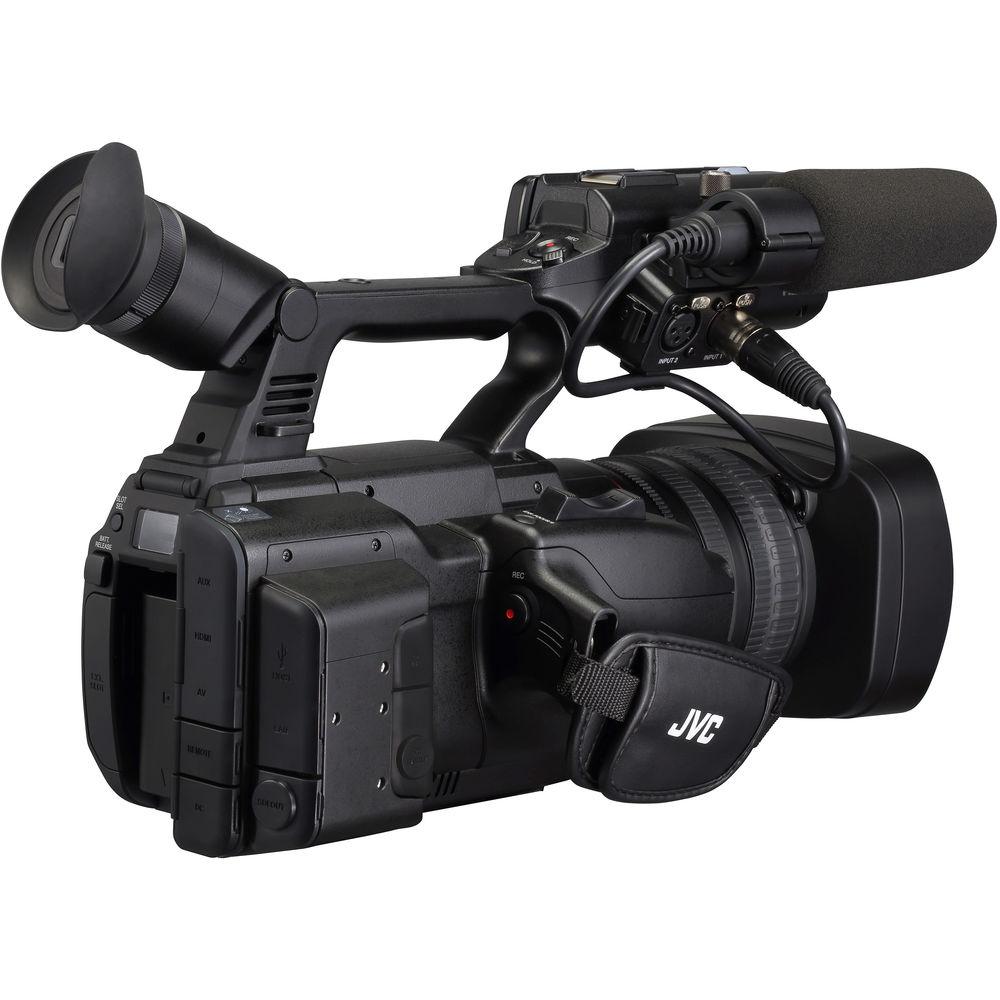

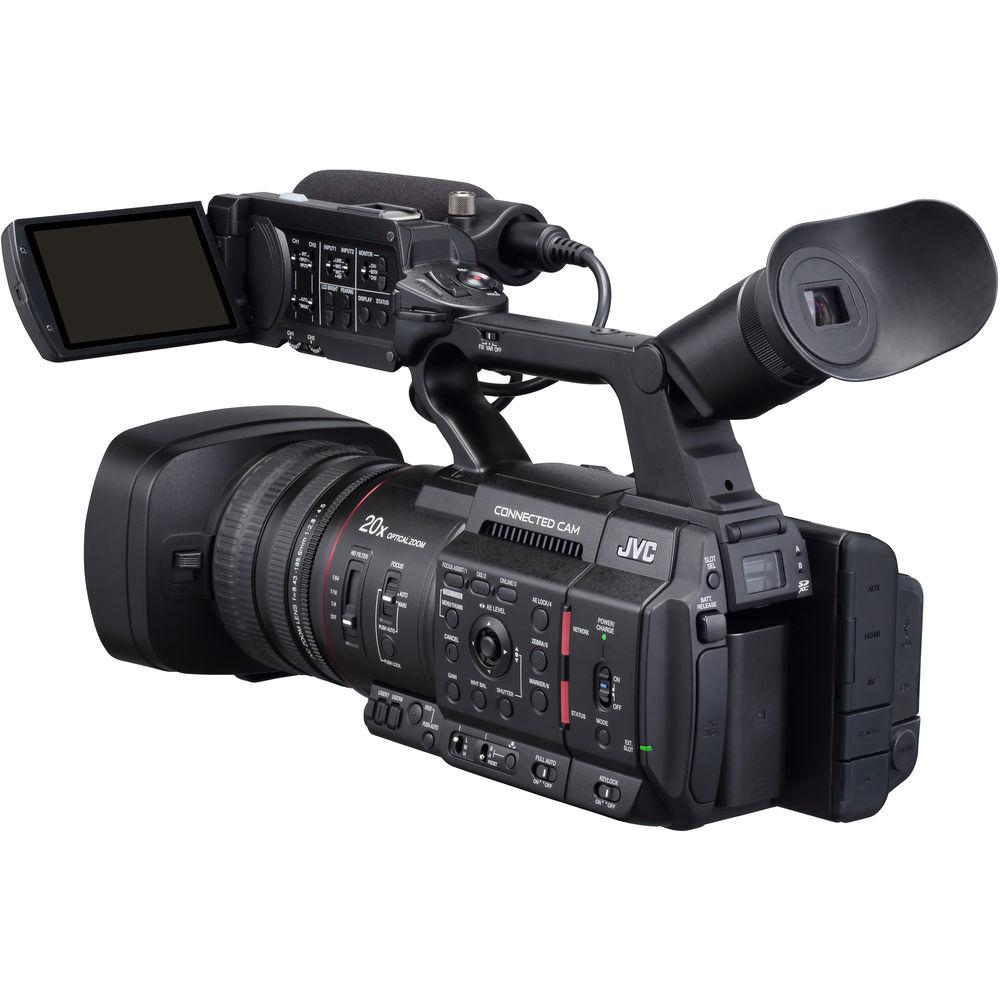

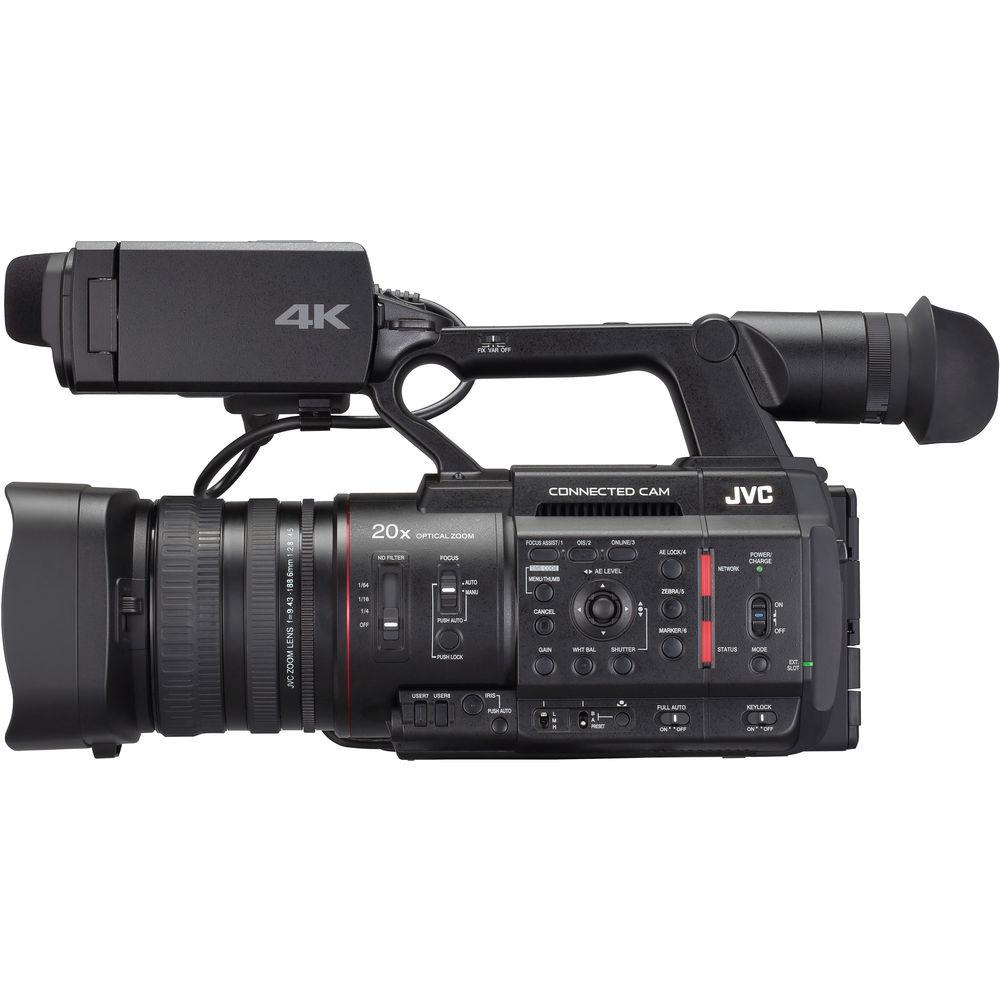

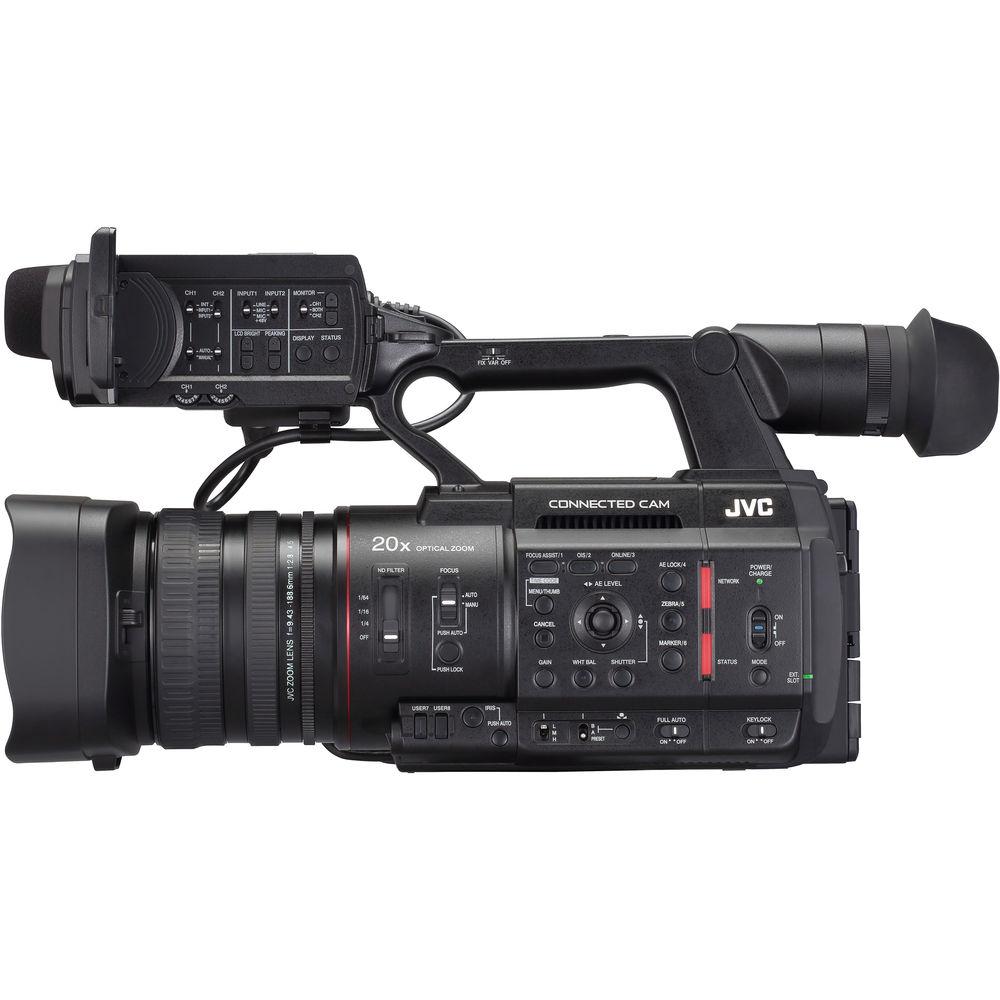

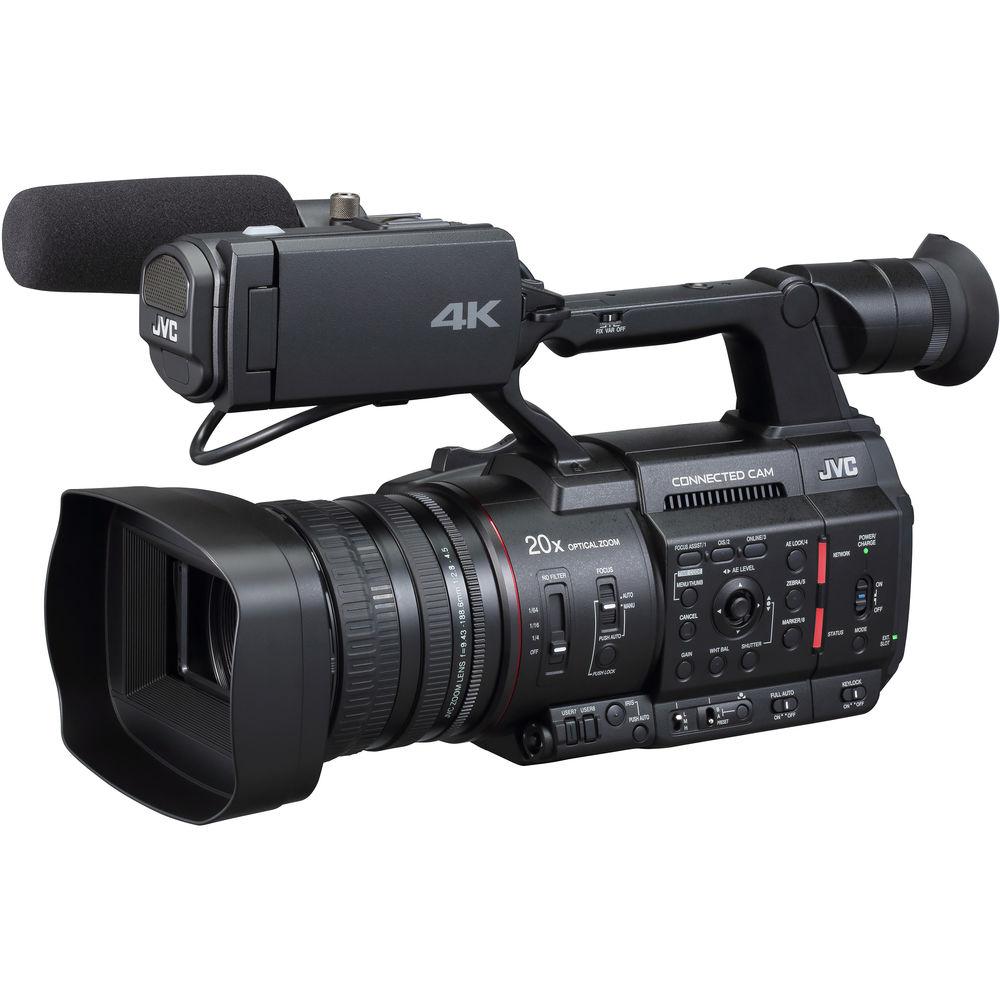

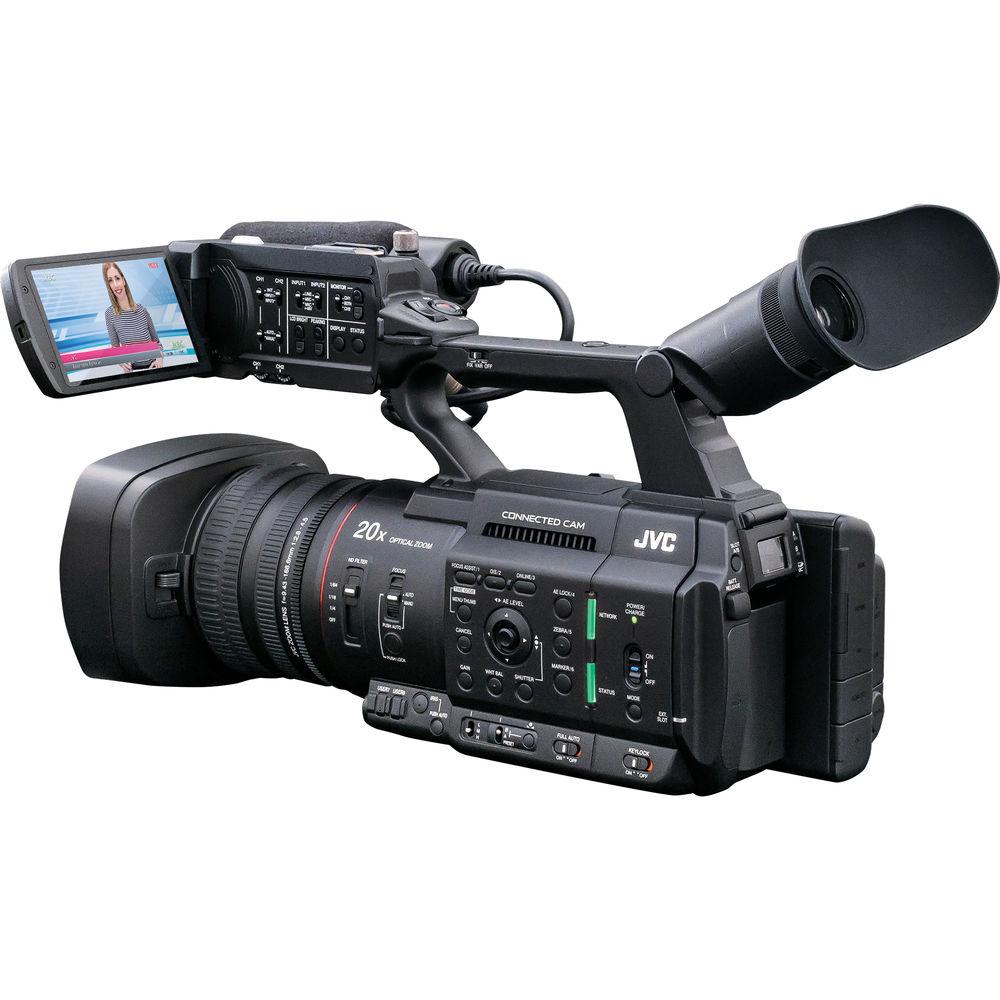

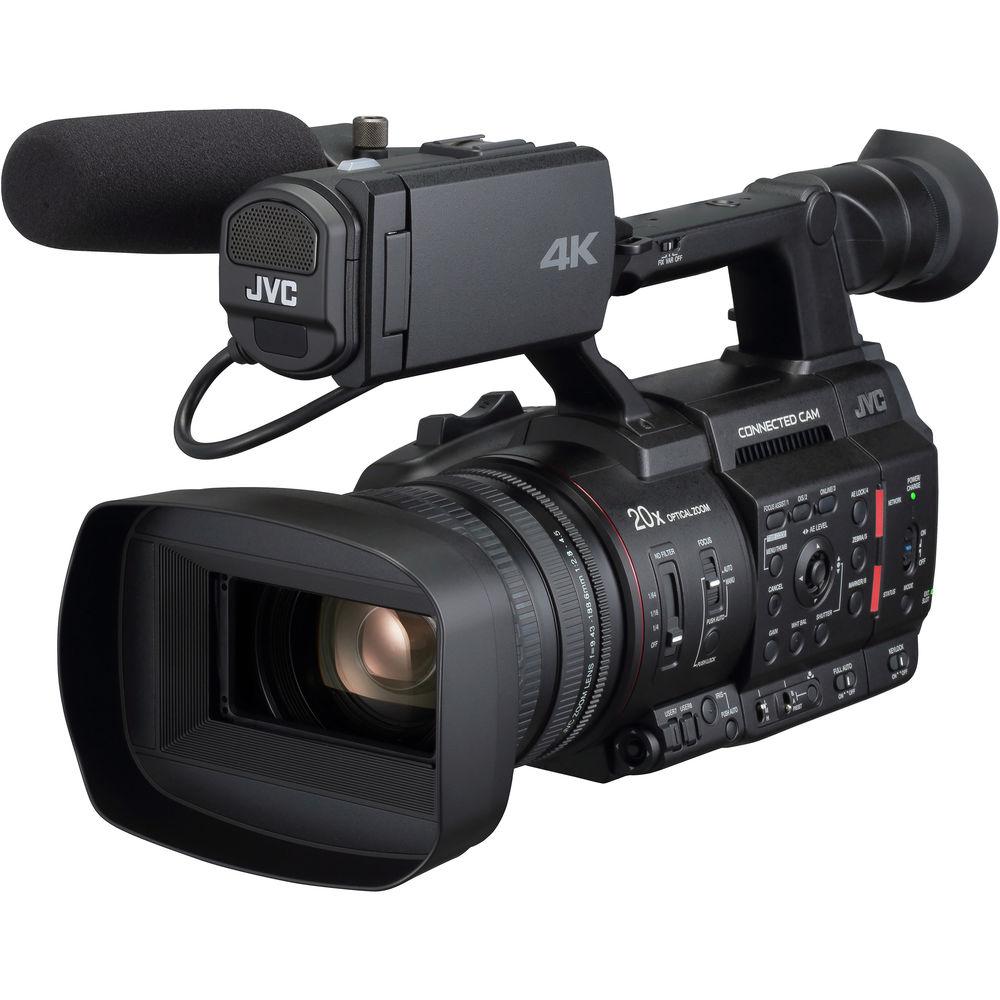

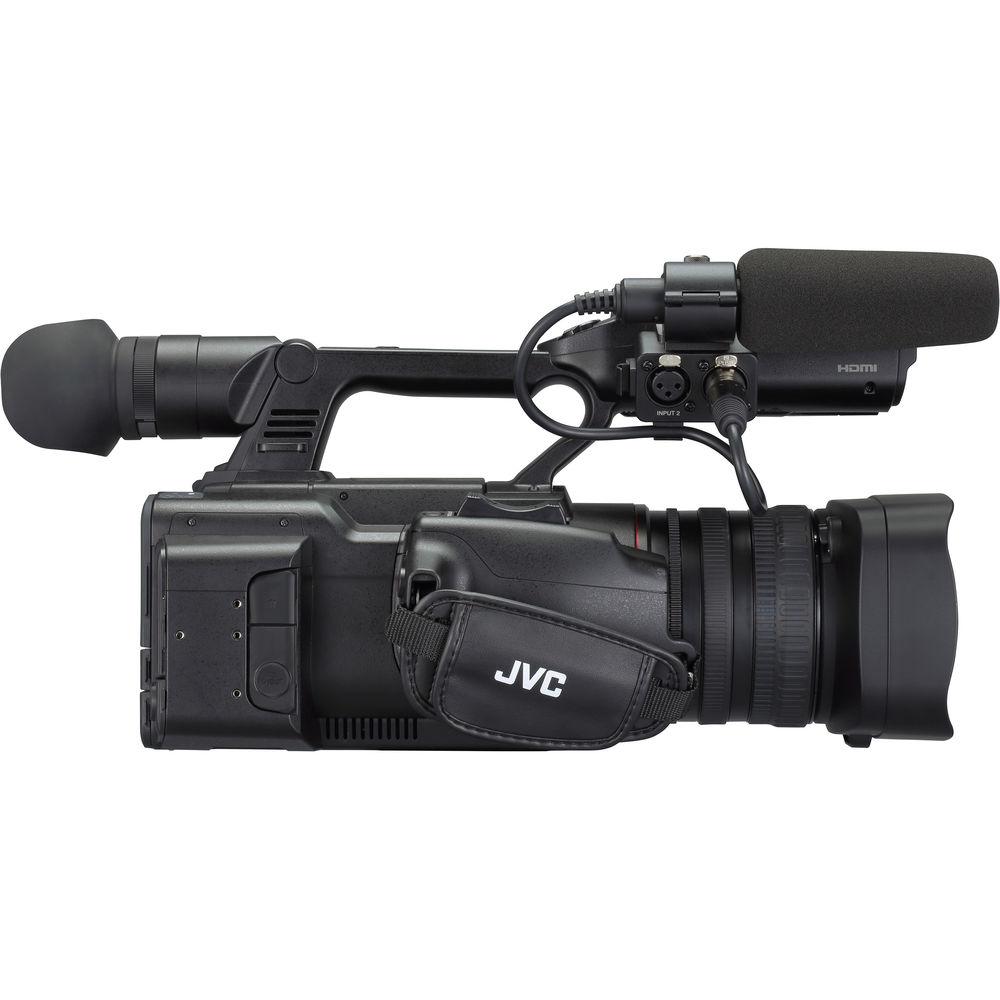

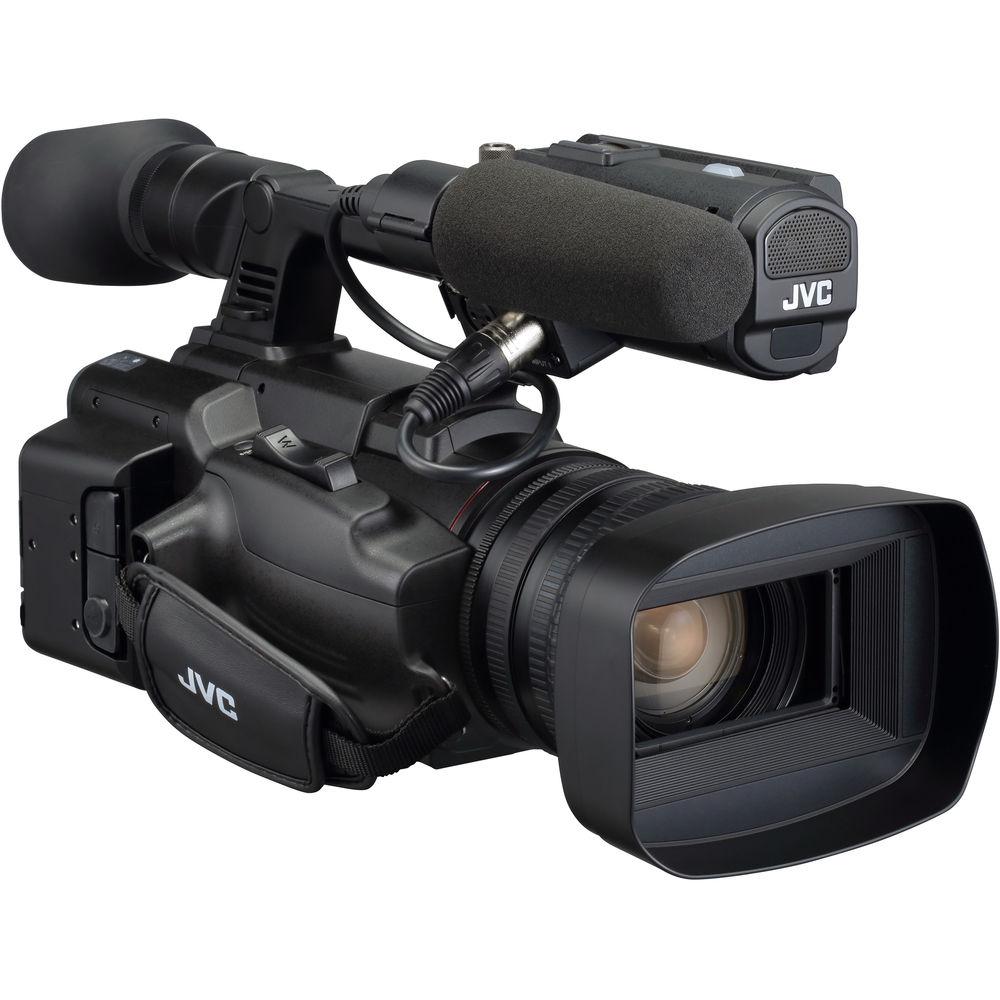

User Manual for JVC GY-HC500USPCU Handheld Connected Cam 1" 4K Professional Camcorder Click to enlarge the picture
Contents of the user manual for the JVC GY-HC500USPCU Handheld Connected Cam 1"
- Product category: Camcorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Camcorders
 |
User manual for the JVC GY-HC500USPCU Handheld Connected Cam 1" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description JVC's GY-HC500USPCU Handheld Connected Cam 1" 4K Professional Camcorder is a UHD 4K camcorder that shoots in both NTSC and PAL compatible frame rates and is designed to seamlessly work with both a traditional as well as IP workflows. It features both scoreboard and broadcast overlays, built-in GPS, and sports metadata tagging. The camera incorporates a 1" CMOS sensor and an integrated 20x optical zoom lens, and it can create a 40x digital zoom. The camera can capture in UHD, HD, SD, and you can record SD as proxy, recording up to 30p to the built-in media card slots or 60/50p to an optional SSD. The camera supports HDR by recording in HLG or JLog1 (10-bit).
The camera captures in various flavors of ProRes, as well as MP4, and is capable of streaming HD over IP via wired connection. The integrated 20x zoom lens features three manual control rings; one each for iris, focus, and zoom. the EVF features LCOS technology and over 1.2 million dots of resolution, while the built-in flip-out LCD viewfinder is just under 4" diagonally. The camera features IFB and return video over IP, as well as auto FTP so your video files transfer automatically. It has 2 x SDHC/SDXC card slots, and features a slot for an optional SSD for capturing UHD at 60/50p. - 10-bit ProRes 422 at 4K resolution and 50/60p frame rates recording to M.2 SSD (requires optional caddy)
- 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
- The camera enables both scoreboard and broadcast overlays, features built-in GPS functionality, and enables sports metadata tagging
- HDR recording, HLG or J-Log1 (10-bit)
- 1-inch (effective) CMOS sensor with high picture quality, F11 Sensitivity
- Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
20x optical zoom, 40x lossless dynamic zoom - 4-inch high-resolution LCD monitor, LCOS Quad VGA viewfinder
- High-performance 1080 60p/50p live streaming (4K Rec + HD streaming + 4K HDMI output)
Low latency and high-quality streaming up to 20Mb/s - LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
Return over IP (Return video and IFB)
Auto FTP to upload native video clips automatically In the Box JVC GY-HC500USPCU Handheld Connected Cam 1" 4K Professional Camcorder BN-VC264 Battery Lens Hood AC Adapter Power Cable Limited 2-Year Parts/1-Year Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HC500USPCU Handheld Connected Cam 1" 4K Professional Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GY-HC500SPC Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 9.35 MP | | Sensitivity | f/11 at 2000 lux 89% Reflectance | | | | Focal Length | 9.4 to 188.6mm | | 35mm Equivalent Focal Length | 28 to 560mm | | Optical Zoom Ratio | 20x | | Maximum Aperture | f/2.8 to 4.5 | | Filter Size | 82 mm | | Control Rings | Focus
Zoom
Iris | | Focus Control | Autofocus
Manual Focus | | | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 2 x SDXC/SDHC UHS-I Card Slots (U3 / V30 or faster cards recommended) | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | ProRes 422HQ 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
ProRes 422 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
ProRes 422LT 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
H.264 4:2:2 10-Bit:
3840 x 2160p at 24/25/30 fps (150 Mb/s)
H.264 4:2:0 8-Bit:
3840 x 2160p at 24/25/30 fps (70 Mb/s)
H.264 4:2:2 10-Bit:
1920 x 1080p (8 to 50 Mb/s)
H.264 4:2:0 8-Bit:
1280 x 720p (8 to 50 Mb/s)
H.264:
720 x 480 (8 Mb/s)
960 x 540 (1.2 to 3 Mb/s)
480 x 270 (1.2 to 3 Mb/s) | | Audio Recording | MOV:
MP4:
Proxy: | | IP Streaming | MPEG2, RTMP, RTP, RTSP, UDP, TCP: 640 x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output AV connector carries both video and audio | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Mic Level Input
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x 2.5 mm
1 x RCA Timecode
1 x USB (Unspecified Type) LAN Data
1 x RJ45 LAN
1 x 2.5 mm Control | | | | Display Type | LCD | | Screen Size | 3.97" | | Screen Resolution | 800 x 480 (384,000 Dots) | | | | EVF Display Type | LCOS | | Screen Size | .25" | | EVF Resolution | 1280 x 960 (1,228,800 Dots) | | | | Battery Type | JVC BN-VC264 | | Power Connectors | 1 x Barrel (12 VDC) Input | | | | Accessory Mount | 1 x Cold Shoe Mount | | Dimensions | 7.68 x 9.06 x 17.52" / 195 x 230 x 445 mm | | Weight | 6.8 lb / 3.1 kg |
