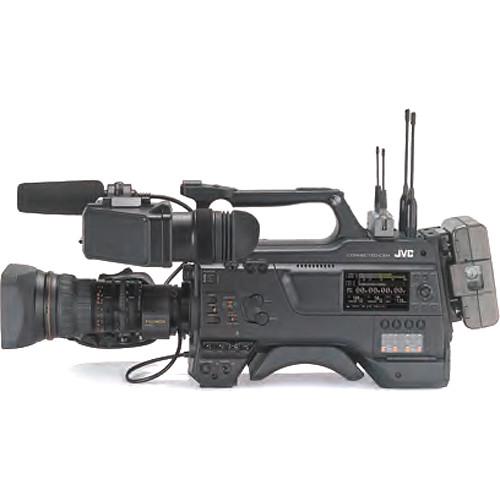

Product description The GY-HC900C20 2/3" HD Connected Camcorder with 20x Zoom Lens from JVC is designed with advanced IP connectivity, suiting it to ENG, studio, and sports applications. Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range. The included 20x Canon zoom lens has a focal length of 8.2 to 164mm, a maximum relative aperture range of 1:1.9 to 1:2.7, reduced aberration, and the Shuttle Shot zoom pre-store function. With support for the broadcast-popular MPEG-2 35/25 Mb/s, and production-quality MOV/H.264 formats, the GY-HC900C20 provides a variety of recording options to suit your projects. Dual SD card slots enable redundant, relay, and backup recording modes.Capture options include 1080p video at up to 120 fps for slow-motion shots, 1080p or 720p Sports Exchange Standard format recording, 50 Mb/s 4:2:2 10-bit recording (H.264), and standard MPEG-2 recording at rates up to 35 Mb/s. A built-in, long-range, MIMO dual-antenna Wi-Fi unit enables live streaming at rates up to 1080p60/50 with a latency rate as low as <500 ms. The GY-HC900C20 features a LAN terminal in addition to a USB 3.0 host port. An optional dual-modem bonding unit is available separately.In Extended mode, the GY-HC900C20 has a sensitivity rating of f/12 at 60 Hz, and f/13 at 50 Hz with 2000 lux. Standard mode has a 62 dB S/N ratio, and HDR recording is available in Hybrid Log Gamma (HLG) or in a 10-bit J-Log. IP return video and IFB audio make communications between production and cast/crew a breeze.Camera body features include an industry-standard B4 lens mount, an OLED viewfinder, and an IPX2 splash-proof rating. Interfaces include one HDMI, one composite, and two 3G-SDI outputs, one 3G-SDI pool input, a 68-pin fiber connector, and two 3-pin XLR and one 5-pin XLR audio connectors. The camera also incorporates an additional slot for potential future expansion. - JVC GY-HC900CHU 2/3" HD Connected Camcorder The GY-HC900CHU 2/3" HD Connected Camcorder from JVC is designed with advanced IP connectivity, suiting it to ENG, studio, and sports applications. Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range. With support for the broadcast-popular MPEG-2 35/25 Mb/s, and production-quality MOV/H.264 formats, the GY-HC900CHU provides a variety of recording options to suit your projects. Dual SD card slots enable redundant, relay, and backup recording modes.Capture options include 1080p video at up to 120 fps for slow-motion shots, 1080p or 720p Sports Exchange Standard format recording, 50 Mb/s 4:2:2 10-bit recording (H.264), and standard MPEG-2 recording at rates up to 35 Mb/s. A built-in, long-range, MIMO dual-antenna Wi-Fi unit enables live streaming at rates up to 1080p60/50 with a latency rate as low as <500 ms. The GY-HC900CHU features a LAN terminal in addition to a USB 3.0 host port. An optional dual-modem bonding unit is available separately.In Extended mode, the GY-HC900CHU has a sensitivity rating of f/12 at 60 Hz, and f/13 at 50 Hz with 2000 lux. Standard mode has a 62 dB S/N ratio, and HDR recording is available in Hybrid Log Gamma (HLG) or in a 10-bit J-Log. IP return video and IFB audio make communications between production and cast/crew a breeze.Camera body features include an industry-standard B4 lens mount, an OLED viewfinder, and an IPX2 splash-proof rating. Interfaces include one HDMI, one composite, and two 3G-SDI outputs, one 3G-SDI pool input, a 68-pin fiber connector, and two 3-pin XLR and one 5-pin XLR audio connectors. The camera also incorporates an additional slot for potential future expansion.
- Features
-
- Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range
- Low-latency, stable live streaming in 1080p at 50/60 fps
- Can record in Sports Exchange Standard 1080p/720p formats
- Industry-standard B4 lens mount
- Records in 50 Mb/s Long GOP 10-bit 4:2:2, and 35 Mb/s standard MPEG-2
- Dual SD card slots enable redundant, relay, and backup recording modes
- Two 3G-SDI outputs, one 3G-SDI input for pooling
- 68-pin interface connects directly to optional FS-900 fiber back
- Simultaneous decoding for return video and IFB audio, ZiXi error correction

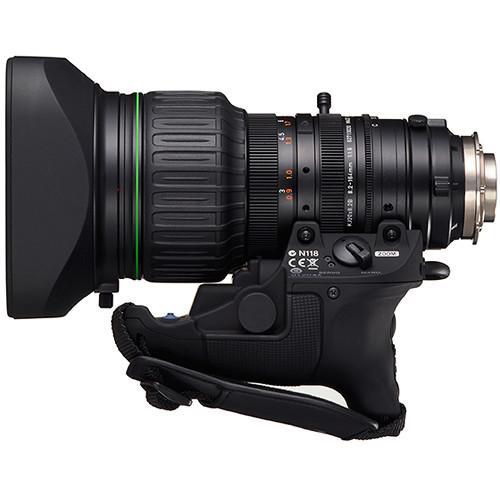

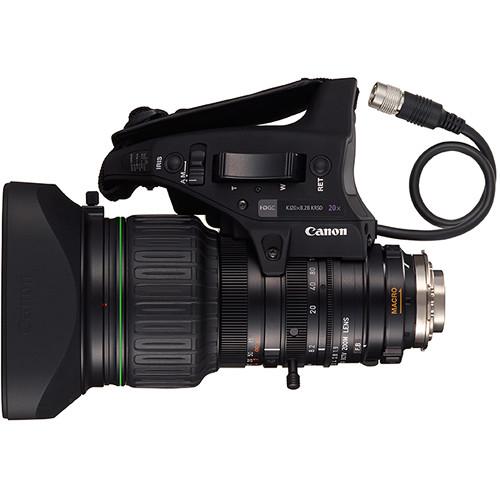

UPC: 046838078828 - Canon KJ20x8.2B KRSD 8.2-164mm HDgc ENG Zoom Lens The KJ20x8.2B KRSD 8.2-164mm HDgc Zoom Lens from Canon offers a wider-angle focal length of 8.2mm, and a maximum f/1.9 aperture up to 115.4mm. This entry in Canon's line of HDgc lenses is suitable for a variety of HD ENG applications including broadcast, corporate, educational, and event videography. Use the Canon KJ20x8.2B KRSD's Shuttle Shot function to pre-store zoom positions for repetitive, instant recall at the press of a button.The KJ20x8.2B KRSD features the same dispersion glass and multilayer optical coatings used in Canon's box lenses. Chromatic aberration is suppressed across the entire lens surface, yielding sharp images with minimal distortion at any object distance. A quiet and fast servo unit enables end-to-end zooming in as little as one second, and provides smooth, super-slow moves.
- Features
-
- Pre-store and recall zoom positions with the Shuttle Shot function
- Maximum zoom speed of one second from end to end
- Extraordinary Dispersion Glass and multilayer coatings minimize aberrations
- Macro focusing with a minimum object distance of less than one inch
- Quiet, fast servo unit
- Smooth, super-slow zooms
In the Box - GY-HC900CHU 2/3" HD Connected Camcorder vcubbuwccaacrudyru
- OLED Viewfinder
- Limited 1-Year Warranty
- Canon - KJ20x8.2B KRSD 8.2-164mm HDgc ENG Zoom Lens
Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HC900C20 2 3" HD Connected Camcorder with 20x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JVC GY-HC900CHU 2/3" HD Connected Camcorder
| | | Image Sensor | 3-Chip 2/3" CMOS Sensor | | Sensor Resolution | 2.2 MP | | Signal-to-Noise Ratio | 62 dB | | | | Lens Mount | B4 Mount | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | None | | Recording Media | 2 x SDXC Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | MPEG2:
1920 x 1080p at 25/29.97/50/59.94 fps (35 Mb/s)
1920 x 1080i at 50/59.94 fps (35 Mb/s)
H.264 4:2:2 10-Bit:
1920 x 1080p at 25/29.97/50/59.94/120 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 25/29.97/50/59.94 fps (35 to 50 Mb/s) | | Variable Frame Rates | 1080p: 25 to 120 fps | | Audio Recording | 4-Channel 16-Bit 48 kHz
2-Channel 16-Bit 48 kHz | | IP Streaming | MPEG2, RTMP, RTP, RTSP, UDP, ZIXI: 640 x 360 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p (0.3 to 20.00 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
1 x HDMI Output
1 x BNC (Composite) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input/Output
1 x 5-Pin XLR Mic Level Input | | Other I/O | 1 x BNC Genlock Input
1 x BNC Timecode Input/Output
1 x 6-Pin Control
1 x RJ45 Data | | | | Display Type | LCD | | Screen Size | 3.5" | | | | EVF Display Type | OLED | | Screen Size | 3.26" | | EVF Resolution | 854 x 480 | | | | Power Connectors | 1 x 4-Pin XLR Input
2 x 4-Pin LEMO Output
1 x D-Tap Output | | | | Tripod Mount | VCT-14 | | Dimensions | 14.41 x 10.59 x 6.5" / 366 x 269 x 165 mm | | Weight | 8.6 lb / 3.9 kg Without battery, EVF, or lens. | | | | Box Dimensions (LxWxH) | 21.0 x 18.7 x 9.7" | - Canon KJ20x8.2B KRSD 8.2-164mm HDgc ENG Zoom Lens
| Sensor Compatibility | 2/3" (16:9) | | Focal Length | 8.2 to 164mm | | Built-In Extender | None | | Zoom Ratio | 20x | | Angle of View | Wide: 60.7 x 36.5° (H x V)
Tele: 3.4 x 1.9° (H x V) | | Maximum Aperture | f/1.9 to 2.7 | | Minimum Object Distance | 3' / 0.9 m
Macro: 0.4" / 10 mm | | Dimensions | 7.2 x 6.4 x 4.1" / 181.8 x 163.3 x 103.0 mm (L x W x H) | | Weight | 2.8 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 14.7 x 11.6 x 9.8" |
