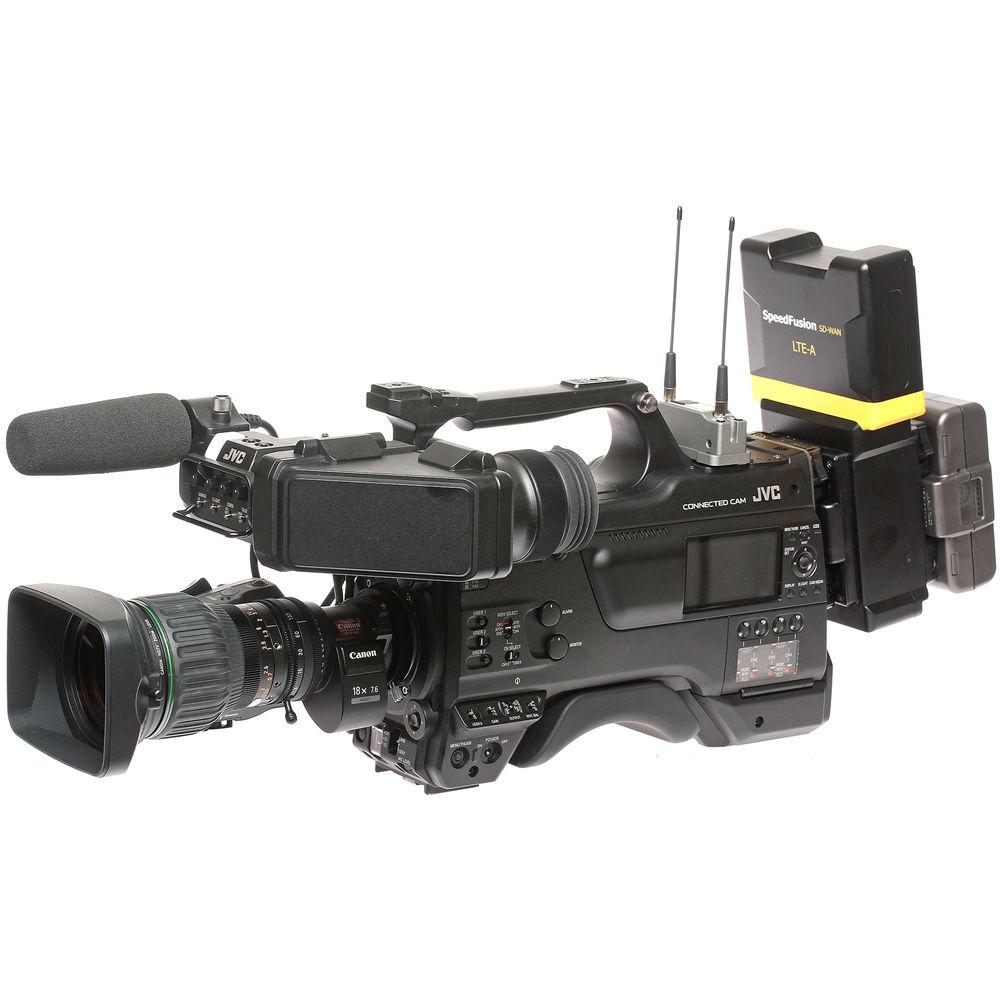

User Manual for JVC GY-HC900C20 2 3" HD Connected Camcorder with 20x Zoom Lens Click to enlarge the picture
Contents of the user manual for the JVC GY-HC900C20 2 3" HD Connected
- Product category: Camcorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Camcorders
 |
User manual for the JVC GY-HC900C20 2 3" HD Connected contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

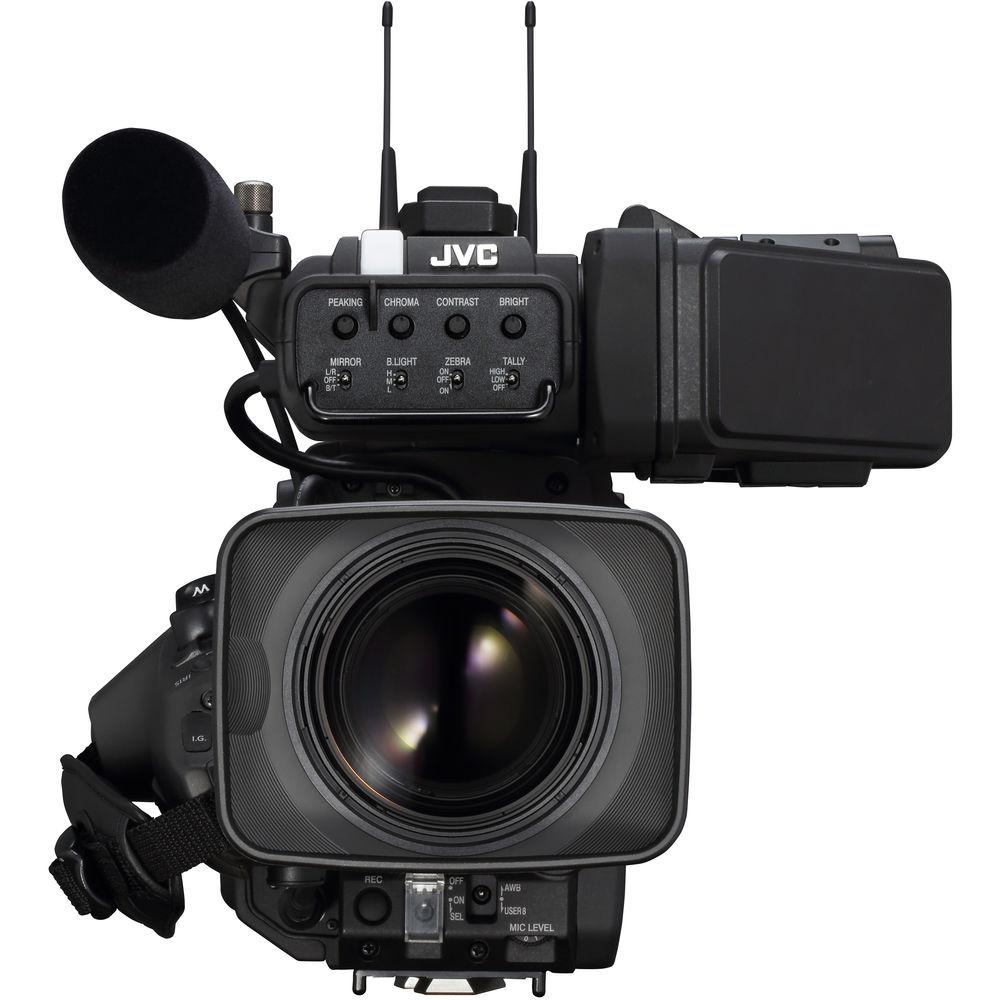

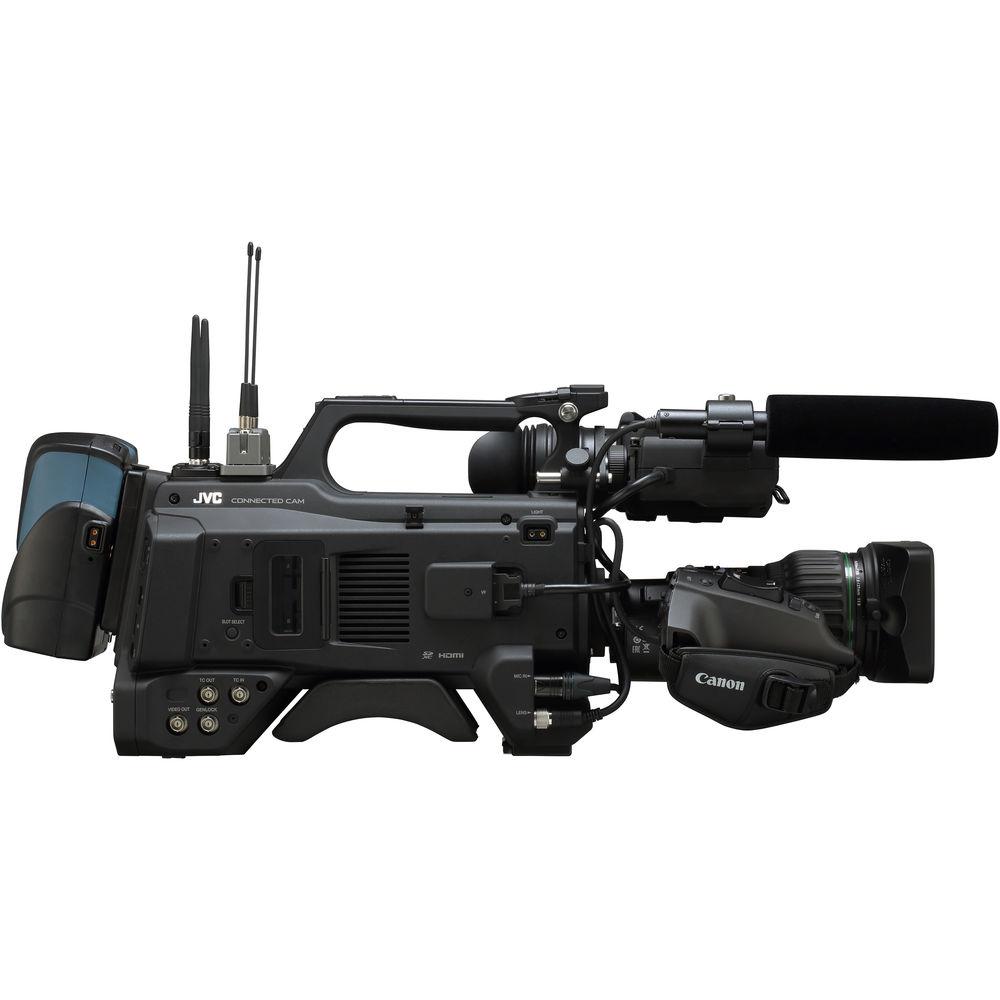

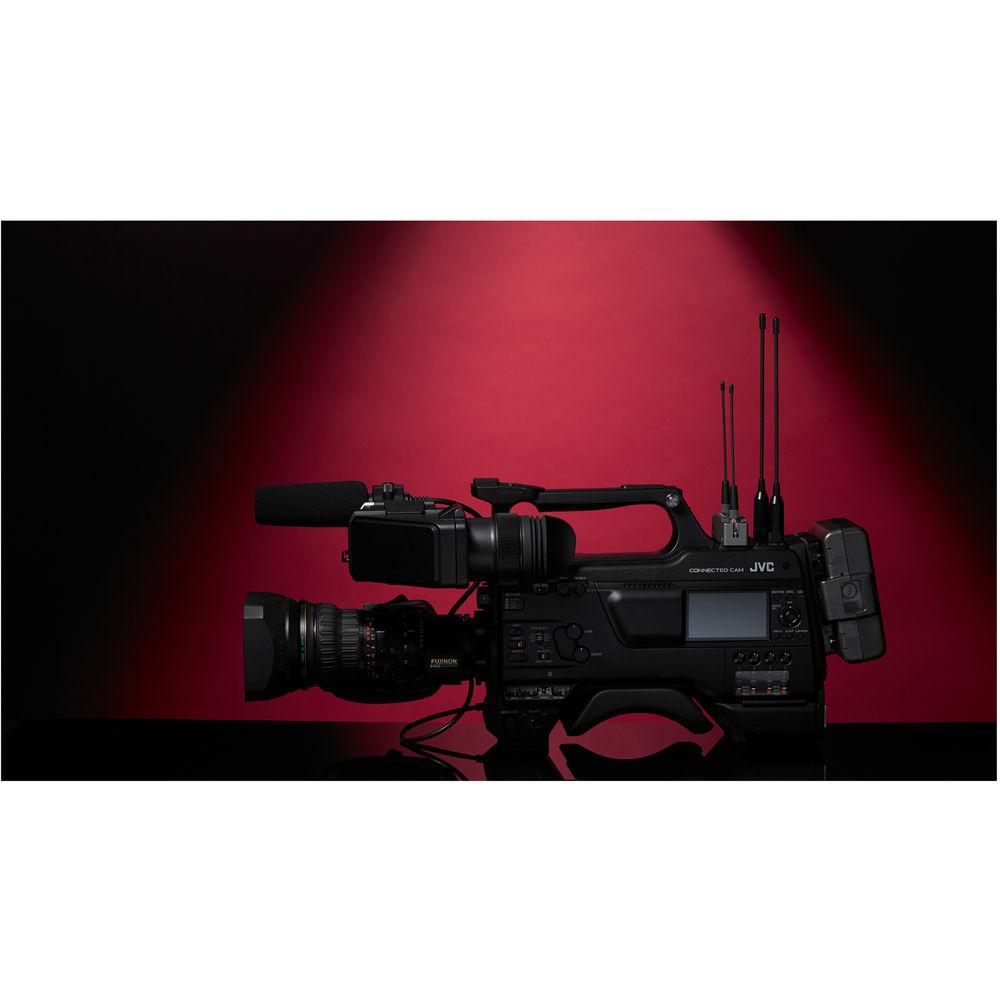

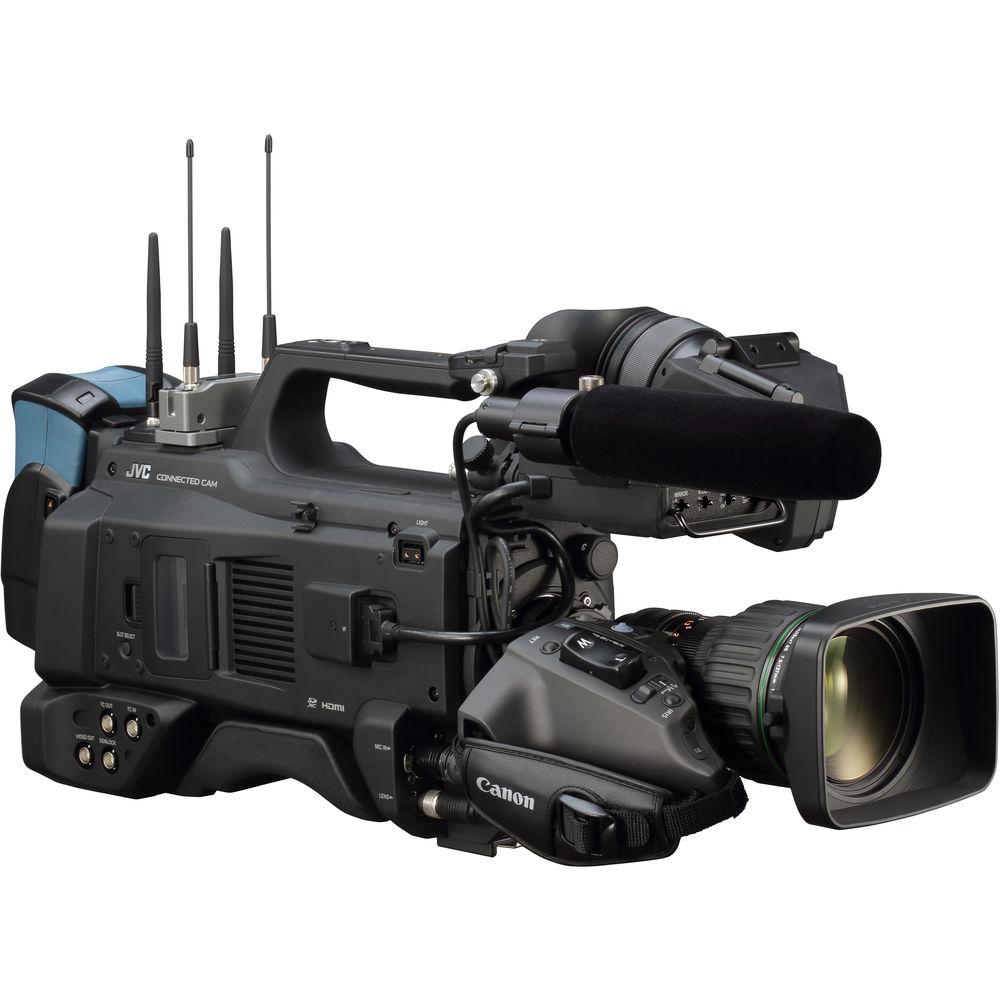

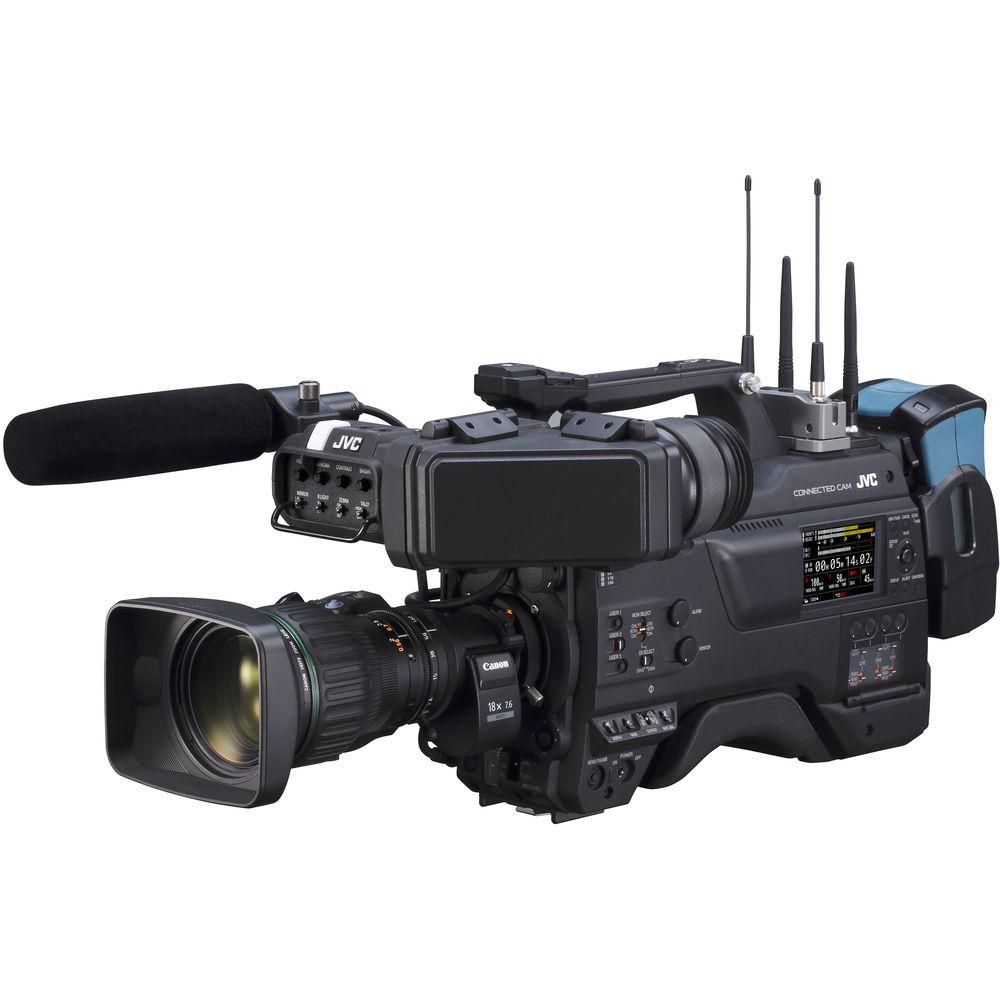

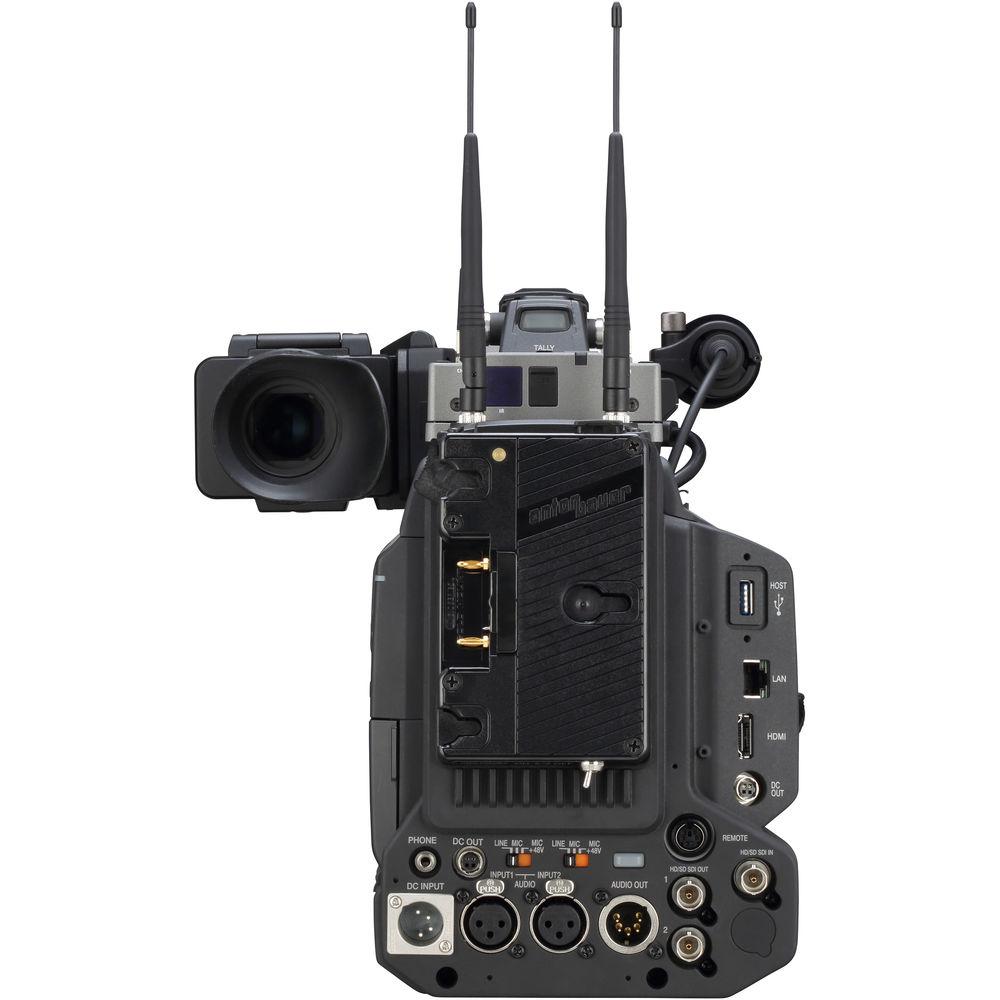

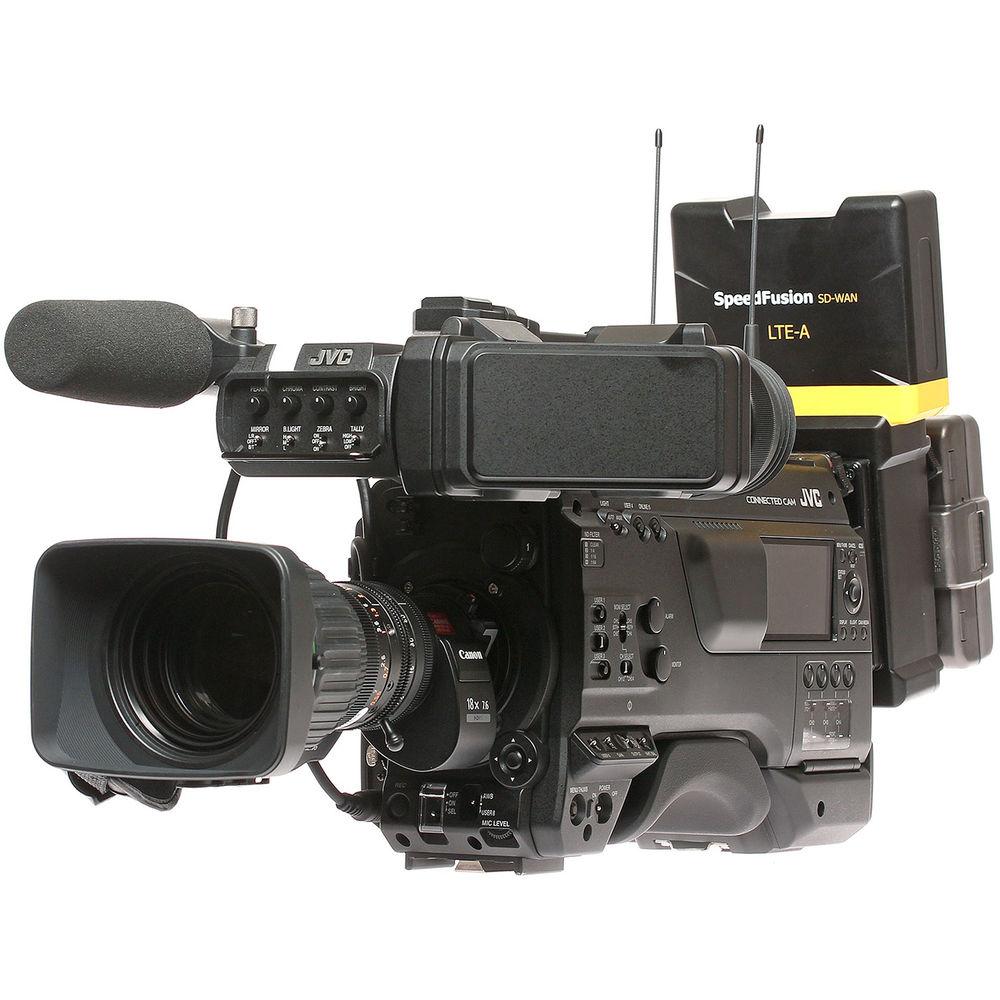

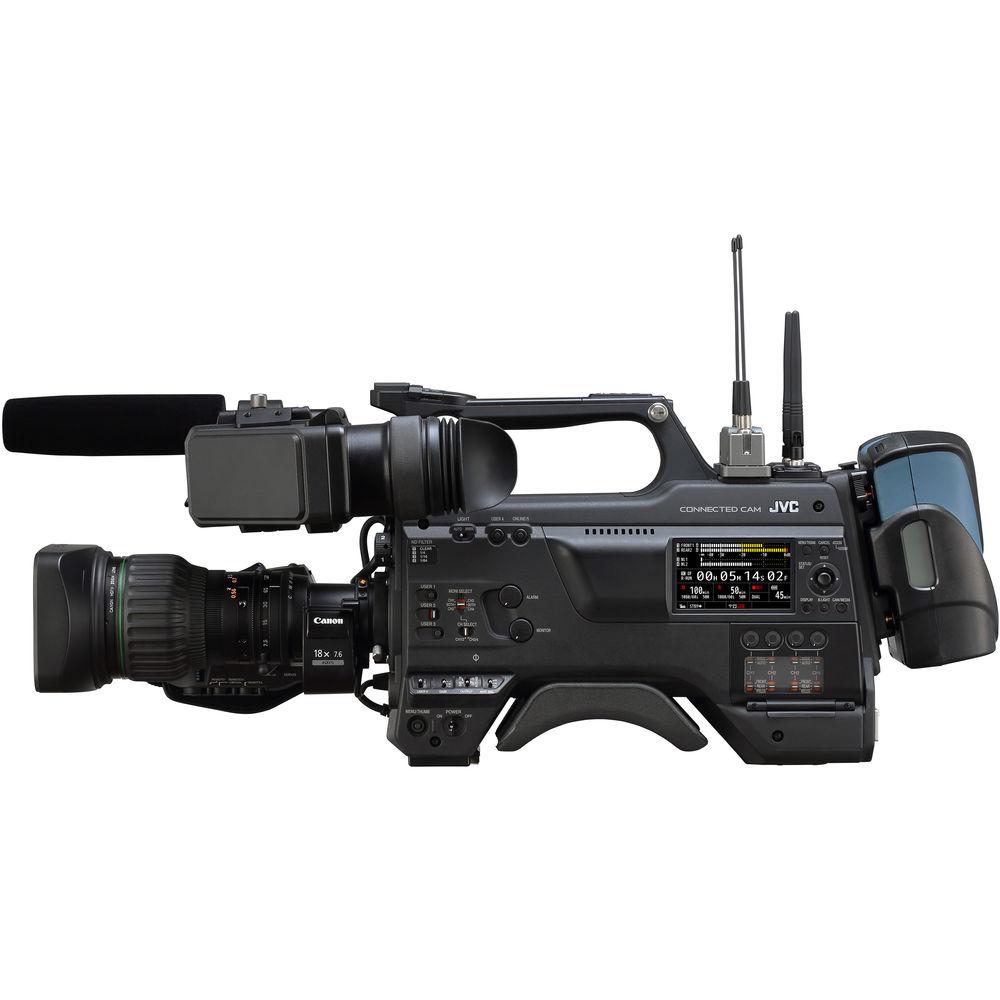

Product description - JVC GY-HC900CHU 2/3" HD Connected Camcorder The GY-HC900CHU 2/3" HD Connected Camcorder from JVC is designed with advanced IP connectivity, suiting it to ENG, studio, and sports applications. Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range. With support for the broadcast-popular MPEG-2 35/25 Mb/s, and production-quality MOV/H.264 formats, the GY-HC900CHU provides a variety of recording options to suit your projects. Dual SD card slots enable redundant, relay, and backup recording modes.Capture options include 1080p video at up to 120 fps for slow-motion shots, 1080p or 720p Sports Exchange Standard format recording, 50 Mb/s 4:2:2 10-bit recording (H.264), and standard MPEG-2 recording at rates up to 35 Mb/s. A built-in, long-range, MIMO dual-antenna Wi-Fi unit enables live streaming at rates up to 1080p60/50 with a latency rate as low as <500 ms. The GY-HC900CHU features a LAN terminal in addition to a USB 3.0 host port. An optional dual-modem bonding unit is available separately.In Extended mode, the GY-HC900CHU has a sensitivity rating of f/12 at 60 Hz, and f/13 at 50 Hz with 2000 lux. Standard mode has a 62 dB S/N ratio, and HDR recording is available in Hybrid Log Gamma (HLG) or in a 10-bit J-Log. IP return video and IFB audio make communications between production and cast/crew a breeze.Camera body features include an industry-standard B4 lens mount, an OLED viewfinder, and an IPX2 splash-proof rating. Interfaces include one HDMI, one composite, and two 3G-SDI outputs, one 3G-SDI pool input, a 68-pin fiber connector, and two 3-pin XLR and one 5-pin XLR audio connectors. The camera also incorporates an additional slot for potential future expansion.
- Features
-
- Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range
- Low-latency, stable live streaming in 1080p at 50/60 fps
- Can record in Sports Exchange Standard 1080p/720p formats
- Industry-standard B4 lens mount
- Records in 50 Mb/s Long GOP 10-bit 4:2:2, and 35 Mb/s standard MPEG-2
- Dual SD card slots enable redundant, relay, and backup recording modes
- Two 3G-SDI outputs, one 3G-SDI input for pooling
- 68-pin interface connects directly to optional FS-900 fiber back
- Simultaneous decoding for return video and IFB audio, ZiXi error correction
UPC: 046838078828 - Fujinon XA20SX8.5BRM HD Professional Lens The Fujinon XA20SX8.5BRM HD Professional Lens is an ENG telephoto lens designed for 2/3" cameras. It has a 20x zoom, a focal length ranging from 8.5-170mm, and features a relative aperture ranging from 1:1.8 between 8.5mm and 113mm, and 1:2.7 at 170mm. With advanced glass properties, it reduces the effect of color fringes that occurs due to the failure of a lens to focus all colors to the same convergence point. The EBC optical coating of the HD Professional Lens ensures high-quality optical transmission. The XA20SX8.5BRM lens uses Fujinon's Inner Focus technology and is suitable for use in video productions in weddings, houses of worship, and corporate offices.
- ENG telephoto lens designed for 2/3" cameras
- Focal length of 8.5-170 mm
- Relative aperture ranging from 1:1.8 between 8.5 mm and 113 mm, and 1:2.7 at 170 mm
- Fast, quiet and precise servo zoom and focus
- Advanced glass properties - reduces the effect of color fringes that occurs due to the failure of a lens to focus all colors to the same convergence point
- EBC optical coating ensures high-quality optical transmission
- Equipped with Fujinon's Inner Focus technology
- Ideal for use in weddings, houses of worship, and corporate offices
In the Box - GY-HC900CHU 2/3" HD Connected Camcorder wrwaxxvucscxbwfzfcrrffrvddufuwdyvfb
- OLED Viewfinder
- Limited 1-Year Warranty
- Fujinon - XA20SX8.5BRM HD Professional Lens
Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HC900C20 2 3" HD Connected Camcorder with 20x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JVC GY-HC900CHU 2/3" HD Connected Camcorder
| | | Image Sensor | 3-Chip 2/3" CMOS Sensor | | Sensor Resolution | 2.2 MP | | Signal-to-Noise Ratio | 62 dB | | | | Lens Mount | B4 Mount | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | None | | Recording Media | 2 x SDXC Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | MPEG2:
1920 x 1080p at 25/29.97/50/59.94 fps (35 Mb/s)
1920 x 1080i at 50/59.94 fps (35 Mb/s)
H.264 4:2:2 10-Bit:
1920 x 1080p at 25/29.97/50/59.94/120 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 25/29.97/50/59.94 fps (35 to 50 Mb/s) | | Variable Frame Rates | 1080p: 25 to 120 fps | | Audio Recording | 4-Channel 16-Bit 48 kHz
2-Channel 16-Bit 48 kHz | | IP Streaming | MPEG2, RTMP, RTP, RTSP, UDP, ZIXI: 640 x 360 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p (0.3 to 20.00 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
1 x HDMI Output
1 x BNC (Composite) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input/Output
1 x 5-Pin XLR Mic Level Input | | Other I/O | 1 x BNC Genlock Input
1 x BNC Timecode Input/Output
1 x 6-Pin Control
1 x RJ45 Data | | | | Display Type | LCD | | Screen Size | 3.5" | | | | EVF Display Type | OLED | | Screen Size | 3.26" | | EVF Resolution | 854 x 480 | | | | Power Connectors | 1 x 4-Pin XLR Input
2 x 4-Pin LEMO Output
1 x D-Tap Output | | | | Tripod Mount | VCT-14 | | Dimensions | 14.41 x 10.59 x 6.5" / 366 x 269 x 165 mm | | Weight | 8.6 lb / 3.9 kg Without battery, EVF, or lens. | | | | Box Dimensions (LxWxH) | 21.0 x 18.7 x 9.7" | - Fujinon XA20SX8.5BRM HD Professional Lens
| Sensor Compatibility | 2/3" (16:9) | | Focal Length | 8.5 to 170mm | | Built-In Extender | None | | Zoom Ratio | 20x | | Maximum Aperture | f/1.8 to 2.7 | | | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 11.0" |
