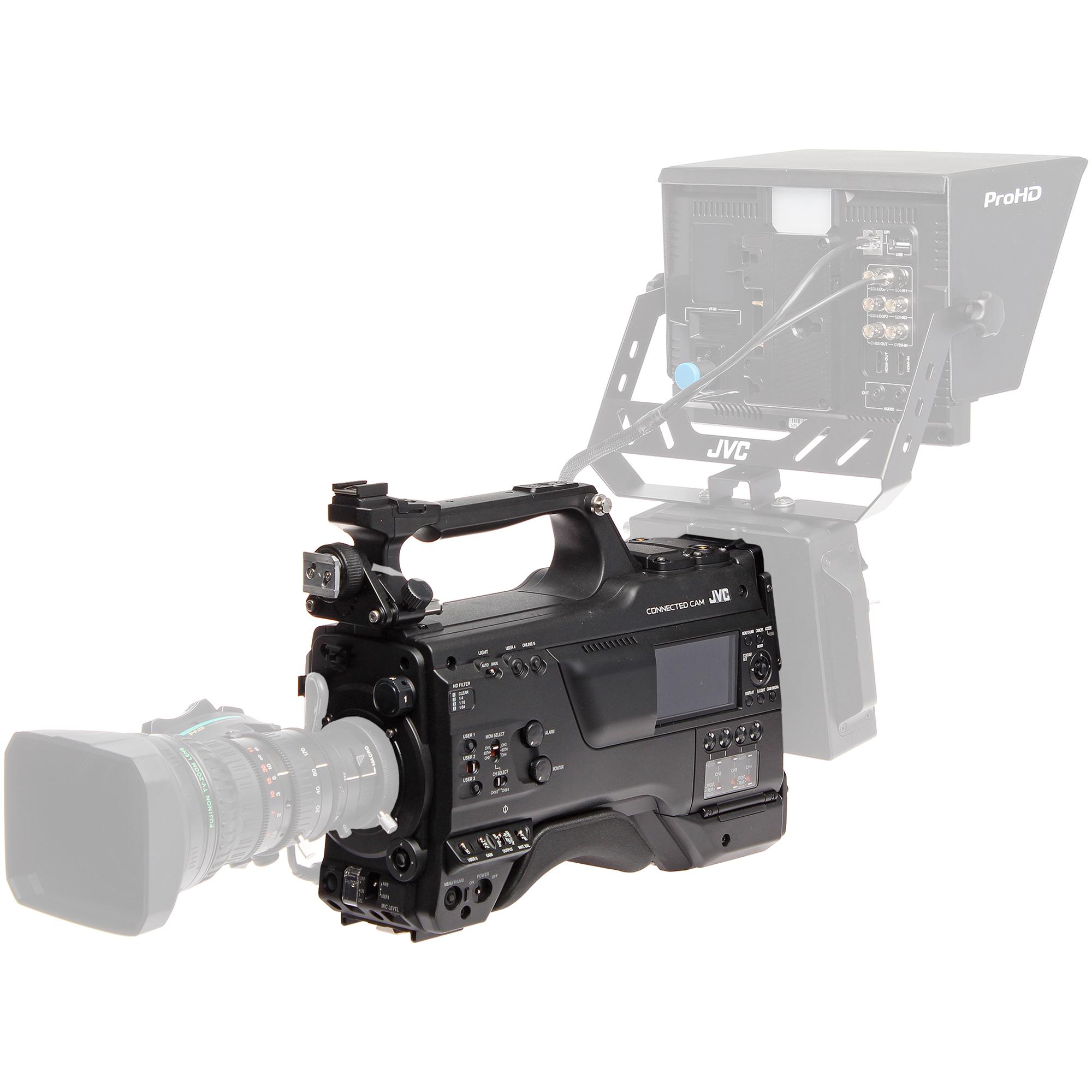

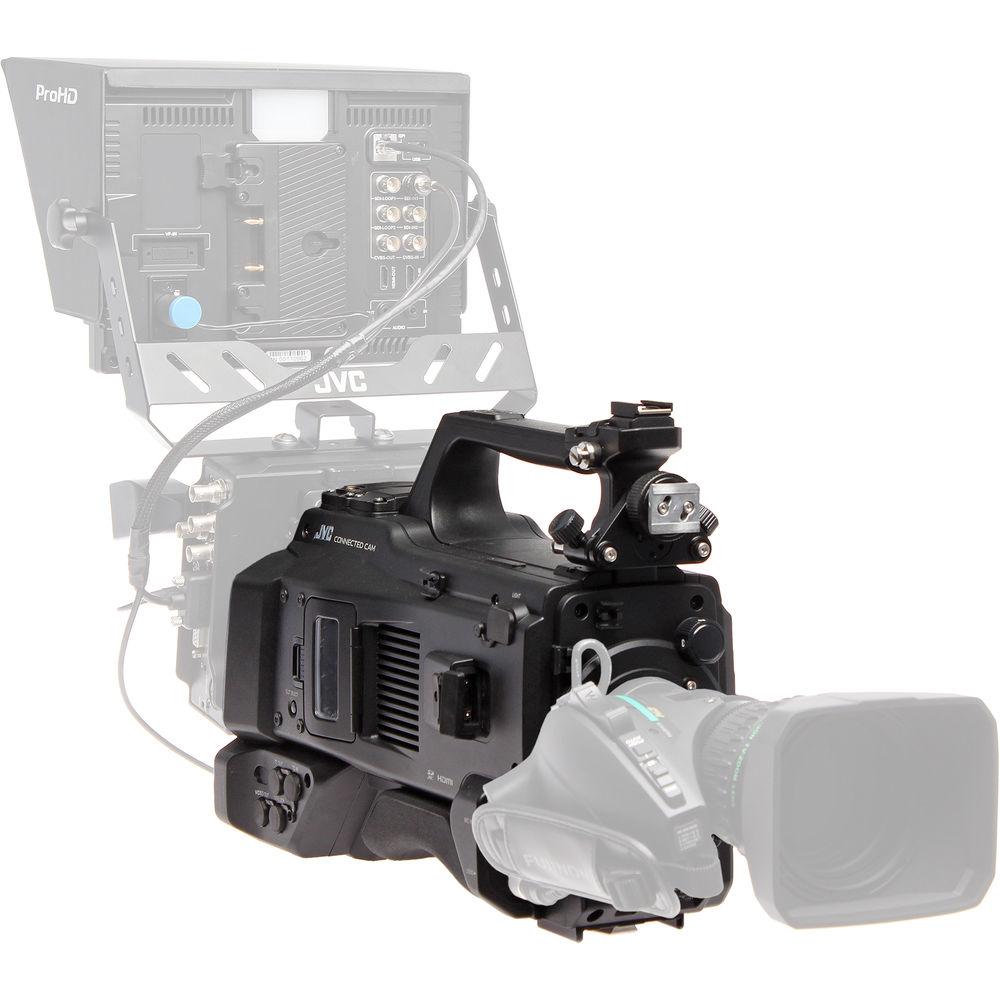

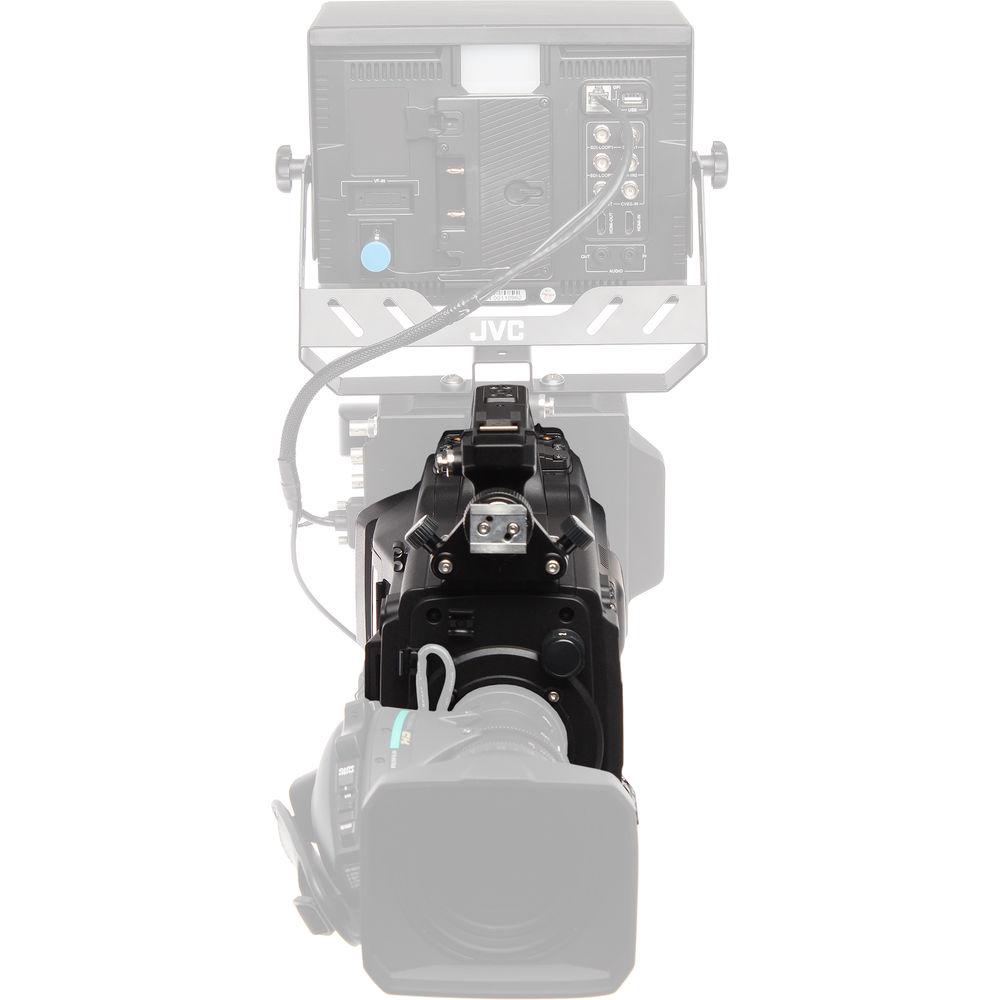

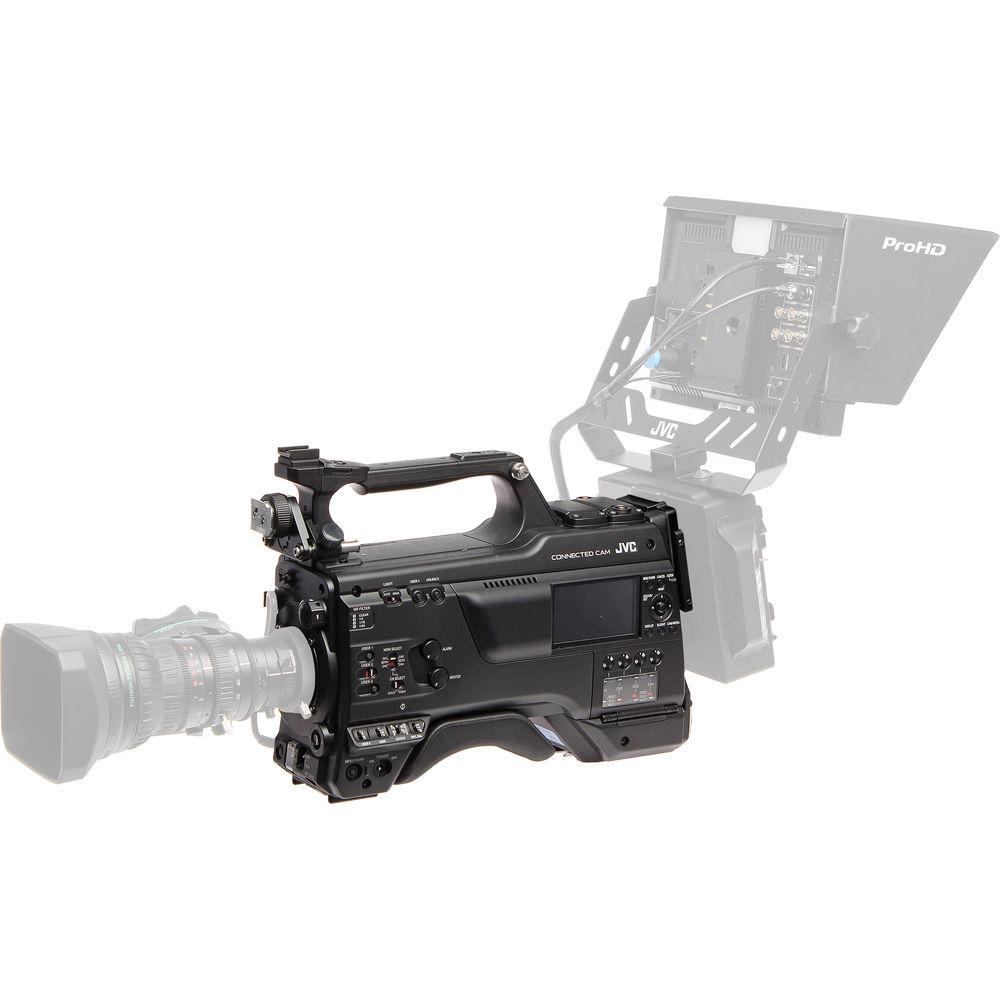

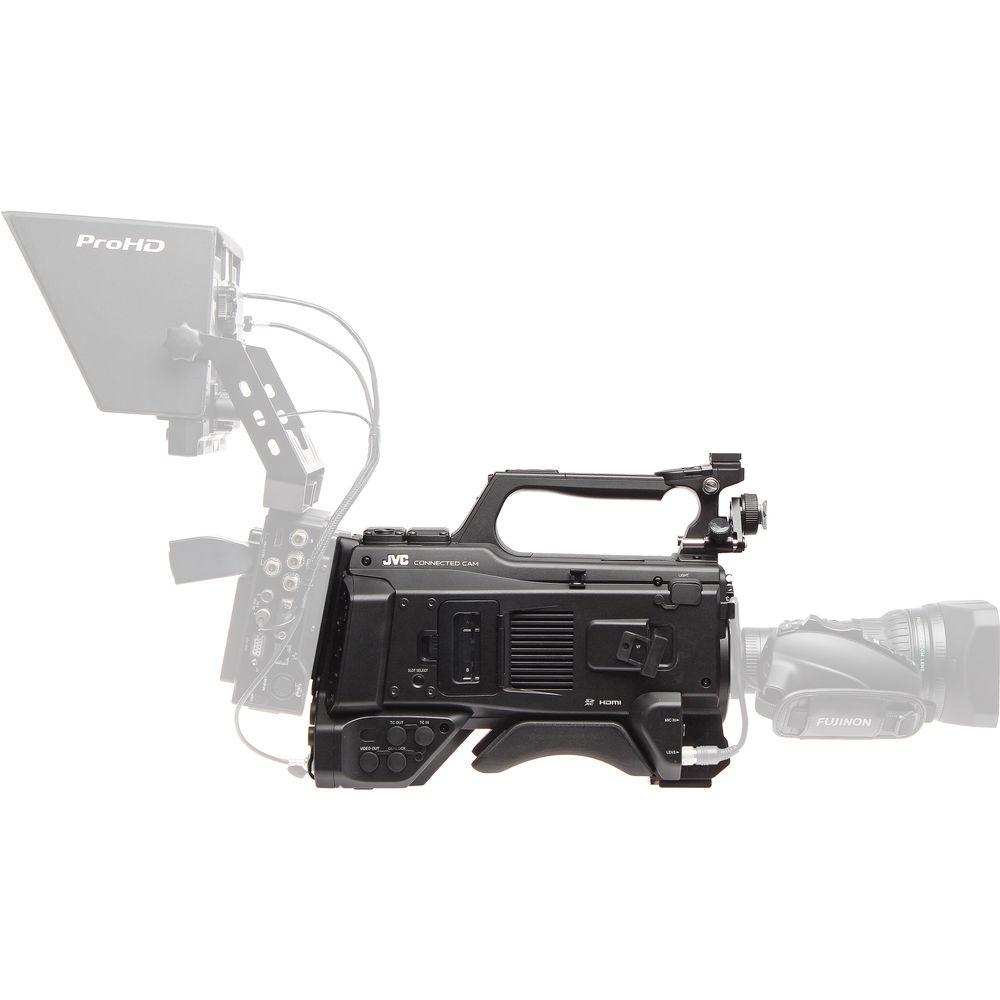

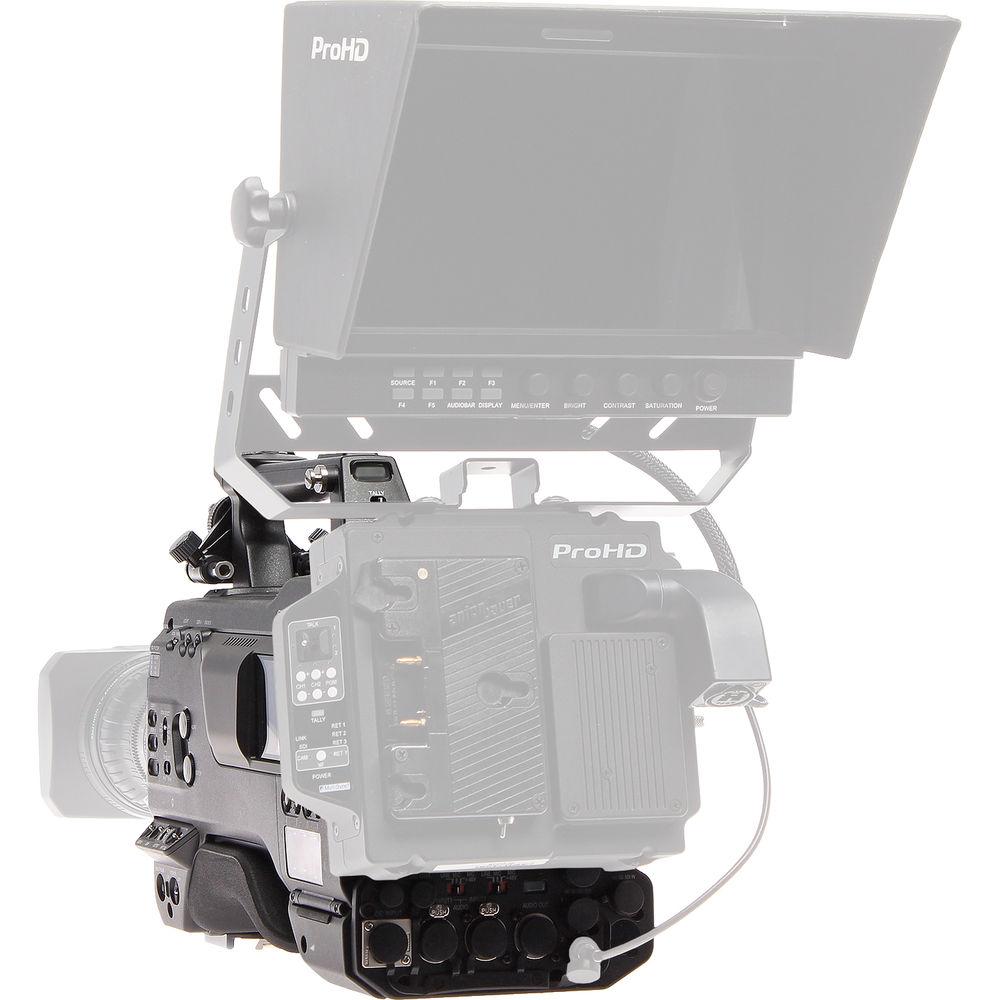

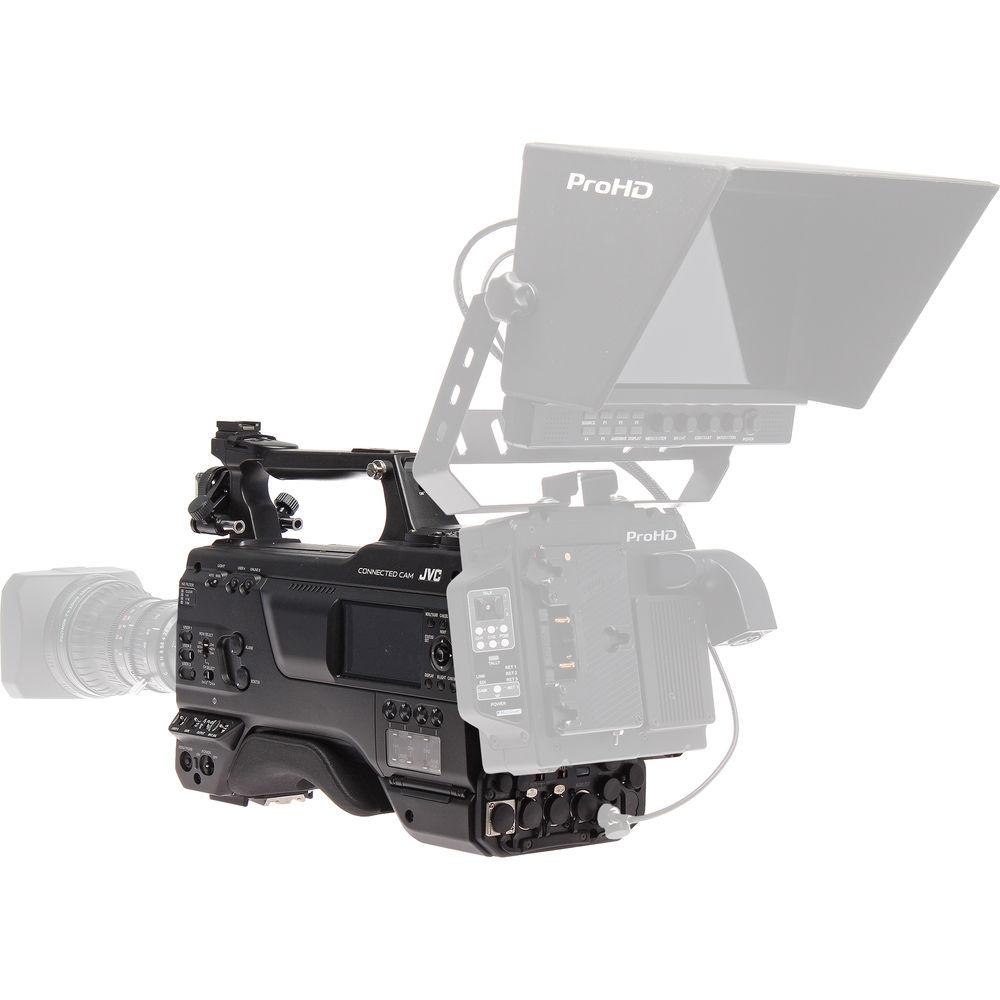

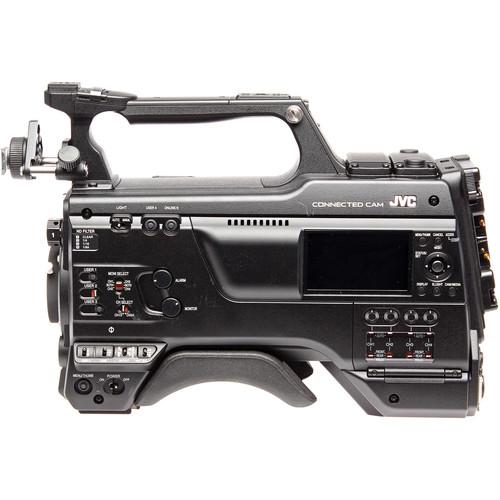

User Manual for JVC GY-HC900STU 2 3" HD Connected Cam Studio Camcorder Click to enlarge the picture
Contents of the user manual for the JVC GY-HC900STU 2 3" HD Connected
- Product category: Studio & EFP Cameras JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Studio & EFP Cameras
 |
User manual for the JVC GY-HC900STU 2 3" HD Connected contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description Designed for studio applications, the GY-HC900STU 2/3" HD Connected Cam Studio Camcorder from JVC features advanced IP connectivity and a direct connection to an optional FS-900 fiber back. The GY-HC900STU body incorporates three 2/3" CMOS sensors, producing images with high sensitivity, low noise, and a wide dynamic range. With support for the broadcast-popular MPEG-2 35/25 Mb/s, and production-quality MOV/H.264 formats, the GY-HC900STU provides a variety of recording options to suit your projects. Dual SD card slots enable redundant, relay, and backup recording modes.Capture options include 1080p video at up to 120 fps for slow-motion shots, 1080p or 720p Sports Exchange Standard format recording, 50 Mb/s 4:2:2 10-bit recording (H.264), and standard MPEG-2 recording at rates up to 35 Mb/s. The GY-HC900STU features a LAN terminal in addition to a USB 3.0 host port. An optional dual-modem bonding unit is available separately.In Extended mode, the GY-HC900STU has a sensitivity rating of f/12 at 60 Hz, and f/13 at 50 Hz with 2000 lux. Standard mode has a 62 dB S/N ratio, and HDR recording is available in Hybrid Log Gamma (HLG) or in a 10-bit J-Log. IP return video and IFB audio make communications between production and cast/crew a breeze.Camera body features include an industry-standard B4 lens mount and an IPX2 splash-proof rating. Interfaces include one HDMI, one composite, and two 3G-SDI outputs, one 3G-SDI pool input, a 68-pin fiber connector, and two 3-pin XLR and one 5-pin XLR audio connectors. The camera also incorporates wireless audio module and expansion slots. - Features
-
- Three 2/3" CMOS sensors produce images with high sensitivity, low noise, and a wide dynamic range
- Low-latency, stable live streaming in 1080p at 50/60 fps
- 68-pin interface connects directly to optional FS-900 fiber back
- Can record in Sports Exchange Standard 1080p/720p formats
- Industry-standard B4 lens mount
- Records in 50 Mb/s Long GOP 10-bit 4:2:2, and 35 Mb/s standard MPEG-2
- Dual SD card slots enable redundant, relay, and backup recording modes
- Two 3G-SDI outputs, one 3G-SDI input for pooling, and one 64-pin fiber connector
- Simultaneous decoding for return video and IFB audio, ZiXi error correction
In the Box JVC GY-HC900STU 2/3" HD Connected Cam Studio Camcorder (Body Only) Cold Shoe Unit 4 x M2 Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HC900STU 2 3" HD Connected Cam Studio Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GY-HC900STU Specs | | | Image Sensor | 3-Chip 2/3" CMOS Sensor | | Sensor Resolution | 2.2 MP | | Signal-to-Noise Ratio | 62 dB | | | | Lens Mount | B4 Mount | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SDXC Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | MPEG2:
1920 x 1080p at 25/29.97/50/59.94 fps (35 Mb/s)
1920 x 1080i at 50/59.94 fps (35 Mb/s)
H.264 4:2:2 10-Bit:
1920 x 1080p at 25/29.97/50/59.94/120 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 25/29.97/50/59.94 fps (35 to 50 Mb/s) | | Variable Frame Rates | 1080p: 25 to 120 fps | | Audio Recording | 4-Channel 16-Bit 48 kHz
2-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
1 x HDMI Output
1 x BNC (Composite) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input/Output
1 x 5-Pin XLR Mic Level Input | | Other I/O | 1 x BNC Genlock Input
1 x BNC Timecode Input/Output
1 x 6-Pin Control
1 x RJ45 Data | | | | Battery Type | Gold Mount | | Power Connectors | 1 x 4-Pin XLR Input
2 x 4-Pin LEMO Output
1 x D-Tap Output | | | | Tripod Mount | VCT-14 | | Dimensions | 14.41 x 10.59 x 6.5" / 366 x 269 x 165 mm | | Weight | 8.6 lb / 3.9 kg Without battery, EVF, or lens. |
