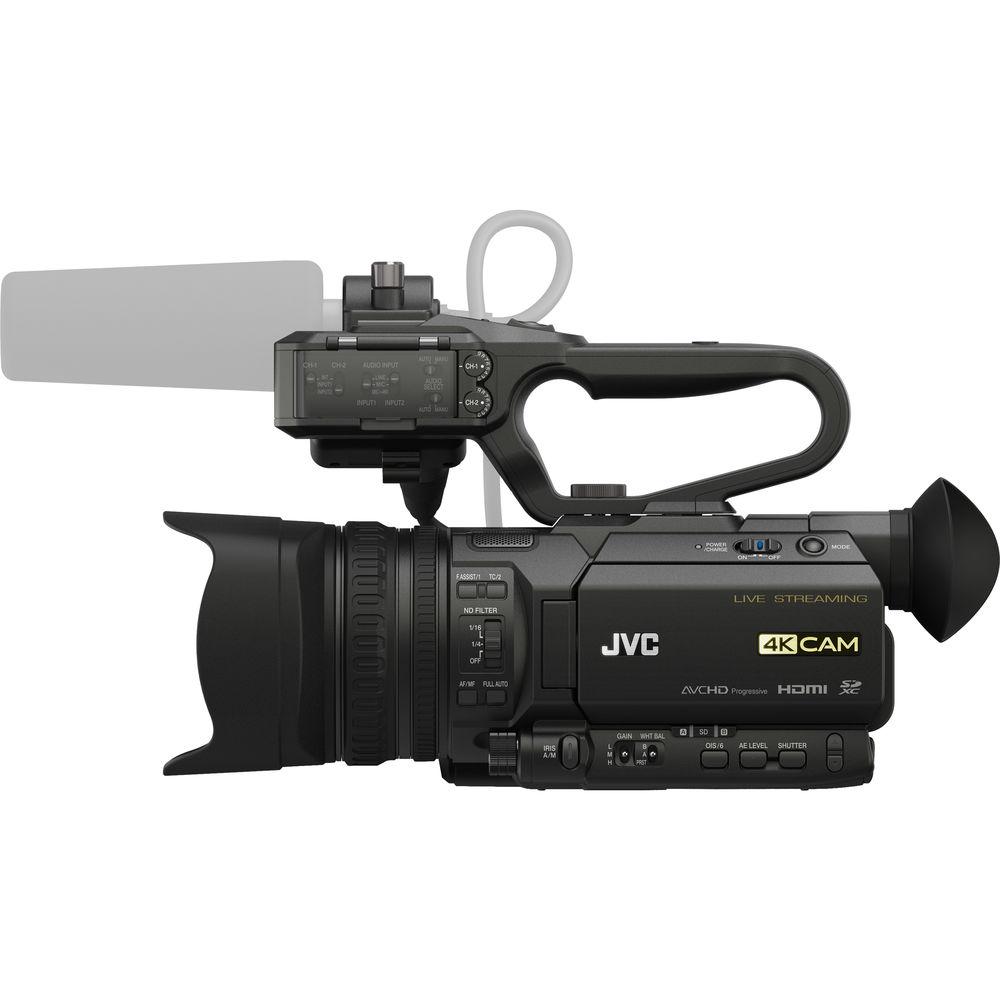

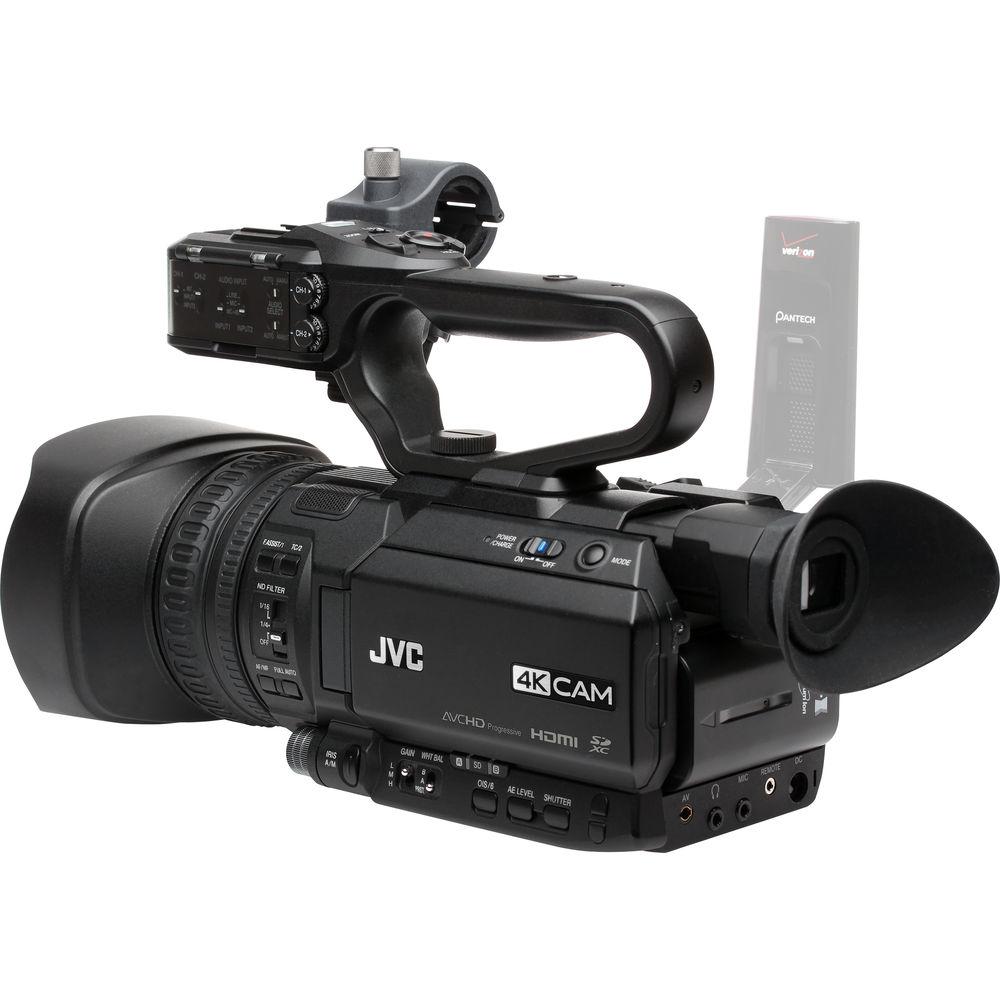

User Manual for JVC GY-HM250SP UHD 4K Streaming Camcorder with HD Sports Overlays Click to enlarge the picture
Contents of the user manual for the JVC GY-HM250SP UHD 4K Streaming Camcorder
- Product category: Camcorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Camcorders
 |
User manual for the JVC GY-HM250SP UHD 4K Streaming Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description The JVC GY-HM250SP UHD 4K Streaming Camcorder with HD Sports Overlays is a full-featured pro camcorder that enables a single operator to add lower-thirds and titles while recording in HD or streaming—no external character generator or switcher is required. It features a 1/2.3" sensor and captures UHD 4K video at 24/30p, and 4:2:2 4K at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards, or up to 70 Mb/s to SDXC/SDHC Class 10 cards. In HD mode, the GY-HM250SP can display score overlays for sports such as football, baseball, basketball, hockey, soccer, and volleyball. Score overlays may be placed in various screen positions, and a camera operator can update the score via Wi-Fi using a smartphone or tablet. The GY-HM250SP is also compatible via Wi-Fi with a scoreboard-integrated Sportzcast Scorebot. The GY-HM250SP's integrated IP engine enables you to stream Full HD in the field directly from the camcorder and offers remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250SP offers one-click zeroconf configuration when using a common LAN between cameras. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250SP also comes with pre-installed color schemes and the ability to upload icons or logos to add a personalized look to your footage.
An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5" LCD, a 0.24" viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250SP camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs. A top handle unit with the integrated audio box, a 7.4 VDC battery, and an AC adapter are included with the camera. Note: Streaming requires a connection and the use of a wireless LAN, Ethernet, or cellular network to USB Type-A, USB 2.0 adapter. - UHD 4K Recording with 150 and 70 Mb/s Options
- Record UHD 4K at rates up to 70 Mb/s onto lower-cost Class 10 SDHC/SDXC cards, or at 150 Mb/s using SDXC UHS-I Class 3 cards
- Sports Score Overlays in HD Mode
- In HD mode, can display integrated, updatable sports score overlays, and is compatible with Sportzcast Scorebots
- Add Graphic Overlays in HD or While Streaming
- Display custom lower-thirds and titles while recording in HD, or streaming—no external character generator or switcher required
- Built-In Streaming Technology
- An integrated streaming engine enables the camcorder to live stream Full HD video using RTMP, Zixi, and Wowza 1
Please Note: Requires an appropriate network connection and adapter (USB Type-A, USB 2.0 port) close - Live 4K 3G-SDI and HDMI Output
- Connect a UHD 4K monitor using either the 3G-SDI or HDMI output and view the camera's live 4K signal
- 4:2:2 4K and Full HD Recording Options
- Record broadcast-quality signals in 4:2:2 4K at 24 or 30p, or capture Full HD at 24 to 60p at rates up to 50 Mb/s
- Additional Features
-
- 12x optical zoom with 24x dynamic zoom in Full HD
- 3.5" LCD display, and 2.4" color EVF
- Dual SDXC/SDHC card slots
- Two internal ND filter settings
- 2-channel XLR audio inputs with phantom power
- Integrated stereo microphone
- A histogram display aids in calculating your exposure
- Tally with steady and blinking settings
UPC: 046838078958 In the Box JVC GY-HM250SP UHD 4K Streaming Camcorder with HD Sports Overlays Handle Unit SSL-JVC50 7.4V IDX Lithium-Ion Battery for JVC Camcorders vcubbuwccaacrudyru AC Adapter Lens Hood Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HM250SP UHD 4K Streaming Camcorder with HD Sports Overlays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JVC GY-HM250SP UHD 4K Streaming Camcorder with HD Sports Overlays can be downloaded in PDF format at the link stated below.
Technical parametersJVC GY-HM250SP Specs | | | Image Sensor | 1-Chip 1/2.33" CMOS Sensor | | Sensor Resolution | 12.4 MP | | Gain | 0 to 24 dB (Native)
30 to 36 dB (Expanded) | | White Balance Range | 2300 to 15,000K | | | | Focal Length | 4.6 to 56mm | | 35mm Equivalent Focal Length | 29.6 to 355mm | | Optical Zoom Ratio | 12x | | Max Digital Zoom | 24x | | Maximum Aperture | f/1.2 to 3.5 | | Filter Size | 62 mm | | Control Rings | Focus
Zoom | | Image Stabilization | Optical | | Focus Control | Autofocus
Manual Focus | | | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 2 x SDXC/SDHC Card Slots (U3 / V30 or faster cards recommended) | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | H.264:
1920 x 1080p at 23.98/25/29.97/50/59.94/100/119.88 fps (50 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (70 to 150 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/100/119.88 fps (35 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
1920 x 1080p at 50/59.94 fps (28 Mb/s)
1920 x 1080i at 50/59.94 fps (24 Mb/s)
1920 x 1080p at 60 fps (12 Mb/s)
1440 x 1080i at 50/59.94 fps (5 to 9 Mb/s)
1280 x 720p at 60 fps (8 Mb/s)
960 x 540p at 23.98/25/29.97 fps (3 Mb/s)
720 x 480i at 50/59.94 fps (8 Mb/s)
720 x 576i at 50 fps (8 Mb/s)
480 x 270p at 23.98/25/29.97 fps | | Audio Recording | AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio
AVCHD: 2-Channel 16-Bit 48 kHz AC-3 Audio Dolby Digital Using AC-3 Codec. | | IP Streaming | MPEG2, RTMP, RTP, RTSP, ZIXI, H.264, H.265: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (3.0 to 12.00 Mb/s)
MPEG2, RTMP, RTP, RTSP, ZIXI, H.264, H.265: 1280 x 720 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (1.5 to 12.00 Mb/s)
MPEG2, RTMP, RTP, RTSP, ZIXI, H.264, H.265: 720 x 576 to 720 x 576 at 50i (0.3 to 8.0 Mb/s)
MPEG2, RTMP, RTP, RTSP, ZIXI, H.264, H.265: 720 x 480 to 720 x 480 at 59.94i (0.3 to 8.0 Mb/s)
MPEG2, RTMP, RTP, RTSP, ZIXI, H.264, H.265: 640 x 360 to 640 x 360 at 25p, 29.97p, 50p, 59.94p (0.3 to 3.0 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V Monitor Output | | Audio Connectors | 2 x 3-Pin XLR (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic Level (Plug-in Power) Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Output | | Other I/O | 1 x USB Type-A USB 2.0 Data Output
1 x USB Mini-B USB 2.0 Output
1 x 2.5 mm Control Input | | | | Display Type | LCD | | Screen Size | 3.5" | | | | EVF Display Type | LCOS | | Screen Size | .24" | | EVF Resolution | 1,560,000 Dots | | | | Battery Type | JVC SSL-JVC50 | | Power Connectors | 1 x Barrel (12 VDC) Input | | Power Consumption | ≥7.9 W 7.9 W in 4K
7.3 W in HD | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 30 to 80% | | | | Accessory Mount | 1 x 1/4"-20 Female
1 x Cold Shoe Mount | | Tripod Mount | 1/4"-20 Female | | Dimensions | 12.09 x 7.52 x 5.87" / 307 x 191 x 149 mm (With Handle) | | Weight | 3.5 lb / 1.6 kg With Battery. | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 13.6 x 11.1 x 10.1" |
