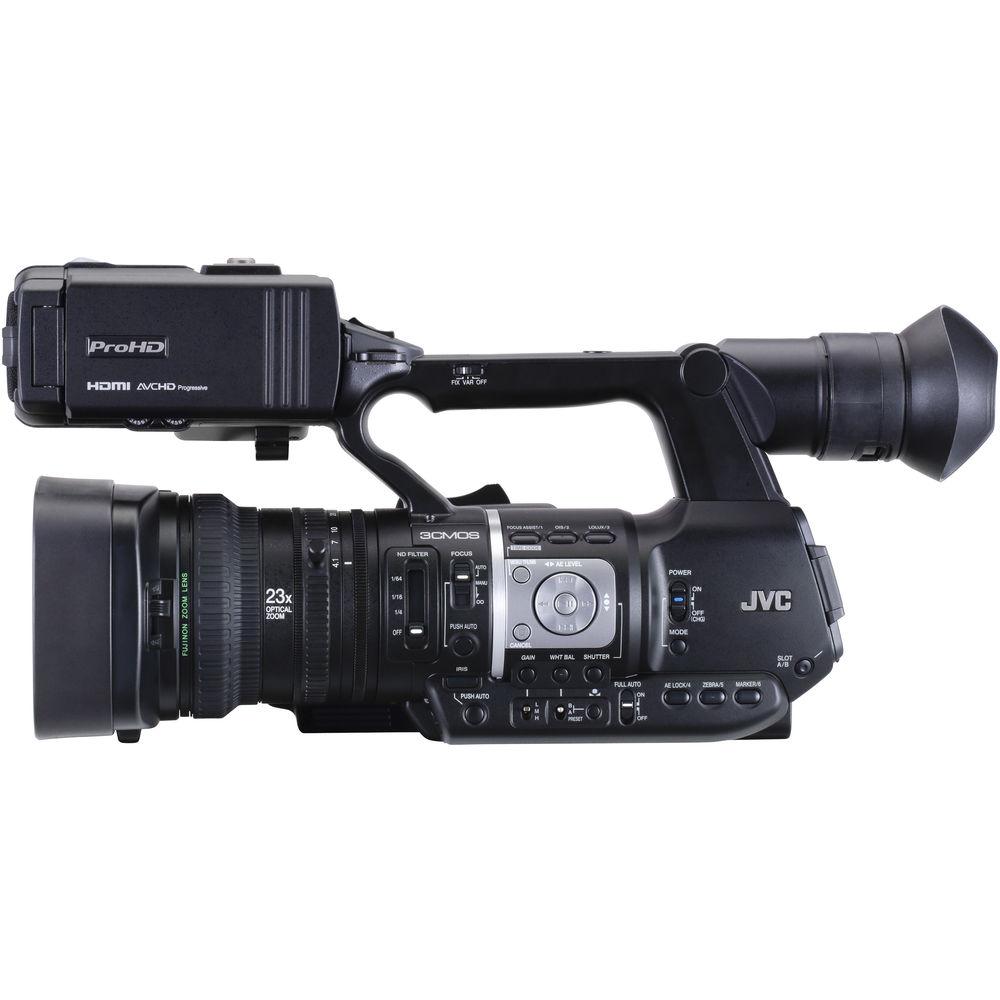

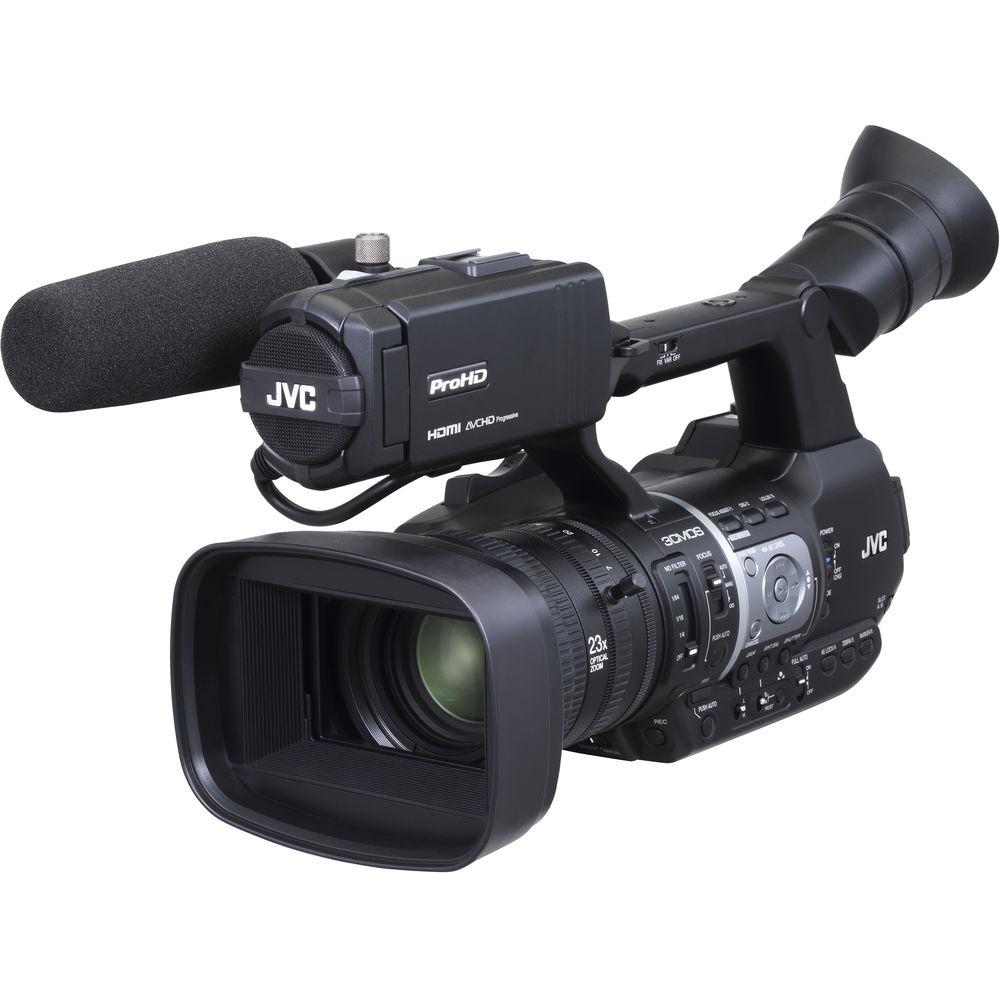

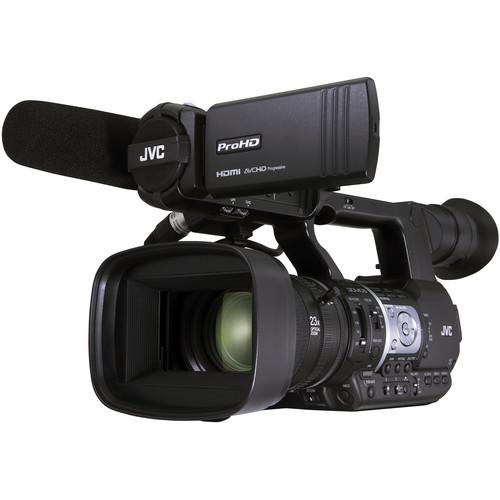

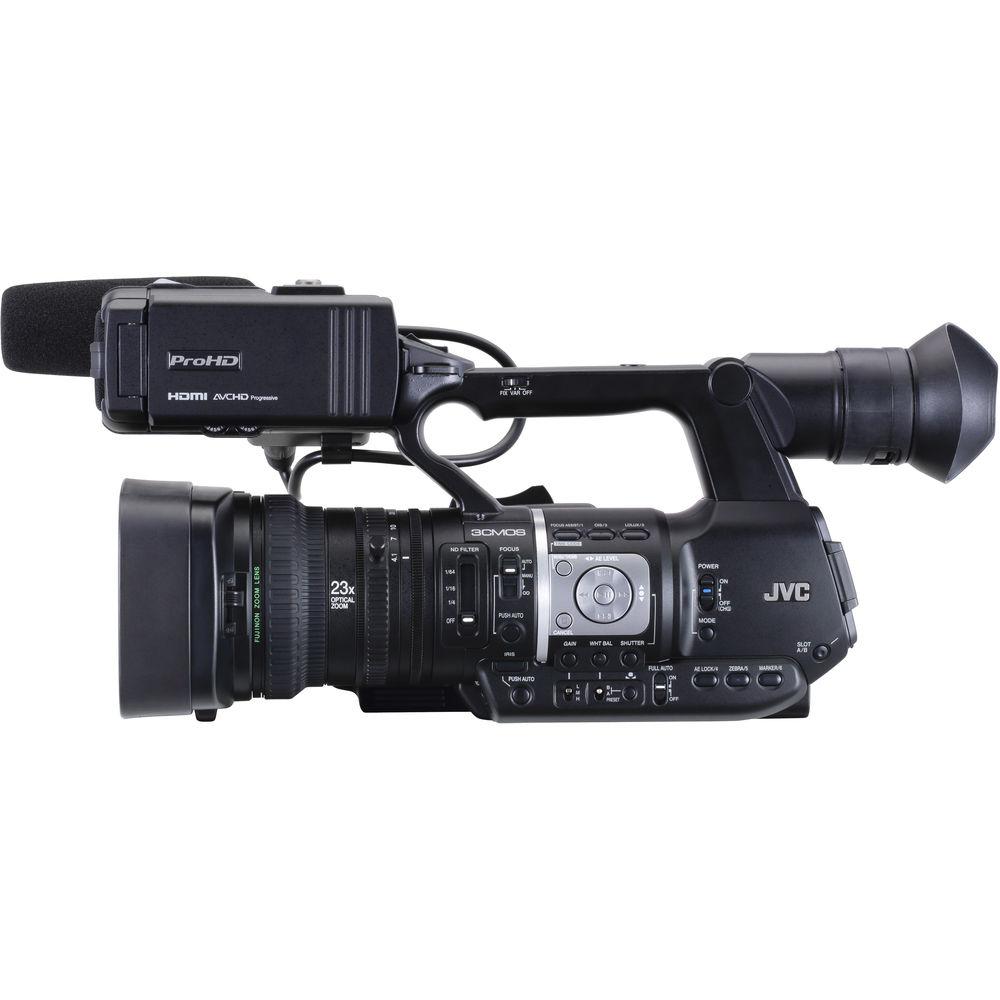

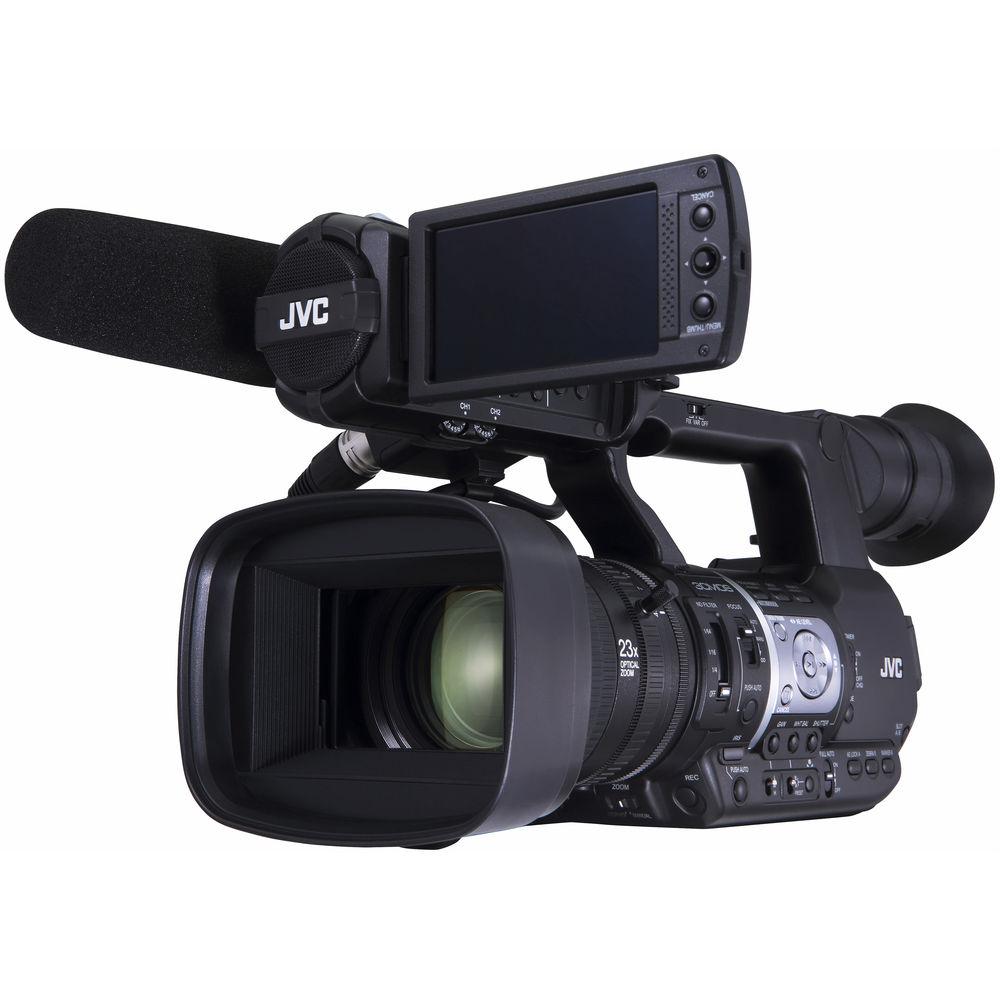

User Manual for JVC GY-HM620 ProHD Mobile News Camera Click to enlarge the picture
Contents of the user manual for the JVC GY-HM620 ProHD Mobile News Camera
- Product category: Camcorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Camcorders
 |
User manual for the JVC GY-HM620 ProHD Mobile News Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description Making News: JVC GY-HM620 and GY-HM660 ProHD Mobile News Cameras Read More The JVC GY-HM620 ProHD Mobile News Camera features a lightweight-user-friendly design providing capacity for fast, efficient mobile newsgathering. The GY-HM620 offers Dual media card slots that allow you to record virtually endlessley by swapping out media cards as they fill up.
The camera's imaging system consists of three 1/3" 12-bit CMOS sensors with 1920 x 1080 resolution. The camera records NTSC broadcast compatible frame rates up to 59.94p in AVCHD and integrates a 23x Fujinon autofocus zoom lens with manual focus and zoom capability with a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD 2.0, and SD and Proxy H.264. Two SDXC/SDHC slots are available for simultaneous dual codec recording or relay recording. A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting. - Image
-
- Three 1/3" 12-bit CMOS sensors (1920 x 1080 each)
- 23x Fujinon autofocus wide angle zoom lens with manual functions F1.6-3.0, 23x, f=4.1-94.3mm (35mm equivalent: 29 to 667mm)
- Optical image stabilizer
- 3 position ND filter (1/4, 1/16, 1/64)
- Inputs / Outputs
-
- HD/SD-SDI and HDMI outputs
- 2-ch balanced audio mic/line switchable inputs with phantom power supply
- Frame Rate
- The camera records at NTSC compatible frame rates of up to 59.94 i/p
- Multiple Encoding Formats
-
- HD MPEG2 (35/25/19Mbps)
- AVCHD 1920 x 1080 59.94p/60i
- SD H.264
- Wide Media Format Compatibility
-
- AVCHD
- .MP4 (XDCAM EX)
- .MOV
- Pre Record
- In this mode, the camera continually records up to 15 seconds in cache memory. When the trigger is pressed, the live signal is appended to the cached recording. This feature is useful for situations when you don't know when the action will start, and allows you to press record after the event has happened, and still capture it, without worrying about wasting recording time or overwriting your media cards.
- Additional Features
-
- SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)
- Built-in GPS
- Professional switch layout and comprehensive video settings
- Time lapse recording
- Built-in stereo microphone
- 0.45-inch 1.22M pixel color viewfinder
- 3.5-inch 920K pixel LCD display with focus assist
- High performance 2D DNR
- Wired remote control connector
UPC: 046838074165 In the Box JVC GY-HM620 ProHD Mobile News Camera AC Adapter Battery Pack AV Cable Limited 3-Year Warranty User Manual PDF 10.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-HM620 ProHD Mobile News Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GY-HM620 Specs | | | Image Sensor | 3-Chip 1/3" CMOS Sensor | | Sensor Resolution | 2.2 MP | | Gain | -6 to 18 dB | | | | Focal Length | 4.1 to 94.3mm | | 35mm Equivalent Focal Length | 29 to 667mm | | Optical Zoom Ratio | 23x | | Maximum Aperture | f/1.6 to 3 | | Filter Size | 72 mm | | Image Stabilization | Optical | | | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SDXC Card Slots (U1 / Class 10 or faster cards recommended) | | | | Broadcast System Compatibility | NTSC | | Recording Modes | MPEG2 4:2:0:
1920 x 1080 at 23.98/25/29.97 fps
1440 x 1080i at 50/59.94 fps
1280 x 720p at 23.98/29.97/59.94 fps
AVCHD 4:2:0:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps | | Audio Recording | 2-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x 1/8" (3.5 mm) TRRS A/V Output
1 x BNC (HD-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output | | Audio Connectors | 1 x 1/8" (3.5 mm) Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Input | | Other I/O | 1 x 2.5 mm LANC Control
1 x RCA Timecode Input/Output | | | | Display Type | LCD | | Screen Size | 3.5" | | Screen Resolution | 920,000 Dots | | | | EVF Display Type | LCOS | | Screen Size | .45" | | EVF Resolution | 1,220,000 Dots | | | | Power Connectors | 1 x Barrel (12 VDC) Input | | Power Consumption | 12 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 122°F / -20 to 50°C | | Operating Humidity | 35 to 80% | | Storage Humidity | 85% | | | | Dimensions | 7 x 7.8 x 16.3" / 17.8 x 19.8 x 41.6 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 19.8 x 11.5 x 10.6" |
