Product description - First Look: JVC 4K Camcorders
A small form factor, Super-35mm-sized, CMOS, 4K sensor and MFT interchangeable lens mount are just the beginning when discussing JVC's GY-LS300 4KCAM Handheld S35mm Camcorder. The GY-LS300 is part of JVC's 4KCAM line of cameras, which can record 8-bit 4:2:2 HD Signals at up to 60P at 50 Mb/s. This camcorder supports dual codec recording, allowing to capture two different codecs, .mov and AVCHD, simultaneously to its dual SDHC/SDXC media card slots using optional media cards. The camcorder incorporates 3G-SDI and HDMI outputs, supporting 4K output over the HDMI out.

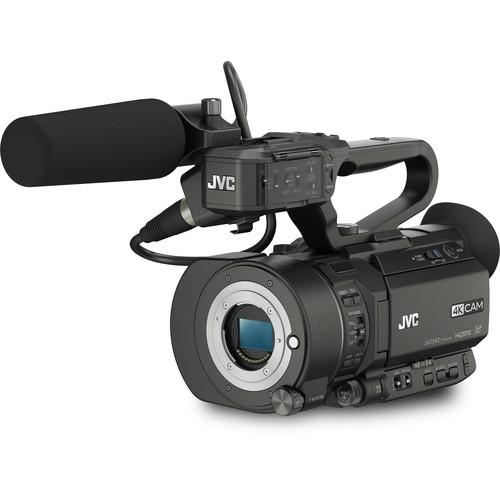

Supporting wireless streaming to a variety of streaming services while simultaneously recording HD to an optional memory card is a strength of GY-LS300. It also supports IP network remote control, remote viewing, metadata editing, and FTP of clips across a network using optional network connections and adapters. This is for the camcorder body only and does not include a lens. However, the camcorder features an MFT mount that allows you to use a wide variety of full-frame, PL, C, and EF mount lenses with optional adapters. It also features both a flip out 3.5 LCD view screen and flip up EVF. A detachable handle provides two XLR audio inputs, each with phantom power. - The GY-LS300 features a JVCKENWOOD AltaSens 4K CMOS Super 35mm image sensor and a Micro Four Thirds (MFT) lens mount. This allows you to use Super 35mm Cinema lenses with optional adapters, which will retain their native angle of view.
- When the camera is used with MFT, Super 16, and other size lenses, using JVC's proprietary Variable Scan Mapping feature will allow you to maintain the lens' native angle of view. This gives filmmakers the flexibility of using widely available MFT lenses as well as high-end cinema lenses. It is also possible to attach the camera to microscopes and other devices using a MFT/C-mount adaptor.
- The GY-LS300 records QuickTime (.MOV) file format. You can connect the camcorder to a 4K Ultra HD monitor with a single HDMI cable and view the camera's live 4K signal. You can also playback recorded files directly from the camera. In addition, the GY-LS300 down-converts UHD signals to standard HD for output through the built-in SDI or HDMI connectors.
- The camcorder body incorporates a filter selector wheel that features a clear, 1/4, 1/16, and 1/64 ND filter choices.
- All camcorders in JVC's 4KCAM family record 4:2:2 HD signals up to 60p at 50 Mb/s, making them an ideal camera for general HD production work. 50 Mb/s files are stored in the QuickTime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording provides wide editing compatibility in an array of standard HD and SD formats.
- Equipped with a high-speed broadband modem makes the camera attractive for use in by crews that need a way to deliver a live video stream without the need for a microwave or satellite truck. Through its use of dual codecs, the camera offers live transmission (streaming) including directly to USTREAM and YouTube while simultaneously recording HD to a memory card. Transmission at selected resolutions and bitrates is possible independent of the recording mode. The camera offers a range of streaming options from basic point-to-point to cloud streaming with advanced error correction
- The camcorder features:
- Micro Four Thirds System Lens Mount
- Variable Scan Mapping maintains native angle of view for a variety of lenses including Super 35, MFT, and Super 16. Adapters available for PL and EF mount lenses
- 4K Ultra HD recording (150 Mb/s, 24p/30p) to SDXC (UHS-I Speed class3) card
- 4:2:2 Full HD recording at 50 Mb/s (24-60p)
- 3 position ND filter (1/4, 1/16 and 1/64)
- HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
- 2-channel XLR audio inputs with phantom power
- Shotgun microphone included
- Dual SDHC/SDXC slots enable Dual, Backup and Continuous recording
- Advanced JVC streaming engine compatible with USTREAM, Zixi, and Wowza Streaming Engine
- IP Network Remote Control, Remote Viewing, Metadata editing, FTP clips
- 3.5-inch color LCD display (920K pixel) with smart focus assist function
- 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
- Wired remote control supported
- 10 user button assignable functions
- Includes handle unit, SSL-JVC50 7.4V battery, AC adapter, and shotgun microphone
In the Box JVC GY-LS300 4KCAM Handheld S35mm Camcorder (Body Only) Handle Unit 7.4 Battery AC Adapter Shotgun Mic Limited 1-Year Warranty User Manual PDF 10.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC GY-LS300 4KCAM Handheld S35mm Camcorder - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC GY-LS300 Specs | | | Image Sensor Size | Super35 | | Sensor Type | CMOS | | Sensor Resolution | 13.5 MP | | Effective Sensor Resolution | 3840 x 2160 | | Gain | 0 to 30 dB (Expanded)
0 to 24 dB (Native) | | | | Lens Mount | Micro Four Thirds | | Shutter Speed | 1/4 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 2 x SDXC UHS-I Card Slots (U3 / V30 or faster cards recommended) | | | | Recording Modes | H.264:
3840 x 2160p at 23.98/25/29.97 fps | | Audio Recording | 2-Channel 16-Bit 48 kHz | | | | IP Streaming | MPEG2, RTMP, RTP, RTSP, ZIXI: 480 x 270 to 1920 x 1080 (0.2 to 8.0 Mb/s) | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Input
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x 2.5 mm LANC Control Input | | | | Screen Size | 3.5" | | Screen Resolution | 920,000 Dots | | | | Battery Type | JVC SSL-JVC50 | | Power Connectors | 1 x Barrel Input | | | | Accessory Mount | 1 x 1/4"-20 Female
1 x Cold Shoe Mount | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 13.6 x 11.0 x 10.2" |
