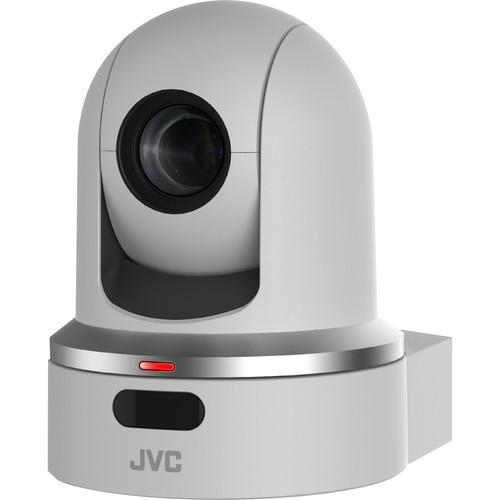

User Manual for JVC KY-PZ100 Robotic PTZ Network Video Production Camera Click to enlarge the picture
Contents of the user manual for the JVC KY-PZ100 Robotic PTZ Network Video
- Product category: PTZ Cameras JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC PTZ Cameras
|
User manual for the JVC KY-PZ100 Robotic PTZ Network Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description This white KY-PZ100 Robotic PTZ Network Video Production Camera from JVC can be used as a single camera or part of a multi-camera shoot. It features a 1/2.8" sensor and captures 1080i/p and 720p footage to a microSDHC/SDXC card slot (microSD card not included). The PTZ camera features 3G-SDI and HDMI outputs and can simultaneously output video while streaming over its Ethernet port or an optional USB Wi-Fi adapter or LTE modem.
The KY-PZ100 supports RS-232C, RS-422 control signals and IP control via its RJ-45 connector (Ethernet port). You can program over 100 presets and positions into the camera, which enables you to pre-plan your show. The camera can be mounted on either a tripod or ceiling, and with its POE capability you don't need to worry about running an AC power cord. - Wireless Streaming
-
- The camera features a built-in USB host that allows you to attach a USB Wi-Fi or LTE adapter and stream
- The camera supports streaming with SMPTE 2022 forward error correction
- Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control
- Low latency streaming
- 1/2.8-inch CMOS sensor (2.2 million pixels)
- Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6 to 4.7)
- Fast f/1.6-4.7 maximum aperture for excellent low light
- LoLux mode (down to 0.01 lux)
- Robotic pan, tilt and zoom
- Full HD 1080p, 1080i, 720p video
- 3G-SDI and HDMI digital outputs
- 2 channels audio (or 1 channel balanced audio w/phantom power)
- USB host connection for WiFi or 4GLTE adapter
- LAN connector supports Power over Ethernet
- MicroSDHC/SDXC memory card recording
- Remote control via RS-232C / RS-422, or via IP controller
- Can memorize over 100 preset settings and positions
- Can be mounted upside-down or right-side-up
UPC: 046838075391 Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC KY-PZ100 Robotic PTZ Network Video Production Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC KY-PZ100 Specs | | | Sensor | 1/2.8" CMOS Image Sensor | | Resolution | Approx. 2.2 Megapixels | | Streaming Capability | 1080p
1080i/60
720p
540p
270p | | Minimum Illumination | 1.4 lx (50IRE, F1.6, 30 fps) | | Camera Control | RS-232C
RS-422
LAN IP | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 12.2 x 11.9 x 10.0" |
