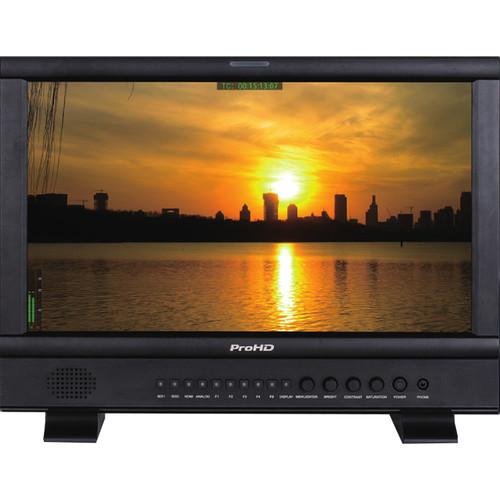

Product description The ProHD 17.3” Broadcast Studio LED-Backlit LCD Monitor from JVC supports 3G/HD/SD-SDI and 2K-SDI signals, and provides a 1920 x 1080 pixel Full HD resolution LCD panel with LED backlighting. The monitor offers a USB port on the rear side for monitor firmware upgrades. It also features a 160° wide viewing angle, 700:1 contrast ratio, and a color depth of 16.7 million colors. - Supports 3G/HD/SD-SDI and 2K-SDI
-
- Supports up to 3G-SDI (SMPTE 425M) including Level-A and Level-B, which are capable of transferring 1080p uncompressed digital video data at a max rate of 60 fps at 3G bit/s
- 2K-SDI (2048 x 1080p) is also supported for down-sampling to Full HD display
- Full HD LCD Panel with LED Backlighting
-
- The monitor features a 1920 x 1080 pixel Full HD resolution LCD panel with LED backlighting, 160° wide viewing angle (H & V), 700:1 contrast, and 16.7M color depth
- ITU-709 Color Space
-
- Compatible with ITU-709 standard color space for HDTV broadcasting
- Selectable Gamma Preset
-
- Supports gamma preset selection from: 2.2, 2.4, and 2.6
- TSL UMD Control and Display
-
- Monitor supports UMD control input via RS-485 and RS-232 port, compatible with TSL 3.1 and 4.0 UMD protocol
- Audio Meters Display
-
- Supports SDI/HDMI embedded audio 2-ch meter display, and analog audio 2-ch meter display
- USB Firmware Upgradable
-
- Offers a USB port on the rear for monitor firmware upgrade. Users can download firmware from official website to a USB drive, and the upgrade operation is directly on the monitor, without PC or other adapters
- General
-
- SDI timecode (LTC, VITC1 & 2) and AFD info display
- R/G/B/mono, false color, zebra stripes display
- Peaking focus assist display mode
- H/V delay, freeze frame display modes
- Safety area selection: 80%, 85%, 90%, 93%, 95%
- Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Native scan, overscan, and normal scan selection
- GPI control via RS-485 port connection
- Three-user setting data storage
- Tally light with adjustable brightness
- Four-user definable function keys
- Easy one-key menu operation
- Built-in speaker (2.5W)
- Includes replaceable Gold Mount plate for field operation
In the Box JVC ProHD 17.3" Broadcast Studio LED-Backlit LCD Monitor Desktop Stand AC-DC Power Adapter 19" Rack Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC ProHD 17.3" Broadcast Studio LED-Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC DT-N17H Specs | LCD Size | 17.3" (44 cm) | | Display Area | 97 x 56" (38 x 22 cm) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 160°/160° | | Brightness | 300 cd/m2 | | Contrast | 700:1 | | Component (Y/Pb/Pr) | 1080i (50/60)
720p (50/60)
576p, 576i

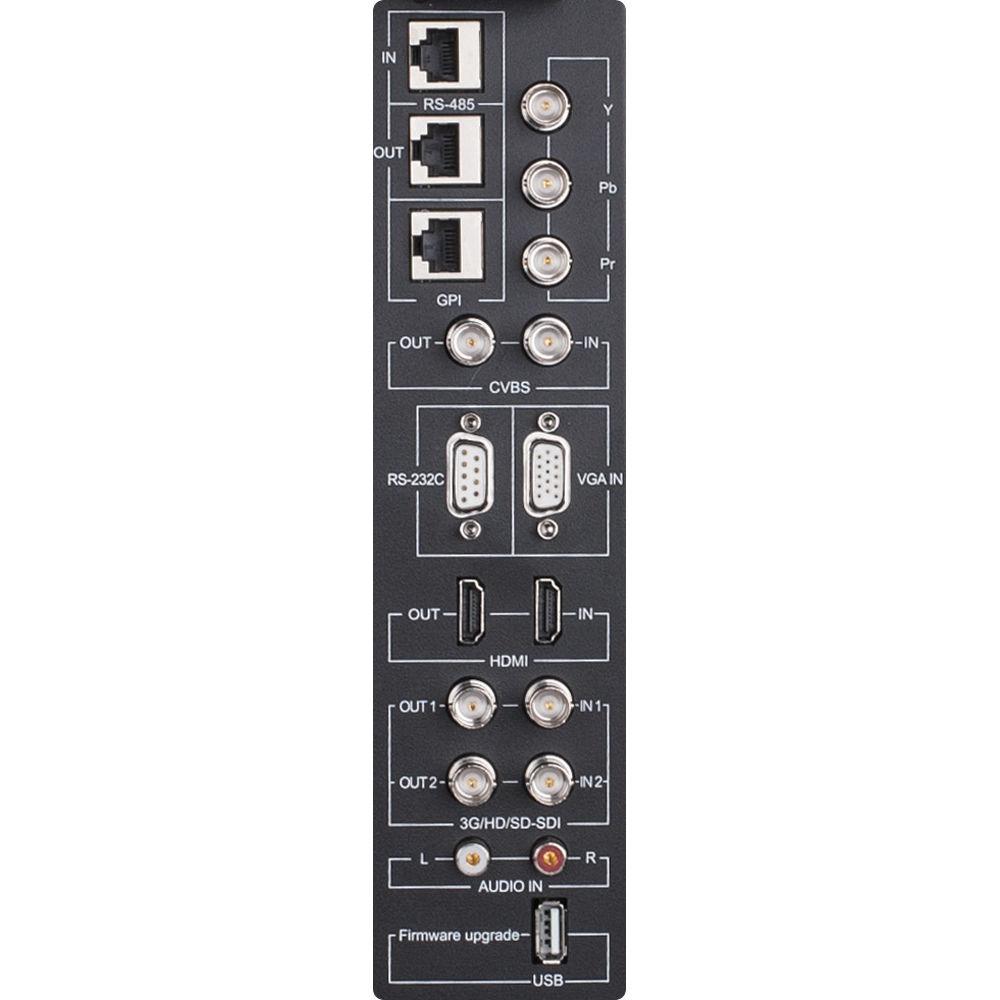

480p, 480i | | Connectors | 2 x RS-485 input and output (UMD)
1 x RS-485 input (GPI)
3 x BNC input (Y/Pb/Pr)
2 x BNC (CVBS input and loop-through output)
2 x BNC (SDI 1 input and loop-through output)
2 x BNC (SDI 2 input and loop-through output)
1 x RS-232C input (UMD)
1 x VGA input
2 x HDMI-A (input and loop-through output)
2 x RCA input (analog audio left and right)

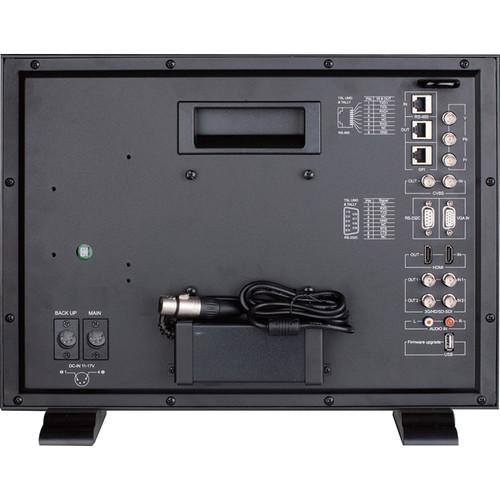

1 x USB (firmware upgrade) | | SDI Format Support | SMPTE-2048-2:
2048 × 1080p (23.98/24/25/29.97/30/50/59.94/60)
2048 x 1080i (50/59.94/60)
SMPTE-425M-A/B:
1080p (60/59.94/50)
SMPTE-274M:
1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
SMPTE-RP211:
1080PsF (30/29.97/25/24/23.98)
SMPTE-296M:
720p (60/59.94/50)
ITU-R BT.656:
576i (50)
SMPTE-125M:
480i (59.94) | | HDMI | 1080PsF (30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
720p (60/59.94/50)
576p, 576i
480p, 480i | | VGA | 1600 x 1200
1280 x 1024
1280 x 960
1280 x 768
1152 x 864
1024 x 768
800 x 600
640 x 480 | | Composite | PAL/NTSC | | | | Battery Mount | Gold Mount plate, pre-installed
(Optional V-Mount plate sold separately) | | Working Voltage | Battery: 11 to 17 VDC | | Power Consumption | Maximum 32 W | | Operating Temperature | 32 to 104°F (0 to 40°C)
Humidity: 10 to 90% | | Storage Temperature | 5 to 140°F (-15 to 60°C)
Humidity: 10 to 90% | | VESA Standard | 100 x 100 mm | | Dimensions | 17 x 12 x 2" (43 x 31 x 5.2 cm) | | Weight | 10 lb (4.7 kg) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 20.8 x 16.7 x 7.0" |
