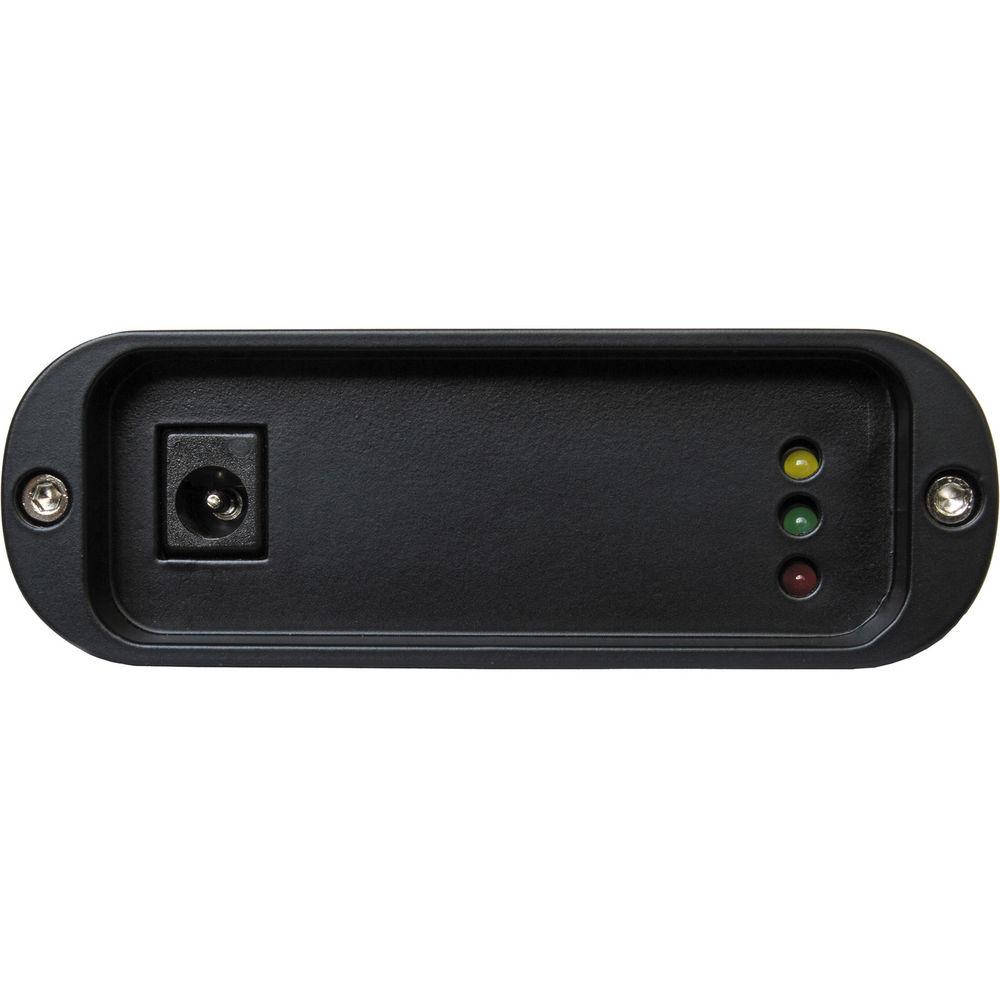

User Manual for JVC ProHD-4601 HDMI to SDI Converter Click to enlarge the picture
Contents of the user manual for the JVC ProHD-4601 HDMI to SDI Converter
- Product category: Signal Converters JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Signal Converters
 |
User manual for the JVC ProHD-4601 HDMI to SDI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

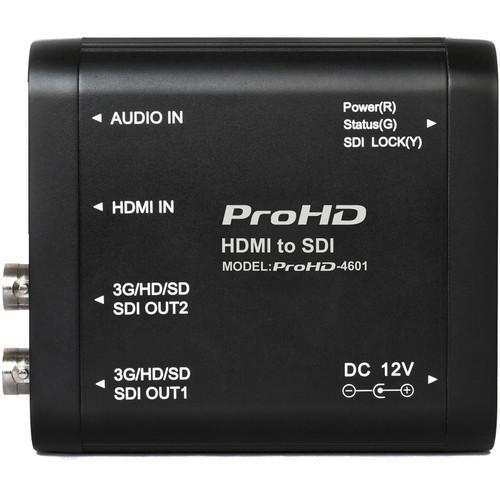

Product description The JVC ProHD-4601 HDMI to SDI Converter converts an HDMI input to two SDI outputs, uncompressed, with embedded audio, allowing you to send the HDMI signal to two SDI devices. A metal mounting bracket is included that allows attachment on the camera or wall mounting. In the Box JVC ProHD-4601 HDMI to SDI Converter Power Adapter Metal Mounting Bracket with Set of Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC ProHD-4601 HDMI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC ProHD-4601 Specs | Inputs | 1x HDMI 1.3
1x 3.5 mm analog audio jack | | Outputs | 2x 3G/HD/SD-SDI | | Video Format | HDMI:
480i / 576i / 720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI:
SMPTE-425M -- 1080p (60 / 59.94 / 50)
SMPTE-274M -- 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
SMPTE-296M -- 720p (60 / 59.94 / 50)
ITU-R BT.656 -- 576i (50)
SMPTE-125M -- 480i (59.94) | | Audio Format | 48 KHz sync | | Power | ≤3 W | | Voltage | DC 6-18 V | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 - 90% | | Dimensions | 5.5 x 2.9 x 1.2" (14 x 7.5 x 3 cm) | | Weight | .3 lbs (138.5 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.4 x 5.1 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
