User Manual for JVC ProHD 7" Full HD Waveform LCD Monitor Click to enlarge the picture
Contents of the user manual for the JVC ProHD 7" Full HD Waveform
- Product category: On Camera Monitors JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC On Camera Monitors
 |
User manual for the JVC ProHD 7" Full HD Waveform contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|

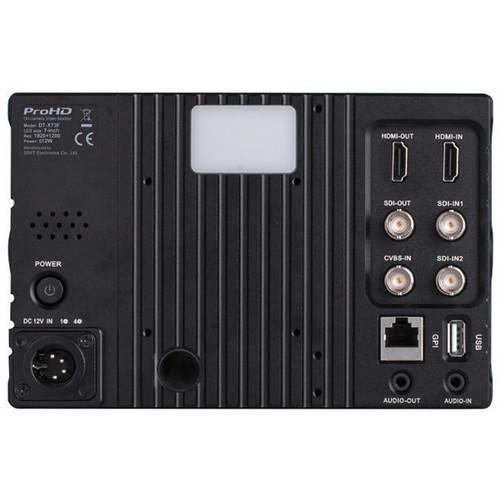

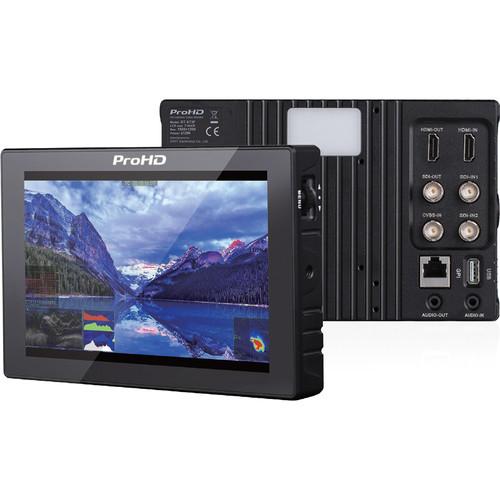

Product description The ProHD 7" Full HD Waveform LCD Monitor from JVC supports 2K/3G/HD/SD-SDI, HDMI, and CVBS signals and provides a 1920 x 1200 full HD resolution LCD panel with LED backlighting. The monitor offers a USB firmware upgrade, and supports a vector scope and R/G/B/Y histogram display, which can be selected from white, green, and false colors. This ProHD monitor features a 160° viewing angle, 1200:1 contrast ratio, and a color depth of 16.7 million colors. - All metal housing, thinner and stronger
- HDMI input converted to SDI output
- Up to 16-ch embedded audio meters with alert
- Display only 2-ch, 8-ch, or full 16-ch
- Select any two audio channels to output
- Waveform Y/Cb/Cr/R/G/B with single line selection
- Vector scope, R/G/B/Y histogram display
- 100-107% over-exposure alert
- GPI / TALLY input and control
- Display soft TALLY and rear TALLY light
- Features AFD, timecode, H/V delay, zebra stripes, and peaking focus assist (Red / Blue lines select)
- Supports R/G/B/Mono and false color
- White / Green / False color display
- Larger size waveform in center
- Chart position / translucent adjust
- Scale markers 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1 (mask background translucent adjust)
- Features V-mount / Gold mount, and DV battery plate
In the Box JVC ProHD 7" Full HD Waveform LCD Monitor Snap-On Mounting and Foldable Sunhood SSL-DV Battery Plate Arm Trestle with 1/4" Bolt and Cold Shoe AC/DC Power Adapter HDMI Cable Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC ProHD 7" Full HD Waveform LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JVC ProHD 7" Full HD Waveform LCD Monitor can be downloaded in PDF format at the link stated below.
Technical parametersJVC DT-X73F Specs | LCD Size | 7" / 17.8 cm | | Display Area | 5.9 x 3.7" / 15.1 x 9.5 cm | | Resolution | 1920 x 1200 (323 PPI) | | Color Depth | 8-bit, 16.77 million colors | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 450 cd/m2 | | Contrast | 1200:1 | | Viewing Angle (H/V) | 160°/160° | | Backlighting | LED | | SDI Format Support | SMPTE ST 2048-2: 2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 2048 x 1080i: 50 / 59.94 / 60
SMPTE-425M (Level A&B): 1080p: 60 / 59.94 / 50
SMPTE-274M: 1080i: 60 / 59.94 / 50, 1080p: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-296M: 720p: 60 / 59.94 / 50
SMPTE-125M: 480i: 59.94
ITU-R BT.656: 576i50 | | HDMI | 480i/ 576i / 480p / 576p
720p: 60 / 59.94 / 50
1080i: 60 / 59.94 / 50
1080psf: 30 / 29.97 / 25 / 24 / 23.98
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 | | Composite | NTSC/PAL | | | | Working Voltage | 6.5 to 36 VDC | | Power Consumption | 12 W | | Temperature | Working: 14 to 122°F / -10 to 50°C
Storage: 5 to 140°F / -15 to 60°C | | Humidity | Working: 10 to 90%
Storage: 10 to 90% | | Dimensions | 7.2 x 4.7 x 1.3" / 18.4 x 12.0 x 3.3 cm | | Weight | 22.9 oz / 650 g | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 14.2 x 9.5 x 4.2" |
