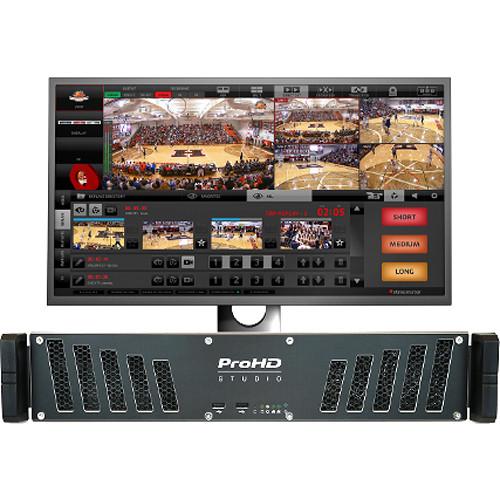

User Manual for JVC ProHD Studio 4000S Sports Production Streaming Studio Click to enlarge the picture
Contents of the user manual for the JVC ProHD Studio 4000S Sports Production
- Product category: Production Switchers JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC Production Switchers
|
User manual for the JVC ProHD Studio 4000S Sports Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description The JVC ProHD Studio offers four-channel switching, sports-oriented slow-motion playback, and live video streaming in a compact form suitable for remote or studio use. This versatile switcher includes four HD-SDI inputs, four IP stream inputs, and four NDI inputs for maximum flexibility with a variety of feeds. Multiple frame rates up to 60 fps are supported, and an integrated encoder provides 1080p60 streaming at rates up to 10 Mb/s. Multiview output is available via HDMI, DVI, or DisplayPort, and ISO (isolated) recordings of each channel provide expanded options for editing.Features include 4:4:4:4 ARGB processing, simultaneous program-stream recording, a full audio mixer, automatic tracking of JVC PTZ cameras, JVC camcorder control, and integration with popular streaming platforms such as Facebook Live. Replay features include slow-motion playback on all cameras, replay playlists, freeze frames, animation playback, and automated graphics. Switcher functions include four DSK (downstream key) layers, an internal character generator with templates, PiP and split-screen layouts, and automated transition-switching modes. - Features
-
- Four-channel studio with four each HD-SDI, IP, and NDI inputs
- One HDMI/NDI ingest input
- Instant replay with slow-motion playback for each channel
- Replay playlists, camera-angle switching, and intro/outro animations
- Freeze frames
- Integrated encoder for streaming up to 1080p60 at 10 Mb/s
- HD program recording, and ISO recording for each channel
- Simultaneous program-stream recording
- Automatic object motion tracking, and zero-config setup for JVC PTZ cameras
- Multiple frame rates up to 60 fps
- Full audio mixer
- Integrates with popular streaming platforms
In the Box JVC ProHD Studio 4000S Sports Production/Streaming Studio Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC ProHD Studio 4000S Sports Production Streaming Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC PROHD STUDIO SP Specs | | | Network Video | 4 x NDI, RTSP, RTMP, UDP Unicast, UDP, Multicast, HLS, SRT | | SDI | 4 x HD/SD-SDI | | HDMI | 1 x Type A | | Audio | Line/Mic In: 1 x 3.5 mm
HD-SDI: Embedded
IP Video: Embedded
USB: Via compatible WDM audio driver | | | | HD-SDI | 1 x HD/SD-SDI, Program | | HDMI | 1 x Type A, Program | | Multiview Outputs | HDMI, DVI, DisplayPort | | | | Video Input | 1080p: 30/29.9/25
1080i: 60/59.94/50
720p: 60/59.94/50
SD: 60/59.94/50 | | Video Output | 1080i: 59.94/50
720p: 59.94/50
SD: 59.94/50 | | Video Streaming | 1080p: 30/25/15
720p: 60/50/30/25/15
576p: 60/50/30/25/15
540p: 60/50/30/25/15
486p: 60/50/30/25/15 | | | | Compression | ISO Camera Recording:
MPEG-2
Program Recording:
HD: MPEG-2 at ~18 Mb/s
SD: MPEG-2 at ~8 Mb/s
Simultaneous Stream Recording: H.264, AAC | | Storage | System: 120 GB SSD
Media/Recording: 500 GB SSD (max. 60 hours of HD program recording) | | | | Package Weight | 29.3 lb | | Box Dimensions (LxWxH) | 23.4 x 22.8 x 9.0" |
