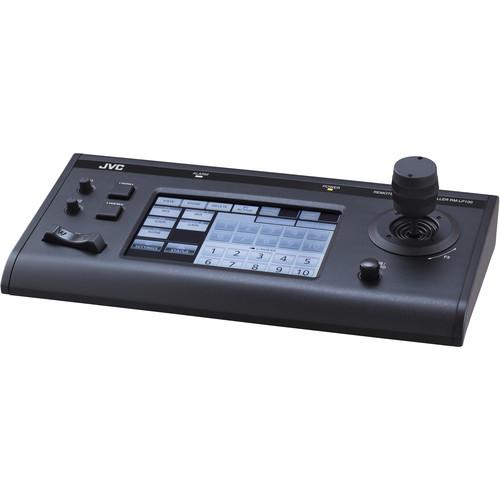

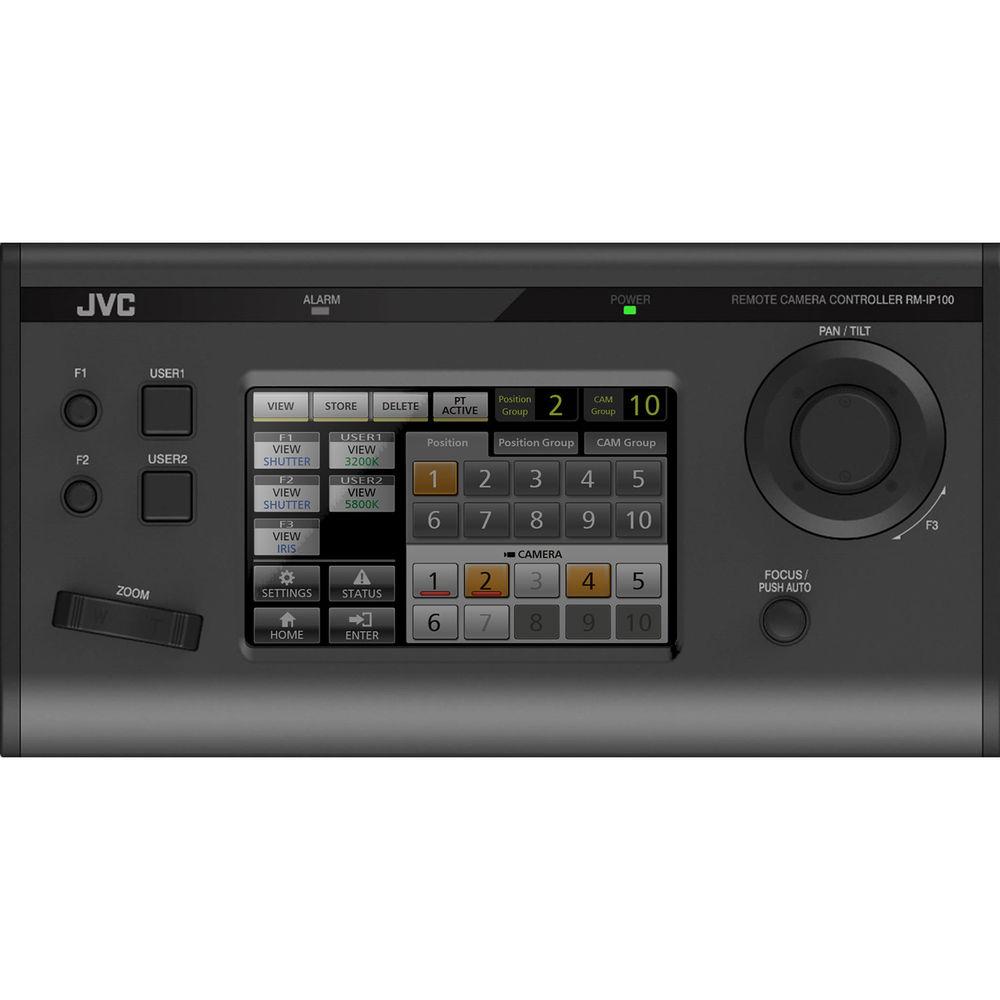

Product description Use the JVC RM-LP100 Remote PTZ Camera Controller to connect and control up to 100 KY-PZ100 cameras using your IP network. This compact controller enables you to adjust camera groups, presets, PTZ speed, and CCU control within your facility, or from anywhere in the world via the internet. A seven-inch touchscreen panel gives you control of camera settings such as white balance, shading, iris, recording and streaming functions, and more.The RM-LP100''s heavy-duty joystick and zoom rocker enable smooth and precise PTZ camera movements, keeping the focus on your subjects and not on your camera movement. Additional RM-LP100 features include tally control, user-assignable keys, and a focus dial with a push-auto function. - 7" touchscreen for PTZ and CCU functions
- Professional zoom rocker for smooth, variable speed zoom control
- Heavy-duty joystick for precise pan and tilt control
- Focus dial with push-auto function
- User-assignable function keys
- IP control of up to 100 cameras
UPC: 046838075551 In the Box JVC RM-LP100 Remote PTZ Camera Controller over IP AC Adapter Power Cord Wire Clamp M3 Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC RM-LP100 Remote PTZ Camera Controller over IP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJVC RM-LP100 Specs | | | Supported Camera | KY-PZ100 | | IP Control | Maximum: 100 cameras | | Number of Preset Positions | Maximum: 100 positions | | Protocol | IPv4 | | LCD Panel | Touchscreen | | Assignable Functions | Rotary Switch F1/F2:
WB R/B, AE Level, Speed (Pan/Tilt), Shutter, Gain, Iris, Focus, Detail
Control Lever:
Up, Down/Left, Right, Pan/Tilt
Control Lever F3:
Zoom, Iris, Focus, no function
User Button (User1/User2):
Exposure (Auto/Shutter/Iris/Manual)
White Balance (FAW/AWB/3200K/5600K/Manual)

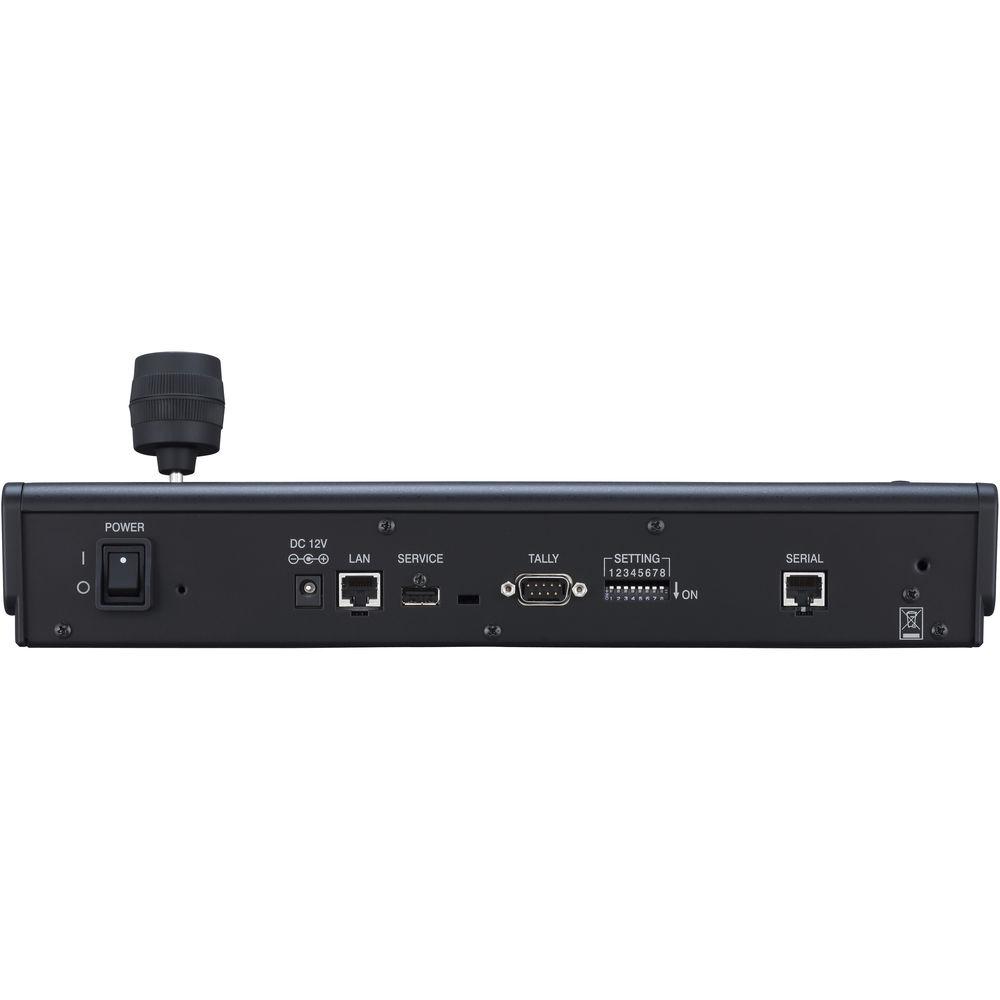

AWB Trigger, Focus (Auto/Manual), Streaming, Rec | | | | Power Input | DC 12 V (supplied AC adapter only) | | Tally | 9-Pin D-Sub Input/Output:
3-pin/5-pin, 4-pin/4-pin, 5-pin/3-pin, variable | | LAN Terminal | 10BASE-T / 100BASE-TX | | | | Power | 12 VDC (AC adapter) | | Power Consumption | 0.6 A (AC adapter) | | Temperature & Humidity | 32 to 104°F (0 to 40°C)
20 to 90% RH, non-condensing | | Dimensions (WxHxD) | 13.8 x 4.3 x 7.2" (35.0 x 11.0 x 18.2 cm) | | Weight | 4.6 lb (2.1 kg) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 20.2 x 10.6 x 8.4" |
