User Manual for JVC SR-HD2700US Blu-ray Disc & HDD Recorder Click to enlarge the picture
Contents of the user manual for the JVC SR-HD2700US Blu-ray Disc & HDD
- Product category: DVD/Blu-ray Players & Recorders JVC
- Brand: JVC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JVC DVD/Blu-ray Players & Recorders
 |
User manual for the JVC SR-HD2700US Blu-ray Disc & HDD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JVC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JVC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JVC product will considerably shorten its lifespan!
|
Product description JVC adds live HDMI recording and simultaneous disc/HDD recording to its Blu-ray recorder line with the SR-HD2700US.
This advanced Blu-ray and HDD Combo Deck allows you to create high-definition Blu-ray discs or standard-definition DVDs without being connected to a computer. Record from cameras, switchers, and various other sources via HDMI, HD/SD-SDI, and analog inputs to a built-in 1TB HDD or directly to Blu-ray or DVD discs.
USB 2.0, iLink, and SDHC support further expands your input source compatibility. The SR-HD2700US is also capable of down-converting HD input signals and burning them to DVD in real-time, in case you or a client require standard definition files. The versatility and efficiency of the SR-HD2700US makes it well-suitable for event recording, flight packs, mobile DIT systems, and post production facilities. Note: HDMI input and disc duplication are limited to non-copy-protected material. - Key Features
-
- Professional Blu-ray recorder with HDMI and HD/SD-SDI inputs
- Burn content directly to disc with BDMV and DVD-video format
- Direct-to-disc recording from live signal
- Down convert to SD
- Internal 1TB hard disk for editing, duplicating
- Simultaneous disc and HDD recording
- Built-in duplication function allows easily creating multiple copies

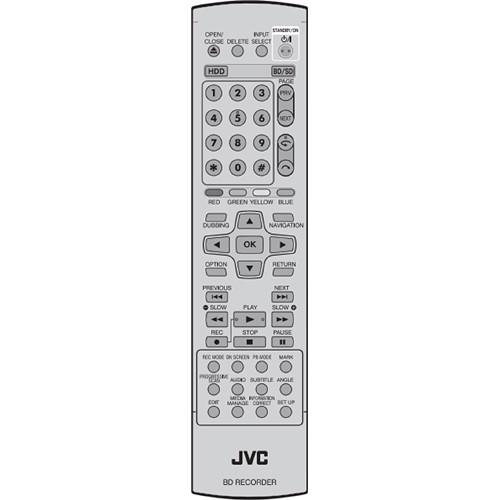

- Remote control via RS-232 or LAN (IP)
- Continuous long-time recording (over 24 hours)
- Supports BD-R or BD-RE (erasable) Blu-ray discs
- Authors discs with auto-start or repeat playback
- Supported video formats: MPEG2TS / MPEG2PS / H.264 AVC
- Supported audio formats: Dolby Digital (2ch)/LPCM
- Superimpose SD/HD-SDI embedded timecode or time/date onto Blu-ray or DVD
- Digital and analog inputs for wide compatibility
- Personalized watermark recording
UPC: 046838071898 In the Box JVC SR-HD2700US Blu-ray Disc & HDD Recorder AC Power Cord Infrared Remote Control Set of 2 AA Batteries Instruction Manual CD-ROM with Instruction Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JVC SR-HD2700US Blu-ray Disc & HDD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

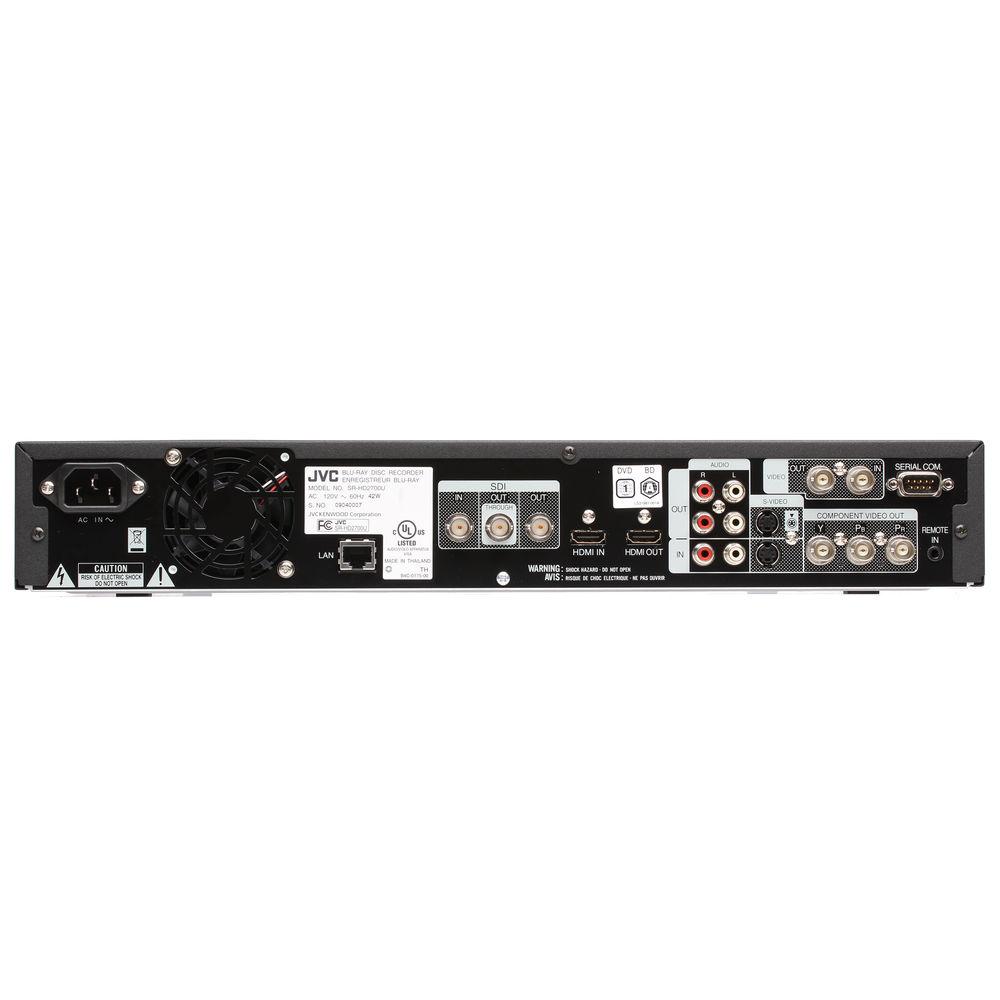

Technical parametersJVC SR-HD2700US Specs | Video Input / Output | Composite video (VBS) 1.0 V p-p, 75 ohms, BNC | | Audio Input / Output | 2 Vrms, 10 kOhms (pin jack) | | S-Video Input / Output | Y: 1.0 V p-p, 75 ohms; C: 0.286 V p-p, 75 ohms | | Component Video Output | Y: 1.0 V p-p, 75 ohms; CB/CR, CB/PR V p-p, 75 ohms, BNC | | HDMI Input & Output | 19-pin type A, (Deep Color, x.v.Color) | | SDI Input & Output | 1 x SDI input on BNC
1 x SDI output on BNC
1 x SDI throughput on BNC | | IEEE1394 Input | 4-pin for DV, HDV input | | USB Terminal | USB 2.0 | | SD Card | SDXC (via USB card reader only), SDHC, SD | | Remote Input | 3.5 mm jack | | Serial Commands | RS-232C (D-sub 9-pin) | | LAN | 10Base-T/100Base-TX, RJ-45 for remote and file transfer (upload MOV and MXF files) | | HDD Storage Capacity | 1 TB | | Video Recording System | MPEG4 AVC/H.264, MPEG2 TS, MPEG2 PS | | Audio Recording System | Dolby Digital, LPCM, MPEG1 Audio Layer2 | | AUX to BD/DVD Direct Recording | HDMI, HD/SD-SDI, HDV/DV (i-Link), S-Video/Video(L-1) | | Direct Recording Format | BDMV, BDAV, DVD-Video (direct recording in DVD-Video format to a single-sided, dual layer DVD-R disc is not supported), DVD-VR | | Importable Data Format (to HDD) | MOV (from GY-HM850/890, GY-HM600/650, and GY-HM150 series camcorder using HQ mode 35 Mbps and SP mode 25 and 19 Mbps), MXF, AVCHD, HDV, DV, BDMV, BDAV, DVD-Video, DVD-VR, Everio backup disc | | Continuous Recording Time | BDMV, BDAV, and HDD (max): 24 hours
HDD, DVD-Video, and DVD-VR: 8 hours
*In case of going over, the file will be divided | | Extended Recording Time Period | Up to disc full (there may be cases where the recording will stop in less than 24 hours due to the limitation of BD rules) | | Compatible Recordable Media | Blu-ray disc: BD-R (SL/DL), BD-RE (SL/DL)
DVD: DVD-R (SL/DL), DVD-RW
SD card (still): SDHC, SD | | Playable Media | Blu-ray disc: BD-video, BD-R (SL/DL), BD-RE (SL/DL)
DVD: DVD-Video, DVD-R (SL/DL), DVD-RW, DVD-RAM, DVD+R (SL/DL), DVD+RW
CD: CD, CD-R, CD-RW
SD Card (AVCHD/Still): SDHC, SD | | Power Requirement | 120 VAC, 60 Hz | | Power Consumption | 42 W (power on) , 0.5 W (stand-by and no FL display) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Position | Horizontal only | | Dimensions | 17 x 2.8 x 13.8" (44 x 7 x 35 cm) | | Weight | 11.7 lb (5.3 kg) | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 21.9 x 17.0 x 6.5" |
