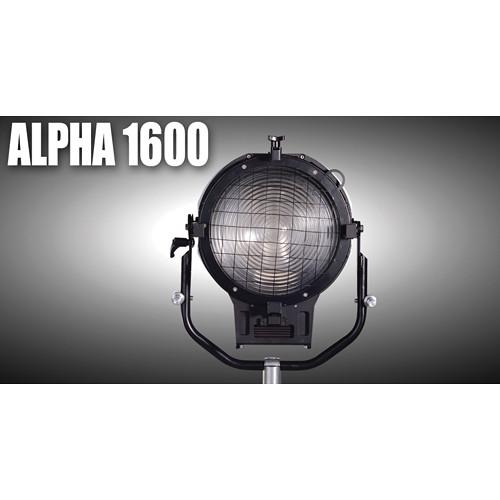

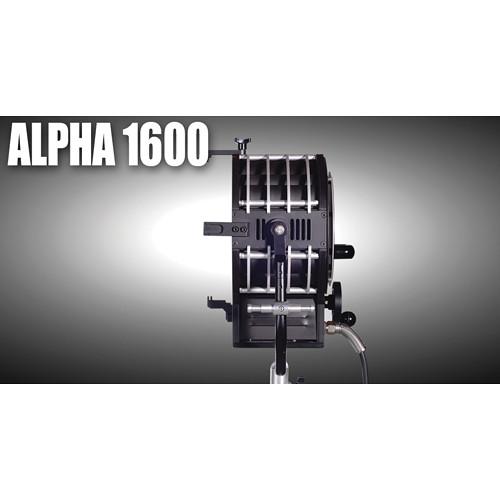

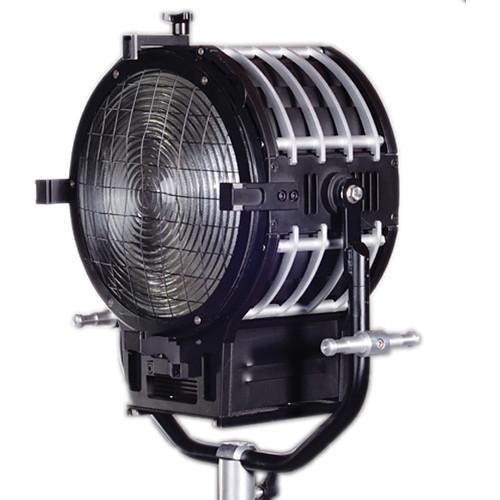

Product description The K5600 Alpha 1600 HMI Head employs a unique design which pairs a high efficiency quartz composite reflector that out-performs aluminum reflectors by 15%, with structural air vents that allow the head to run cool enough to angle it straight down during operation. The "Open-Eye" construction yields a hard light effect with crisp, sharply defined shadows. Intended primarily for use as a Fresnel, the slim, 10.65" profile head accepts an optional 9.5" lens that transforms the luminaire into an exceptionally small Fresnel with a 5.0 to 60 degree focusing range. The wide, sturdy, steel yoke has both Junior 1 1/8" and a Baby 5/8" male mounting pins. The Alpha 1600 has a captive 9.0 power cord. Note: The Alpha 1600 requires separate purchase of an HMI lamp and 1600W ballast for use. - Lightweight and Compact
- This "Open-Eye" HMI fixture converts to a very small Fresnel via an optional unique drop-in Fresnel lens
- Reflector
- The quartz composite reflector is 15% brighter than standard aluminum reflectors
- Cooling
- The combination of the quartz composite reflector with computer designed, structural air vents provides efficient convection cooling in any operating position. You can even point it straight down
- Focusing
- The Alpha 1600 includes a permanently installed piece of borosilicate, which gives a hard light effect with crisp, hard shadows. When using the easily installed, optional Fresnel lens, you get a traditional Fresnel effect that's perfectly controllable and provides a focusing range of 5.0 to 60 degrees. Quick, safe release of the lamp is achieved via a simple latch on the ceramic G22 socket
In the Box K 5600 Lighting Alpha 1600 HMI Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Alpha 1600 HMI Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Alpha 1600W Specs | Rating | 1600 W (6000 W quartz equivalent) | | Color Temperature | Approximately 5600K (requires lamp) | | Lamp | Optional 1600 W CSR/SE daylight single-ended discharge
700 hours maximum life | | Socket (Lampholder) | G22, highly insulated for hot retsrike | | Lens | Optional Fresnel | | Cable | 9.0' / 2.7 m captive head cable | | Accessory Size | 10.6" / 27 cm | | Mount | Dual Yoke Foot:
Junior pin: 1 1/8" / 28 mm
Baby pin 5/8" / 16 mm | | Construction | Housing: Aluminum billet, high temperature black
Yoke: Steel, black high temperature finish | | Burning Position | Any | | Dimensions | 18.9 x 15.35 x 10.65" / 48 x 40 x 27 cm | | Weight | 21 lb / 9.5 kg |
