User Manual for K 5600 Lighting Alpha 1600 Kit Click to enlarge the picture
Contents of the user manual for the K 5600 Lighting Alpha 1600 Kit
- Product category: HMI & Plasma Lights K 5600 Lighting
- Brand: K 5600 Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K 5600 Lighting HMI & Plasma Lights
 |
User manual for the K 5600 Lighting Alpha 1600 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K 5600 Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K 5600 Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K 5600 Lighting product will considerably shorten its lifespan!
|

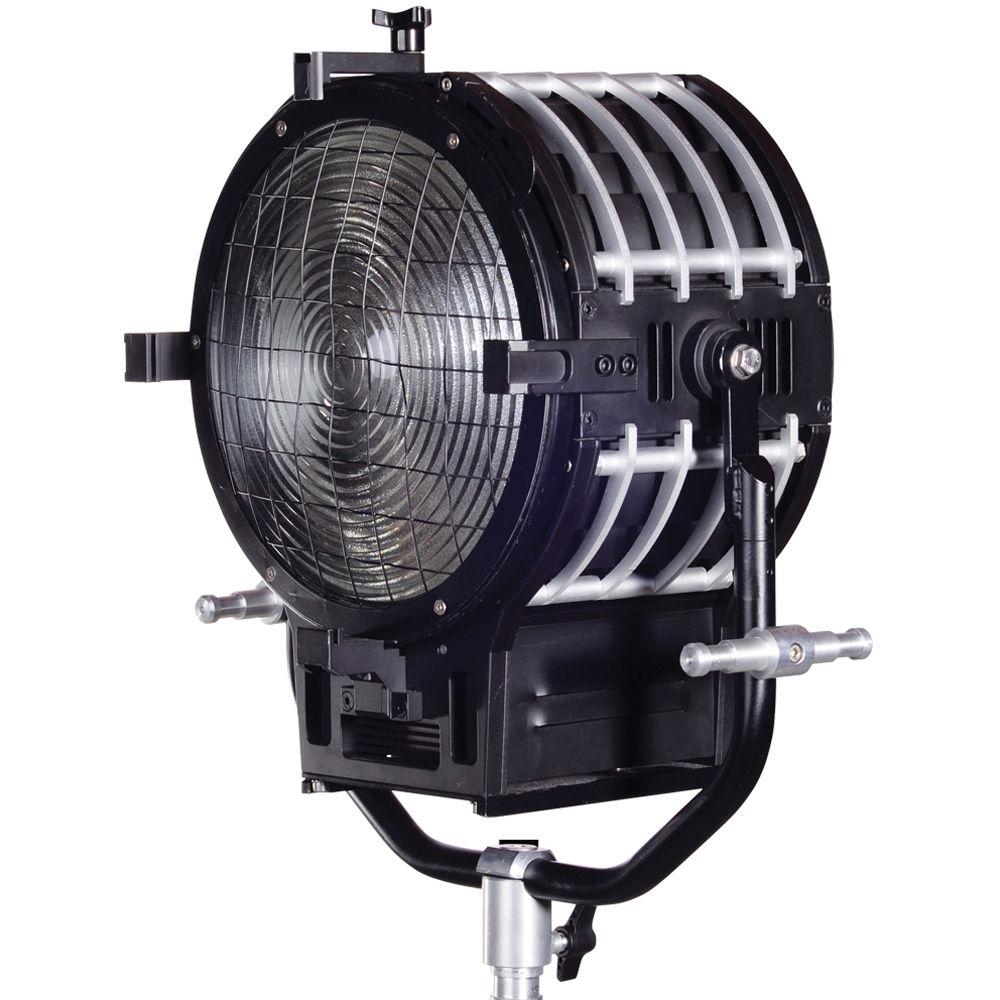

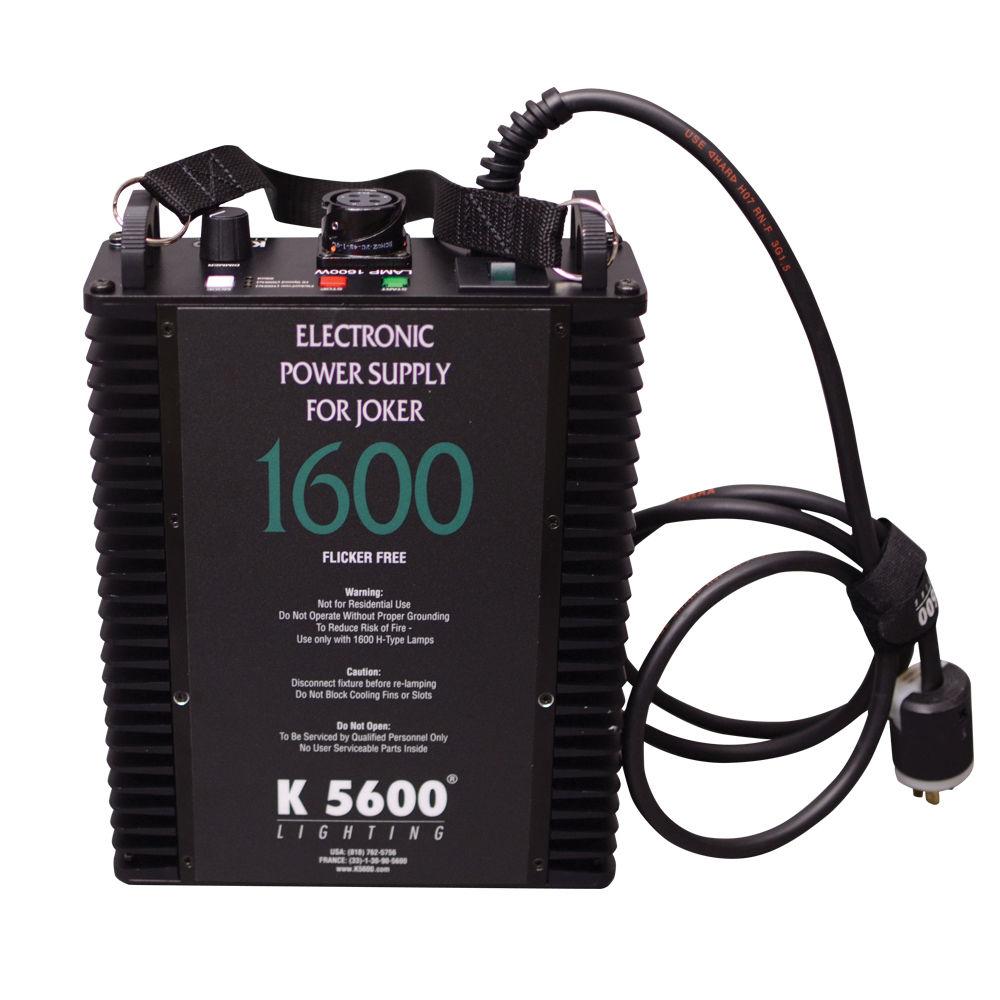

Product description This K5600 Alpha 1600 Kit (95-265 VAC) includes the fixture, a 9.8" Fresnel lens, Pyrex protective screen, 3 scrims, a scrim bag, and a barndoor set. A provided 25' head extension cable adds length the head's own 9.0" cable. The included 1600W HMI SE lamp pumps out the quartz equivalent of more than 6000W. The wide, sturdy, steel yoke has both Junior 1 1/8" and a Baby 5/8" male mounting stud. The K5600 Alpha 1600 is a unique HMI head that employs a revolutionary design which pairs a high efficiency quartz composite reflector, which out-performs aluminum reflectors by 15%, with structural air vents that allow the head to run cool enough to angle straight down during operation. The "Open-Eye" construction permits a slim 10.65" profile which accepts front accessories including lenses that make the luminaire one of the smallest Fresnels around. The included square wave, dimmable, fan-cooled Electronic Power Supply is flicker-free and will handle 90-265 VAC, 50/60Hz. It features an Output Frequency selector and Veam connectors. It all fits in the aluminum-reinforced, hard, carrying/shipping case. - Lightweight and Compact
- This "Open-Eye" HMI fixture converts to a very small Fresnel via the included unique drop-in Fresnel lens.
- Reflector
- Revolutionary quartz composite reflector is 15% brighter than standard aluminum reflectors
- Cooling
- The combination of the quartz composite reflector with computer designed, structural air vents provides efficient convection cooling in any operating position. You can even point it straight down.
- Focusing
- The Alpha 1600 includes a permanently installed piece of borosilicate, which gives a hard light effect with crisp, hard shadows. When using the easily installed Fresnel lens, you get a traditional Fresnel effect that's perfectly controllable and provides a focusing range of 5 to 60 degrees. Quick, safe release of the lamp is achieved via a simple latch on the ceramic G22 socket.

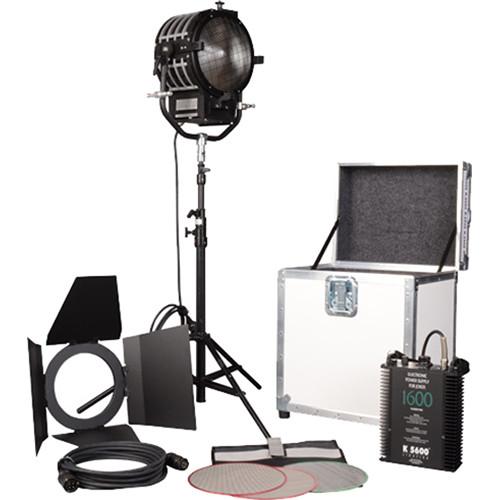

In the Box K 5600 Lighting Alpha 1600 Kit (95-265 VAC) Alpha 1600 Fixture Barndoor Set Fresnel Lens, 9.8" with Ring Pyrex Safety Screen Lamp, 1600W, 5600K Electronic Ballast, 90-265 VAC, 50/60Hz Full Single Scrim 2 x Full Double Scrim Scrim Bag Single White Carrying/Shipping Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Alpha 1600 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Alpha 1600 Specs | | | Color Temperature | Approximately 5600K | | Rating | 1600 W (6000 W quartz equivalent) | | Lamp | 1600W CSR/SE daylight single ended discharge
750 hours maximum life | | Socket (Lampholder) | G22, highly insulated for hot retsrike | | Lens | Clear ceramic lens (built-in)
9.8" / 250 mm Fresnel included
5.0-60 degree beam angle | | Cable | 25' / 7.6 m extension cable included | | Accessory Size | 12" / 30.5 cm
10.6" / 27 cm speedring | | Mount | Dual Size Yoke Foot:
Junior pin: 1 1/8" / 28 mm
Baby pin 5/8" / 16 mm | | Construction | Housing: Aluminum billet, high temperature black
Pyrex Safety glass: Borosilicate UV filter, tempered
Yoke: Steel, black high temperature finish | | Burning Position | Any | | Connectors | Veam quarter-turn quick locking | | Dimensions | 18.9 x 15.35 x 10.65" / 48 x 40 x 27 cm | | Weight | 21 lb / 9.5 kg | | | | Power | 95-265 VAC, 50/60 Hz
Output frequency selector | | Rating | 1600 W square wave, flicker-free | | Fan Cooled | Yes | | Dimming | 50-0% | | Connectors | Veam quarter-turn quick locking | | Dimensions | 10.5 x 8.5 x 3.5" / 26.6 x 21.6 x 9.0 cm | | Weight | 13 lb / 6.0 kg | | Kit Dimensions | 20 x 21 x 13" / 20 x 21 x 13 cm | | Kit Weight | 60 lb / 27.21 kg | | | | Package Weight | 70.0 lb | | Box Dimensions (LxWxH) | 24.5 x 23.7 x 16.4" |
