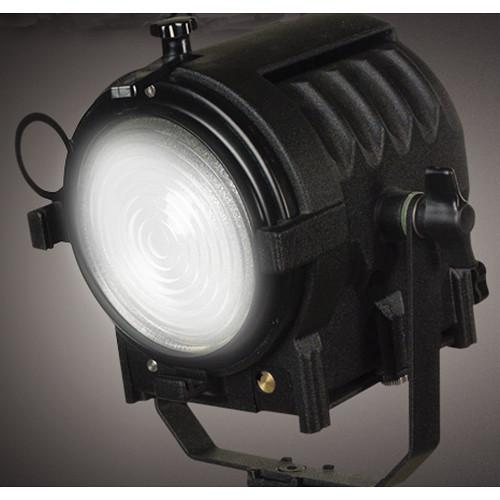

User Manual for K 5600 Lighting Alpha 200 1-Light Evolution Kit Click to enlarge the picture
Contents of the user manual for the K 5600 Lighting Alpha 200 1-Light
- Product category: HMI & Plasma Lights K 5600 Lighting
- Brand: K 5600 Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K 5600 Lighting HMI & Plasma Lights
|
User manual for the K 5600 Lighting Alpha 200 1-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K 5600 Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K 5600 Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K 5600 Lighting product will considerably shorten its lifespan!
|
Product description For versatile, on-the-go lighting, the Alpha 200 1-Light Evolution Kit from K5600 Lighting provides users with an Alpha 200 HMI head with a fresnel lens as well as a variety of common accessories, including 5600K and 3200K lamps, an electronic power supply, four-leaf barndoors, and a soft case to carry it all.
The Alpha 200 is a lightweight fresnel that accepts HMI and ceramic discharge lamps, allowing it to work with 5600K and 3200K lamps. It also can be used with a drop-in lens to give a focusing range of 10-60° for use in a wide range of situtions. Also, if used with a clear beaker it will produce a 90° light with crisp, hard shadows. - Alpha 200 HMI Head For versatile lighting in a compact package, the Alpha 200 HMI Head from K5600 Lighting is able to accept 200W HMI and ceramic discharge lamps, allowing users to change between 3200K and 5600K lighting by swapping out the lamps. The fresnel-style of this fixture is focusable from 10-60° for more control over the lighting and the light can accept a standard glass dome for a wider angle of coverage. Additionally, the head features a 9' cable for connection to a ballast.
- LCL 200W HMI Lamp for Joker 200 (Daylight) The K5600 LCL 200W HMI Lamp for Joker 200 is a 5600K discharge lamp that features a high lumen per watt ratio and provides 4 times more light output than a traditional tungsten bulb of the same rating. This lamp is compatible with the newer version of the Joker 200 that has a black cap on the back of the head. Older versions require # K5LJ200.
- LCL 200W HMI Lamp for Joker 200 (Tungsten) The K5600 LCL 200W HMI Lamp for Joker 200 is a 3200K discharge lamp that feature a high lumen per watt ratio and provides 4 times more light output than a traditional tungsten bulb of the same rating.
- Compact AC Power Supply for Joker 200 & Alpha 200 This Compact AC Power Supply from K5600 Lighting is designed to be a streamlined AC only unit for the Joker 200 and Alpha 200 lights which are included in the Evolution Kits. It features a universal 110/240 VAC rating for worldwide use.
- Evolution Lite-Pac Case This is a soft shell reinforced case designed to hold a Joker Bug 200W HMI head, ballast, cables, slim-vertor, lens, and spare bulb. Its interior consists of dense, pre-cut foam. The inside of the lid has a removeable touch fastener-locked section for accessories.
In the Box Bundle Items Alpha 200 HMI Head fqucwftxadueczuqtudwccsxszbzsd LCL 200W HMI Lamp for Joker 200 (Daylight) LCL 200W HMI Lamp for Joker 200 (Tungsten) Compact AC Power Supply for Joker 200 & Alpha 200 Evolution Lite-Pac Case
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Alpha 200 1-Light Evolution Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Alpha 200 HMI Head
| Rating | 200 W | | Lens (Condenser) | Fresnel, 5" (12.7 cm) diameter | | Beam Angle | 10-60° | | Mounting | Yoke | | Dimensions | 6.8 x 10.0 x 6.0" (17.1 x 25.4 x 15.2 cm) | | Weight | 4 lb (1.8 kg) | - LCL 200W HMI Lamp for Joker 200 (Daylight)
| Type | Single-ended HMI | | Watts | 200 W | | Color Temperature | 5,600K | | | | Box Dimensions (LxWxH) | 6.1 x 2.6 x 2.45" | - LCL 200W HMI Lamp for Joker 200 (Tungsten)
| Type | Single-ended HMI | | Watts | 200 W | | Color Temperature | 3,200K | | | | Box Dimensions (LxWxH) | 12.2 x 4.0 x 3.4" | - Compact AC Power Supply for Joker 200 & Alpha 200
| Power Requirements | 110/240 VAC, 50/60 Hz | | | | Box Dimensions (LxWxH) | 10.7 x 10.6 x 10.2" | - Evolution Lite-Pac Case
| | | Material of Construction | Cordura Nylon | | Exterior Dimensions (W x H x D) | 18 x 13 x 8.5" / 46 x 22 x 47 cm | | Weight | 7 lb / 3.2 kg | | | | Box Dimensions (LxWxH) | 18.5 x 14.0 x 9.5" |
