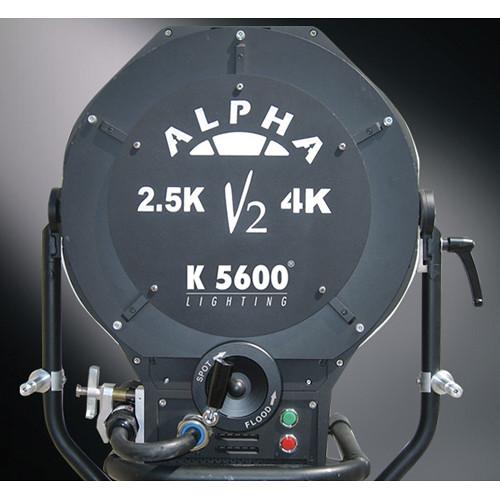

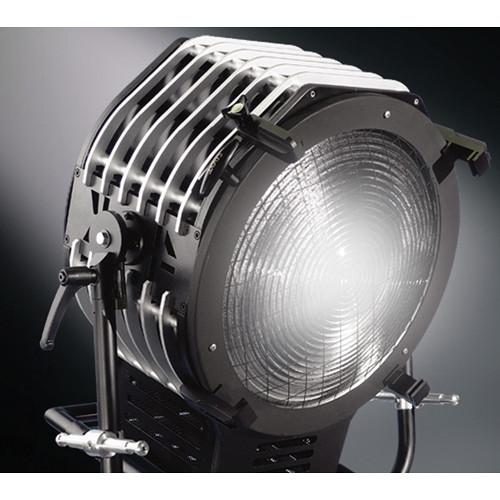

Product description The K5600 Alpha 4K is a unique HMI head that employs a revolutionary design which pairs a high efficiency quartz composite reflector, which out-performs aluminum reflectors by 15%, with structural air vents that allow the head to run cool enough to angle straight down during operation. The "Open-Eye" construction permits a slim 13.4" profile which accepts front accessories including lenses that make the Alpha 4K the smallest 4K Fresnel around.This K5600 Alpha 4K Kit includes the fixture, a spot Fresnel lens, and a barndoor set. The wide, sturdy yoke has a junior 1 1/8" male mounting stud, while two double 5/8" studs are affixed to it to accept grip gear and accessories. The Alpha 4K will accept 2.5K or 4K HMI lamps. The kit does not come with a ballast or head extension cable. Contact K5600 to have a ballast and cable manufactured to your specifications. Note: Ballast and extension head cable not included. Contact K5600 to have a ballast and cable made to your specific requirements. - Extremely Lightweight and Compact
- This "Open -Eye" HMI fixture converts to a very small Fresnel via the included unique drop-in flood and spot Fresnel lenses.
- Reflector and Chariot
- Revolutionary quartz composite reflector is 15% brighter than standard aluminum reflectors
- Cooling

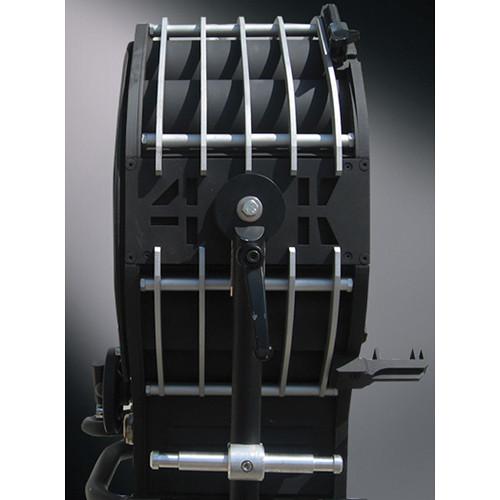

- The combination of the quartz composite reflector with computer designed, structural air vents provides efficient convection cooling in any operating position. You can even point it straight down.
- Lamp Suspension
- Quick, safe release of the lamp via a simple latch on the ceramic G38 socket. Fast quartz reflector adjustment for operating with a 2.5K lamp if desired.

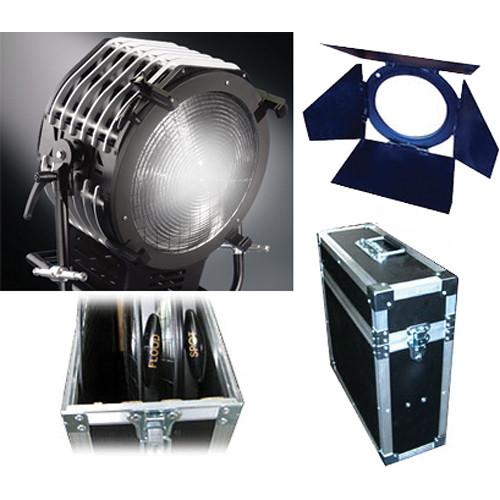

In the Box K 5600 Lighting Alpha 4K Kit Alpha 4K Fixture Spot Fresnel Lens Barndoor Set 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Alpha 4K Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Alpha 4K Specs | Rating | 2.5 / 4K | | Socket (Lampholder) | G38 | | Ballast | Optional, made to user's spec | | Lens (Condenser) | Clear ceramic lens (built-in)
Spot Fresnel (included)
Flood Fresnel (optional) | | Photometrics | With clear ceramic lens @ 10' (3.0 m)
528 fc, horizontal beam @ 50% max. fc: 50' (15.2 m)
With flood Fresnel lens @ 10' (3.0 m)
1,243 fc, horizontal beam @ 50% max. fc: 11.7' (3.5 m)
With spot Fresnel lens @ 10' (3.0 m)
23,994 fc, horizontal beam @ 50% max. fc: 1.0' (0.30 m) | | Mounting | Junior male stud: 1 1/8" (28.57 mm)
2x Double male 5/8" (16 mm) studs on yoke for grip gear | | Dimensions | Top to bottom: 24.4" (62 cm)
Depth: 13.4" (34 cm) | | Weight | 40 lb (18.2 kg)
Each lens: 6.0 lb (2.72 kg) |
