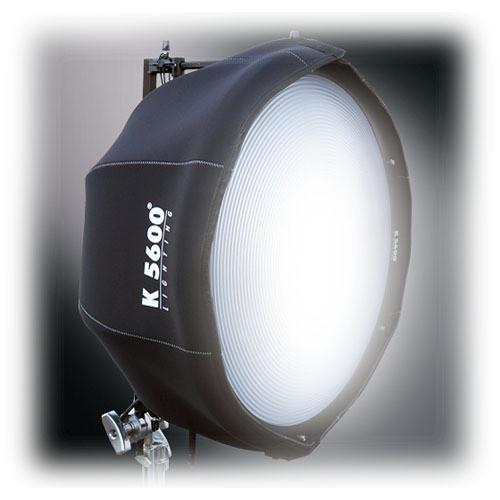

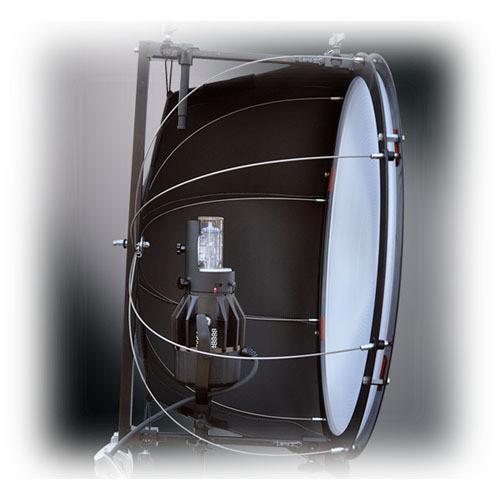

Product description The Big Eye Fresnel is an accessory for the Joker 200, 400 and 800 HMI fixtures that give 18K-type light quality without the weight of the standard Fresnel. The K5600 Big Eye Fresnel Kit is comprised of a shroud supported by a special reflector and structural assembly. The included 24" polymer Fresnel lens combined with your Joker's focusing ability yield a spot to flood range of 10 - 60°.
The result is a clean, soft light with a crisp edge similar to natural sunlight coming through a window. Besides the elements mentioned above, the kit also includes a Joker adapter and carrying bag. In the Box K 5600 Lighting Big Eye Fresnel Kit Shroud Structural Assembly Reflector for Shroud Structural Assembly Joker 200/400/800 Adapter 24" Polymer Fresnel Lens Carrying Bag 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Big Eye Fresnel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting K0900BE Specs | Rating | 800W HMI max. | | Socket (Lampholder) | Joker 200, 400, 800 lamp base | | Ballast | Depends on Joker used for source | | Lens (Condenser) | 24" polymer Fresnel | | Mounting | 5/8" (16 mm) stud | | Photometrics | With Joker 200 with Big Eye and Spot Fresnel @ 10' (3.0 m)
470 fc, 1.3' (396.2 mm) beam diameter
With Joker 400 with Big Eye and Spot Fresnel @ 10' (3.0 m)
853 fc, 1.2' (365.7 mm) beam diameter
With Joker 800 with Big Eye and Spot Fresnel @ 10' (3.0 m)
1,987 fc, 1.4' (426.7 mm) beam diameter
With Joker 200 with Big Eye and Flood Fresnel @ 10' (3.0 m)
76 fc, 14.3' (4.35 m) beam diameter
With Joker 400 with Big Eye and Spot Fresnel @ 10' (3.0 m)
151 fc, 11.4' (3.5 m) beam diameter
With Joker 800 with Big Eye and Spot Fresnel @ 10' (3.0 m)
341 fc, 11.9' (3.6 m) beam diameter | | Dimensions | Diameter: 26" (66 cm)
Depth: 15" (38 cm) | | Weight | 20 lb (9.0 kg) | | | | Package Weight | 29.6 lb | | Box Dimensions (LxWxH) | 35.0 x 35.0 x 8.0" |
