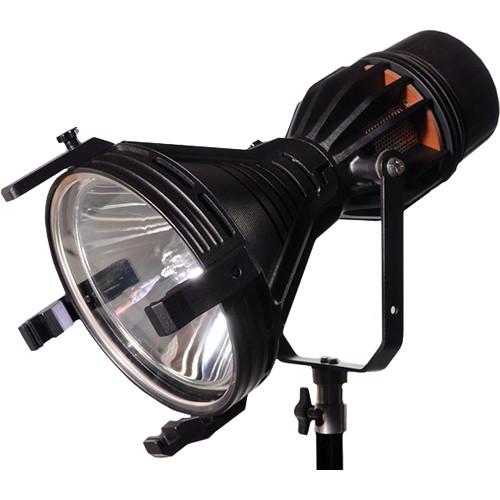

User Manual for K 5600 Lighting Joker 1600 Bug-Lite HMI Head Click to enlarge the picture
Contents of the user manual for the K 5600 Lighting Joker 1600 Bug-Lite
- Product category: HMI & Plasma Lights K 5600 Lighting
- Brand: K 5600 Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K 5600 Lighting HMI & Plasma Lights
|
User manual for the K 5600 Lighting Joker 1600 Bug-Lite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K 5600 Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K 5600 Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K 5600 Lighting product will considerably shorten its lifespan!
|
Product description The K5600 Joker 1600 Bug-Lite HMI Head is a powerful continuation of the Joker generation of daylight HMI fixtures. At 1,600W, the Joker 1600 is comparable to over 6,000W of quartz output and produces twice as much, or one full stop more light, as the Joker 800. The bare bulb head ships with a 9.0' head cable, frosted glass Beaker lamp protector and safety wire. An optional Bug-Lite Octo speed ring that fits Chimera and other major brand heat-resistant softboxes is available. The fixture is compatible with Beamer and Zoom Beamer reflectors and a host of lenses, scrims, barndoors and other accessories. Note: The Joker 1600 requires a 1,600W electronic ballast and an HMI lamp for use. For complete specs on select items included with this product please click on the links below: Frosted Beaker
Beaker Safety Wire - JokerBug 1600 Bug-Lite - Not Just Another HMI
- At 1,600W, the Joker 1600 is comparable to over 6,000W of quartz fixture output and produces twice as much, or one full stop more light, as the Joker 800.
- The Electronic Power Supply
- The (required, purchased separately) power supply is not only quiet, but smaller than comparable ballasts (even those of less wattage). It's capable of running on a 15A/120V circuit, is dimmable, and has selectable frequency options for extreme high speed shooting.
In the Box K 5600 Lighting Joker 1600 Bug-Lite HMI Head (Frosted Beaker) 9.0' Head Cable Frosted Glass UV Beaker for Joker 1600 fzdcuztuwbcadsufy Beaker Safety Wire and Bug Ring for Joker 1600 fzdcuztuwbcadsufy 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Joker 1600 Bug-Lite HMI Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Joker 1600 Specs | Rating | 1,600W HMI | | Socket | G22, highly insulated for hot retsrike | | Lamp | HMI 1,600W CSR/SE single-ended (purchased separately)
Lamp life: 700 hours | | Color Temperature | Approximately 5,600K | | Reflector | Optional Beamer and Zoom Beamer | | Lens | Optional | | Cable | 9.0' (2.74 m) | | Mount | Dual: 5/8" (16 mm) Baby pin and 1 1/8" (28 mm) Junior pin | | Construction | Yoke: steel; black high temperature finish | | Dimensions | With optional Beamer:
Length: 18.5" (47 cm)
Beamer diameter: 11" (28 cm)
Fixture (rear): 5.5" (14 cm) | | Weight | 15 lb (6.9 kg) including optional Beamer |
