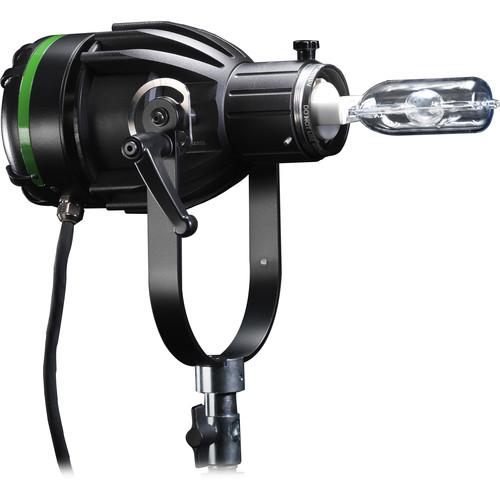

User Manual for K 5600 Lighting Joker2 1600W Head with Cable Click to enlarge the picture
Contents of the user manual for the K 5600 Lighting Joker2 1600W Head
- Product category: HMI & Plasma Lights K 5600 Lighting
- Brand: K 5600 Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K 5600 Lighting HMI & Plasma Lights
|
User manual for the K 5600 Lighting Joker2 1600W Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K 5600 Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K 5600 Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K 5600 Lighting product will considerably shorten its lifespan!
|
Product description The Joker2 1600 with Cable from K 5600 Lighting is a 1600W controllable light source designed for use on film, television, and still sets. Featuring a threaded screw-on ring, the Joker2 1600 allows for quick and tool-less relamping between separately available 3200K and 5600K HMI lamps. The threaded ring also allows you to mount a clear or frosted borosilicate beaker around the lens (beakers and lenses available separately). Additionally, the head incorporates a plug-in igniter designed to convert from HMI to 2K tungsten in less than a minute.
The Joker2 has an integrated three-axis yoke for flexible placement, and a braking system that ensures the system can support larger light shapers such as light banks, ellipsoid spots, and Softubes. For power, the head uses a separately available fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing for control using a smartphone or tablet. In the Box K 5600 Lighting Joker2 1600W Head with Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Joker2 1600W Head with Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Joker2 1600 Specs Wattage | 1600 W | Photometrics | At 9.8' / 3 m
Without Lens: 445,000 lux With Medium Lens: 70,000 lux With Wide Lens: 24,300 lux With Super-Wide Lens: 14,100 lux With Frosted Fresnel Lens: 17,900 lux
At 16.4' / 5 m
Without Lens: 160,200 lux With Medium Lens: 25,200 lux With Wide Lens: 8748 lux With Super-Wide Lens: 5076 lux With Frosted Fresnel Lens: 6444 lux
At 32.8' / 10 m
Without Lens: 40,050 lux With Medium Lens: 6300 lux With Wide Lens: 2187 lux With Super-Wide Lens: 1269 lux With Frosted Fresnel Lens: 1611 lux
With Zoom Beamer
At 9.8' / 3 m: 83,000 lux spot, 14,000 lux flood At 16.4' / 5 m: 29,880 lux spot, 5040 lux flood At 32.8' / 10 m: 7470 lux spot, 1260 lux flood Lenses and beamers not included | Connector | Veam quarter-turn quick-locking | Cable | 9' / 2.7 m, attached to head | Power Consumption | 7.4 A at 230 V, 16 A at 110 V | Dimensions | 19.25 x 10.00" / 48.9 x 25.4 cm | Weight | 14.4 lb / 6.5 kg |
