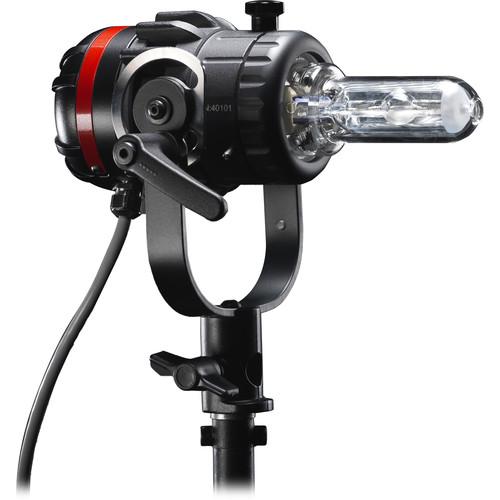

User Manual for K 5600 Lighting Joker2 400W Head with Cable Click to enlarge the picture
Contents of the user manual for the K 5600 Lighting Joker2 400W Head
- Product category: HMI & Plasma Lights K 5600 Lighting
- Brand: K 5600 Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K 5600 Lighting HMI & Plasma Lights
|
User manual for the K 5600 Lighting Joker2 400W Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K 5600 Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K 5600 Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K 5600 Lighting product will considerably shorten its lifespan!
|
Product description The Joker2 400 with Cable from K 5600 Lighting is a 400W controllable light source designed for use on film, television, and still sets. Featuring a threaded screw-on ring, the Joker2 400 allows for quick and tool-less relamping between separately available 3200K and 5600K HMI lamps. The threaded ring also allows you to mount a clear or frosted borosilicate beaker around the lens (beakers and lenses available separately). Additionally, the head incorporates a plug-in igniter designed to convert from HMI to 2K tungsten in less than a minute.
The Joker2 has an integrated three-axis yoke for flexible placement, and a braking system that ensures the system can support larger light shapers such as light banks, ellipsoid spots, and Softubes. For power, the head uses a separately available fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing for control using a smartphone or tablet. In the Box K 5600 Lighting Joker2 400W Head with Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Joker2 400W Head with Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Joker2 400 Specs | Wattage | 400 W | | Photometrics | At 9.8' / 3 m
Without Lens: 95,000 lux
With Medium Lens: 14,200 lux
With Wide Lens: 5000 lux
With Super-Wide Lens: 2400 lux
With Frosted Fresnel Lens: 2500 lux
At 16.4' / 5 m
Without Lens: 34,200 lux
With Medium Lens: 5112 lux
With Wide Lens: 1800 lux
With Super-Wide Lens: 864 lux
With Frosted Fresnel Lens: 900 lux
At 32.8' / 10 m
Without Lens: 8550 lux
With Medium Lens: 1278 lux
With Wide Lens: 450 lux
With Super-Wide Lens: 216 lux
With Frosted Fresnel Lens: 225 lux Lenses and beamers not included | | Connector | Veam quarter-turn quick-locking | | Cable | 9' / 2.7 m, attached to head | | Power Consumption | 1.9 A at 230 V | | Dimensions | 10.25 x 7.25" / 26.0 x 18.4 cm | | Weight | 5.2 lb / 2.4 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
