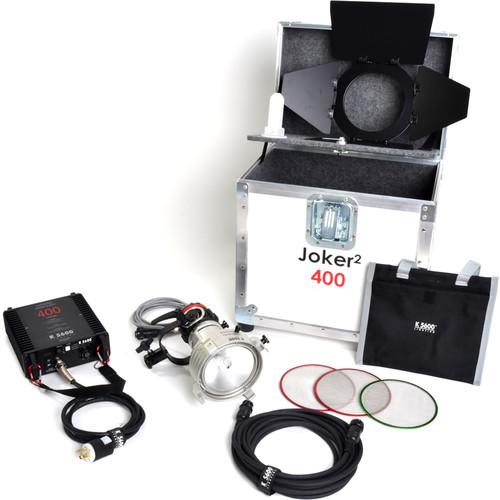

Product description Live up to the fast pace of journalism and news production with the Joker2 400W News Kit from K 5600 Lighting. Built around a Joker2 400W head with a 5600K HMI lamp, this kit comes with an optical News Beamer that allows for quick focus of the Joker2's open face. This setup enables you to project varying beam patterns without the need for lenses. The head is powered by the included fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, enabling control using a smartphone or tablet.
Further accessories included in the kit are a 25' head feeder extension cable, which will come in handy whenever you want to boom your Joker2 or put it in a hard-to-reach place, and a frosted glass beaker, which can be used instead of the clear glass beaker to get a nice diffused soft effect right at the source. Also provided are full double and single scrims, a four-leaf barndoor, a lens bag, and a carrying case. - Joker2 400W Head with Cable The Joker2 400 with Cable from K 5600 Lighting is a 400W controllable light source designed for use on film, television, and still sets. Featuring a threaded screw-on ring, the Joker2 400 allows for quick and tool-less relamping between separately available 3200K and 5600K HMI lamps. The threaded ring also allows you to mount a clear or frosted borosilicate beaker around the lens (beakers and lenses available separately). Additionally, the head incorporates a plug-in igniter designed to convert from HMI to 2K tungsten in less than a minute.
The Joker2 has an integrated three-axis yoke for flexible placement, and a braking system that ensures the system can support larger light shapers such as light banks, ellipsoid spots, and Softubes. For power, the head uses a separately available fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing for control using a smartphone or tablet. - MSR400/HR (400w/70v) HMI LAMP The Philips MSR400/HR (200W/70V) HMI Lamp is a hot-restrike bulb with a color temperature of 5,600K, a GZZ9.5 base and a 750 hour lamp life. It is used in stage, studio, theatrical and entertainment fixtures.
- 400W High-Speed Dimmable Ballast Run your Joker2 400W on this dedicated 400W High-Speed Dimmable Ballast from K 5600 Lighting. Able to work at frequencies of 300 or 1000 Hz, this ballast is designed to enable high-speed shots. It offers built-in wireless DMX via LumenRadio for control via a smartphone or tablet.
- Beamer, News for Joker Bug 400W Allows focusing of the open face Joker Bug 400 with a quick turn of the ring. No lenses needed.
- Extension Cable for Joker 200, 400, 800, Blackjack 400 - 25' The K5600 C0900U 25' Extension Cable connects the Joker 200, 400, 800 integral light head cable to a ballast. It is a VEAM type, with quarter-turn lock. The C0900U cable is also compatible with the Blackjack 400 head.
- Full Double Scrim for Joker 400W (6 5/8") This is a Full Double Scrim for the K5600 Joker-Bug 400W HMI or any other fixture that accepts a 6 5/8" accessory.Full scrims dim the light across the entire beam spread, and 1/2 and graduated scrims are used to even the beam spread when lighting a subject or background from an angle.Keep several densities of scrims available to be prepared for any lighting situation.
- Full Single Scrim for Joker Bug 400W Placed in the light's accessory channel, the Full Single Scrim for Joker Bug 400W from K5600 subtracts a 1/2 stop of light from the Joker's output without moving the light further away to reduce light intensity.
- 4-Leaf Barndoors for Joker 400 These K5600 4-Leaf Barndoors for Joker 400 have four leaves that can be adjusted. Barndoors attach to the front of a light and are used to restrict light from areas of a set.
- Beaker - Frosted Glass for Joker Bug 400W The Frosted Beaker is used on the Joker-Bug 400 with accessories such as lanterns where the point source is not desirable. It also helps clean up Par lens aberrations, as well as soften the harsh spot achieved without a lens.
- Beaker - Clear Glass This glass filter comes standard with all Joker-Bug 400 Fixtures. Its purpose is to protect the HMI bulb. It also acts as a UV Filter, slightly warming the color temperature.
- Lens Bag with Partitions for Joker 400 Lenses (4-Count) The heavy-duty Lens Bag with Partitions from K5600 Lighting is designed to hold four Joker-Bug 400 lenses, which are 6-5/8" in diameter each.
- Carrying Case for Joker Bug 400 or Joker News 400 Outfit The Carrying Case for Joker Bug 400 or Joker News 400 Outfit is a White ABS plastic over plywood transit case made to transport a K5600 Joker Bug 400 or Joker News 400 lighting outfit. The case features lid storage, recessed butterfly latches, metal ball corners and recessed handles and wheels. The case is stackable with locking latches to hold them together.
- Hard white plastic ABS over plywood case made to transport a lighting outfit
- Replaceable foam inserts customized to fit the K5600 light
- Recessed butterfly latches
- Carrying Options
- Recessed handles, Recessed wheels
- Stackable with locking latches
- Compatible with K5600 Joker Bug 400 or Jokere News 400 lighting outfit
In the Box Bundle Items Joker2 400W Head with Cable butxyrvssbuftqfufqdffutfr MSR400/HR (400w/70v) HMI LAMP 400W High-Speed Dimmable Ballast Beamer, News for Joker Bug 400W Extension Cable for Joker 200, 400, 800, Blackjack 400 - 25' - 1 Year Manufacturer's Warranty
2 x Full Double Scrim for Joker 400W (6 5/8") Full Single Scrim for Joker Bug 400W 4-Leaf Barndoors for Joker 400 Beaker - Frosted Glass for Joker Bug 400W Beaker - Clear Glass Lens Bag with Partitions for Joker 400 Lenses (4-Count) Carrying Case for Joker Bug 400 or Joker News 400 Outfit - Limited 1-Year Manufacturer's Warranty Against Defects
